| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | 10511 metric hose fittings |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Metric Male Fittings | Model: | 10511 Metric Hose Fittings |
|---|---|---|---|
| Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
| Technics: | Hot Forge ,CNC Machine | Connection: | Female |
| Surface Treatment: | Trivalent Zinc Plated | Application: | Industry Excavator |
| Assemble Way: | Crimp,lock On | Size: | 1/4"-2" |
| Type: | Hydraulic Filters | Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic |
| High Light: | 10512 hydraulic hose fitting adapters,npt hydraulic hose fitting adapters,10512 sae hydraulic adapter |
||

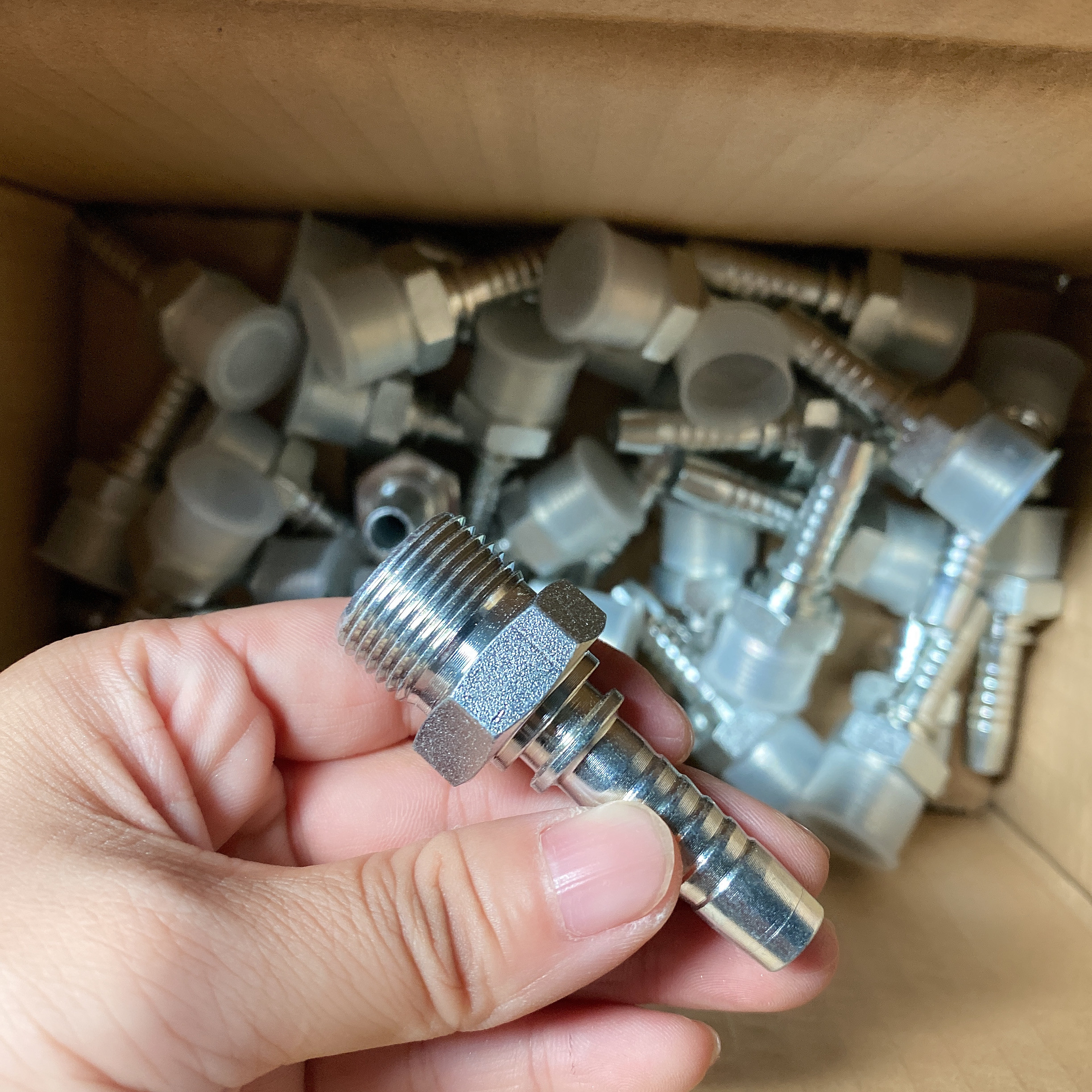

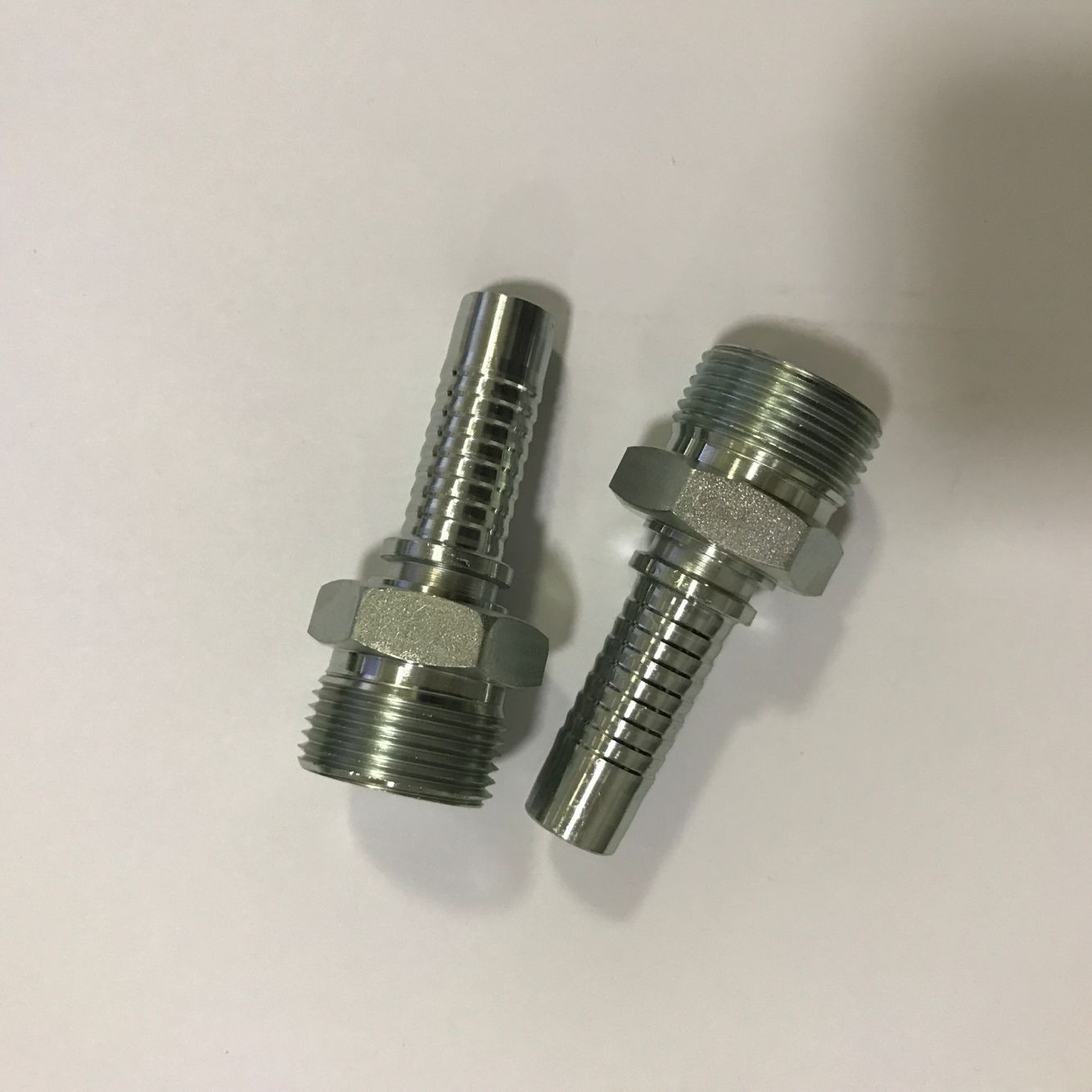

Product Name
10512 Metric Thread Hydraulic Hose Fittings NPT/ JIC/ SAE/ BSP/ METRIC Reusable Hydraulic Adapter Hose Fitting
Various of kinds size for selection
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | THREAD E | DN | DASH | TUBE O.D. | A | C | S1 |
| 10511-14-04 | M14*1.5 | 6 | 4 | 6 | 24.1 | 12 | 14 |
| 10511-16-04 | M16*1.5 | 6 | 4 | 8 | 26.5 | 12 | 17 |
| 10511-18-04 | M18*1.5 | 6 | 4 | 10 | 26.5 | 12 | 19 |
| 10511-20-05 | M20*1.5 | 8 | 5 | 12 | 27 | 12 | 22 |
| 10511-20-06 | M20*1.5 | 10 | 6 | 12 | 26.5 | 12 | 22 |
| 10511-22-05 | M22*1.5 | 8 | 5 | 14 | 30.5 | 14 | 24 |
| 10511-22-06 | M22*1.5 | 10 | 6 | 14 | 30.5 | 14 | 24 |
| 10511-22-08 | M22*1.5 | 12 | 8 | 14 | 31 | 14 | 24 |
| 10511-24-08 | M24*1.5 | 12 | 8 | 16 | 31.5 | 14 | 27 |
| 10511-30-10 | M30*2 | 16 | 10 | 20 | 36 | 16 | 32 |
| 10511-30-12 | M30*2 | 20 | 12 | 20 | 36 | 16 | 32 |
| 10511-36-12 | M36*2 | 20 | 12 | 25 | 40.5 | 18 | 38 |
| 10511-36-16 | M36*2 | 25 | 16 | 25 | 41.5 | 18 | 38 |
| 10511-42-16 | M42*2 | 25 | 16 | 30 | 44 | 20 | 46 |
| 10511-42-20 | M42*2 | 32 | 20 | 30 | 45 | 20 | 46 |
| 10511-52-20 | M52*2 | 32 | 20 | 38 | 50 | 22 | 55 |
|
Warranty
|
1 Year
|
|
Product name
|
hydraulic hose fittings
|
|
Material
|
carbon steel or stainless steel
|
|
Application
|
for R1/R2 hydraulic hose
|
|
Color
|
White Zinc Plated
|
|
Standard
|
imitation Parker standard
|
|
Pressure
|
High Pressure Hydraulic Pipeline
|
|
Surface treatment
|
Zinc Plating
|
|
Delivery time
|
1-5 Days
|
|
Payment
|
T/T
|
|
Services
|
Professsional Service 24 hours online
|
