| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | Carter hose flange |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Carter Hose Flange | Model: | SAE Flange |
|---|---|---|---|
| Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
| Technics: | Hot Forge ,CNC Machine | Surface Treatment: | Trivalent Zinc Plated |
| Application: | Industry Excavator | Assemble Way: | Crimp,lock On |
| Size: | 1/4"-2" | Type: | Hydraulic Filters |
| Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic | ||
| High Light: | 87992 hydraulic hose flange fitting,9000psi hydraulic hose flange fitting,sae hydraulic hose 90 elbow |
||
Product Name

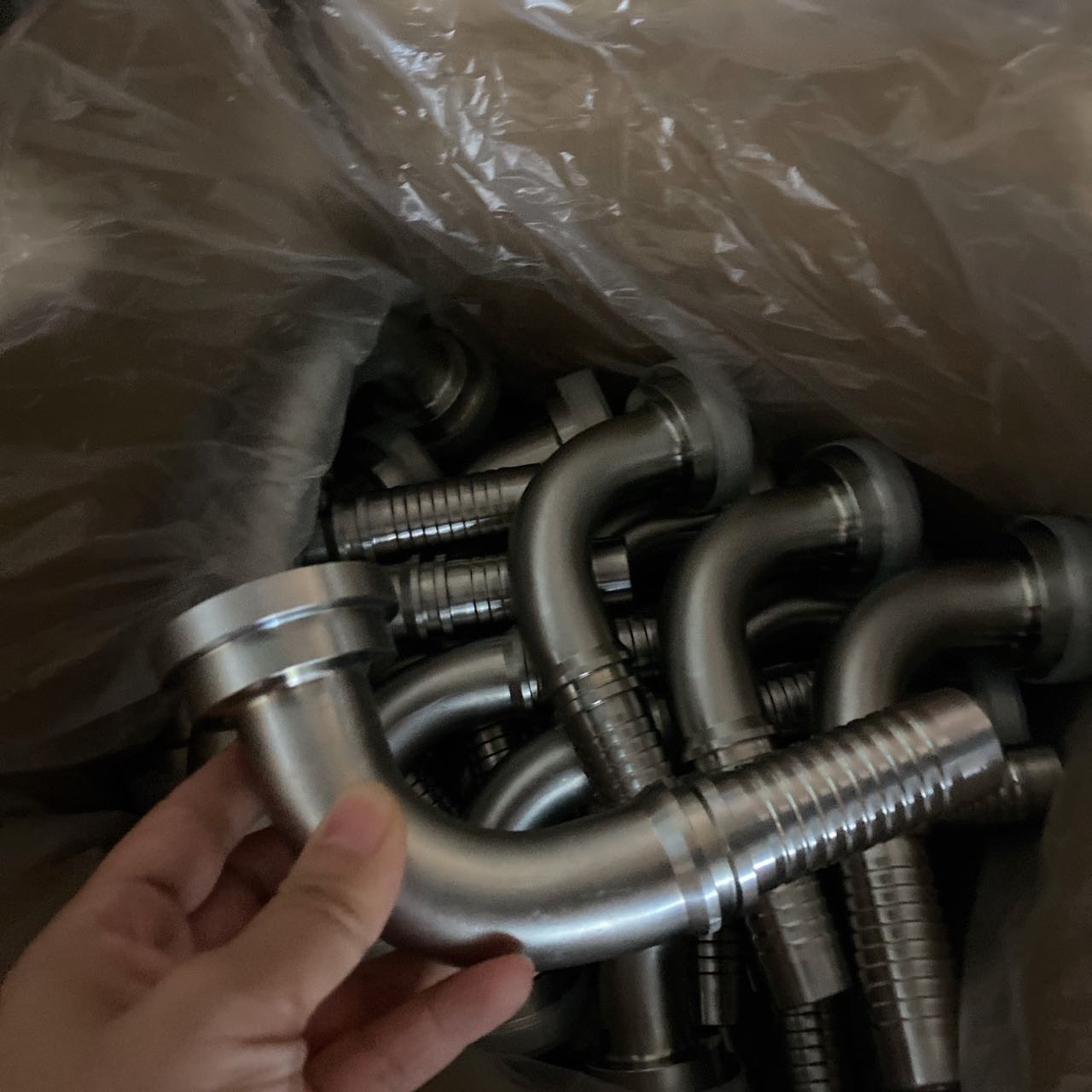

87992 9000PSI Flange Elbow SAE Flange Pipe Fitting 90 Degree Elbow SAE Hydraulic Hose Flange
| HOSE BORE | DIMENSIONS | |||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | H | L |
| 87993-12-12 | 3/4" | 20 | 12 | 75 | 41.3 | 31.7 | 71.5 | 14.3 |
| 87691-16-12 | 1" | 20 | 12 | 75 | 47.6 | 38 | 73 | 14.3 |
| 87993-16-16 | 1" | 25 | 16 | 88.9 | 47.6 | 38 | 78.5 | 14.3 |
| 87691-20-16 | 1.1/4" | 25 | 16 | 88.9 | 54 | 43 | 79.5 | 14.3 |
| 87993-20-20 | 1.1/4" | 32 | 20 | 105.8 | 54 | 43 | 90.5 | 14.3 |
| 87993-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 50.8 | 91.5 | 14.3 |
| 87993-24-24 | 1.1/2" | 40 | 24 | 124.2 | 63.5 | 50.8 | 105 | 14.3 |
hydraulic hose fittings are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
