| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | hydraulic hose flange |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Hydraulic Hose Flanve | Model: | SAE Flange |
|---|---|---|---|
| Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
| Technics: | Hot Forge ,CNC Machine | Surface Treatment: | Trivalent Zinc Plated |
| Application: | Industry Excavator | Assemble Way: | Crimp,lock On |
| Size: | 1/4"-2" | Type: | Hydraulic Filters |
| Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic | ||
| High Light: | sae 1 inch hydraulic hose fittings,3000psi 1 inch hydraulic hose fittings,forged flange hydraulic crimp hose fittings |
||
Product Name

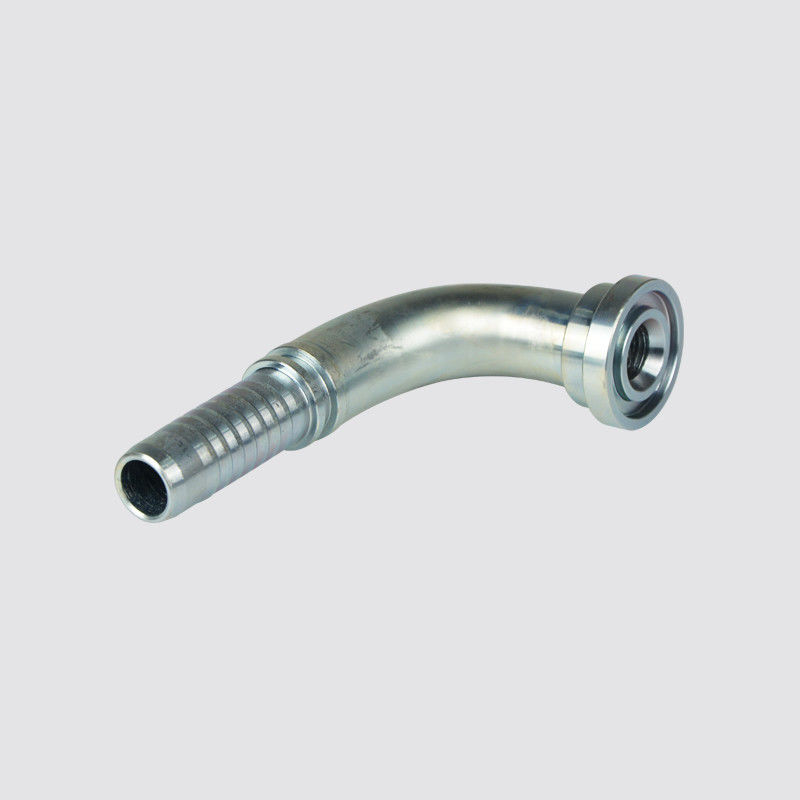

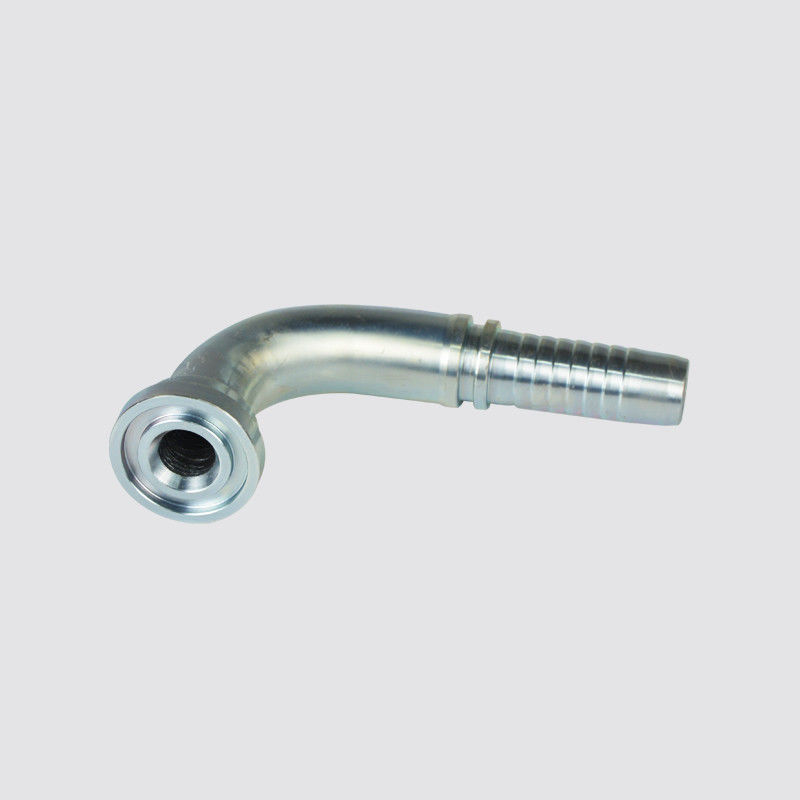

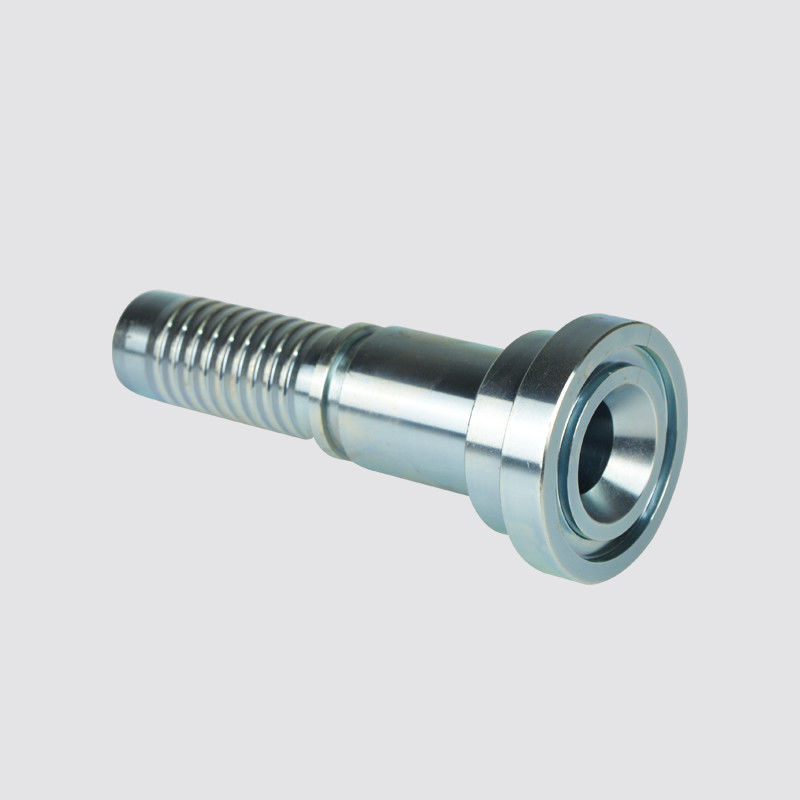

SAE flange 3000psi Hydraulic Hose End Fittings Forged Flange Hydraulic Hose Flange
SAE flange are production according the EATON standard ,in normal ,we used the carbon steel ,stainless steel and brass material ,if you have production quantities ,we can supply the material according to your requirement
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | L |
| 87312-08-08 | 1/2" | 12 | 8 | 46 | 30.2 | 24 | 6.73 |
| 87312-12-08 | 3/4" | 12 | 8 | 47 | 38.1 | 31.7 | 6.73 |
| 87312-12-10 | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 |
| 87312-12-12 | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87312-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 87312-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87312-16-16 | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 |
| 87312-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 87312-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 87312-20-20 | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 |
| 87312-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 87312-24-24 | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 |
| 87312-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 87312-32-32 | 2" | 50 | 32 | 70 | 71.4 | 62 | 9.53 |
| 87312-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
