| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | hydraulic hose adapter |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Hydraulic Hose Adapter | Material: | Stainless Steel Or Carbon Steel |
|---|---|---|---|
| Suitable Medium: | Water / Oil / Gas | Technics: | Hot Forge ,CNC Machine |
| Surface Treatment: | Trivalent Zinc Plated | Application: | Industry Excavator |
| Assemble Way: | Crimp,lock On | Size: | 1/4"-2" |
| Type: | Hydraulic Filters | Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic |
| High Light: | female jic hydraulic hose fittings,1/4" jic hydraulic hose adapter,1/4 inch hydraulic hose adapter |
||
Product Name

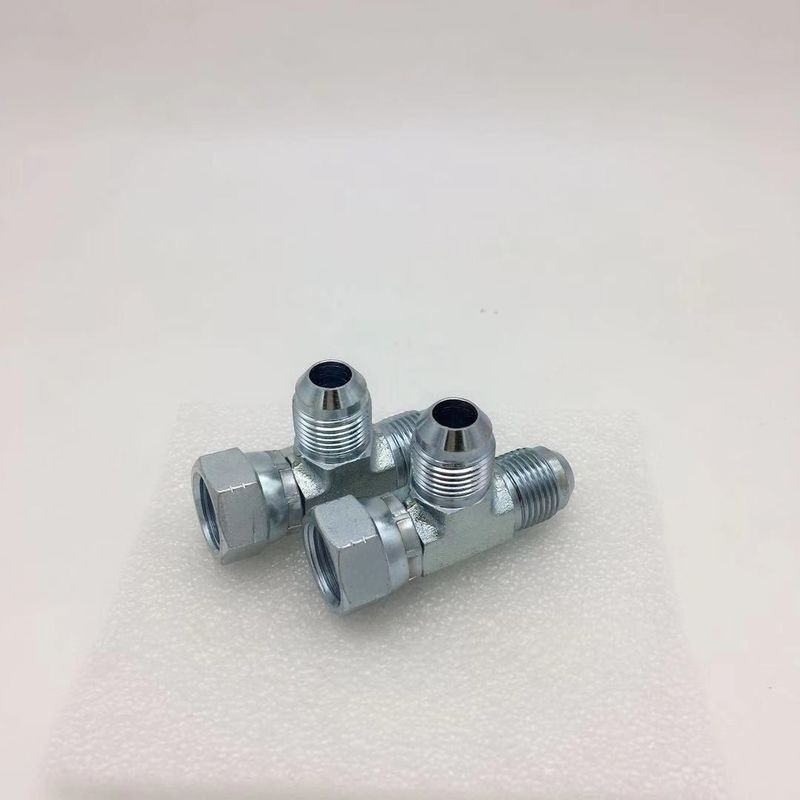

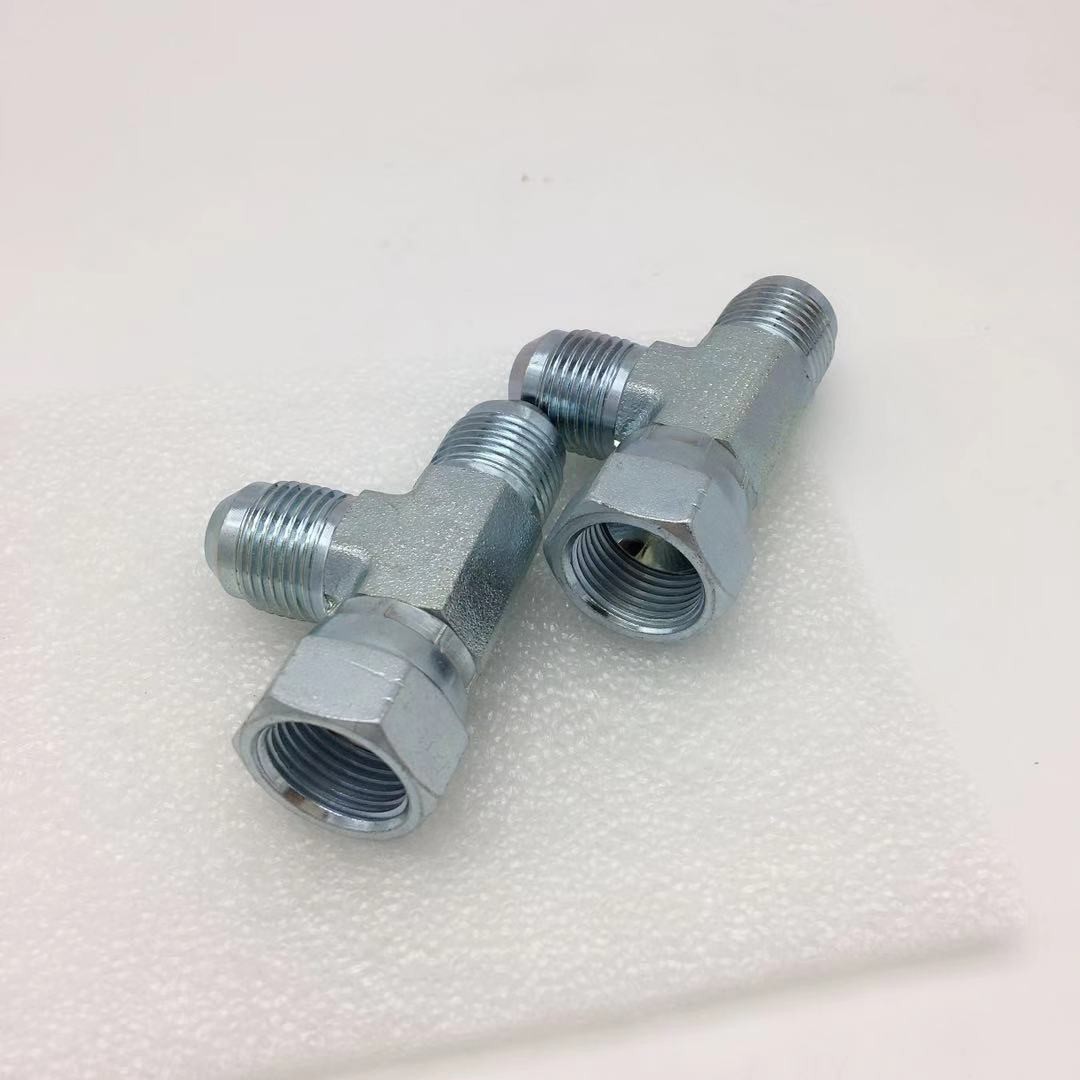

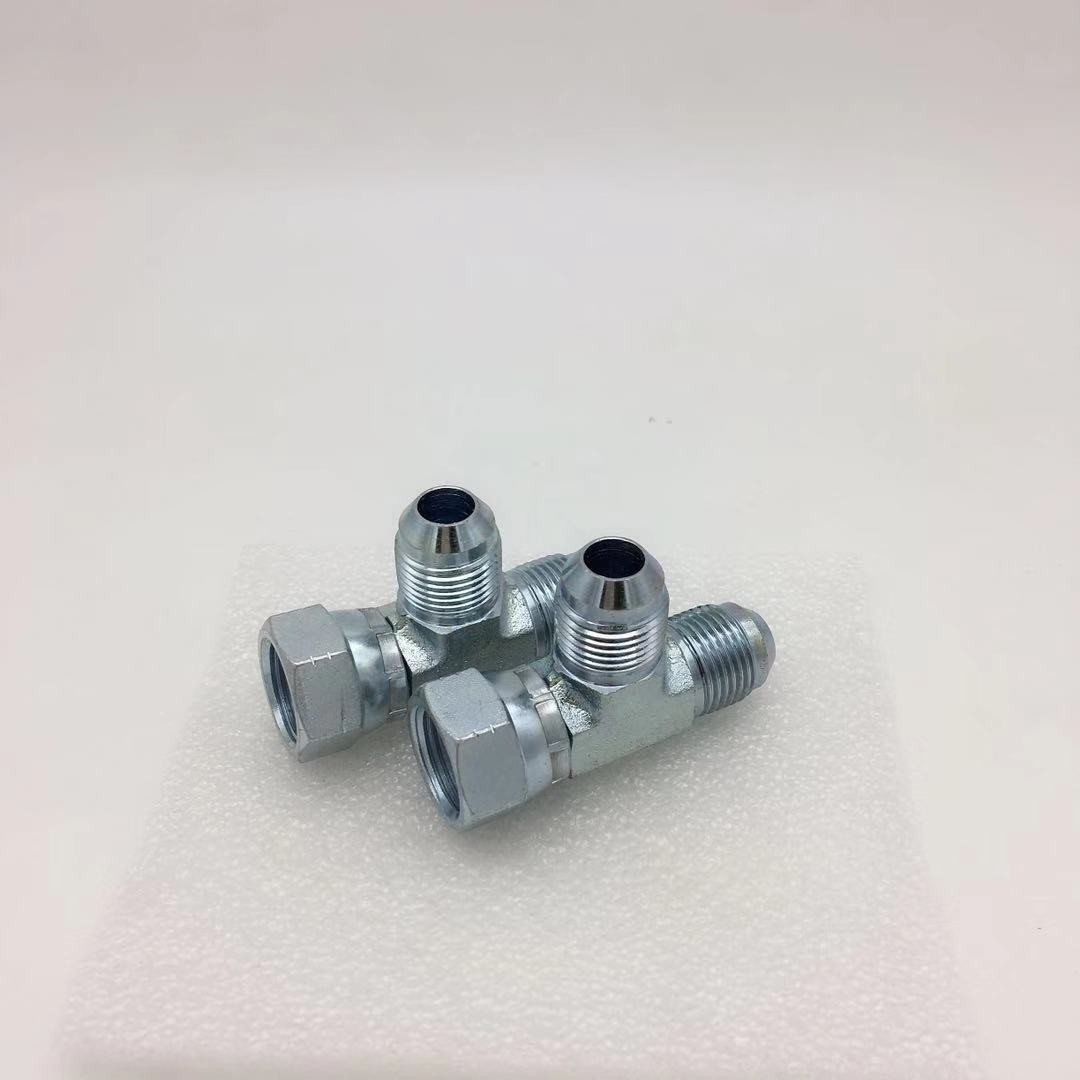

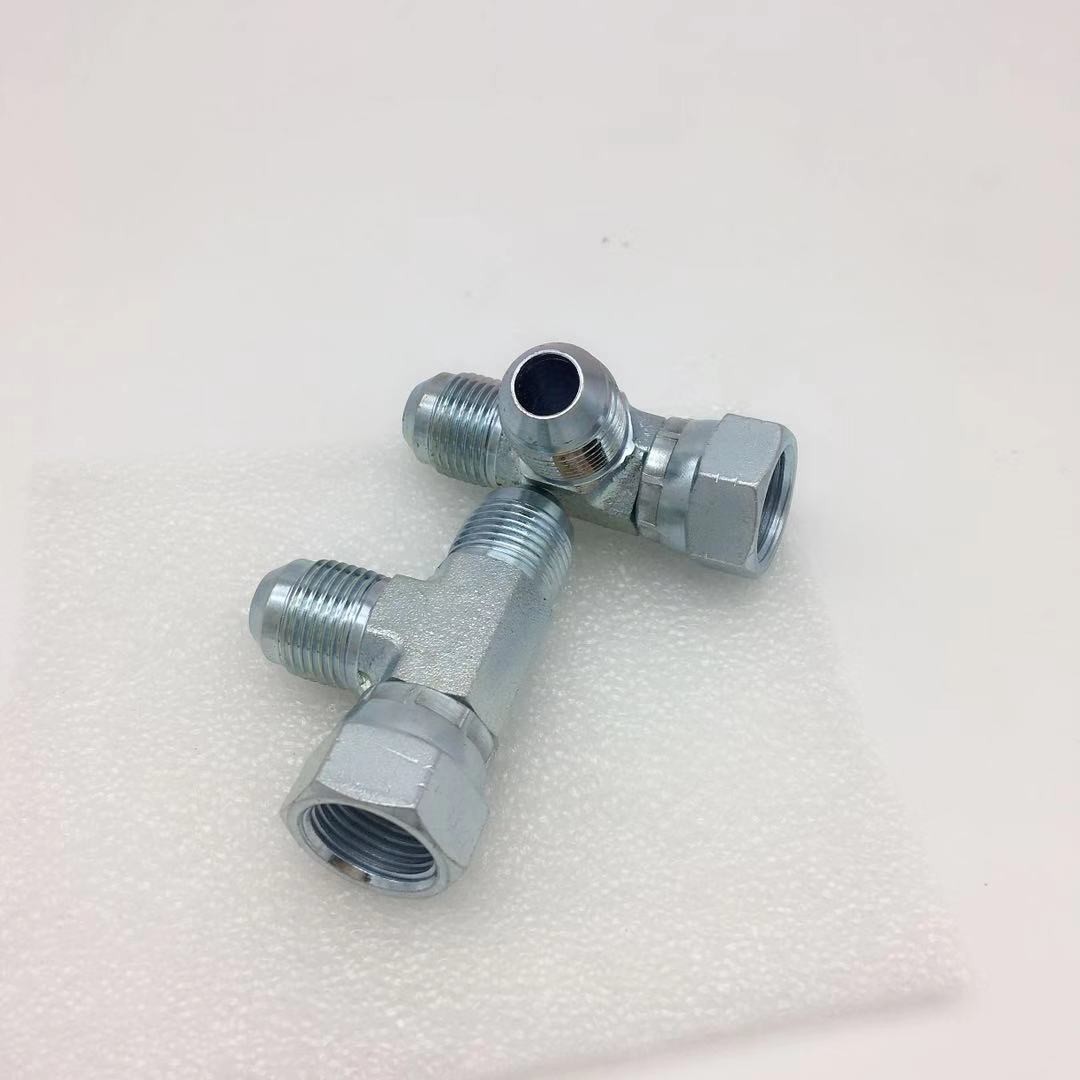

Wholesale JIC Female Hydraulic Hose Fittings TEE Adapter Hydraulic Hose Adapter Hydraulic Hose Tee Adapter
| THREAD | DIMENSIONS | |||||||
| PART NO. | E | F | G | A | B | C | S1 | S2 |
| CJ-04 | 7/16"X20 | 7/16"X20 | 7/16"X20 | 24.5 | 24.5 | 9 | 11 | 15 |
| CJ-05 | 1/2"X20 | 1/2"X20 | 1/2"X20 | 26.6 | 26.6 | 9.5 | 14 | 17 |
| CJ-06 | 9/16"X18 | 9/16"X18 | 9/16"X18 | 26.9 | 26.9 | 10.5 | 14 | 19 |
| CJ-08 | 3/4"X16 | 3/4"X16 | 3/4"X16 | 32 | 32 | 9.5 | 19 | 24 |
| CJ-10 | 7/8"X14 | 7/8"X14 | 7/8"X14 | 37.8 | 37.8 | 13 | 22 | 27 |
| CJ-10-08 | 7/8"X14 | 7/8"X14 | 7/8"X14 | 37.8 | 34 | 13 | 22 | 27 |
| CJ-12 | 1.1/16"X12 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 44.2 | 15 | 27 | 32 |
| CJ-12-08 | 1.1/16"X12 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 37.9 | 15 | 27 | 32 |
| CJ-14 | 1.3/16"X12 | 1.3/16"X12 | 1.3/16"X12 | 47.5 | 47.5 | 15 | 30 | 36 |
| CJ-16 | 1.5/16"X12 | 1.5/16"X12 | 1.5/16"X12 | 49 | 49 | 16 | 33 | 41 |
| CJ-20 | 1.5/8"X12 | 1.5/8"X12 | 1.5/8"X12 | 55.5 | 55.5 | 17 | 41 | 50 |
| CJ-24 | 1.7/8"X12 | 1.7/8"X12 | 1.7/8"X12 | 63 | 63 | 20 | 48 | 55 |
| CJ-32 | 2.1/2"X12 | 2.1/2"X12 | 2.1/2"X12 | 78 | 78 | 24.5 | 63 | 75 |
