| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | hydraulic hose flange |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Hydraulic Hose Flanve | Model: | SAE Flange |
|---|---|---|---|
| Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
| Technics: | Hot Forge ,CNC Machine | Surface Treatment: | Trivalent Zinc Plated |
| Application: | Industry Excavator | Assemble Way: | Crimp,lock On |
| Size: | 1/4"-2" | Type: | Hydraulic Filters |
| Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic | ||
| High Light: | 87392-24-24 SAE Flange 3000 PSI,90 Elbow SAE Flange 3000 PSI,3000 PSI Hydraulic SAE Flanges |
||
Product Name

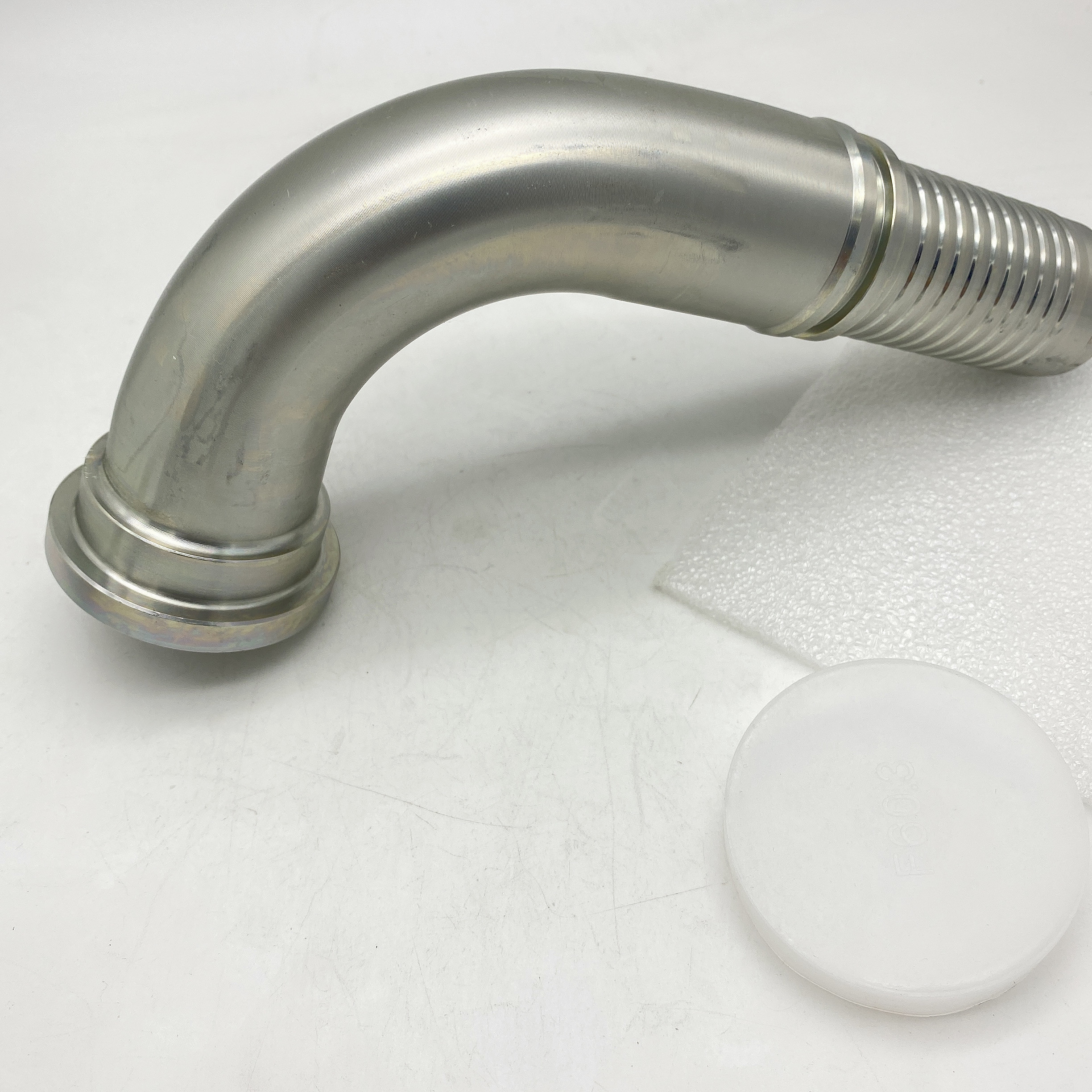

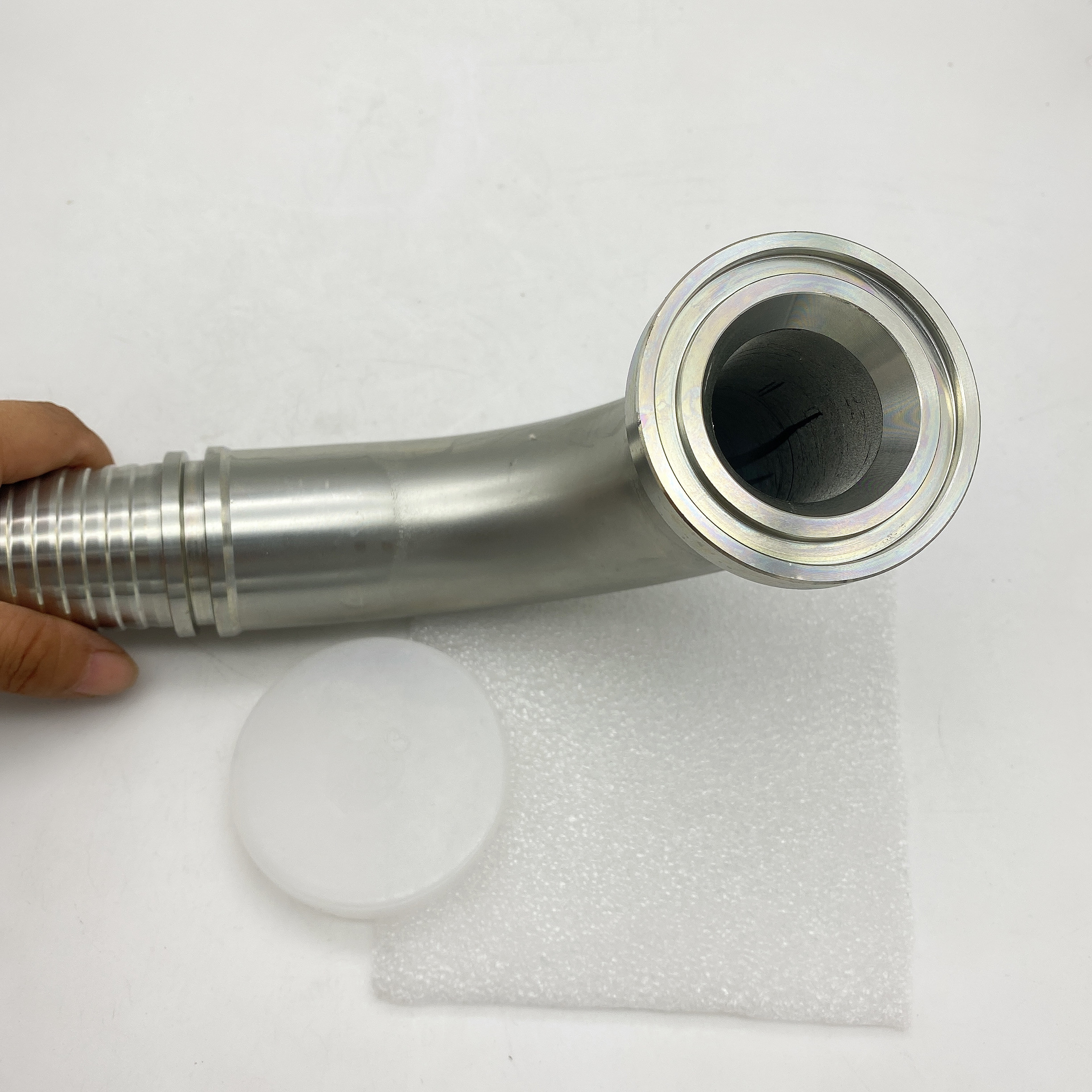

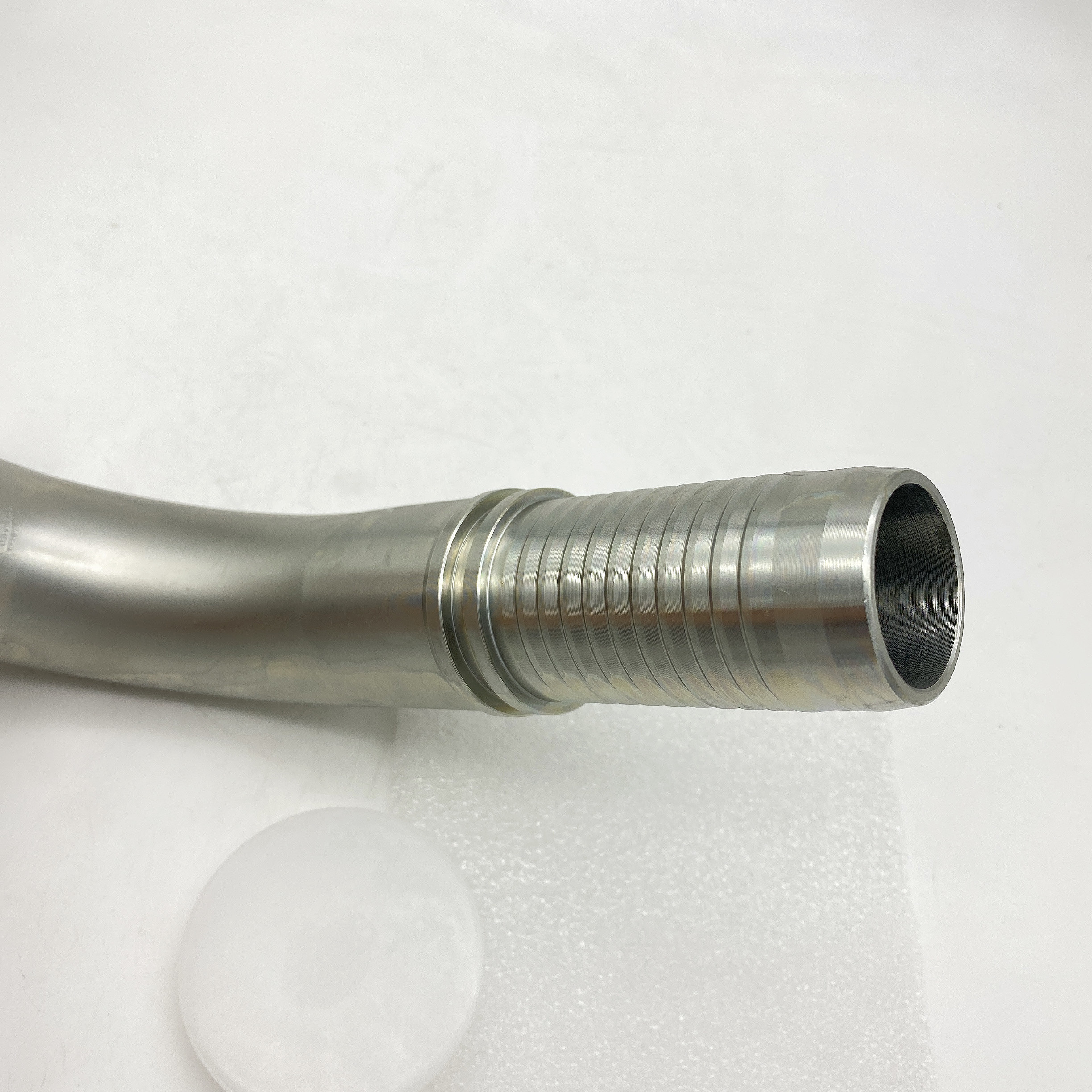

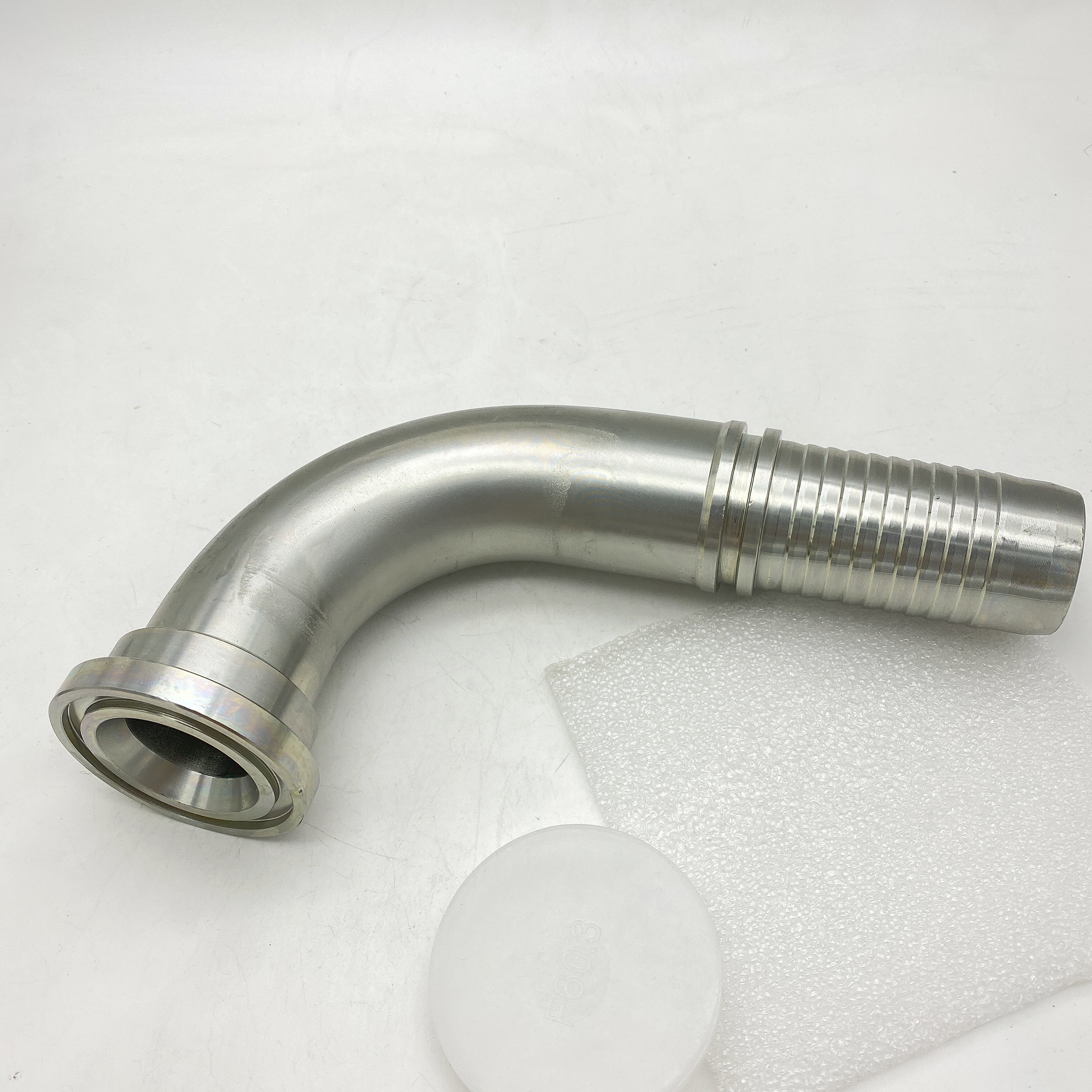

87392-24-24 90 elbow SAE flange 3000 PSI hose parts raccord hydaulique
| HOSE BORE | DIMENSIONS | |||||||
| PART NO. | FLANGE SIZE | DN | DASH | A | C | D | H | L |
| 87392-08-08 | 1/2" | 12 | 8 | 41 | 30.2 | 24 | 47 | 6.73 |
| 87392-12-08 | 3/4" | 12 | 8 | 41 | 38.1 | 31.7 | 48 | 6.73 |
| 87392-12-10 | 3/4" | 16 | 10 | 56.5 | 38.1 | 31.7 | 52.5 | 6.73 |
| 87392-12-12 | 3/4" | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 |
| 87392-12-12(H100) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 100 | 6.73 |
| 87392-12-12(H127) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 127 | 6.73 |
| 87392-12-12(H150) | 3/4" | 20 | 12 | 65.5 | 38.1 | 31.7 | 150 | 6.73 |
| 87392-12-16 | 3/4" | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 |
| 87392-16-12 | 1" | 20 | 12 | 66.2 | 44.4 | 38 | 62 | 8 |
| 87392-16-16 | 1" | 25 | 16 | 78 | 44.4 | 38 | 67.5 | 8 |
| 87392-16-16(H100) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 100 | 8 |
| 87392-16-16(H127) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 127 | 8 |
| 87392-16-16(H150) | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 150 | 8 |
| 87392-16-20 | 1" | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 |
| 87392-20-16 | 1.1/4" | 25 | 16 | 78 | 50.8 | 43 | 67.5 | 8 |
| 87392-20-20 | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 |
| 87392-20-20(H100) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 100 | 8 |
| 87392-20-20(H127) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 127 | 8 |
| 87392-20-20(H150) | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 150 | 8 |
| 87392-20-24 | 1.1/4" | 40 | 24 | 108.5 | 50.8 | 43 | 78.5 | 8 |
| 87392-24-20 | 1.1/2" | 32 | 20 | 91.5 | 60.3 | 50 | 80.5 | 8 |
| 87392-24-24 | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 |
| 87392-24-24(H127) | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 127 | 8 |
| 87392-32-24 | 2" | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 |
| 87392-32-32 | 2" | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 |
| 87392-40-32 | 2.1/2" | 50 | 32 | 131.8 | 84.1 | 74.4 | 114.3 | 9.53 |
