Product Name: | Hydraulic Hose Fittings | Model: | 20411-22-08T |
---|---|---|---|
Standard: | EATON/WINNER | Material: | Stainless Steel |
Suitable Medium: | Water / Oil / Gas | Application: | Industry Exvacator |
Technics: | Hot Forge ,CNC Machine | Thread: | Metric Female |
Size: | 1/4"-2" | Surface Treatment: | Trivalent Plating |
Type: | Fittings | Selling Units: | Single Item |
Single Package Size : | 24X24X17 Cm | Single Gross Weight: | 0.095 Kg |
Package Type: | Neutral Export Package:carton Box With Plastic Bag Then Into Wooden Pallet | ||
High Light: | 2" male female hydraulic fittings,20411 din hydraulic fittings |

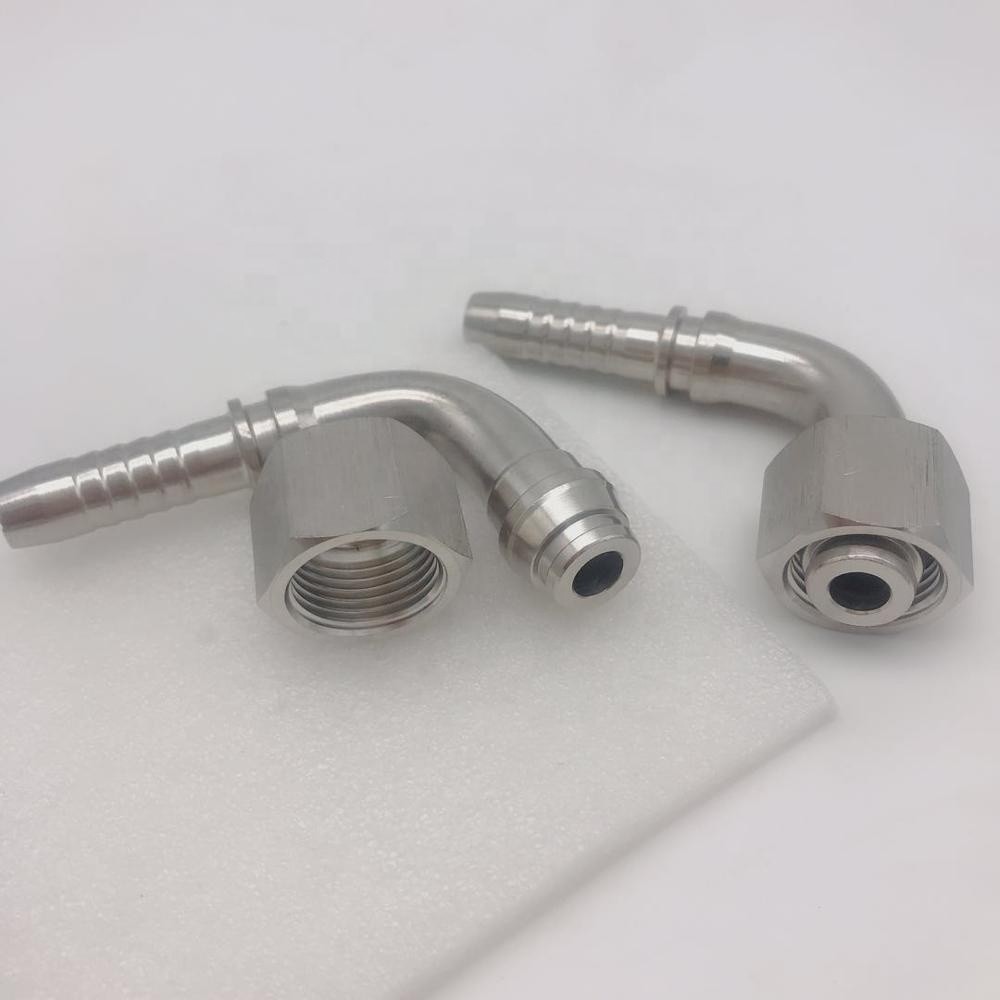

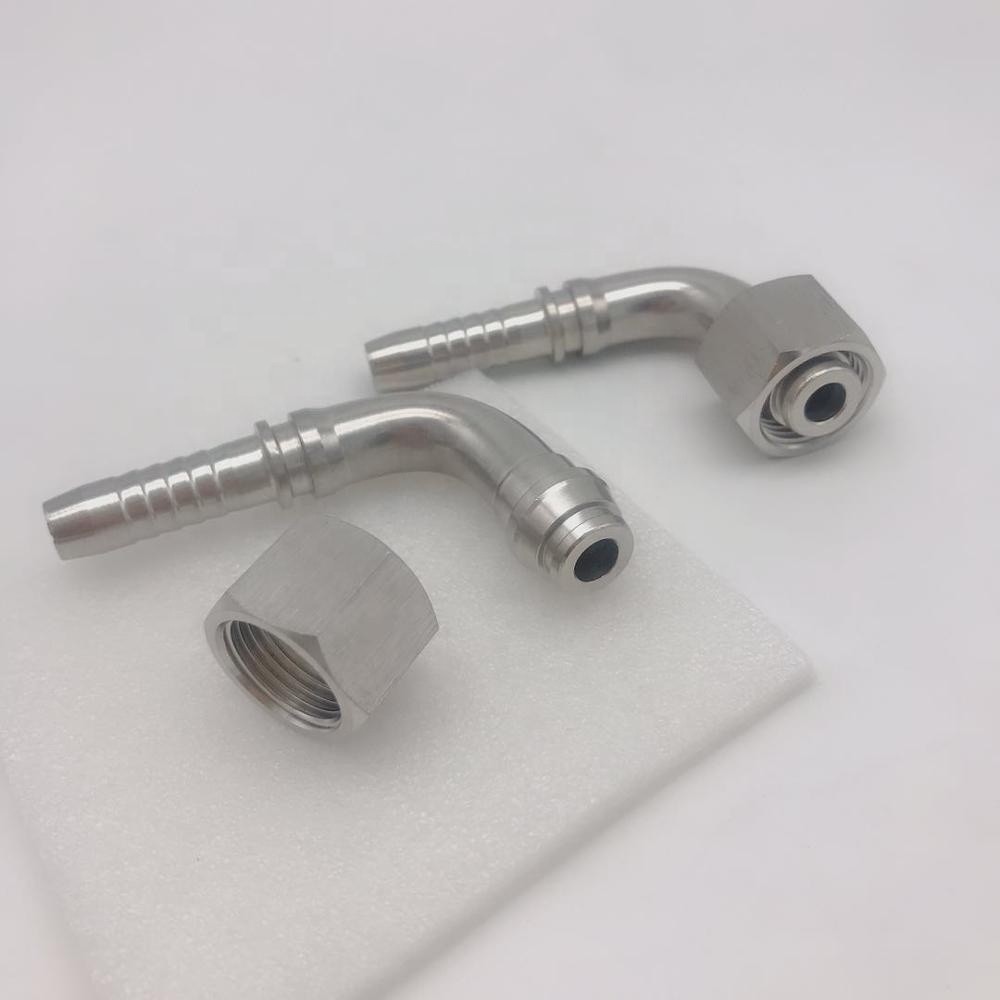

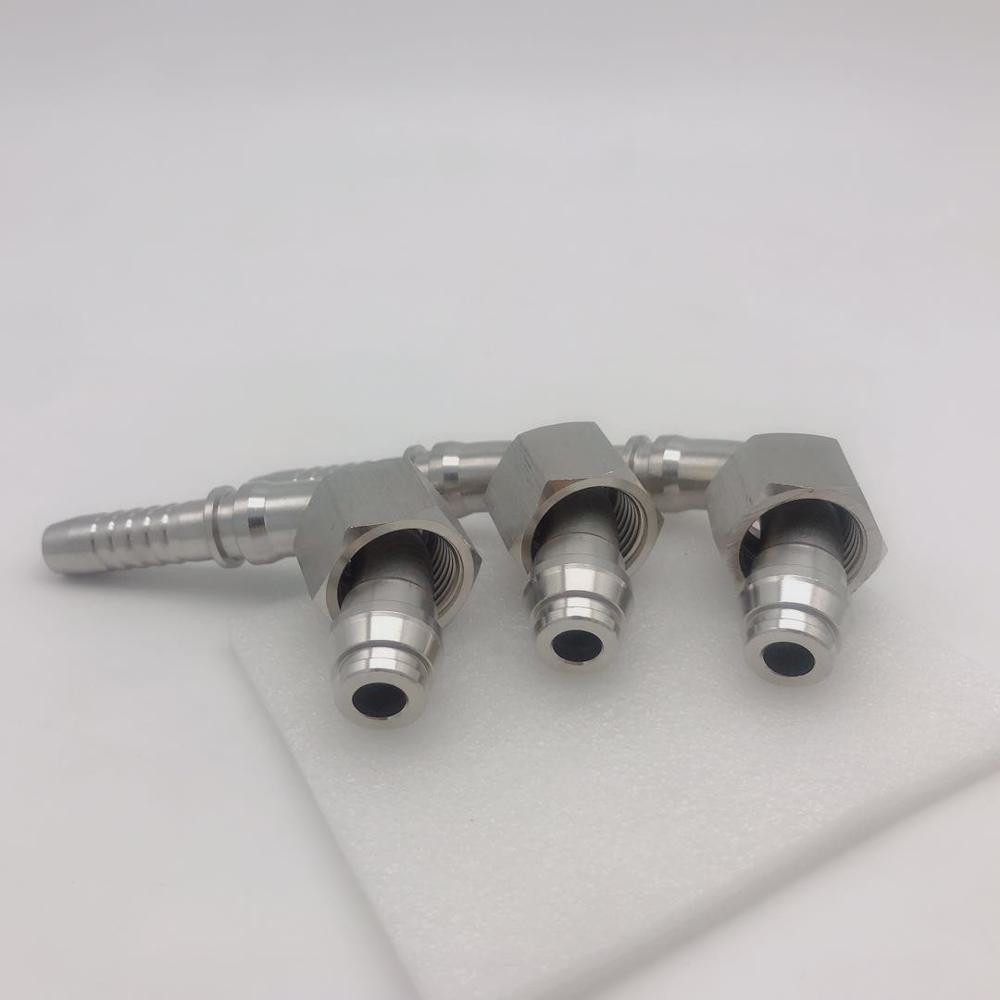

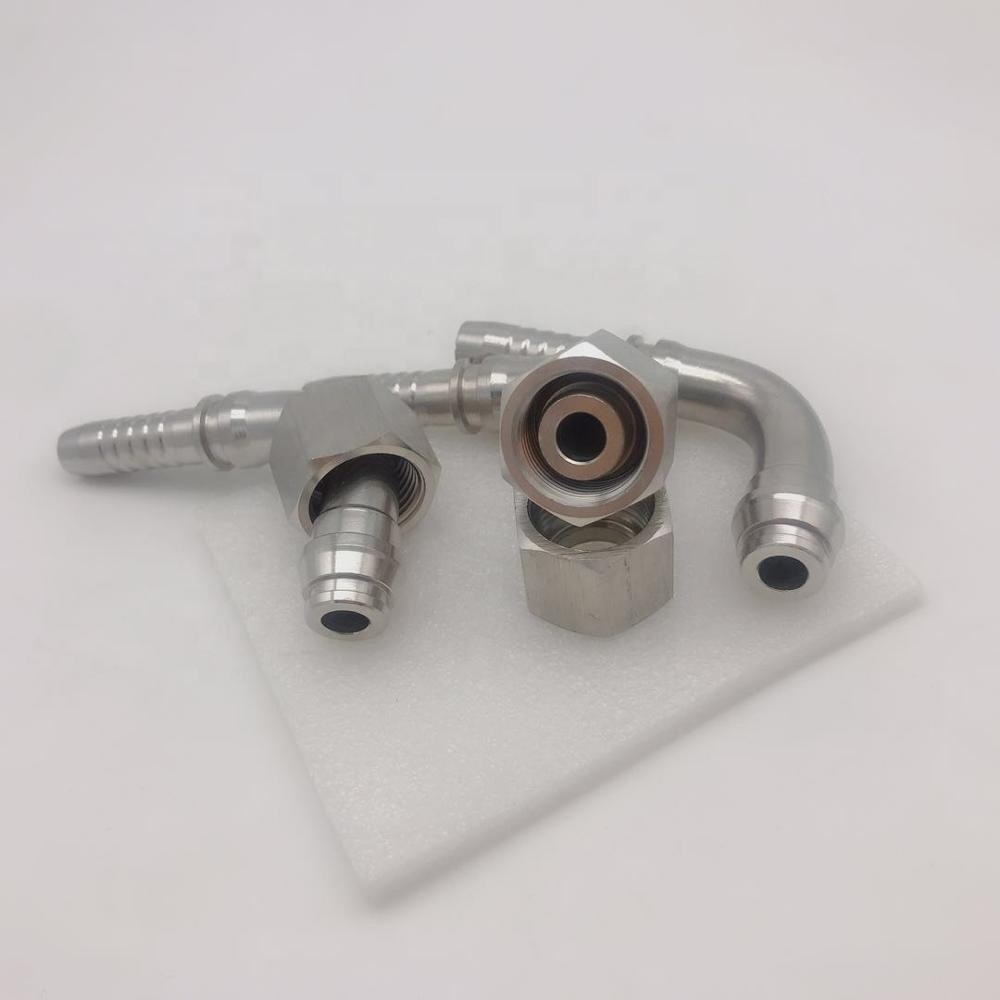

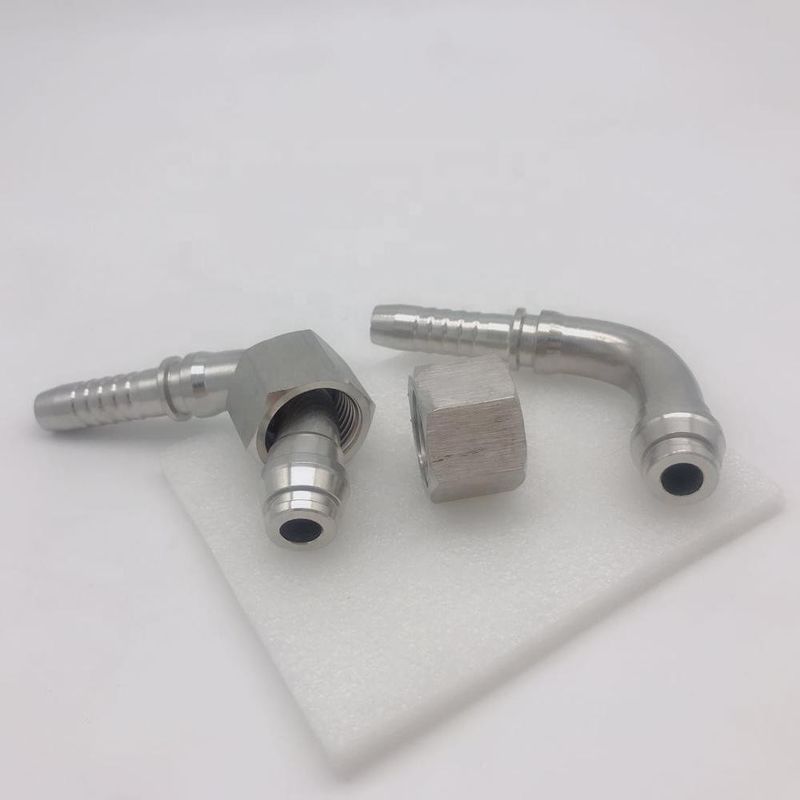

metric female stainless Steel Material hydraulic hose fittings
E | HOSE BORE | DIMENSIONS | ||||||
PART NO. | THREAD E | DN | DASH | TUBE O.D. | O RING | A | C | S2 |
20411-12-04 | M12*1.5 | 6 | 4 | 6 | O4.5*1.5 | 26 | 1 | 17 |
20411-14-04 | M14*1.5 | 6 | 4 | 8 | O6.5*1.5 | 27.5 | 2 | 19 |
20411-14-06 | M14*1.5 | 10 | 6 | 8 | O6.5*1.5 | 27.5 | 2 | 19 |
20411-16-04 | M16*1.5 | 6 | 4 | 10 | O8.0*1.5 | 28 | 2 | 22 |
20411-16-05 | M16*1.5 | 8 | 5 | 10 | O8.0*1.5 | 28 | 2 | 22 |
20411-16-06 | M16*1.5 | 10 | 6 | 10 | O8.0*1.5 | 28 | 2 | 22 |
20411-18-05T | M18*1.5 | 8 | 5 | 12 | O10.0*1.5 | 27.5 | 1.8 | 22 |
20411-18-06 | M18*1.5 | 10 | 6 | 12 | O10.0*1.5 | 29 | 2.5 | 24 |
20411-18-08 | M18*1.5 | 12 | 8 | 12 | O10.0*1.5 | 29.5 | 2.5 | 24 |
20411-22-05T | M22*1.5 | 8 | 5 | 15 | O12.0*2.0 | 29.5 | 2.1 | 27 |
20411-22-06T | M22*1.5 | 10 | 6 | 15 | O12.0*2.0 | 29 | 2.5 | 27 |
20411-22-08 | M22*1.5 | 12 | 8 | 15 | O12.0*2.0 | 32 | 2.5 | 27 |
Package way | Delivery time | Delivery way | |
Small batch | carton box with plastic bag then with strapping | 7-10 days | by express or according to coutomer's comments |
Large quantity | carton box with plastic bag then into wooden pallet | within 30 days or according to our stock | by sea or according to coustomer's comments |
we’re a factory which manufacture hydraulic hose fitting ,adaptor for more than 10 years ,we own our professional engineer department that can supply OEM products.
for long time,our company has always relied on the priciple of " following contract,enhancing reputation, in time delivery and reasonable price" and has won uniform favorable comments from mulitiple clients
