Hydraulic Hose End 10411-24-08 Din Hose Fittings

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Yade
Minimum Order Quantity: 500 Pieces
Price: be negotiation
Product Name: Hydraulic Hose End Fittings Model: 10411-24-08
Material: Carbon Steel Application: Industry Exvacator
Surface Treatment: Trivalent Zinc Palted Description: Hydraulic Hose Fittings
Advantage: Low Price ,fast Delivery And Good Quality Type: Fittings
Selling Units: Single Item Single Package Size : 24X24X17 Cm
Single Gross Weight: 0.030 Kg Package Type: Neutral Export Pacakged: Carton Box With Plastic Bag Then Into Wooden Pallet
High Light:

10411 metric hydraulic fittings

,

cs hydraulic hose fittings

Product Description

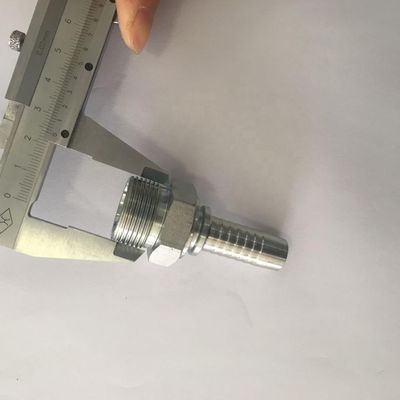

full size hydraulic hose end fittings 10411-24-08

   E  HOSE BORE    DIMENSIONS
PART NO. THREAD E   DN  DASH TUBE O.D. A C S1
10411-12-04 M12*1.5 6 4 6 20.5 10 12
10411-14-04 M14*1.5 6 4 8 20.5 10 14
10411-14-05 M14*1.5 8 5 8 21.5 10 14
10411-16-04 M16*1.5 6 4 10 22.5 11 17
10411-16-05 M16*1.5 8 5 10 22.5 11 17
10411-16-06 M16*1.5 10 6 10 22.5 11 17
10411-18-05 M18*1.5 8 5 12 23.5 11 19
10411-18-06 M18*1.5 10 6 12 21.5 11 19
10411-22-06 M22*1.5 10 6 15 24.5 12 24
10411-22-08 M22*1.5 12 8 15 26 12 24
10411-26-08 M26*1.5 12 8 18 26.5 12 27



Hydraulic Hose End 10411-24-08 Din Hose Fittings 0Hydraulic Hose End 10411-24-08 Din Hose Fittings 1Hydraulic Hose End 10411-24-08 Din Hose Fittings 2

Hydraulic Hose End 10411-24-08 Din Hose Fittings 3Hydraulic Hose End 10411-24-08 Din Hose Fittings 4Hydraulic Hose End 10411-24-08 Din Hose Fittings 5

QUICK INFORMATION
Material  carbon steel ,stainless steel Technics hot forging,CNC machina
Surface treatment trivalent zinc palted color  yellow or white
MOQ 300 PCS  Delivery time within 30 days
Packaging & Shipping

 Hydraulic Hose End 10411-24-08 Din Hose Fittings 6Hydraulic Hose End 10411-24-08 Din Hose Fittings 7

  Package way Delivery time Delivery way
Small batch carton box with plastic bag then with strapping 7-10 days  by express or according to customer's comments
Large Quantity carton box with plastic bag then into wooden pallet within 30 days or according to our stock by sea or according to customer's comments
