Male Flat Seal 2 Inch Air Conditioning Hose Fittings

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Yade
Model Number: 10411
Minimum Order Quantity: 100 Pieces
Price: be negotiation
Construction: Stud,one Piece Type,reusable Fitting Size: 1/8"-2"
Surface Treatment: Trivalent Silver And Yellow Zinc Quality Inspection: Thread Gauge,angle Measuring Instrument
Machining Method: Heat Treatment ,cold Pressing Shape: Equal,straight And 45,90,135 Etc
Assemble Method: Crimp On ,lock On Product Name: 37 Degree Swivel Bspt Male Adapter
Thread Type: Metric,BSP ,NPT,JIC Etc Type: Fittings
Selling Units: Single Item Single Package Size : 25X22X12 Cm
Single Gross Weight: 0.050 Kg Package Type: Standard Export Package Of Hose Flange: Plastic Bag In Box Then Into Plywood Case
High Light:

2" male female hydraulic fittings

,

10411 Air Conditioning Hose Fittings

metric male flat seal Air Conditioning Hose Fittings 10411



  E HOSE BORE   DIMENSIONS
PART NO. THREAD E DN DASH TUBE O.D. A C S1
10411-12-04 M12*1.5 6 4 6 20.5 10 12
10411-14-04 M14*1.5 6 4 8 20.5 10 14
10411-14-05 M14*1.5 8 5 8 21.5 10 14
10411-16-04 M16*1.5 6 4 10 22.5 11 17
10411-16-05 M16*1.5 8 5 10 22.5 11 17
10411-16-06 M16*1.5 10 6 10 22.5 11 17
10411-18-05 M18*1.5 8 5 12 23.5 11 19
10411-18-06 M18*1.5 10 6 12 21.5 11 19
10411-22-06 M22*1.5 10 6 15 24.5 12 24
10411-22-08 M22*1.5 12 8 15 26 12 24
10411-26-08 M26*1.5 12 8 18 26.5 12 27
10411-26-10 M26*1.5 16 10 18 27 12 27
10411-27-10 M27*1.5 16 10 18 32 14 30
10411-30-10 M30*2 16 10 22 29 14 32
10411-30-12 M30*2 20 12 22 29 14 32
10411-36-16 M36*2 25 16 28 31.5 14 38
10411-45-20 M45*2 32 20 35 36 16 46
10411-52-24 M52*2 40 24 42 38 16 55

Product Description

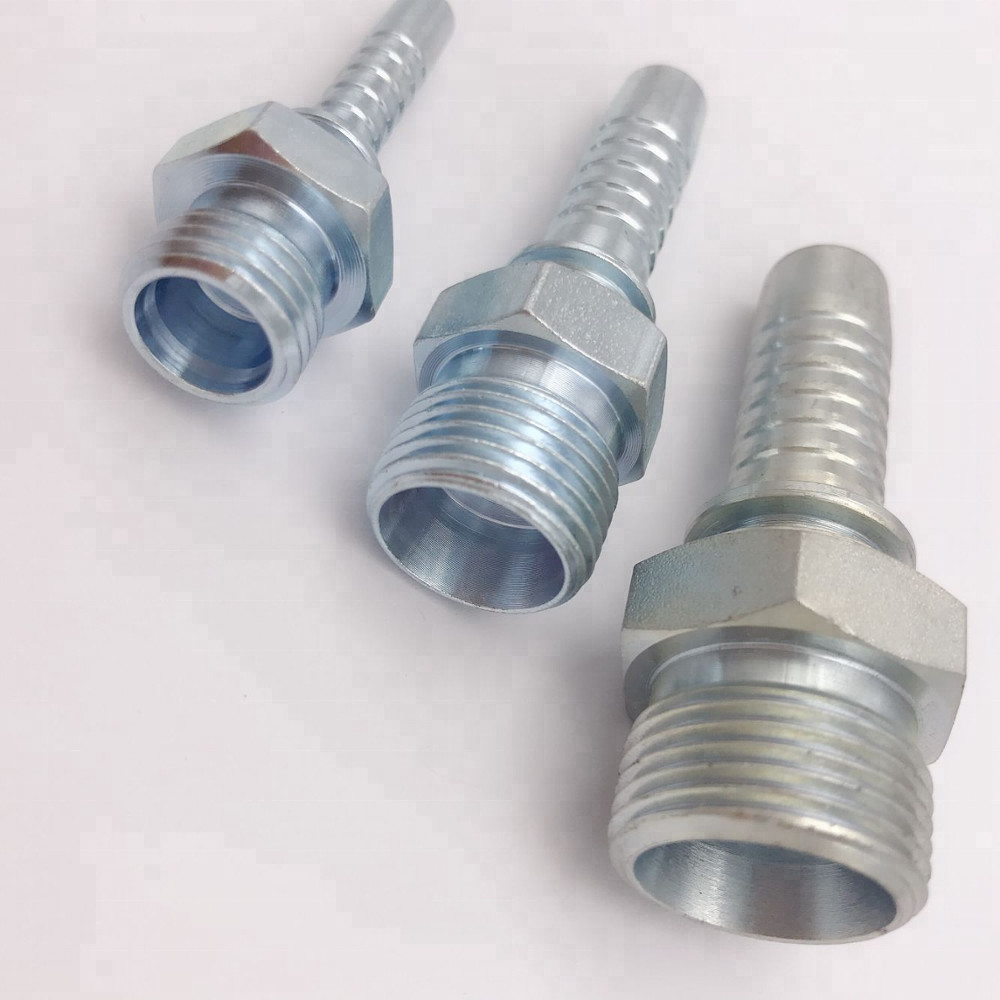

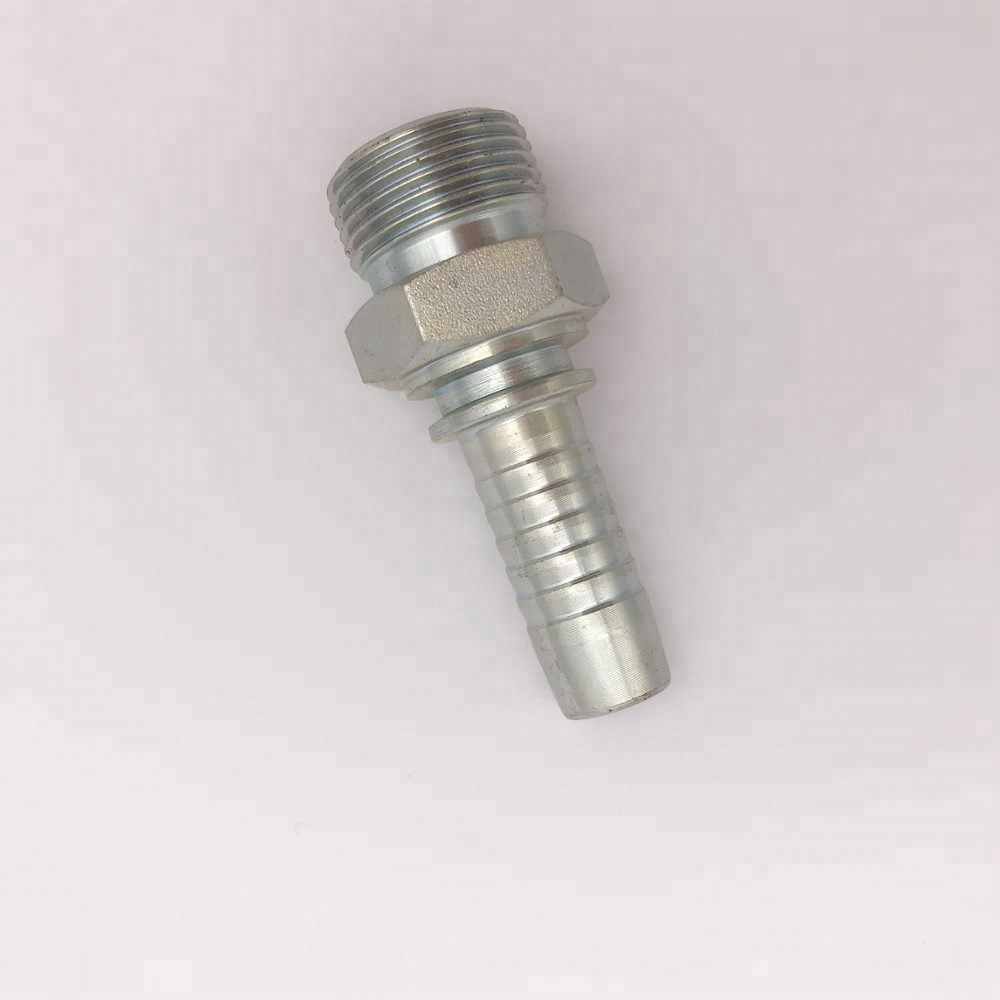

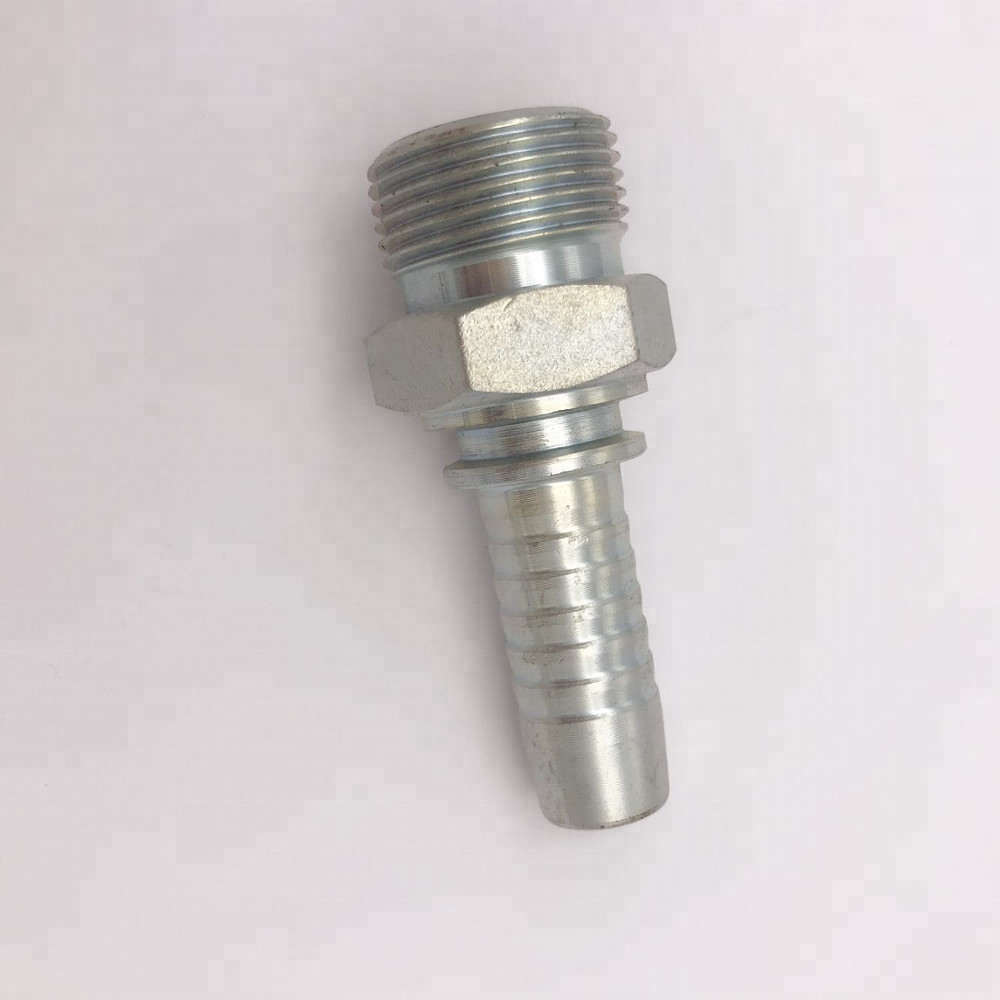

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 0Male Flat Seal 2 Inch Air Conditioning Hose Fittings 1Male Flat Seal 2 Inch Air Conditioning Hose Fittings 2

Packaging & Shipping

Type: Hydraulic Hose Adapter
Material: Carbon Steel ,Stainless Steel
Coating: Yellow or White Zinc Plated
Carton Size: 25*22*12
Pallet Size: 100Cm*100CM*80CM
Delivery Time: 30 Days after receipt of deposit Payment

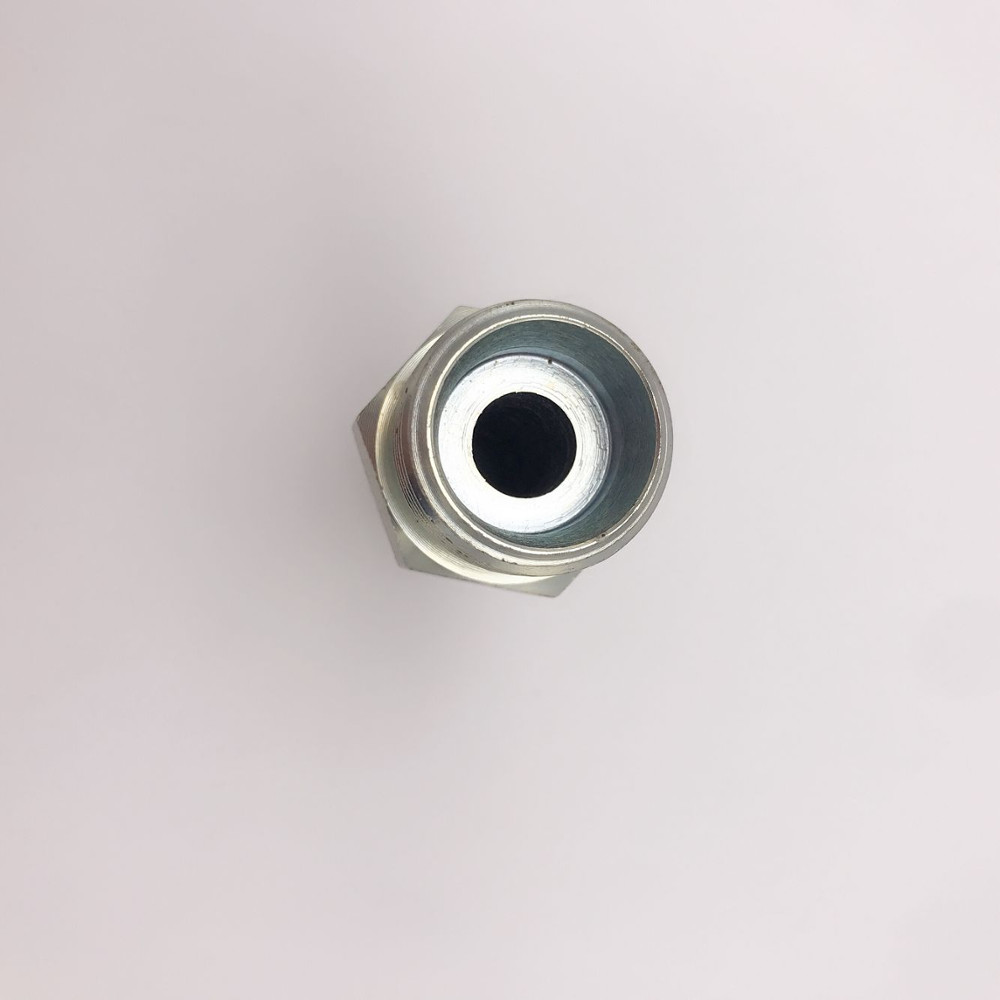

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 3Male Flat Seal 2 Inch Air Conditioning Hose Fittings 4





Packaging Details Package of HYDRAULIC HOSE ADAPTERS:carton boxes and plywood case

Delivery Time We delivery HYDRAULIC HOSE  ADAPTER within 30 days

Company Information

Carbon Steel SAE Flange 9000 PSI hose flange 87913---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.



1) FERRULE

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 5



  FERRULE  for SAE100R1AT/EN 853 1SN HOSE

  FERRULE  for SAE100R1A EN 853 1ST HOSE

  FERRULE  for SAE100R2AT/DIN20022 2SN HOSE

  FERRULE  for SAE100R2A/EN853 2SN  HOSE

  FERRULE  for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC

  FERRULE  for 4SP, 4SH/10-16, R12/06-16 HOSE

  FERRULE  for 4SH, R12/32 HOSE





2) SWAGED METRIC FITTINGS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 7

  Metric Flat Seal Fittings       Metric Multiseal Fittings

  Metric  60°Cone Seal Fittings     Metric  74°Cone Seal Fittings

  Metric 24°Cone O-RING Seal L..T. Fittings    Metric 24°Cone O-RING Seal H.T. Fittings

  Metric Standpipe Straight Fittings   JIS Metric 60°Cone Seal Fittings





3) SWAGED BRITISH FITTINGS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 9

  BSP O-RING Seal Fittings     BSP Flat Seal Fittings

  BSP Multiseal Fittings         BSP 60°Cone Seal Fittings

  BSPT Fittings           JIS BSP 60°Cone Seal Fittings





4) SWAGED AMERICAN FITTINGS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 11

  SAE O-RING Seal Fittings     ORFS Flat Seal Fittings

  NPSM 60°Cone Seal Fittings   JIC 74°Cone Seal Fittings

  NPT Fittings     SAE Flange L.T. Fittings     SAE  Flange  H.T. Fittings





5) STAPLELOK FITTINGS

  BANJO   DOUBLE CONNECTION      INTERLOCK  HOSE FITTINGS





6) METRIC ADAPTERS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 13

   Metric Thread O-RING Face Seal  Adapters

   Metric Thread Bite Type Tube Adapters

   Metric Thread  74°Cone Flared Tube Adapters

   JIS Metric Thread 60°Cone Adapters





7) BRITISH ADAPTERS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 15



    BSP Thread 60°Cone Adapters

   JIS BSP Thread 60°Cone Adapters

   BSPT  Thread  Adapters





8) AMERICAN ADAPTERS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 17



   ORFS ADAPTERS    JIC  74°Cone Flared Tube Adapters

   NPT  Thread Adapters





9) OTHER ADAPTERS

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 19Male Flat Seal 2 Inch Air Conditioning Hose Fittings 21

 Our Services

Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.


1. Material checking: strictly control of material using, meet international requested standards;


2. semi-finished products inspection: product inspection before 100% finished ;


3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.


4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.


Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.


2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.


3. The tracking number will be provided to you once the consignment is shipped


4. Professional customer service to answer your questions or fix problems regarding your order.

Male Flat Seal 2 Inch Air Conditioning Hose Fittings 23
