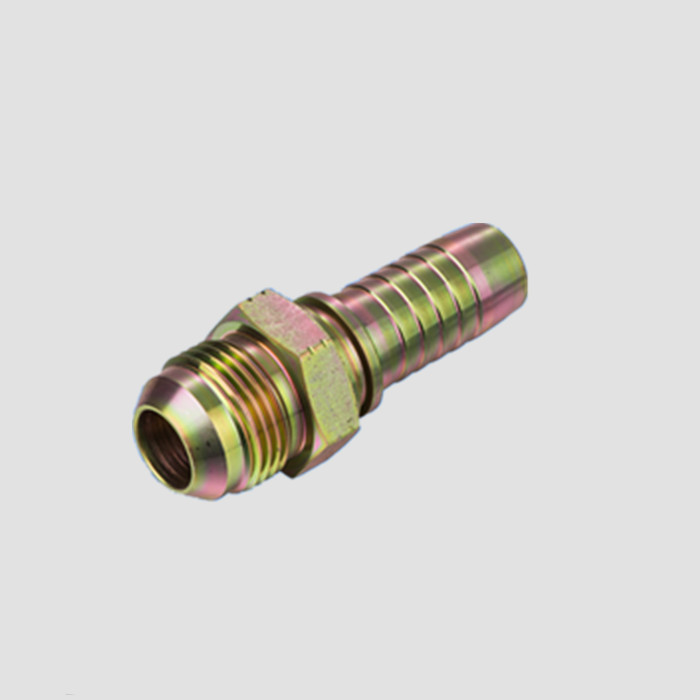

Brass Barb Oil Gas 10711-10-03 Hydraulic Pipe Fitting

Basic Information
Place of Origin: China
Brand Name: Yade
Model Number: 10711-10-03
Minimum Order Quantity: 100 Pieces
Price: be negotiation
Type: Coupling Material: Carbon Steel
Technics: Forged, By CNC Machine Connection: Female
Shape: Equal Head Code: Hexagon
Standard: EATON Surface Treatment: Zinc Plated
Applicant: Oil,Gas,Water Industrial Selling Units: Single Item
Single Package Size : 25X22X12 Cm Single Gross Weight: 0.010 Kg
Package Type: Neutral Package: Carton Box +pallet +plywood Case
High Light:

metric din fittings

,

metric elbow fittings

Product Description

10711 brass hydraulic air hose connector barb oil and gas pipe fitting<

  E HOSE BORE   DIMENSIONS
PART NO. THREAD E DN DASH A C S1
10711-10-02 M10*1 4 2 23 12.5 14
10711-10-03 M10*1 5 3 23 12.5 14
10711-12-03 M12*1.5 5 3 26.5 15.7 14
10711-12-03C M12*1.25 5 3 24.5 14 14
10711-14-04 M14*1.5 6 4 30.5 18 17
10711-14-06 M14*1.5 10 6 30.5 18 17
10711-16-05 M16*1.5 8 5 31.5 19 17
10711-16-06 M16*1.5 10 6 31.5 19 17
10711-18-06 M18*1.5 10 6 31.5 19 19
10711-22-08 M22*1.5 12 8 35 19.5 22
10711-24-08 M24*1.5 12 8 37 20 24
10711-27-10 M27*1.5 16 10 38.5 20.5 27
10711-30-12 M30*1.5 20 12 42.5 23 32
10711-30-12E M30*2 20 12 45.5 26 32
10711-33-12 M33*2 20 12 45 26 36
10711-36-14 M36*2 22 14 45 26 38
10711-39-16 M39*2 25 16 48 27.5 41
10711-42-20 M42*2 32 20 52 28.5 46
10711-45-20 M45*2 32 20 52 28.5 46

 Brass Barb Oil Gas 10711-10-03 Hydraulic Pipe Fitting 0Brass Barb Oil Gas 10711-10-03 Hydraulic Pipe Fitting 1

Company Information

METRIC MALE 74" CONE SEAT HYDRAULIC HOSE FITTING(10711)---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.

Type hydraulic hose fitting
Coating carton steel,stainless steel
Carton box 25*22*12
Pallet size 90*90*90
Delivery Time within 30 days or according to the order
Payment T/T ,L/C.and other cash available for hydraulic hose fitting




1) FERRULE



  FERRULE  for SAE100R1AT/EN 853 1SN HOSE

  FERRULE  for SAE100R1A EN 853 1ST HOSE

  FERRULE  for SAE100R2AT/DIN20022 2SN HOSE

  FERRULE  for SAE100R2A/EN853 2SN  HOSE

  FERRULE  for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC

  FERRULE  for 4SP, 4SH/10-16, R12/06-16 HOSE

  FERRULE  for 4SH, R12/32 HOSE





2) SWAGED METRIC FITTINGS

  Metric Flat Seal Fittings       Metric Multiseal Fittings

  Metric  60°Cone Seal Fittings     Metric  74°Cone Seal Fittings

  Metric 24°Cone O-RING Seal L..T. Fittings    Metric 24°Cone O-RING Seal H.T. Fittings

  Metric Standpipe Straight Fittings   JIS Metric 60°Cone Seal Fittings





3) SWAGED BRITISH FITTINGS

  BSP O-RING Seal Fittings     BSP Flat Seal Fittings

  BSP Multiseal Fittings         BSP 60°Cone Seal Fittings

  BSPT Fittings           JIS BSP 60°Cone Seal Fittings





4) SWAGED AMERICAN FITTINGS

  SAE O-RING Seal Fittings     ORFS Flat Seal Fittings

  NPSM 60°Cone Seal Fittings   JIC 74°Cone Seal Fittings

  NPT Fittings     SAE Flange L.T. Fittings     SAE  Flange  H.T. Fittings





5) STAPLELOK FITTINGS

  BANJO   DOUBLE CONNECTION      INTERLOCK  HOSE FITTINGS





6) METRIC ADAPTERS

   Metric Thread O-RING Face Seal  Adapters

   Metric Thread Bite Type Tube Adapters

   Metric Thread  74°Cone Flared Tube Adapters

   JIS Metric Thread 60°Cone Adapters





7) BRITISH ADAPTERS



    BSP Thread 60°Cone Adapters

   JIS BSP Thread 60°Cone Adapters

   BSPT  Thread  Adapters





8) AMERICAN ADAPTERS



   ORFS ADAPTERS    JIC  74°Cone Flared Tube Adapters

   NPT  Thread Adapters





9) OTHER ADAPTERS

 Brass Barb Oil Gas 10711-10-03 Hydraulic Pipe Fitting 2Brass Barb Oil Gas 10711-10-03 Hydraulic Pipe Fitting 3

Packaging Details Package of HYDRAULIC HOSE FITTINGS:carton boxes and plywood case

Delivery Time We delivery HYDRAULIC HOSE FITTINGS within 10 days



Our Services



Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.


1. Material checking: strictly control of material using, meet international requested standards;


2. semi-finished products inspection: product inspection before 100% finished ;


3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.


4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.


Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.


2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.


3. The tracking number will be provided to you once the consignment is shipped


4. Professional customer service to answer your questions or fix problems regarding your order.Brass Barb Oil Gas 10711-10-03 Hydraulic Pipe Fitting 4
