| Place of Origin: | China |
|---|---|
| Brand Name: | Yade |
| Model Number: | 20691-14-04 |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Type: | Coupling | Material: | Carbon Steel |
|---|---|---|---|
| Technics: | Forged | Connection: | Female |
| Shape: | Equal | Head Code: | Square |

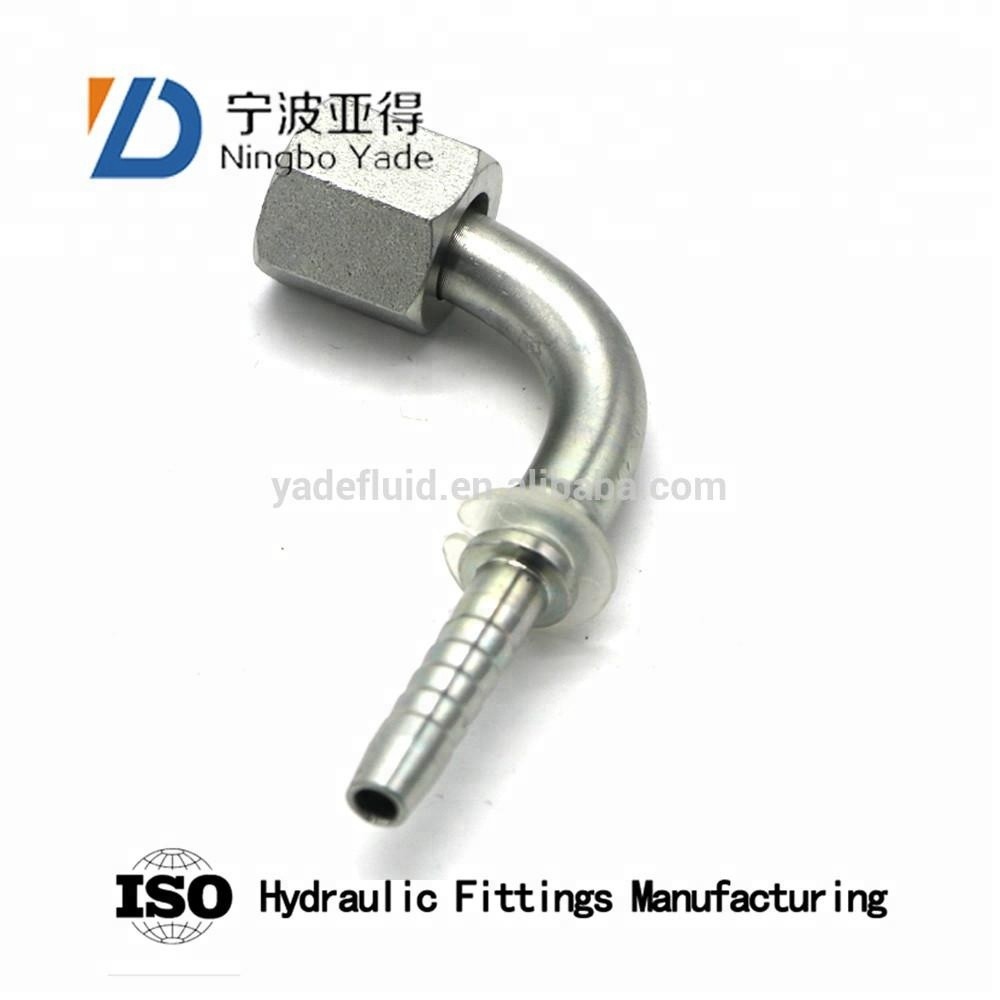

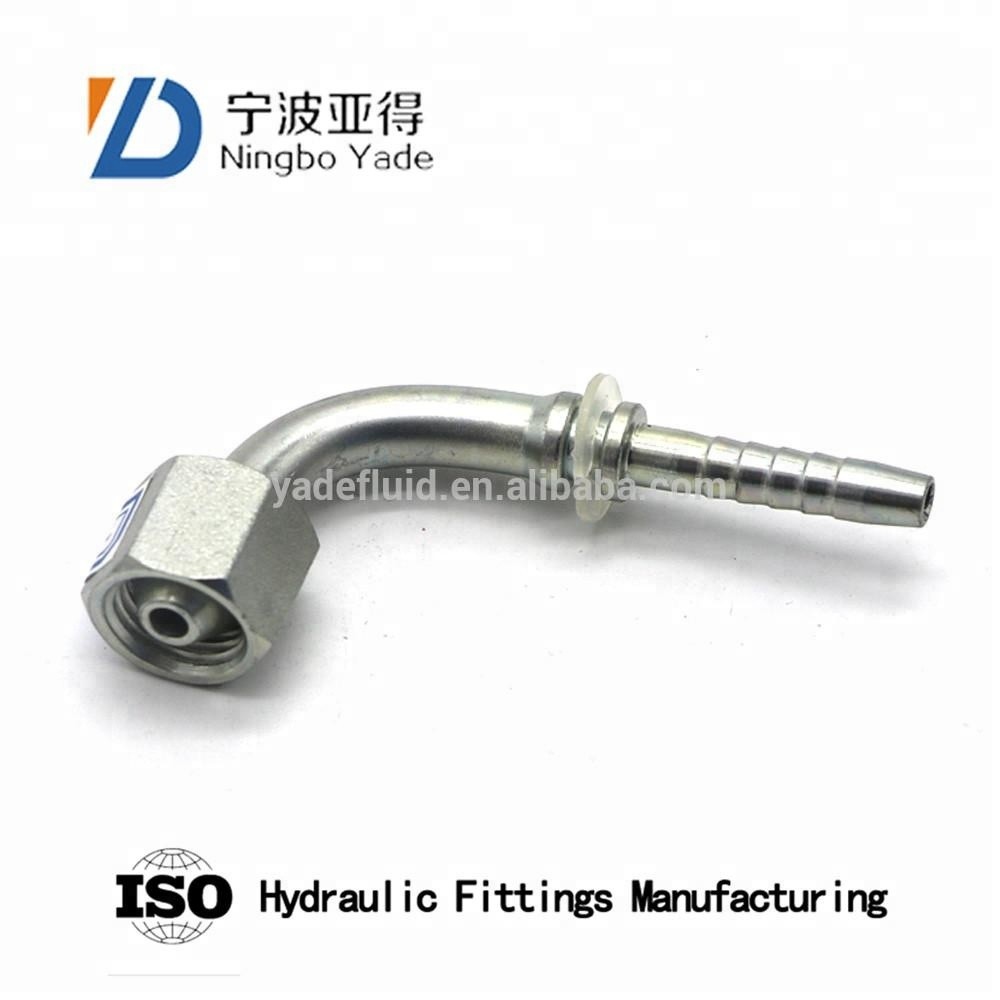

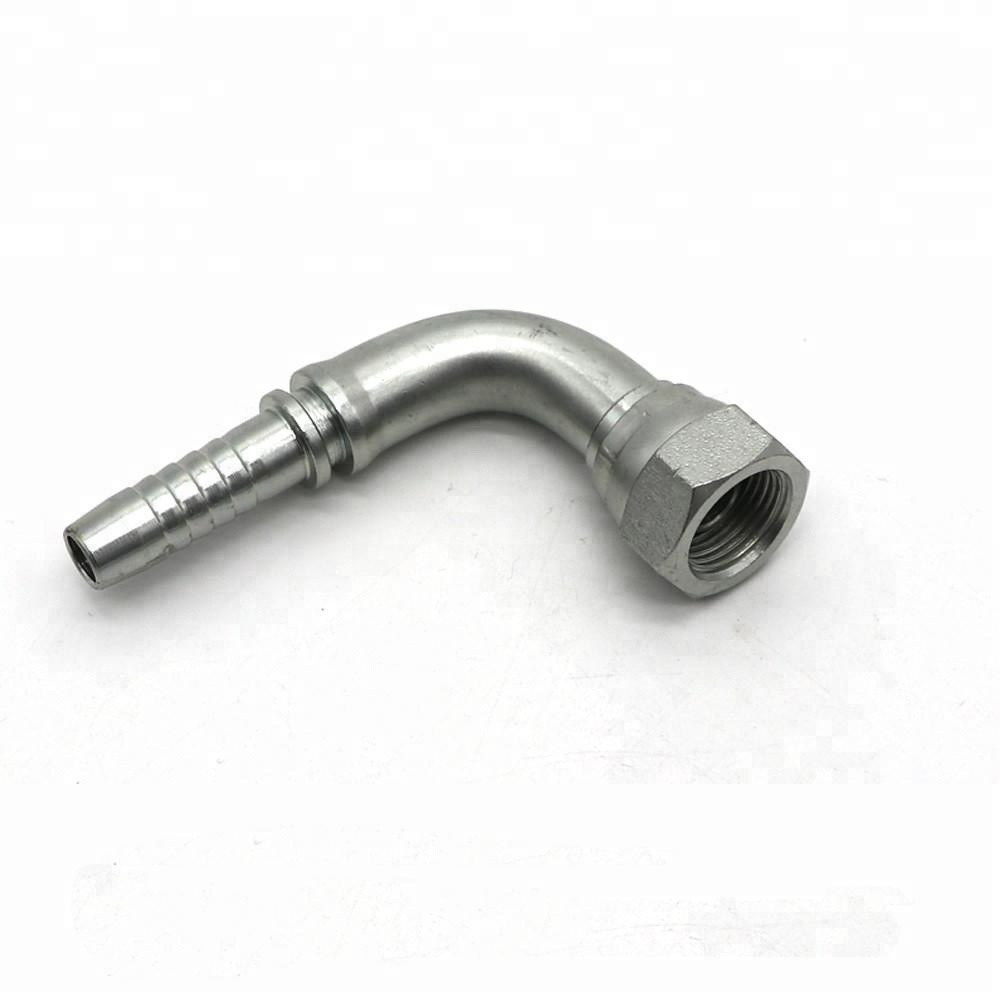

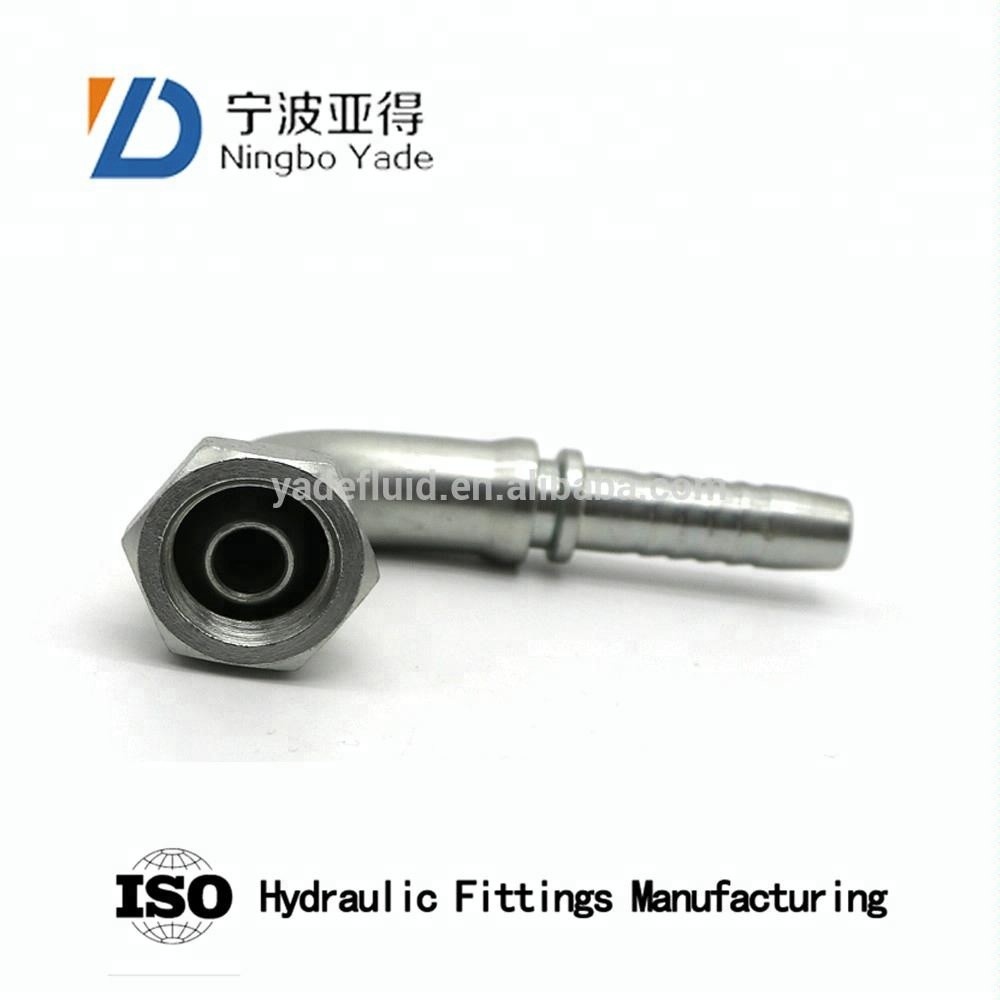

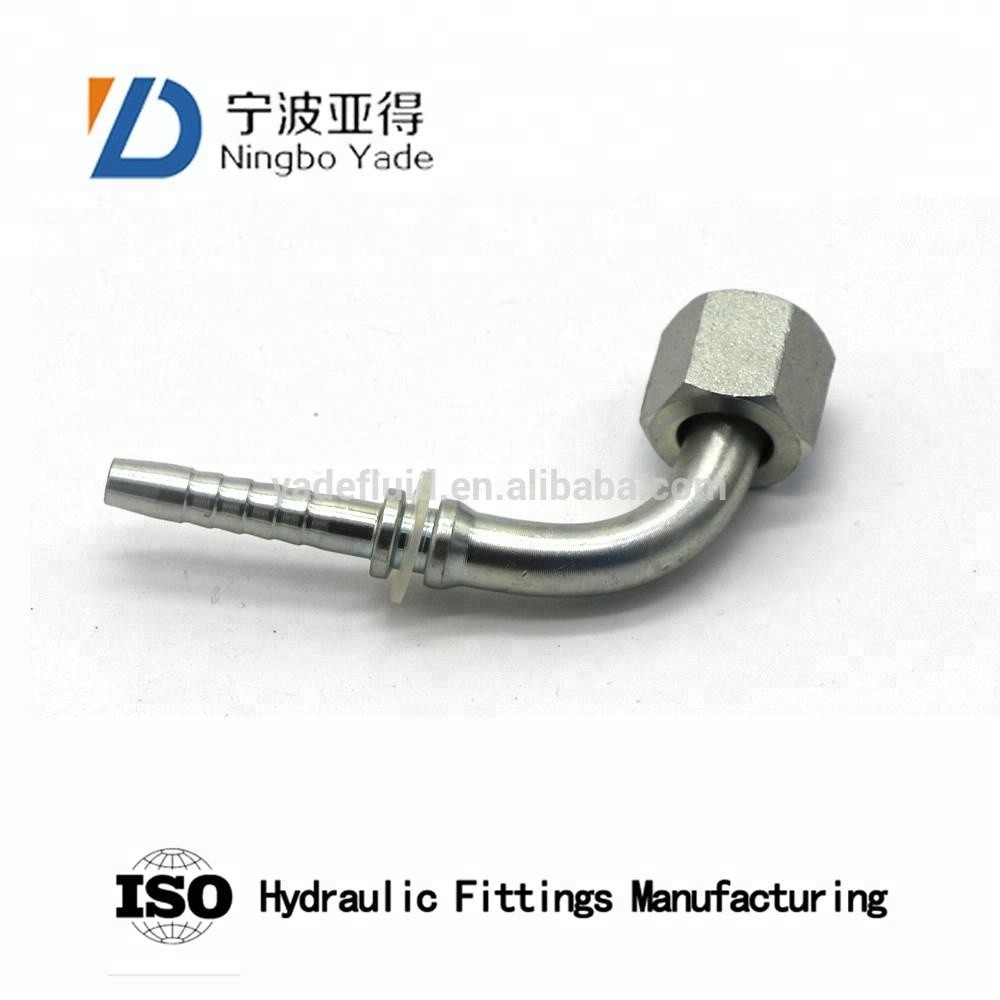

| Product Name: | 90 Bend 60 Degree Cone Metric Female Hose Fittings 20691 | Size: | 1/4"-2" |
| Applicant: | Oil,Gas,Water Industrial | Item: | Hose Fittings |
| Standard: | EATON | Surface Treatment: | Hot Galvanized |
| Service: | OEM Service | Color: | Required |
| Selling Units: | Single Item | Single Package Size : | 25X22X12 Cm |
| Single Gross Weight: | 0.050 Kg | Package Type: | Neutral Package: Carton Box+pallet + Plywood Case |
| High Light: | 60 Degree metric din fittings,20691 Din Hose Fittings |
||
| E | HOSE BORE | DIMENSIONS | |||||
| PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
| 20691-14-04 | M14*1.5 | 6 | 4 | 30 | 5.5 | 37 | 19 |
| 20691-16-05 | M16*1.5 | 8 | 5 | 33 | 5.5 | 40.5 | 22 |
| 20691-18-06 | M18*1.5 | 10 | 6 | 35.3 | 5.5 | 43.8 | 24 |
| 20691-22-08 | M22*1.5 | 12 | 8 | 41 | 6 | 52 | 27 |
| 20691-27-10DT | M27*1.5 | 16 | 10 | 56 | 6 | 55 | 32 |
| 20691-30-12D | M30*1.5 | 20 | 12 | 66.2 | 6 | 68.5 | 36 |
| 20691-36-16 | M36*2 | 25 | 16 | 78 | 6.5 | 76.5 | 41 |
| 20691-36-14T | M36*2 | 22 | 14 | 71.2 | 6.5 | 67.5 | 41 |
| 20691-39-16T | M39*2 | 25 | 16 | 76.7 | 6.5 | 74 | 46 |
| 20691-45-20T | M45*2 | 32 | 20 | 91.5 | 8.5 | 85 | 55 |
| 20691-52-24T | M52*2 | 40 | 24 | 109.4 | 10 | 99 | 60 |
| Type: | Hydraulic Hose Fitting |
| Material: | Carbon Steel ,Stainless Steel |
| Coating: | Yellow or White Zinc Plated |
| Carton Size: | 25*22*12 |
| Pallet Size: | 100Cm*100CM*80CM |
| Delivery Time: | 30 Days after receipt of deposit Payment |
90 bend 60 degree cone metric female hose fittings 20691---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.
1) FERRULE
FERRULE for SAE100R1AT/EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN853 2SN HOSE
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE for 4SH, R12/32 HOSE
2) SWAGED METRIC FITTINGS
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings
3) SWAGED BRITISH FITTINGS
BSP O-RING Seal Fittings BSP Flat Seal Fittings
BSP Multiseal Fittings BSP 60°Cone Seal Fittings
BSPT Fittings JIS BSP 60°Cone Seal Fittings
4) SWAGED AMERICAN FITTINGS
SAE O-RING Seal Fittings ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings
5) STAPLELOK FITTINGS
BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS
6) METRIC ADAPTERS
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
Metric Thread 74°Cone Flared Tube Adapters
JIS Metric Thread 60°Cone Adapters
7) BRITISH ADAPTERS
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8) AMERICAN ADAPTERS
ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
9) OTHER ADAPTERS
Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.
If you have any other questions,please do not hesitate to contact us!
