| Place of Origin: | China |
|---|---|
| Brand Name: | Yade |
| Model Number: | 20211-14-04 |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Type: | Coupling | Material: | Carbon Steel |
|---|---|---|---|
| Technics: | Forged | Connection: | Female |
| Shape: | Equal | Head Code: | Hexagon |
| Raw Materail: | 45#and 20# Carbon Steel | DN: | 6-50mm |
| The Material Of O-ring: | 70NBR Or 90NBR | Pressure: | 30-50Mpa |
| Quality Control: | 100% Inspection | Product Name: | Hydraulic Fittings Metric Female Flat Seat (20211) |
| Samples Fee: | We Can Afford The Samples Fee | Selling Units: | Single Item |
| Single Package Size : | 25X22X12 Cm | Single Gross Weight: | 0.020 Kg |
| Package Type: | Neutral Package: Carton Box + Pallet +plywood Case | ||
| High Light: | metric din fittings,metric elbow fittings |
||

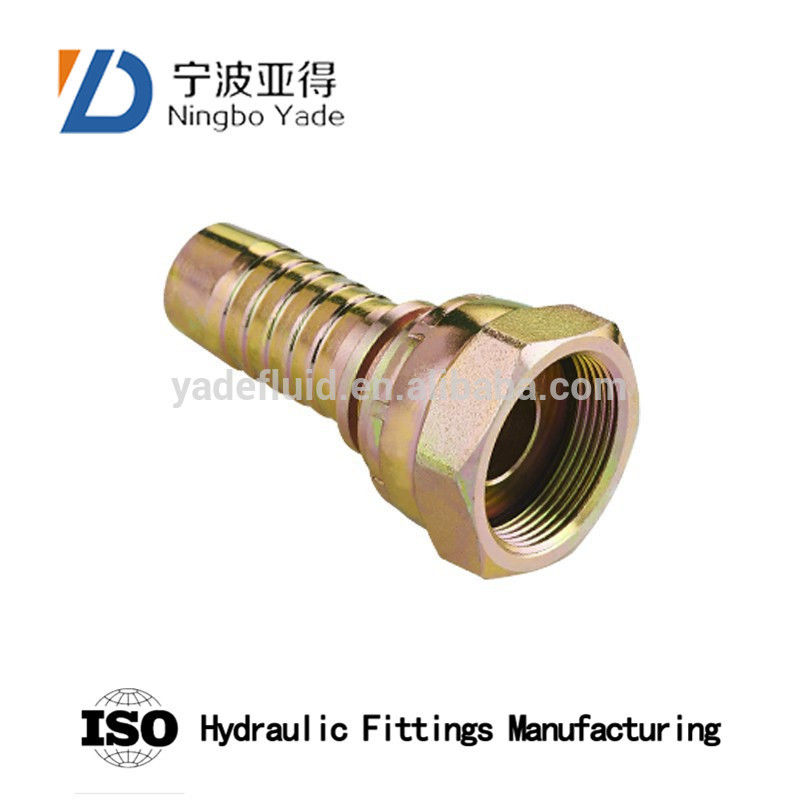

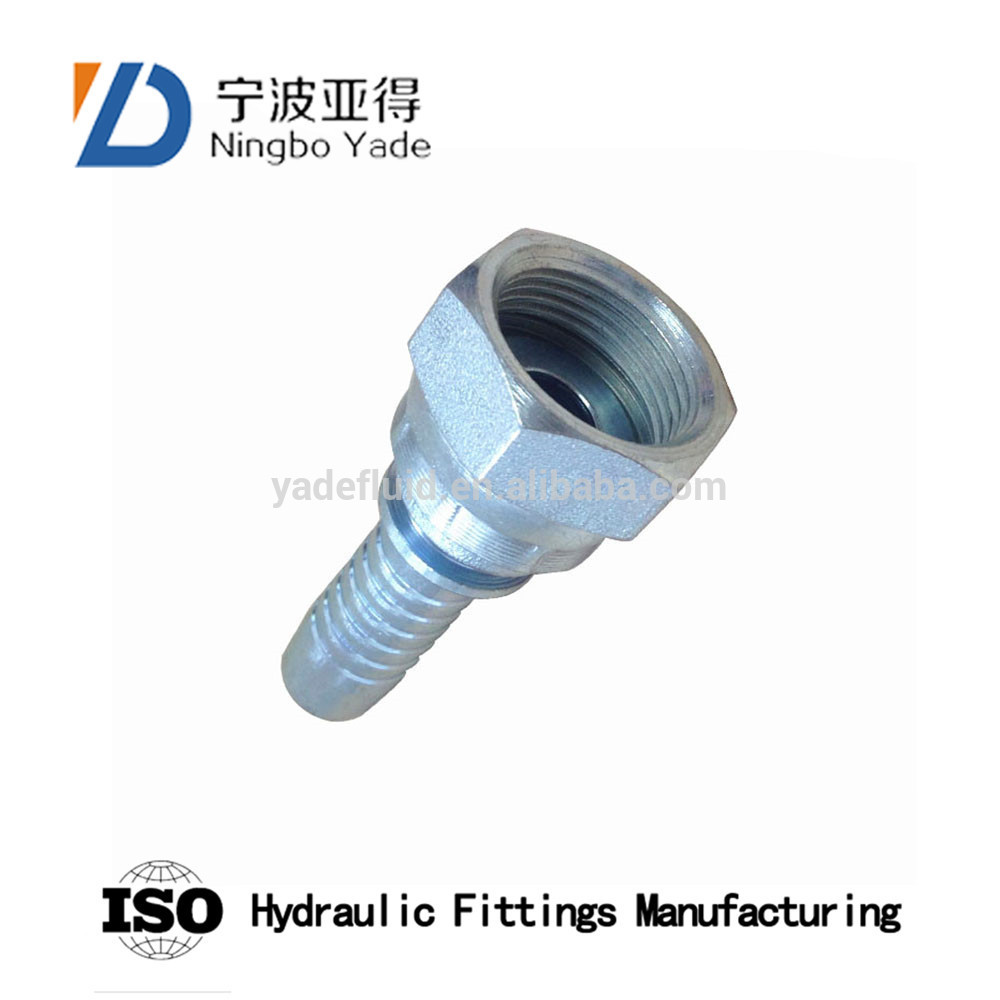

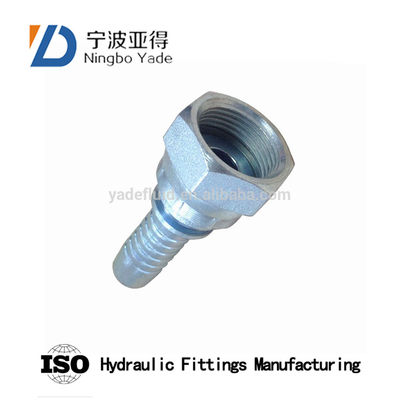

tractor hydraulic fittings metric female flat seat (20211)<
| E | HOSE BORE | DIMENSIONS | ||||
| PART NO. | THREAD E | DN | DASH | A | C | S2 |
| 20211-10-02 | M10*1 | 4 | 2 | 14 | 6 | 14 |
| 20211-12-03 | M12*1.25 | 5 | 3 | 14 | 8 | 17 |
| 20211-14-04 | M14*1.5 | 6 | 4 | 15.5 | 8.5 | 19 |
| 20211-14-05 | M14*1.5 | 8 | 5 | 15.5 | 8.5 | 19 |
| 20211-16-04 | M16*1.5 | 6 | 4 | 16.5 | 8 | 22 |
| 20211-16-05 | M16*1.5 | 8 | 5 | 16.5 | 8 | 22 |
| 20211-16-06 | M16*1.5 | 10 | 6 | 16.5 | 8 | 22 |
| 20211-18-05T | M18*1.5 | 8 | 5 | 17.5 | 8 | 24 |
| 20211-18-06 | M18*1.5 | 10 | 6 | 17.5 | 8 | 24 |
| 20211-20-06T | M20*1.5 | 10 | 6 | 16 | 10 | 24 |
| 20211-20-08 | M20*1.5 | 12 | 8 | 18.5 | 10 | 27 |
| 20211-22-06T | M22*1.5 | 10 | 6 | 16 | 10 | 27 |
| 20211-22-08 | M22*1.5 | 12 | 8 | 18.5 | 10 | 27 |
| 20211-22-10 | M22*1.5 | 16 | 10 | 19.5 | 10 | 27 |
| 20211-24-08T | M24*1.5 | 12 | 8 | 16.5 | 11 | 30 |
| 20211-24-10 | M24*1.5 | 16 | 10 | 20.5 | 10.5 | 30 |
| 20211-27-08T | M27*1.5 | 12 | 8 | 18.5 | 10 | 32 |
| 20211-27-10T | M27*1.5 | 16 | 10 | 19.5 | 10 | 32 |
| 20211-30-12 | M30*1.5 | 20 | 12 | 21.5 | 11 | 36 |
| 20211-33-14 | M33*2 | 22 | 14 | 21.5 | 13 | 41 |
| 20211-36-12T | M36*2 | 20 | 12 | 20 | 13 | 41 |
| 20211-36-14T | M36*2 | 22 | 14 | 20 | 13 | 41 |
| 20211-39-16T | M39*2 | 25 | 16 | 23.5 | 13 | 46 |
| 20211-42-20 | M42*2 | 32 | 20 | 26 | 15 | 50 |
| 20211-45-20T | M45*2 | 32 | 20 | 25 | 15 | 55 |
| 20211-52-24T | M52*2 | 40 | 24 | 25 | 17 | 60 |
| 20211-60-28T | M60*2 | 45 | 28 | 26 | 20 | 70 |
| 20211-64-32T | M64*2 | 50 | 32 | 26 | 23 | 75 |
Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.
1. Material checking: strictly control of material using, meet international requested standards;
2. semi-finished products inspection: product inspection before 100% finished ;
3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.
4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.
Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be provided to you once the consignment is shipped
4. Professional customer service to answer your questions or fix problems regarding your order.
Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.
If you have any other questions,please do not hesitate to contact us!
