| Place of Origin: | China |
|---|---|
| Brand Name: | Yade |
| Model Number: | 16711-08-08PK |
| Minimum Order Quantity: | 100pcs |
| Price: | be negotiation |
| Packaging Details: | Neutral export package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Product Name: | JIC Male One Piece Hose Fittings | Material: | Carbon Steel |
|---|---|---|---|
| Surface Treatment: | Trivalent Zinc Plated | Applicant: | Hydrauic System In Construction Machinery |
| Standard: | Interchange Parker Standard | Package: | Neutral Export Package |
| High Light: | 16711-08-08PK,16711 hydraulic hose accessories,16711 hydraulic pipes and fittings |
||

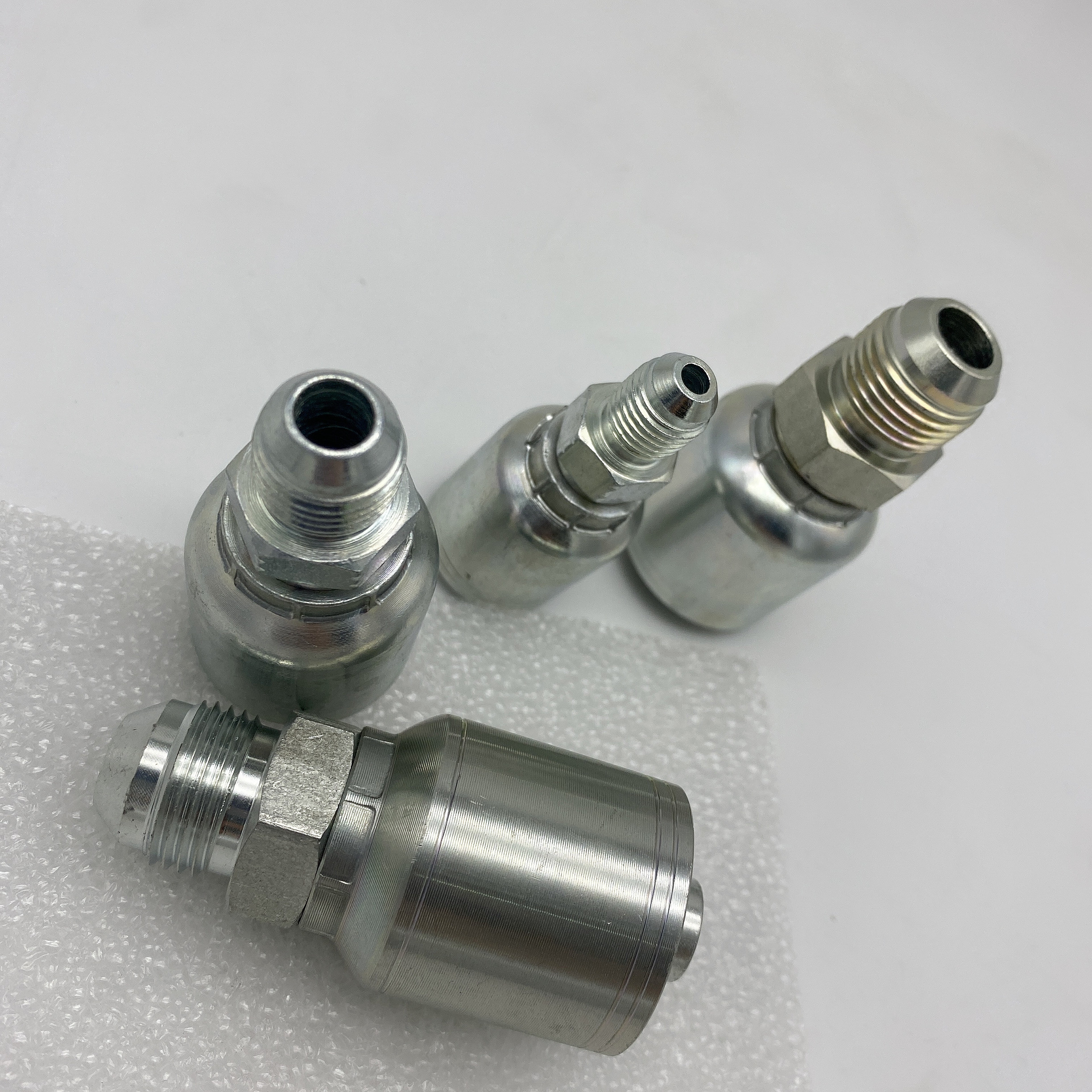

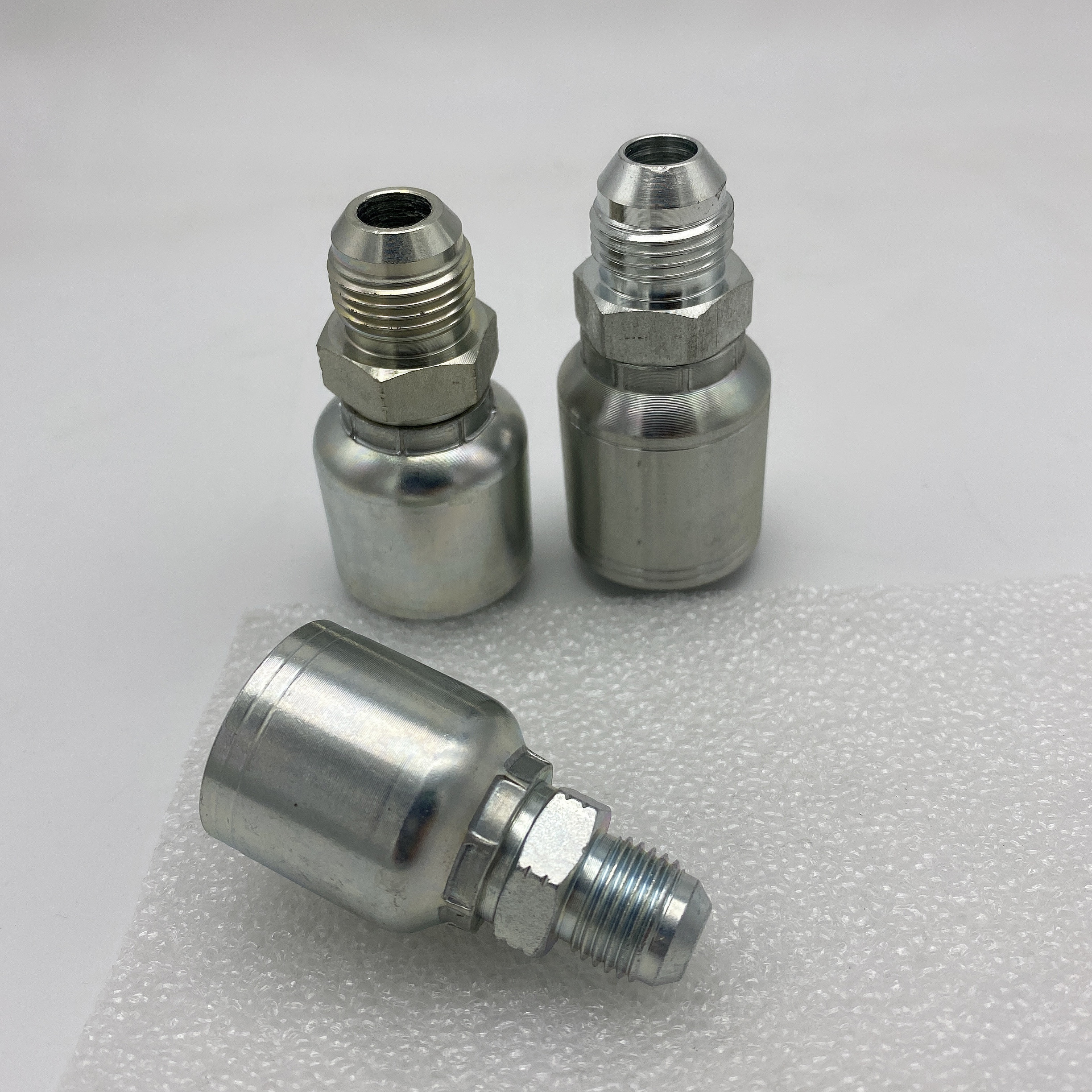

16711 - 08 - 08PK Carbon Steel Material And Hose Connection Application Hydraulic Nut Fittings
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| PART NO. | THREAD E | DN | DASH | A | C | S1 |
| 16711-04-03 | 7/16"*20 | 5 | 3 | 26 | 14 | 12 |
| 16711-04-04 | 7/16"*20 | 6 | 4 | 26.5 | 14 | 12 |
| 16711-05-04 | 1/2"*20 | 6 | 4 | 26.5 | 14 | 14 |
| 16711-05-05 | 1/2"*20 | 8 | 5 | 26.5 | 14 | 14 |
| 16711-05-06 | 1/2"*20 | 10 | 6 | 26.5 | 14 | 17 |
| 16711-06-04 | 9/16"*18 | 6 | 4 | 26.5 | 14.1 | 17 |
| 16711-06-05 | 9/16"*18 | 8 | 5 | 26.5 | 14.1 | 17 |
| 16711-06-06 | 9/16"*18 | 10 | 6 | 26.5 | 14.1 | 17 |
| 16711-08-06 | 3/4"*16 | 10 | 6 | 31.5 | 16.7 | 22 |
| 16711-08-08 | 3/4"*16 | 12 | 8 | 32 | 16.7 | 22 |
| 16711-10-06 | 7/8"*14 | 10 | 6 | 32 | 19.3 | 24 |
| 16711-10-08 | 7/8"*14 | 12 | 8 | 34.3 | 19.3 | 24 |
| 16711-10-10 | 7/8"*14 | 16 | 10 | 35.5 | 19.3 | 24 |
| 16711-12-08 | 1.1/16"*12 | 12 | 8 | 39 | 21.9 | 27 |
| 16711-12-10 | 1.1/16"*12 | 16 | 10 | 40 | 21.9 | 27 |
| 16711-12-12 | 1.1/16"*12 | 20 | 12 | 40 | 21.9 | 27 |
| 16711-12-16 | 1.1/16"*12 | 25 | 16 | 41 | 21.9 | 30 |
| 16711-14-10 | 1.3/16"*12 | 16 | 10 | 41.5 | 22.6 | 32 |
| 1671-14-12 | 1.3/16"*12 | 20 | 12 | 40.6 | 22.6 | 32 |
| 16711-16-12 | 1.5/16"*12 | 20 | 12 | 42.5 | 23.1 | 36 |
| 16711-16-16 | 1.5/16"*12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-16 | 1.5/8"*12 | 25 | 16 | 46.5 | 24.3 | 46 |
| 16711-20-20 | 1.5/8"*12 | 32 | 20 | 47.5 | 24.3 | 46 |
| 16711-24-20 | 1.7/8"*12 | 32 | 20 | 53 | 27.5 | 50 |
| 16711-24-24 | 1.7/8"*12 | 40 | 24 | 53 | 27.5 | 50 |
| 16711-32-32 | 2.1/2"*12 | 50 | 32 | 62 | 33.9 | 65 |
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
A: We are factory.
