Product Name: | JIC Male One Piece Hose Fittings | Material: | Carbon Steel |
---|---|---|---|
Surface Treatment: | Trivalent Zinc Plated | Applicant: | Hydrauic System In Construction Machinery |
Standard: | Parker Standard | Package: | Neutral Export Package |
High Light: | 16711-12-12PK Ss-43,16711 hydraulic hose accessories,16711 Hydraulic Hose Fitting |

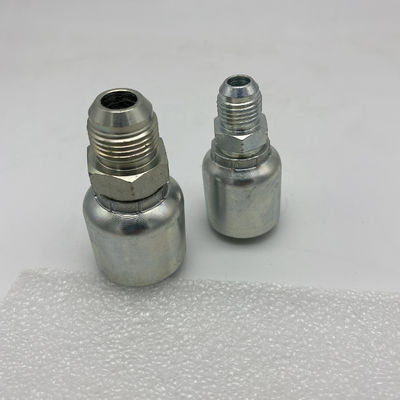

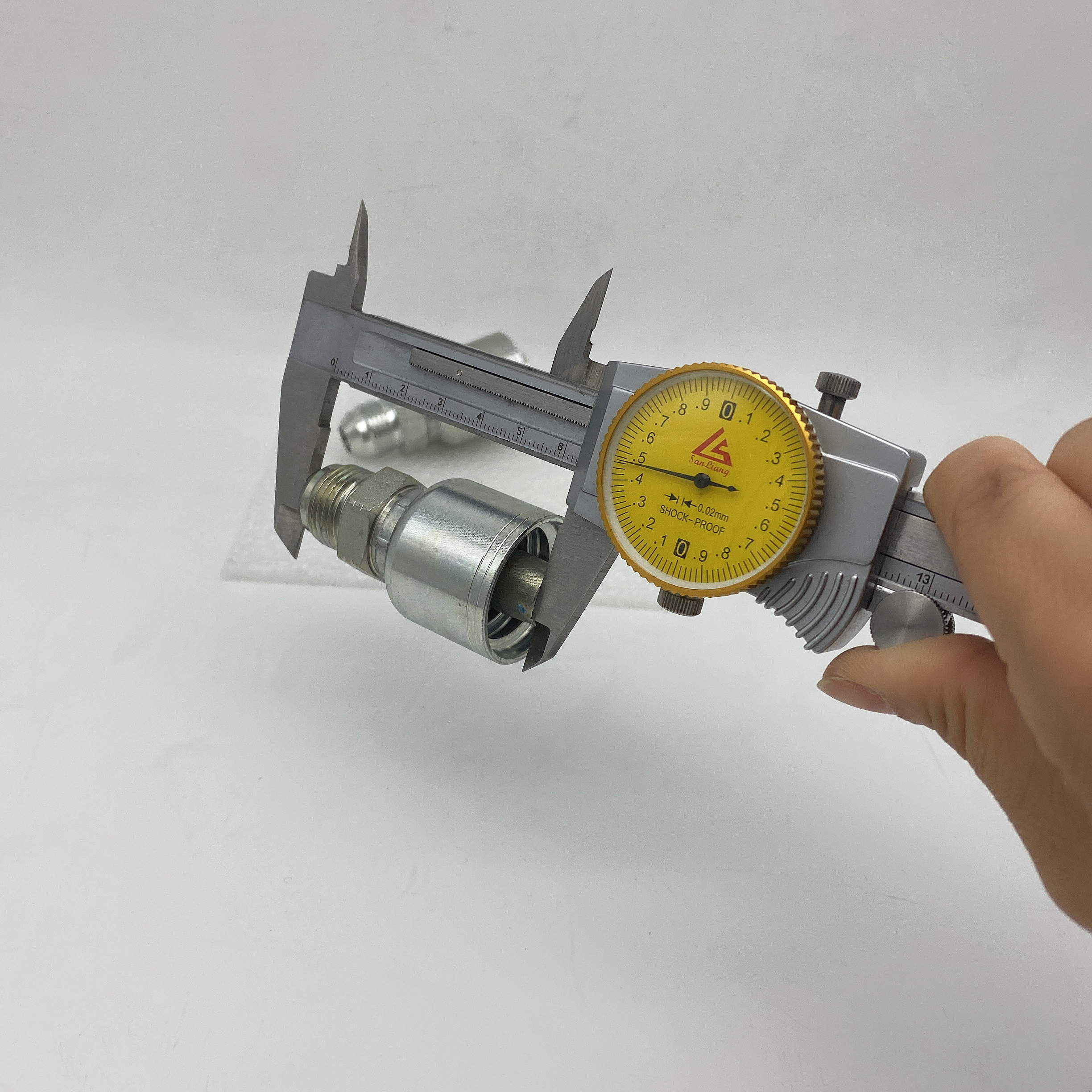

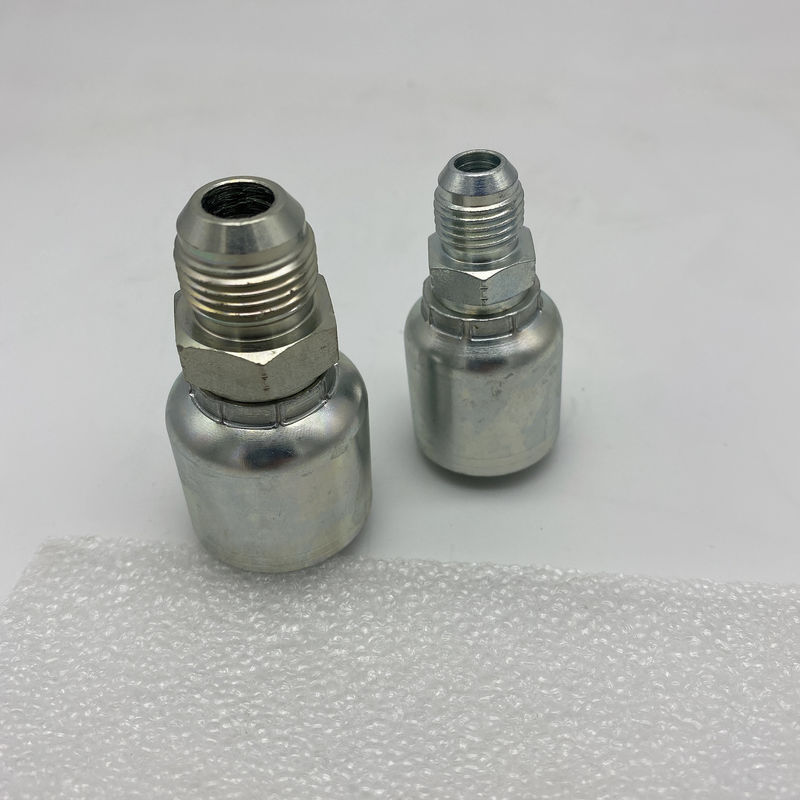

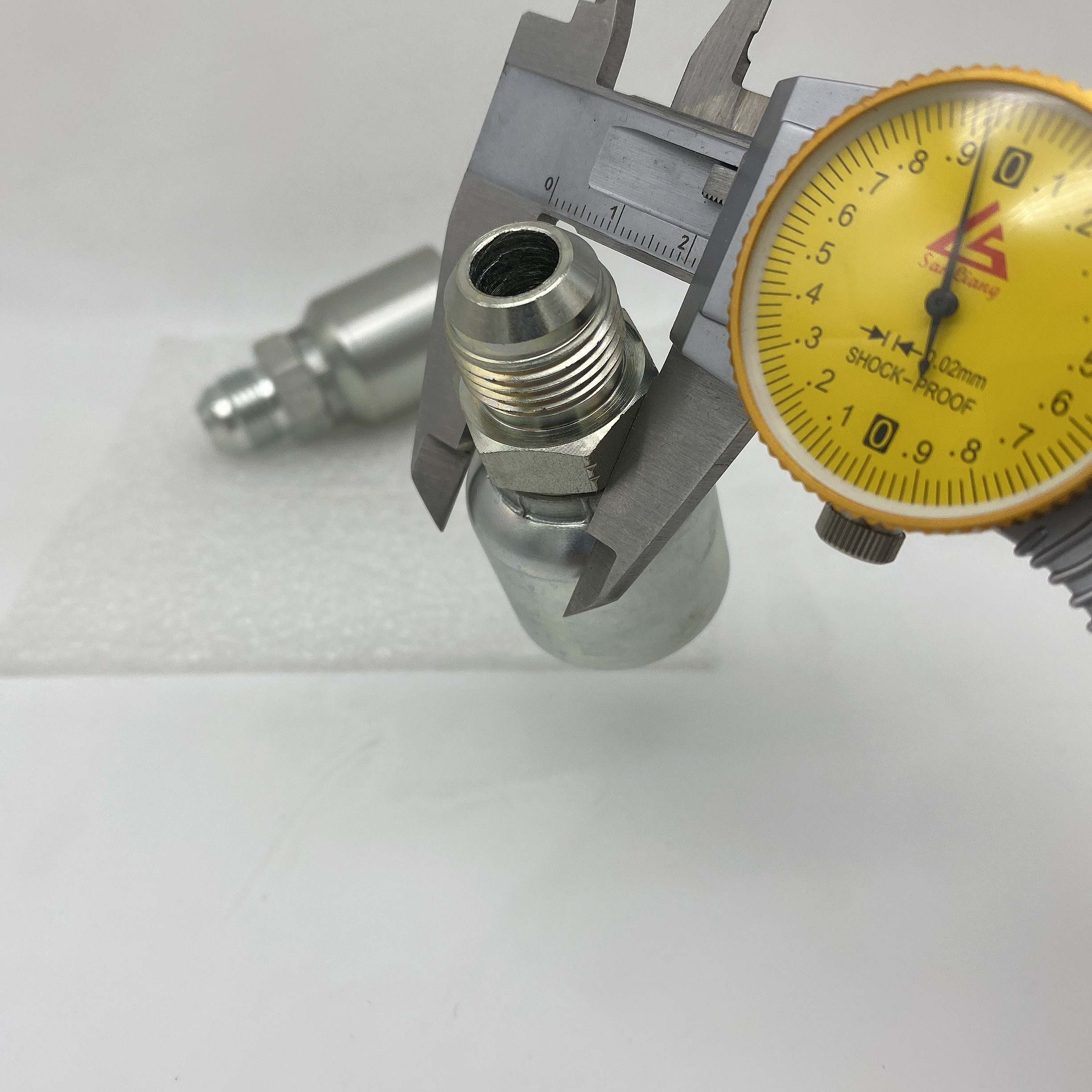

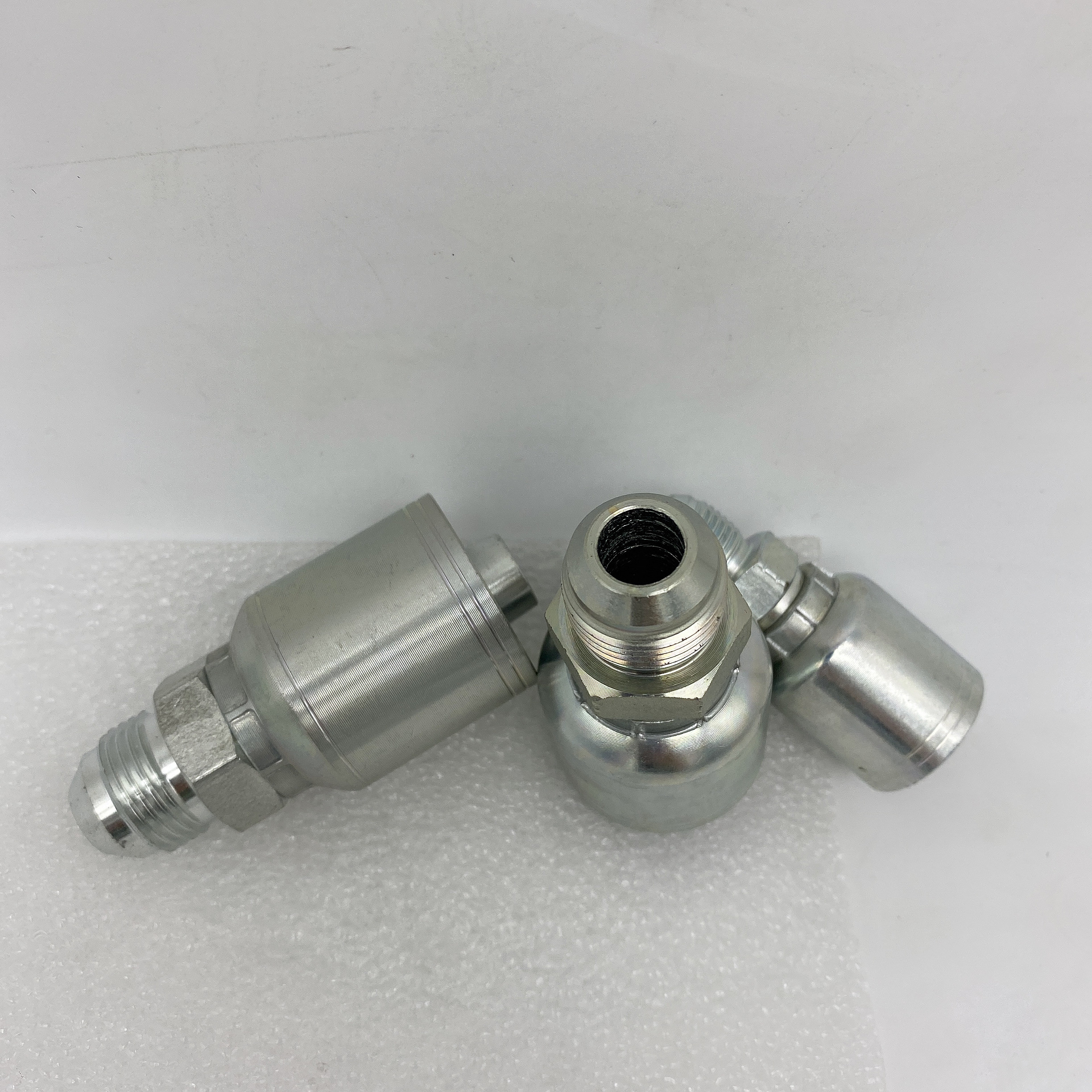

16711 - 12 - 12PK Ss-43 FJX One Pice Fitting Crimped Fittings 37 Degree Flare JIC Male
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | A | C | S1 |
16711-04-03 | 7/16"*20 | 5 | 3 | 26 | 14 | 12 |
16711-04-04 | 7/16"*20 | 6 | 4 | 26.5 | 14 | 12 |
16711-05-04 | 1/2"*20 | 6 | 4 | 26.5 | 14 | 14 |
16711-05-05 | 1/2"*20 | 8 | 5 | 26.5 | 14 | 14 |
16711-05-06 | 1/2"*20 | 10 | 6 | 26.5 | 14 | 17 |
16711-06-04 | 9/16"*18 | 6 | 4 | 26.5 | 14.1 | 17 |
16711-06-05 | 9/16"*18 | 8 | 5 | 26.5 | 14.1 | 17 |
16711-06-06 | 9/16"*18 | 10 | 6 | 26.5 | 14.1 | 17 |
16711-08-06 | 3/4"*16 | 10 | 6 | 31.5 | 16.7 | 22 |
16711-08-08 | 3/4"*16 | 12 | 8 | 32 | 16.7 | 22 |
16711-10-06 | 7/8"*14 | 10 | 6 | 32 | 19.3 | 24 |
16711-10-08 | 7/8"*14 | 12 | 8 | 34.3 | 19.3 | 24 |
16711-10-10 | 7/8"*14 | 16 | 10 | 35.5 | 19.3 | 24 |
16711-12-08 | 1.1/16"*12 | 12 | 8 | 39 | 21.9 | 27 |
16711-12-10 | 1.1/16"*12 | 16 | 10 | 40 | 21.9 | 27 |
16711-12-12 | 1.1/16"*12 | 20 | 12 | 40 | 21.9 | 27 |
16711-12-16 | 1.1/16"*12 | 25 | 16 | 41 | 21.9 | 30 |
16711-14-10 | 1.3/16"*12 | 16 | 10 | 41.5 | 22.6 | 32 |
1671-14-12 | 1.3/16"*12 | 20 | 12 | 40.6 | 22.6 | 32 |
16711-16-12 | 1.5/16"*12 | 20 | 12 | 42.5 | 23.1 | 36 |
16711-16-16 | 1.5/16"*12 | 25 | 16 | 43.5 | 23.1 | 36 |
16711-20-16 | 1.5/8"*12 | 25 | 16 | 46.5 | 24.3 | 46 |
16711-20-20 | 1.5/8"*12 | 32 | 20 | 47.5 | 24.3 | 46 |
16711-24-20 | 1.7/8"*12 | 32 | 20 | 53 | 27.5 | 50 |
16711-24-24 | 1.7/8"*12 | 40 | 24 | 53 | 27.5 | 50 |
16711-32-32 | 2.1/2"*12 | 50 | 32 | 62 | 33.9 | 65 |
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
A: We are factory.
