| Place of Origin: | China |
|---|---|
| Brand Name: | Yade |
| Model Number: | 24211D-12-12PK |
| Minimum Order Quantity: | 100pcs |
| Price: | be negotiation |
| Packaging Details: | Neutral export package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
| Product Name: | Hydraulic One Piece Hose Fittings | Material: | Carbon Steel |
|---|---|---|---|
| Surface Treatment: | Trivalent Zinc Plated | Applicant: | Connection The Hydraulic Hose |
| Standard: | Interchange Parker Standard | Package: | Neutral Export Package |
| High Light: | 24211D Hydraulic Hoses And Fittings,Trivalent Zinc industrial hose fittings,24211D-12-12PK |
||

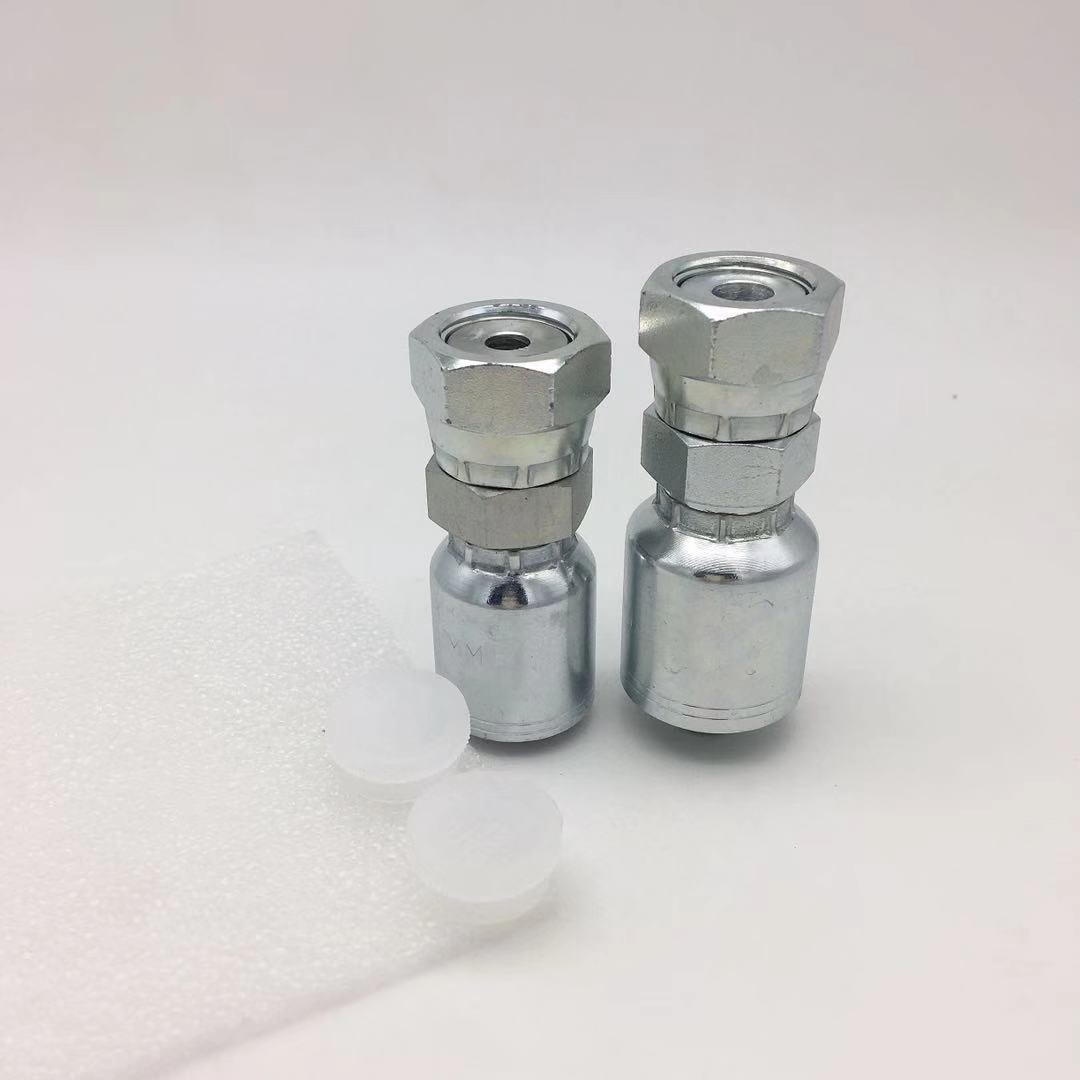

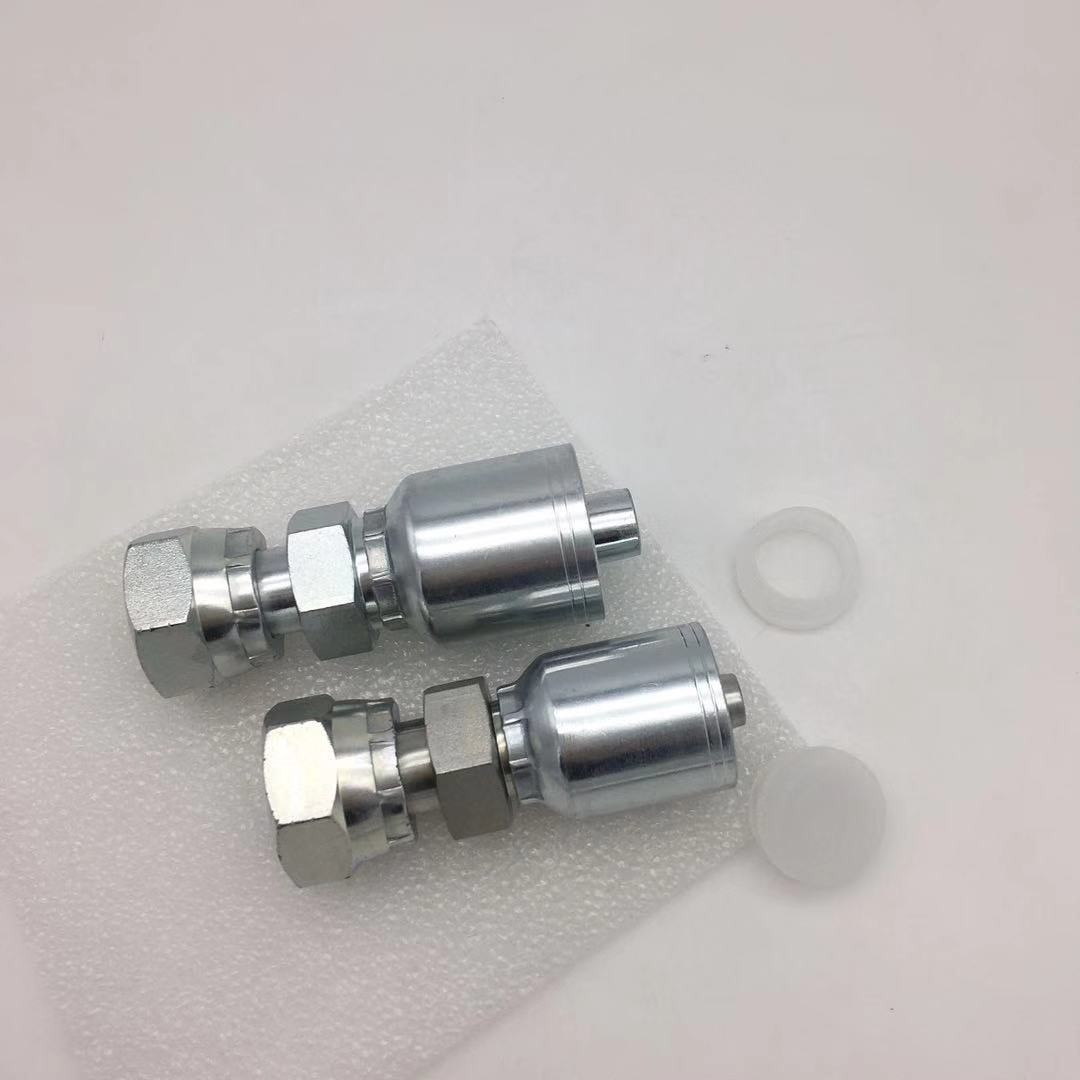

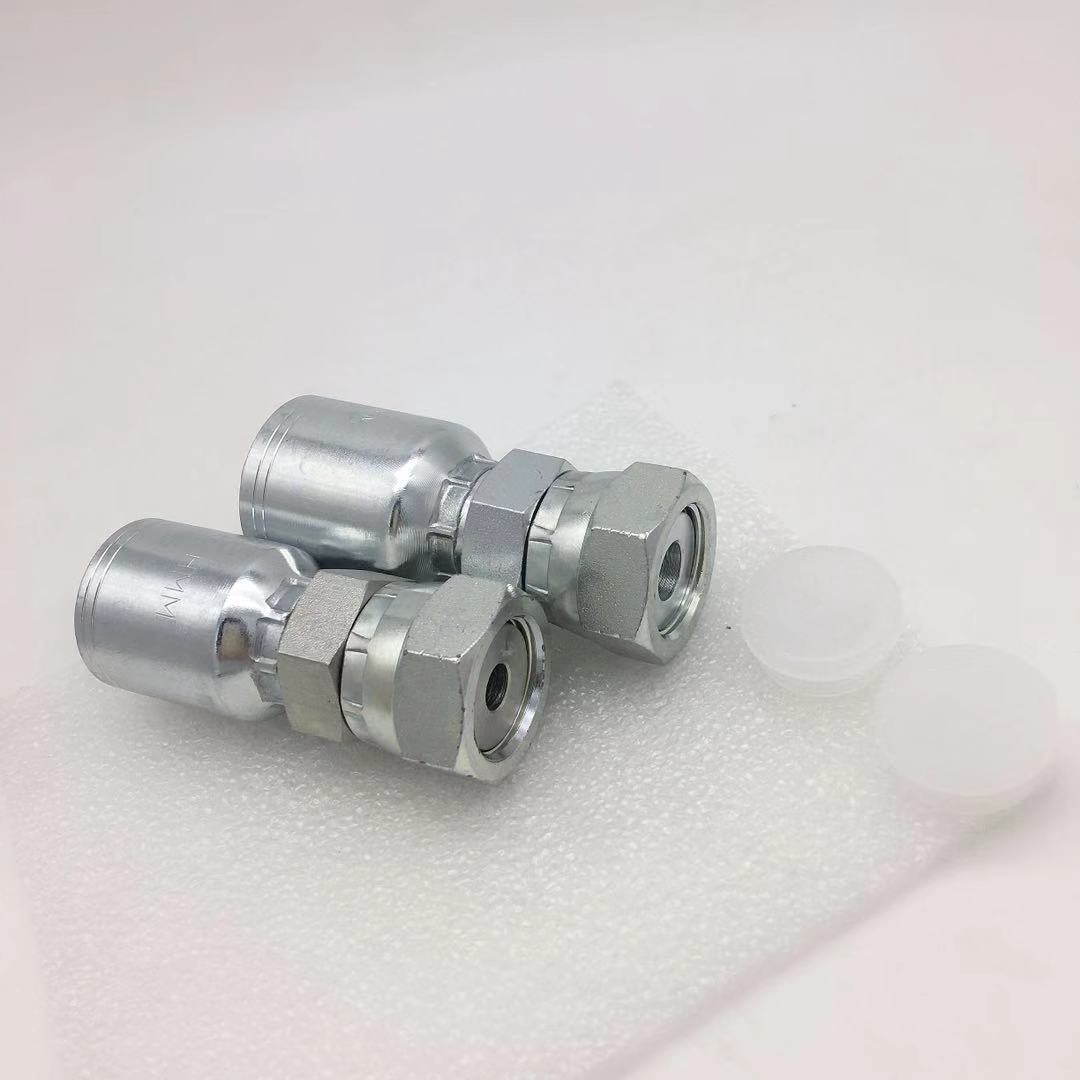

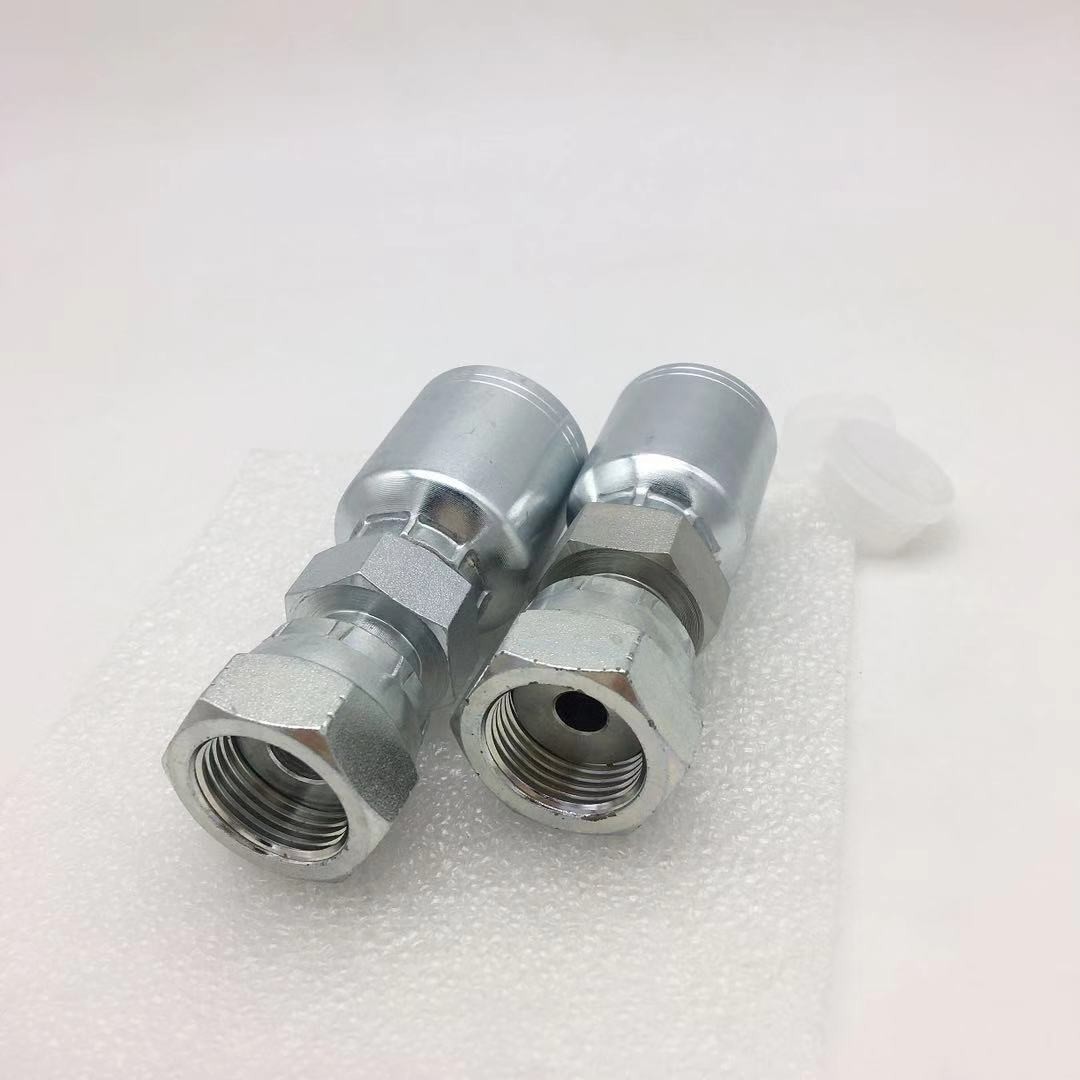

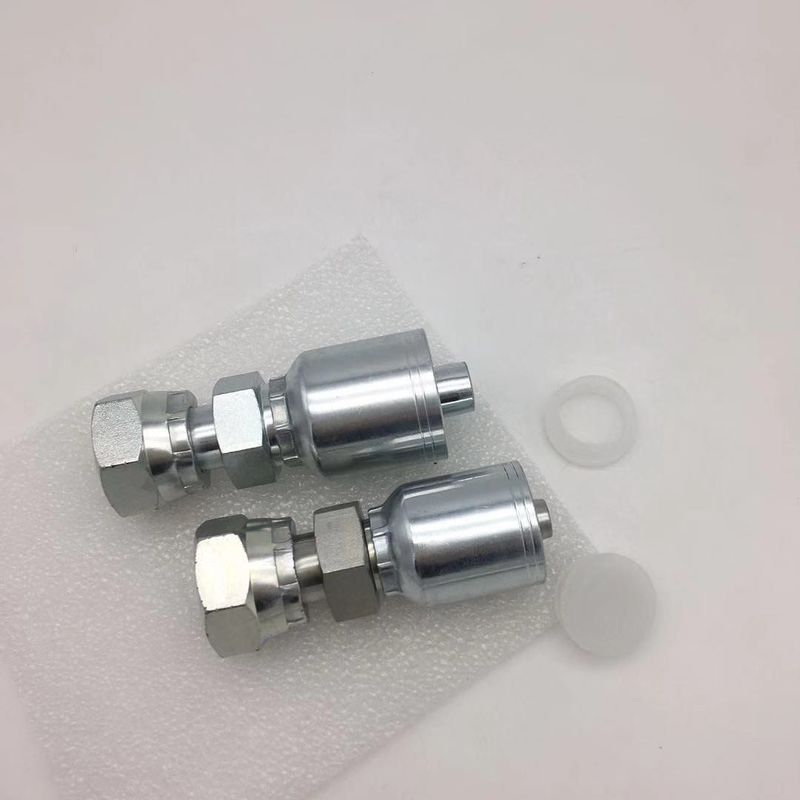

24211D - 12 - 12PK ORFS Female Flat Seat Hydraulic One Piece Hose Fittings
| PART NO. | THREAD E | DN | DASH | A | C | S2 |
| 24211-04-04 | 9/16"*18 | 6 | 4 | 22.5 | 8.5 | 19 |
| 24211-04-05 | 9/16"*18 | 8 | 5 | 22.5 | 8.5 | 19 |
| 24211-04-06 | 9/16"*18 | 10 | 6 | 22.5 | 8.5 | 19 |
| 24211-06-04T | 11/16"*16 | 6 | 4 | 23.5 | 10 | 22 |
| 24211-06-05T | 11/16"*16 | 8 | 5 | 23.5 | 10 | 22 |
| 24211-06-06 | 11/16"*16 | 10 | 6 | 25.5 | 10 | 22 |
| 24211-06-08 | 11/16"*16 | 12 | 8 | 26 | 10 | 22 |
| 24211-08-05T | 13/16"*16 | 8 | 5 | 25 | 11 | 27 |
| 24211-08-06T | 13/16"*16 | 10 | 6 | 25 | 11 | 27 |
| 24211-08-08 | 13/16"*16 | 12 | 8 | 28 | 11 | 27 |
| 24211-08-10 | 13/16"*16 | 16 | 10 | 29 | 11 | 27 |
| 24211-10-08T | 1"*14 | 12 | 8 | 29.5 | 13.5 | 30 |
| 24211-10-10 | 1"*14 | 16 | 10 | 33.5 | 13.5 | 30 |
| 24211-10-12 | 1"*14 | 20 | 12 | 33.5 | 13.5 | 30 |
| 24211-12-08T | 1.3/16"*12 | 12 | 8 | 30.5 | 15 | 36 |
| 24211-12-10T | 1.3/16"*12 | 16 | 10 | 31.5 | 15 | 36 |
| 24211-12-12 | 1.3/16"*12 | 20 | 12 | 35 | 15 | 36 |
| 24211-12-16 | 1.3/16"*12 | 25 | 16 | 36 | 15 | 36 |
| 24211-16-12T | 1.7/16"*12 | 20 | 12 | 35 | 14.8 | 41 |
| 24211-16-14T | 1.7/16"*12 | 22 | 14 | 34 | 14.8 | 41 |
| 24211-16-16T | 1.7/16"*12 | 25 | 16 | 35 | 14.8 | 41 |
| 24211-16-20 | 1.7/16"*12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 24211-20-16T | 1.11/16"*12 | 25 | 16 | 35 | 15 | 50 |
| 24211-20-20W | 1.11/16"*12 | 32 | 20 | 39.5 | 15 | 50 |
| 24211-20-24W | 1.11/16"*12 | 40 | 24 | 39.5 | 15 | 50 |
| 24211-24-20T | 2"*12 | 32 | 20 | 36 | 14.8 | 60 |
| 24211-24-24T | 2"*12 | 40 | 24 | 36 | 14.8 | 60 |
| 10 | 41.5 | 22.6 | 32 | |||
| 1671-14-12 | 1.3/16"*12 | 20 | 12 | 40.6 | 22.6 | 32 |
| 16711-16-12 | 1.5/16"*12 | 20 | 12 | 42.5 | 23.1 | 36 |
| 16711-16-16 | 1.5/16"*12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-16 | 1.5/8"*12 | 25 | 16 | 46.5 | 24.3 | 46 |
| 16711-20-20 | 1.5/8"*12 | 32 | 20 | 47.5 | 24.3 | 46 |
| 16711-24-20 | 1.7/8"*12 | 32 | 20 | 53 | 27.5 | 50 |
| 16711-24-24 | 1.7/8"*12 | 40 | 24 | 53 | 27.5 | 50 |
| 16711-32-32 | 2.1/2"*12 | 50 | 32 | 62 | 33.9 | 65 |
we’re a factory which manufacture hydraulic hose fitting ,adaptor for more than 10 years.
we have hundreds sets of machines,like full automatic CNC machine
forging machine,drilling machine,bending machine,etc.
trivalent zinc plated that improved corrosion resistance,it has been tested at 120 hours white rust and 240 hours red rust.
We have large stock of all kinds of hydraulic fittings ,more than 1000 different kinds of hydraulic fittings for selection
we’re committed to meeting your deadlines and delivery requirements,our regular delivery time is 30 days
