| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | 1JN9 |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Hydraulic Hose Fittings | Model: | Hydraulic Hose Adapter |
|---|---|---|---|
| Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
| Technics: | Hot Forge ,CNC Machine | Connection: | Female |
| Surface Treatment: | Trivalent Zinc Plated | Application: | Industry Excavator |
| Assemble Way: | Crimp,lock On | Size: | 1/4"-2" |
| Type: | Hydraulic Filters | Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic |
| High Light: | 1jn9 hydraulic fittings 90 degree elbow,jic hydraulic fittings 90 degree elbow,npt hydraulic 90 degree elbow |
||
Product Name

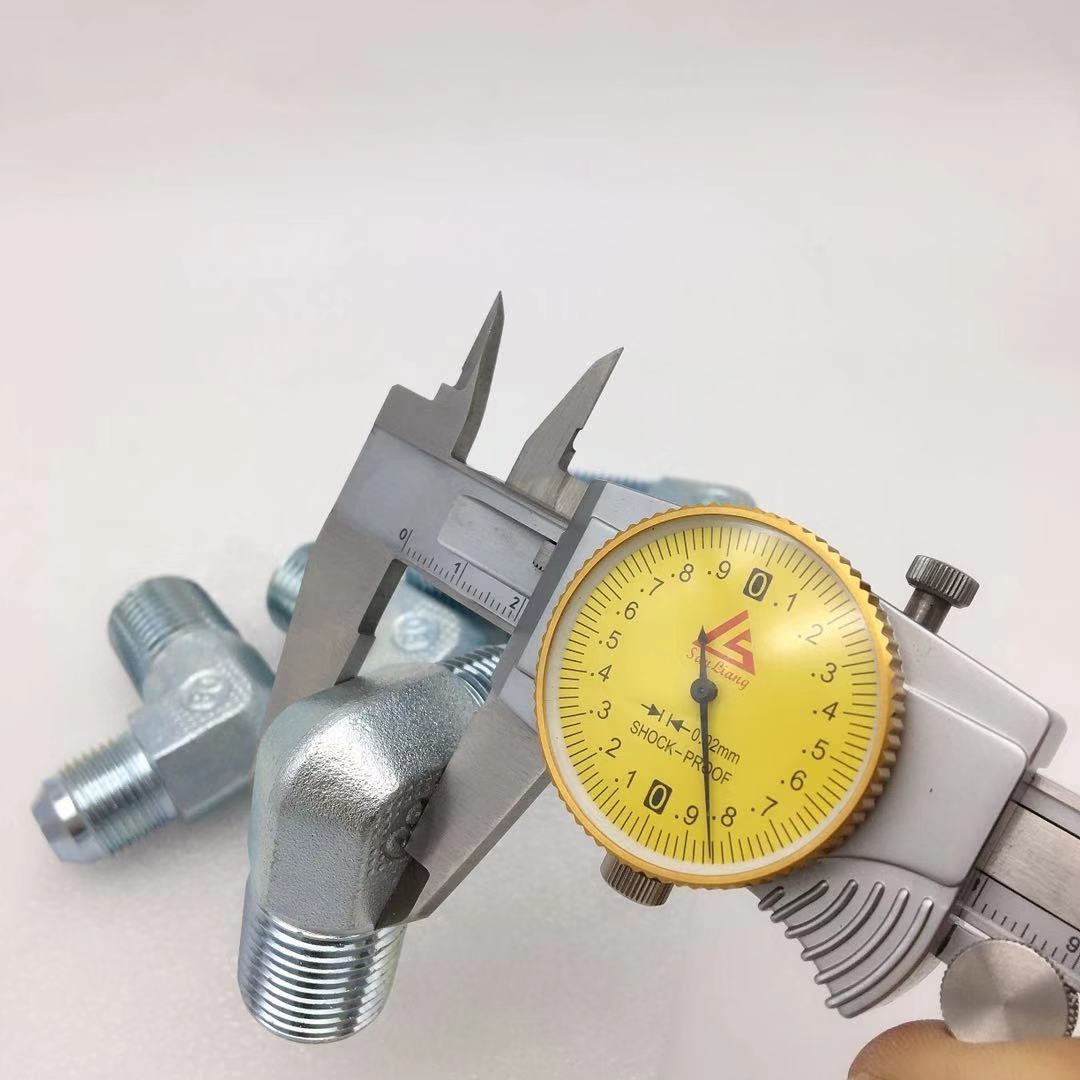

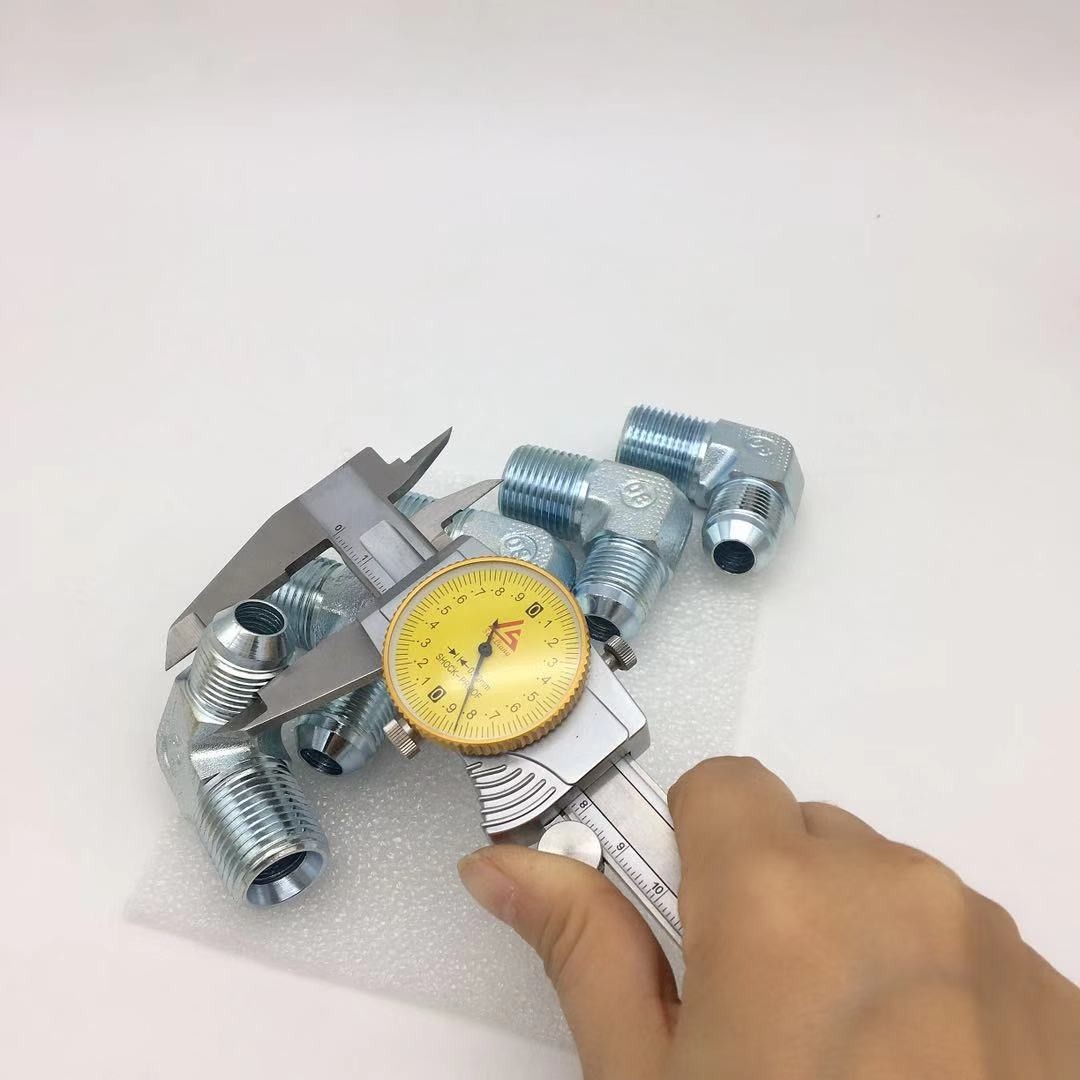

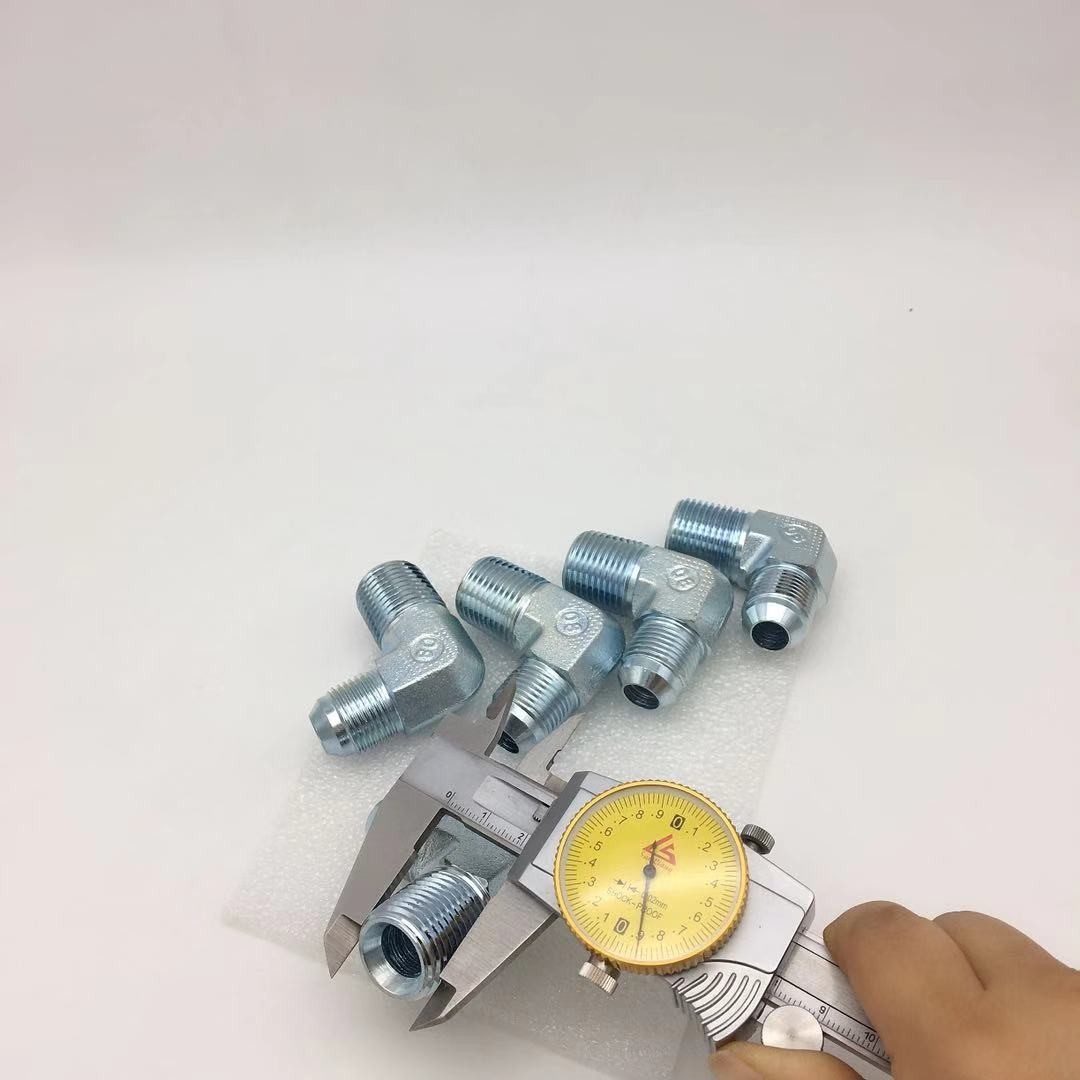

1JN9 JIC Stainless steel Hydraulic Pipe Tube Fittings Hydraulic Hose Connector 90 Degree Elbow NPT Male Hydraulic Hose Adapter
| Part No. | Thread | Dimensions | |||
| E | F | A | B | S1 | |
| 1JN9-02 | 5/16*24 | Z1/8*27 | 21 | 21 | 11 |
| 1JN9-04 | 7/16*20 | Z1/4*18 | 26.6 | 25.5 | 14 |
| 1JN9-06 | 9/16*18 | Z3/8*18 | 30 | 31 | 19 |
| 1JN9-08 | 3/4*16 | Z1/2*14 | 32 | 36.7 | 22 |
| 1JN9-12 | 1.1/16*12 | Z3/4*14 | 44.2 | 40 | 27 |
| 1JN9-16 | 1.5/16*12 | Z1*11.5 | 49 | 50 | 33 |
| 1JN9-20 | 1.5/8*12 | Z1.1/4*11.5 | 55.5 | 54.6 | 41 |
| 1JN9-24 | 1.7/8*12 | Z1.1/2*11.5 | 62.5 | 63 | 48 |
| 1JN9-32 | 2.1/2*12 | Z2*11.5 | 75.4 | 67.5 | 63 |
More details about our products ,please feel free to contact us
Mobile: 0086-13738475861
Website: hydraulic-hosefitting.com
