| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | YADE |
| Model Number: | 22111 hose fittings |
| Minimum Order Quantity: | 100 Pieces |
| Price: | be negotiation |
| Product Name: | Hydraulic Hose Fittings | Model: | 22111 Hose Fittings |
|---|---|---|---|
| Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
| Technics: | Hot Forge ,CNC Machine | Connection: | Female |
| Surface Treatment: | Trivalent Zinc Plated | Application: | Industry Excavator |
| Assemble Way: | Crimp,lock On | Size: | 1/4"-2" |
| Type: | Hydraulic Filters | Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic |
| High Light: | bsp hydraulic quick connect couplings,hot forge hydraulic quick connect couplings,npt hydraulic couplings |
||
Product Name

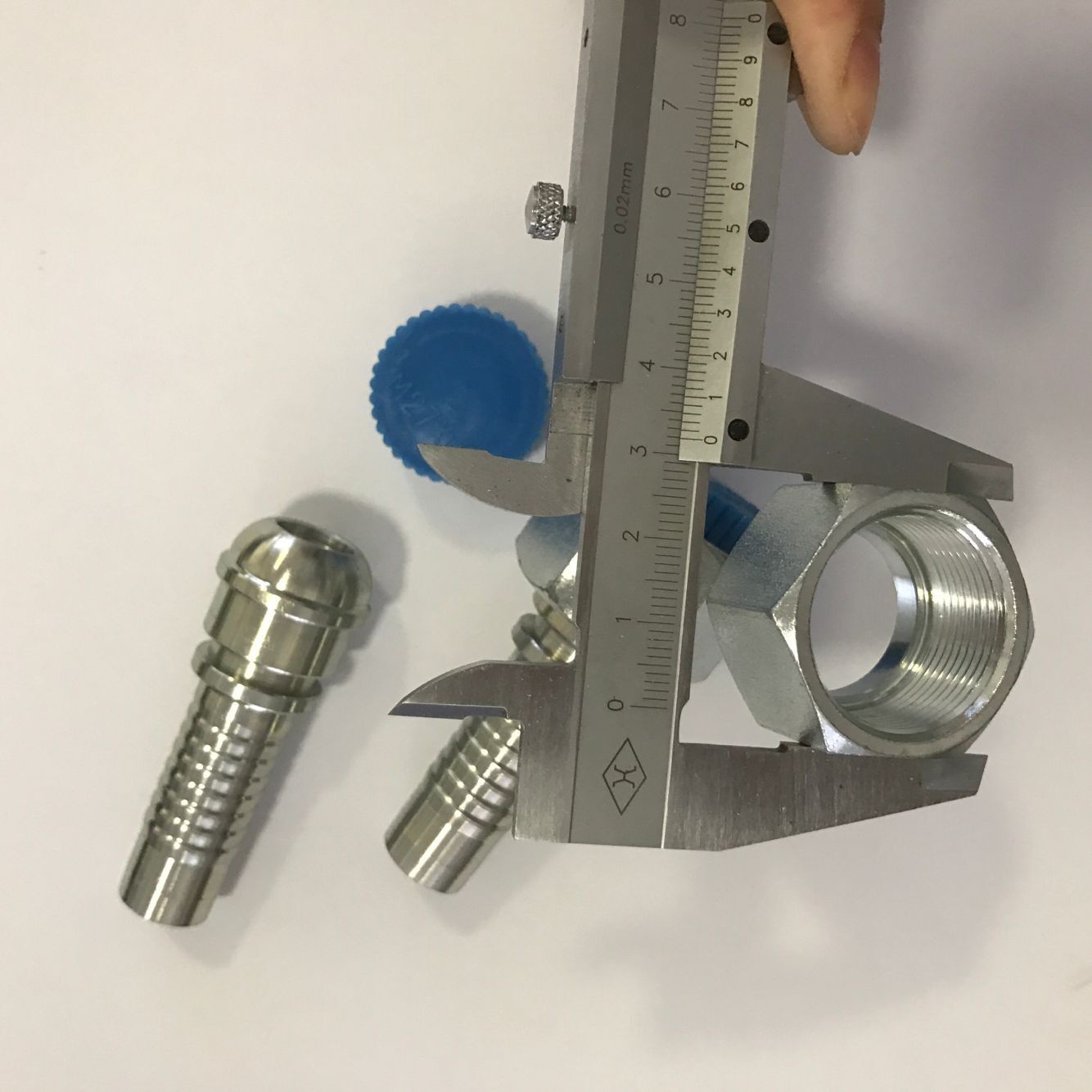

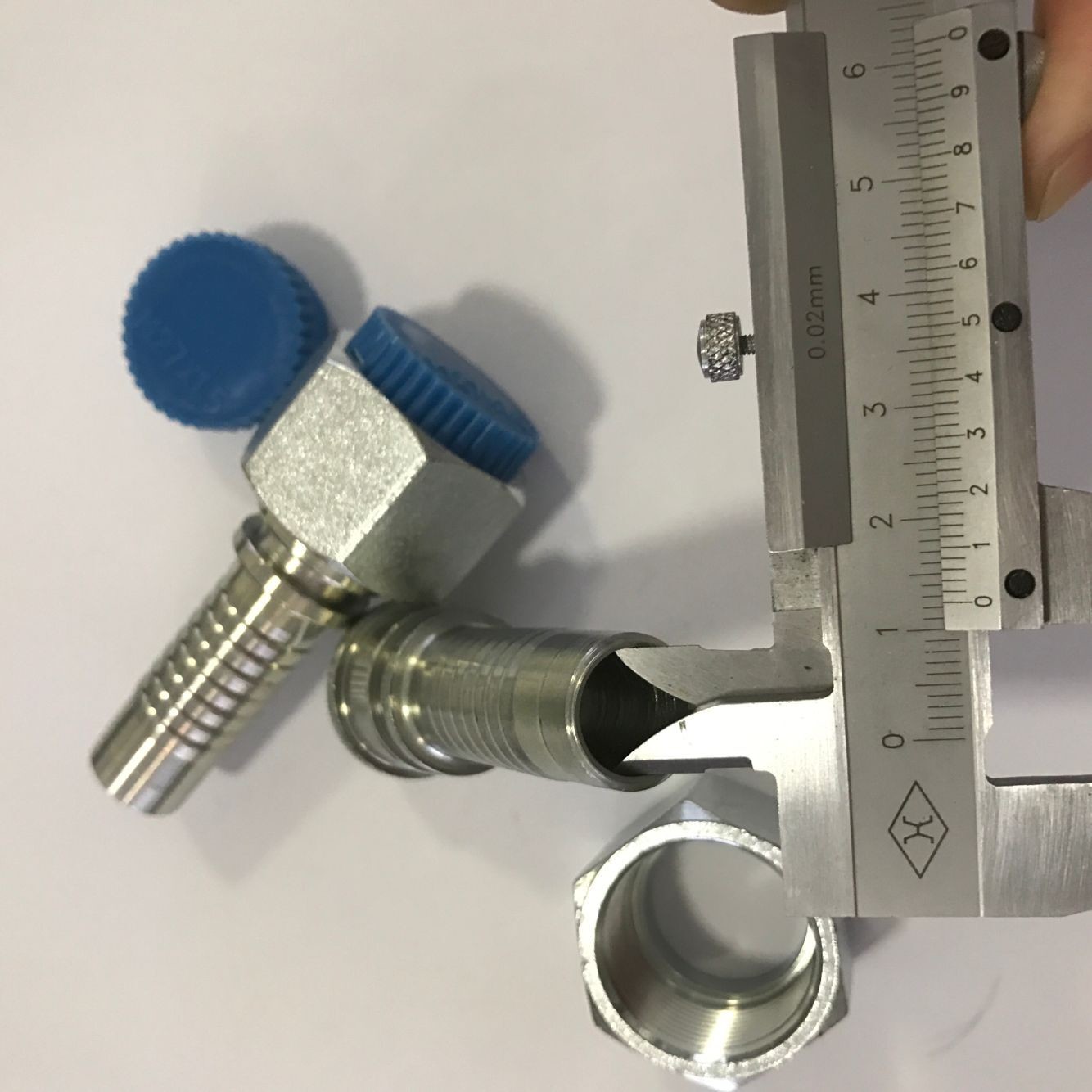

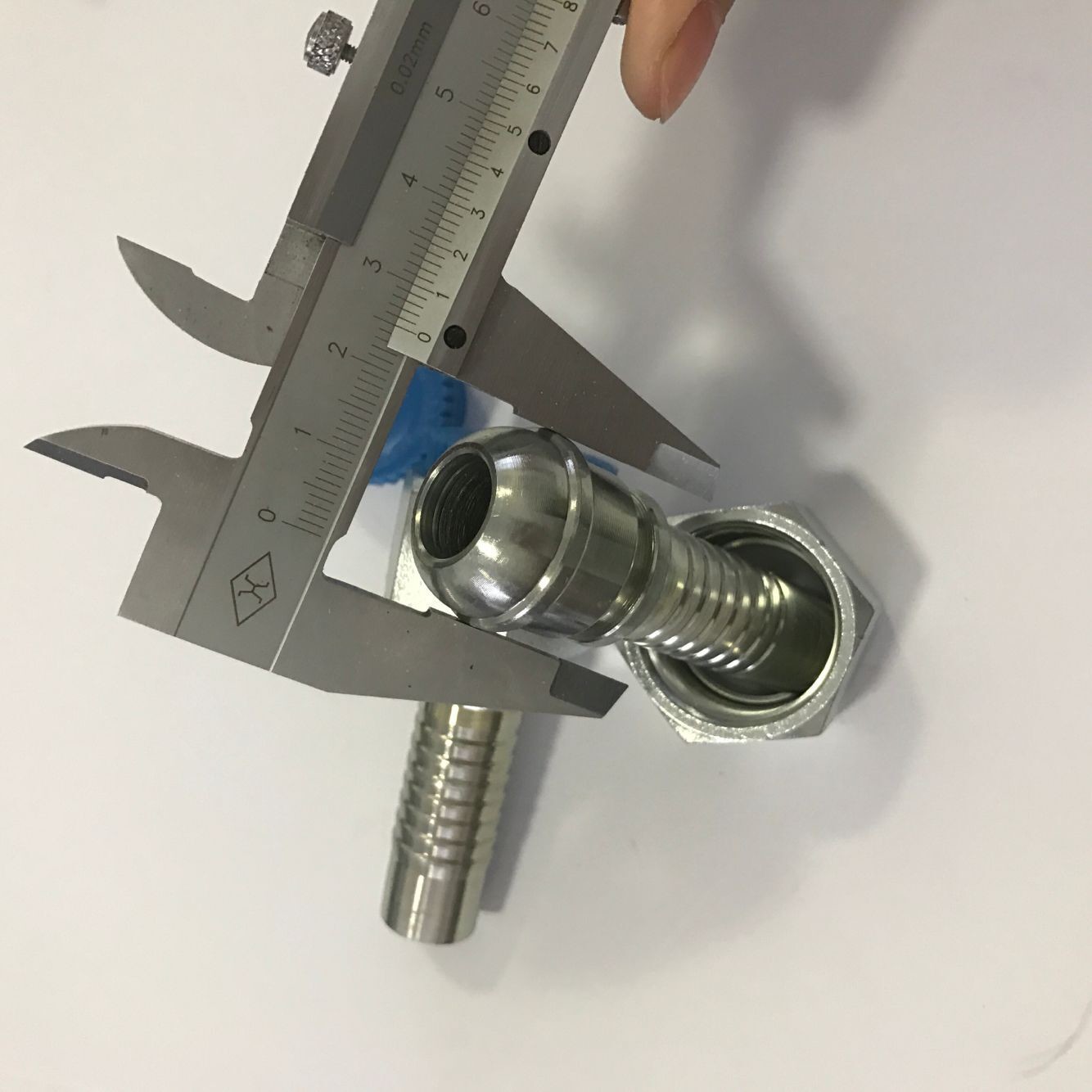

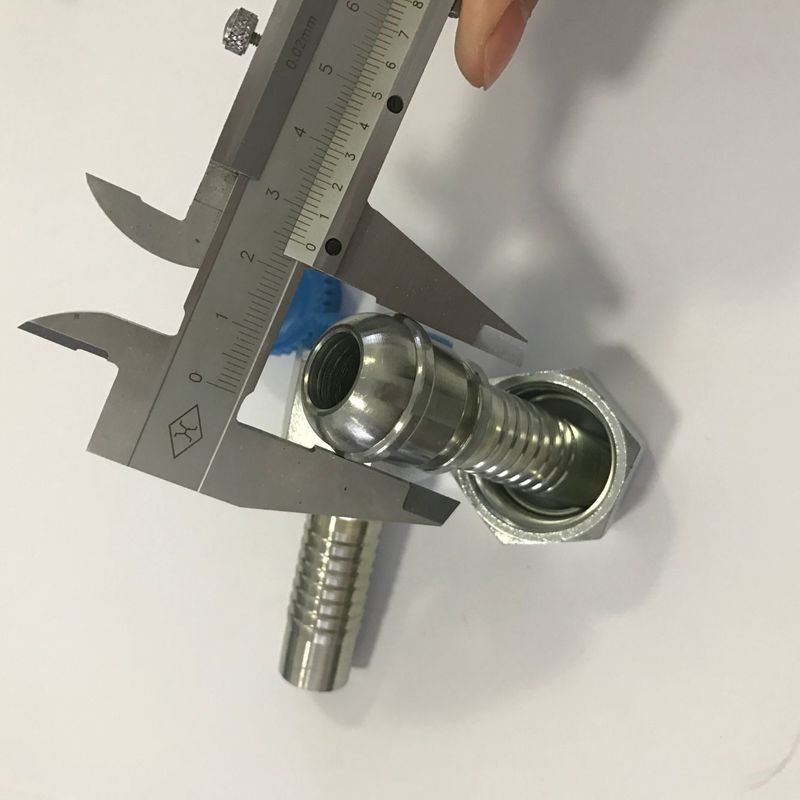

20111BSP NPT Stainless Steel Hydraulic Nipple Fittings Metric Female Hoses Fittings Couplings Reusable Hydraulic Hose Fitting
BSP thread with captive seal
hydraulic pressure hose
hydraulic hose coupling
hydraulic hose crimp fittings
| E | HOSE BORE | DIMENSIONS | ||||
| PART NO. | THREAD E | DN | DASH | A | C | S2 |
| 22111-02-04 | G1/8"*28 | 6 | 4 | 19 | 2 | 14 |
| 22111-04-03 | G1/4*19 | 5 | 3 | 19 | 4 | 19 |
| 22111-04-04 | G1/4"*19 | 6 | 4 | 19.5 | 4 | 19 |
| 22111-06-05 | G3/8"*19 | 8 | 5 | 20 | 5 | 22 |
| 22111-06-06 | G3/8"*19 | 10 | 6 | 20.5 | 5 | 22 |
| 22111-06-08 | G3/8"*19 | 12 | 8 | 21 | 5 | 22 |
| 22111-08-06T | G1/2"*14 | 10 | 6 | 22.5 | 6 | 27 |
| 22111-08-08 | G1/2"*14 | 12 | 8 | 23 | 6 | 27 |
| 22111-08-10 | G1/2"*14 | 16 | 10 | 24 | 6 | 27 |
| 22111-10-10 | G5/8"*14 | 16 | 10 | 25 | 8 | 30 |
| 22111-10-12 | G5/8"*14 | 20 | 12 | 25 | 8 | 30 |
| 22111-12-08T | G3/4"*14 | 12 | 8 | 25 | 9.5 | 32 |
| 22111-12-10 | G3/4"*14 | 16 | 10 | 26 | 9.5 | 32 |
| 22111-12-12 | G3/4"*14 | 20 | 12 | 26 | 9.5 | 32 |
| 22111-16-12T | G1"*11 | 20 | 12 | 26.5 | 11 | 41 |
| 22111-16-14 | G1"*11 | 22 | 14 | 26.5 | 11 | 41 |
| 22111-16-16 | G1"*11 | 25 | 16 | 28 | 11 | 41 |
| 22111-20-16T | G1.1/4"*11 | 25 | 16 | 27.5 | 11 | 50 |
| 22111-20-20W | G1.1/4"*11 | 32 | 20 | 31.5 | 10 | 50 |
| 22111-24-24W | G1.1/2"*11 | 40 | 24 | 37 | 11.5 | 55 |
| 22111-32-32W | G2"*11 | 50 | 32 | 34 | 15 | 70 |
