Product Name: | Hydraulic Hose Fittings | Model: | 22611 Hose Fittings |
---|---|---|---|
Material: | Stainless Steel Or Carbon Steel | Suitable Medium: | Water / Oil / Gas |
Technics: | Hot Forge ,CNC Machine | Connection: | Female |
Surface Treatment: | Trivalent Zinc Plated | Application: | Industry Excavator |
Assemble Way: | Crimp,lock On | Size: | 1/4"-2" |
Type: | Hydraulic Filters | Package Type: | Neutral Export Package: Carton Box With Plastic Bag Then Into Woodem Plastic |
High Light: | 22611 Hydraulic Hose Fitting,22611 Fitting Hose Hydraulic,1/4inch Hydraulic Hose Fitting |
Product Name

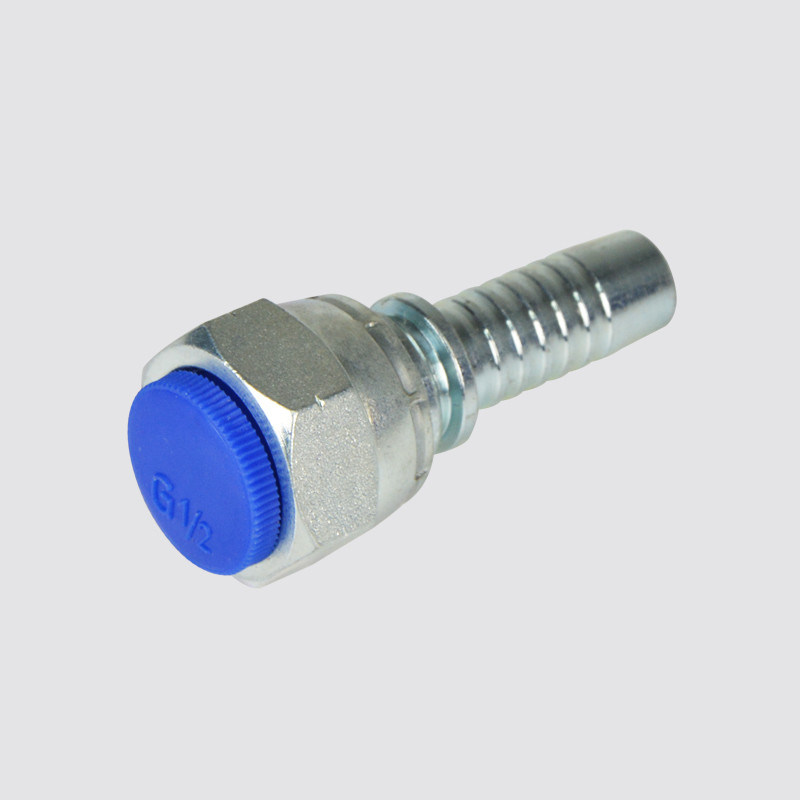

22611 BSP Female Thread Forged Hydraulic Hose Fitting Hose Crimping Fittings 60 Degree Cone Rubber Hydraulic Hose Fitting
BSP thread with captive seal
hydraulic pressure hose
hydraulic hose coupling
hydraulic hose crimp fittings
E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | A | C | S2 |
22611-02-03 | G1/8"*28 | 5 | 3 | 15 | 5.5 | 14 |
22611-02-04 | G1/8"*28 | 6 | 4 | 15 | 5.5 | 14 |
22611-04-03 | G1/4"*19 | 5 | 3 | 17 | 5.5 | 19 |
22611-04-04 | G1/4"*19 | 6 | 4 | 18 | 5.5 | 19 |
22611-04-05 | G1/4"*19 | 8 | 5 | 18 | 5.5 | 19 |
22611-04-06 | G1/4"*19 | 10 | 6 | 18 | 5.5 | 19 |
22611-06-04 | G3/8"*19 | 6 | 4 | 19 | 6.3 | 22 |
22611-06-05 | G3/8"*19 | 8 | 5 | 19 | 6.3 | 22 |
22611-06-06 | G3/8"*19 | 10 | 6 | 19.5 | 6.3 | 22 |
22611-06-08 | G3/8"*19 | 12 | 8 | 19.5 | 6.3 | 22 |
22611-08-06T | G1/2"*14 | 10 | 6 | 21 | 7.5 | 27 |
22611-08-08 | G1/2"*14 | 12 | 8 | 21.5 | 7.5 | 27 |
22611-10-08 | G5/8"*14 | 12 | 8 | 22 | 9.5 | 30 |
22611-10-10 | G5/8"*14 | 16 | 10 | 23.5 | 9.5 | 30 |
22611-12-08T | G3/4"*14 | 12 | 8 | 22 | 10.9 | 32 |
22611-12-10 | G3/4"*14 | 16 | 10 | 24 | 10.9 | 32 |
22611-12-12 | G3/4"*14 | 20 | 12 | 24 | 10.9 | 32 |
22611-16-12T | G1"*11 | 20 | 12 | 24 | 11.7 | 41 |
22611-16-14 | G1"*11 | 22 | 14 | 26 | 11.7 | 41 |
22611-16-16 | G1"*11 | 25 | 16 | 27 | 11.7 | 41 |
22611-20-16T | G1.1/4"*11 | 25 | 16 | 27.5 | 11 | 50 |
22611-20-20W | G1.1/4"*11 | 32 | 20 | 30.5 | 11 | 50 |
22611-24-20T | G1.1/2"*11 | 32 | 20 | 32 | 13 | 55 |
22611-24-24W | G1.1/2"*11 | 40 | 24 | 32 | 13 | 55 |
22611-32-24T | G2"*11 | 40 | 24 | 30 | 16 | 70 |
22611-32-32W | G2"*11 | 50 | 32 | 31.9 | 16 | 70 |
Our factory is located in Ningbo ,China, it near to the Ningbo airport and Ningbo seaport ,the transportion is convenience
Welcome to visit our factory
