| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Yade |
| Model Number: | 22691 hose fittings |
| Minimum Order Quantity: | 100 - 999 Pieces |
| Price: | be negotiation |
| Packaging Details: | Package of HYDRAULIC HOSE FITTINGS:carton boxes and plywood case |
| Supply Ability: | 100000 Piece/Pieces per Week |
| Type: | Coupling | Material: | Carbon Steel |
|---|---|---|---|
| Technics: | Forged | Connection: | Female, Crimp On,lock On |
| Shape: | Equal | Head Code: | Hexagon |

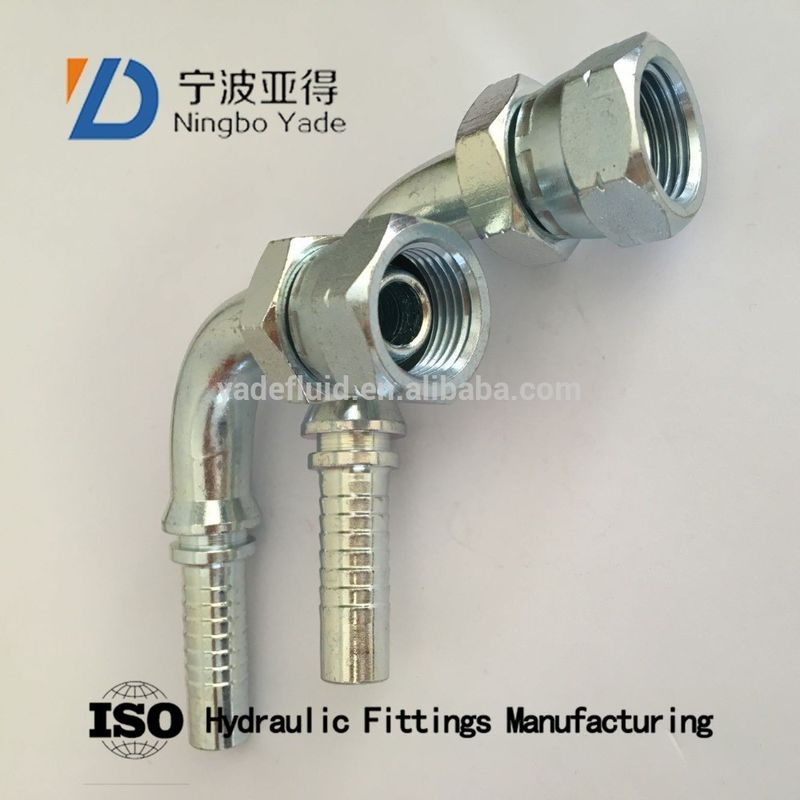

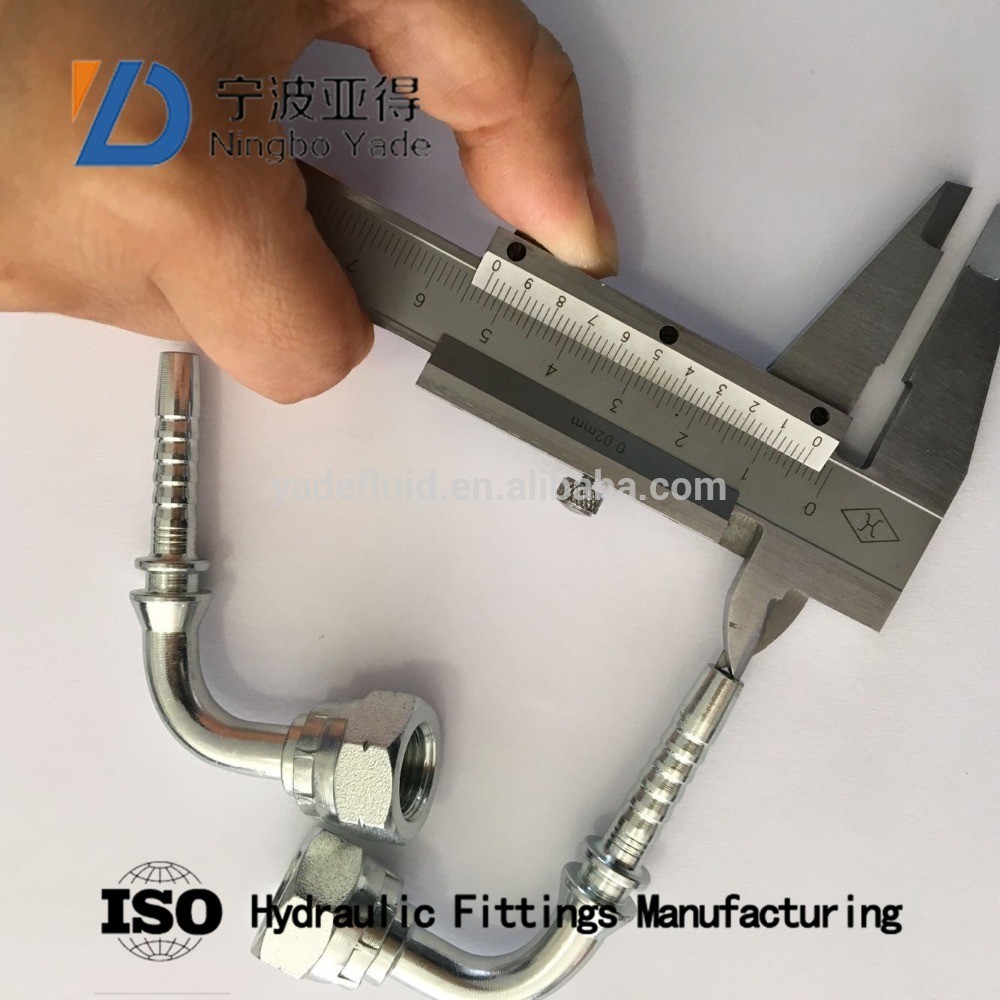

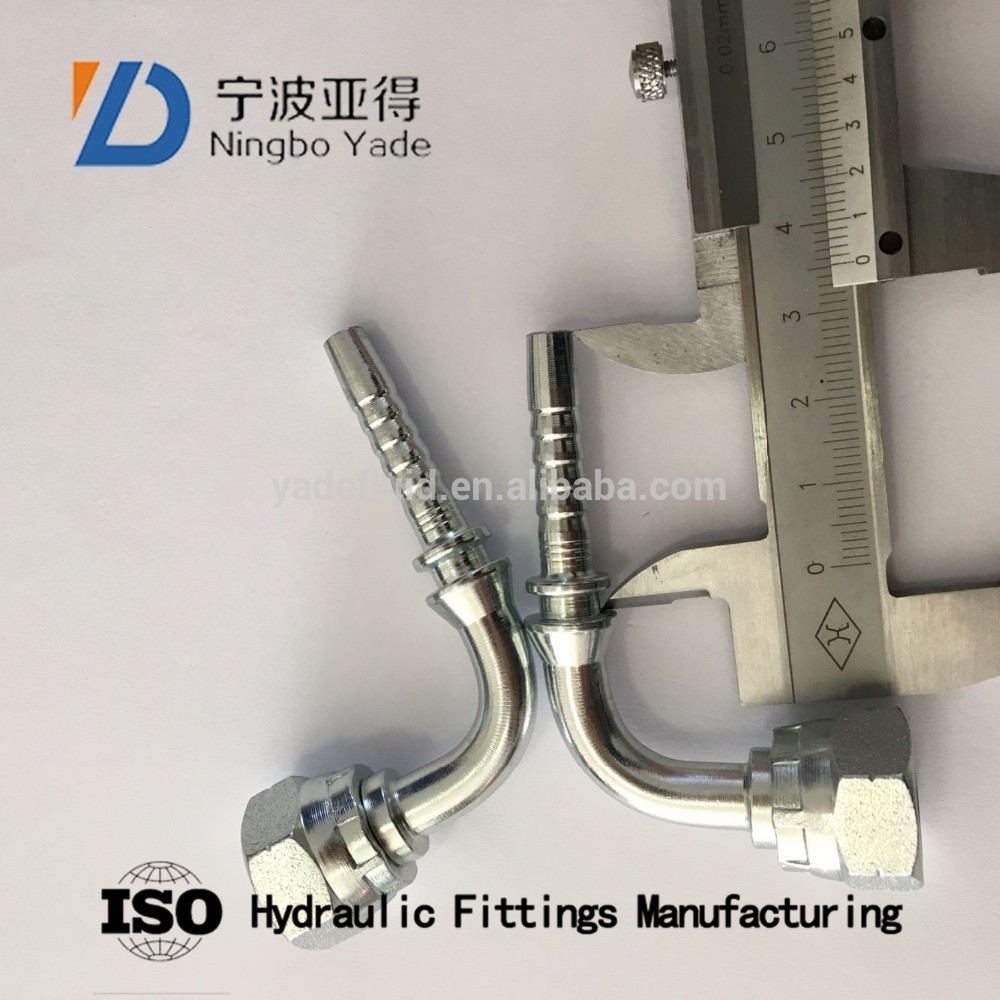

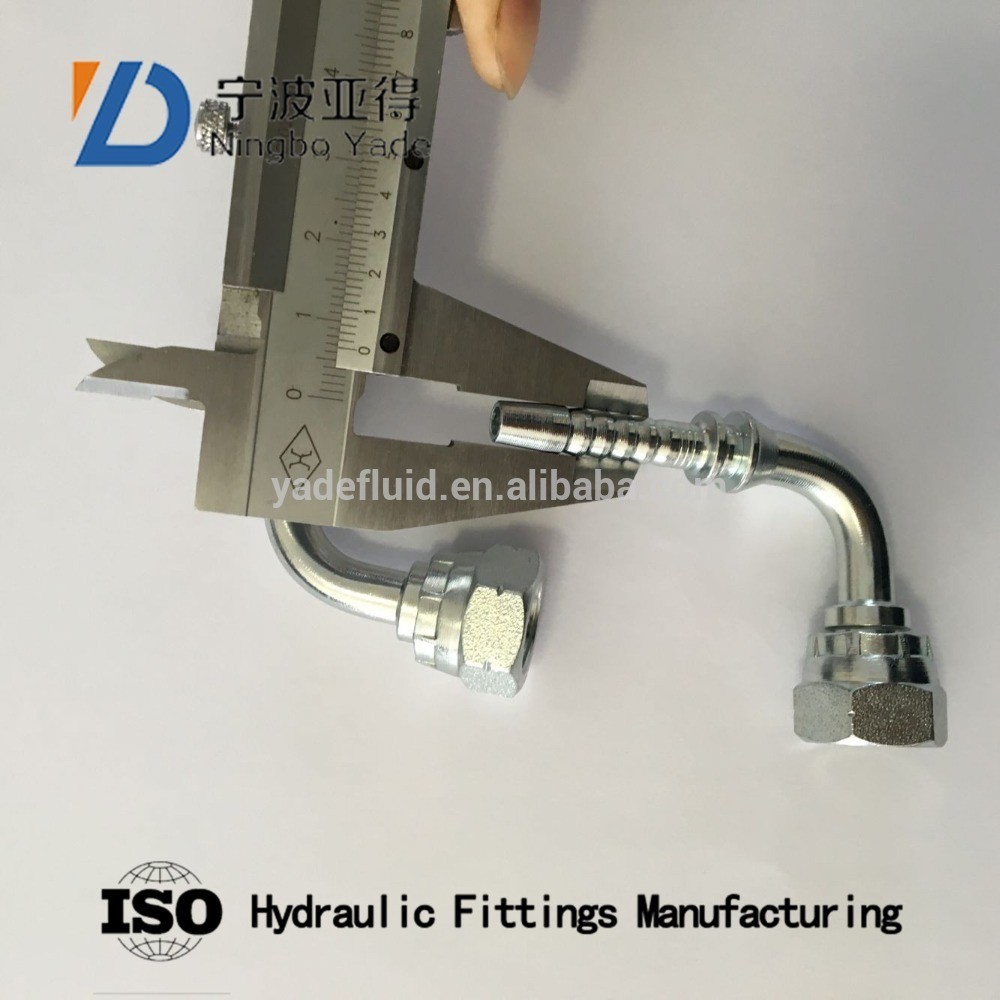

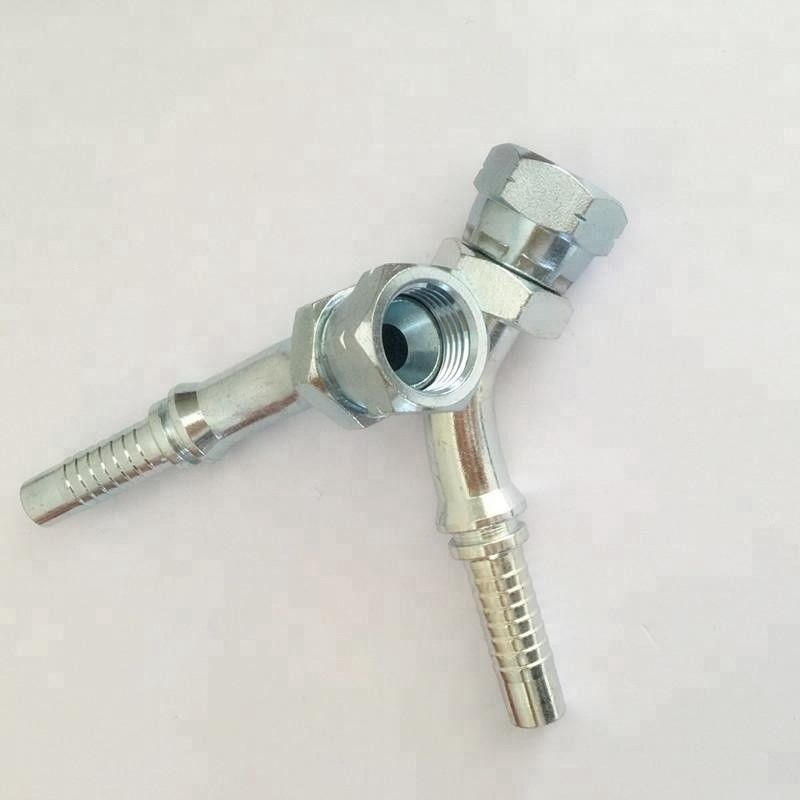

| Product Name: | BSP Hydraulic Hose Fittings | Model Number: | 22691 Hose Fittings |
| Surface Treatment: | Trivalent Silver And Yellow Zinc | Color: | Yellow Or White |
| Port: | Ningbo | ||
| High Light: | Female british hydraulic hose fittings,Coupling bsp hydraulic hose fittings |
||
Reasonable & acceptable price male female jic fittings bsp hydraulic hose fittings
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
| 22691-02-03 | G1/8"*28 | 5 | 3 | 26.5 | 5.5 | 31.5 | 14 |
| 22691-02-04 | G1/8"*28 | 6 | 4 | 30 | 5.5 | 34.5 | 14 |
| 22691-04-03 | G1/4"*19 | 5 | 3 | 26.5 | 5.5 | 33.5 | 19 |
| 22691-04-04 | G1/4"*19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 |
| 22691-04-05 | G1/4"*19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 |
| 22691-04-06 | G1/4"*19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-04 | G3/8"*19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 |
| 22691-06-05 | G3/8"*19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 |
| 22691-06-06 | G3/8"*19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 |
| 22691-08-06T | G1/2"*14 | 10 | 6 | 35.3 | 7 | 43.3 | 27 |
| 22691-08-08 | G1/2"*14 | 12 | 8 | 41 | 7.5 | 51 | 27 |
| 22691-08-10 | G1/2"*14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 |
| 22691-10-08 | G5/8"*14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 |
| 22691-10-10 | G5/8"*14 | 16 | 10 | 56.5 | 9.5 | 56 | 30 |
| 22691-12-08T | G3/4"*14 | 12 | 8 | 41 | 10.9 | 52.1 | 32 |
| 22691-12-10 | G3/4"*14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 |
| 22691-12-12 | G3/4"*14 | 20 | 12 | 65.5 | 10.9 | 66 | 32 |
| 22691-16-12T | G1"*11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 |
| 22691-16-14 | G1"*11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 |
| 22691-16-16 | G1"*11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 |
| 22691-20-16T | G1.1/4"*11 | 25 | 16 | 78 | 11 | 69.5 | 50 |
| 22691-20-20W | G1.1/4"*11 | 32 | 20 | 91.5 | 11 | 84.3 | 50 |
| 22691-24-24W | G1.1/2"*11 | 40 | 24 | 109.4 | 13 | 103 | 55 |
| 22691-32-32W | G2"*11 | 50 | 32 | 131.8 | 16 | 123.3 | 70 |
Reasonable & acceptable price male female jic fittings bsp hydraulic hose fittings---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.
1) FERRULE
FERRULE for SAE100R1AT/EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN853 2SN HOSE
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE for 4SH, R12/32 HOSE
2) SWAGED METRIC FITTINGS
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings
3) SWAGED BRITISH FITTINGS
BSP O-RING Seal Fittings BSP Flat Seal Fittings
BSP Multiseal Fittings BSP 60°Cone Seal Fittings
BSPT Fittings JIS BSP 60°Cone Seal Fittings
4) SWAGED AMERICAN FITTINGS
SAE O-RING Seal Fittings ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings
5) STAPLELOK FITTINGS
BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS
6) METRIC ADAPTERS
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
Metric Thread 74°Cone Flared Tube Adapters
JIS Metric Thread 60°Cone Adapters
7) BRITISH ADAPTERS
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8) AMERICAN ADAPTERS
ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
9) OTHER ADAPTERS
Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.
If you have any other questions,please do not hesitate to contact us!
