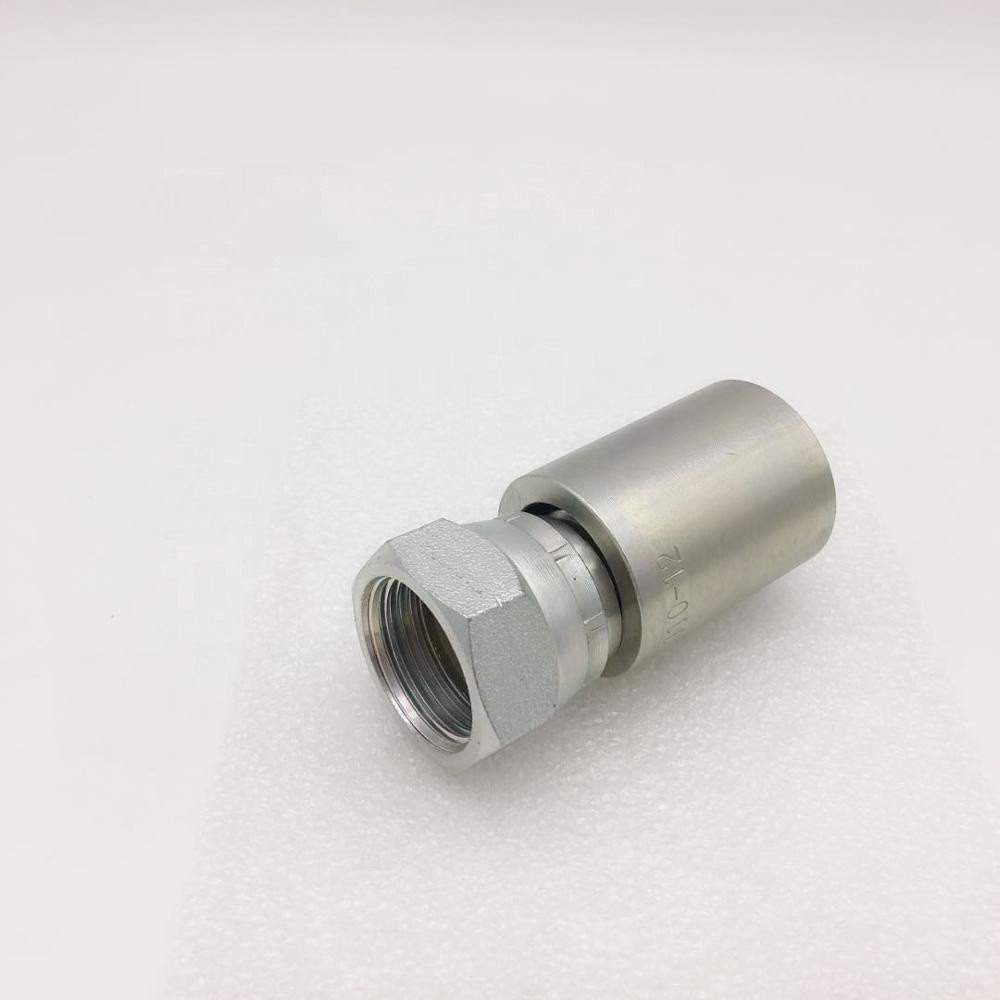

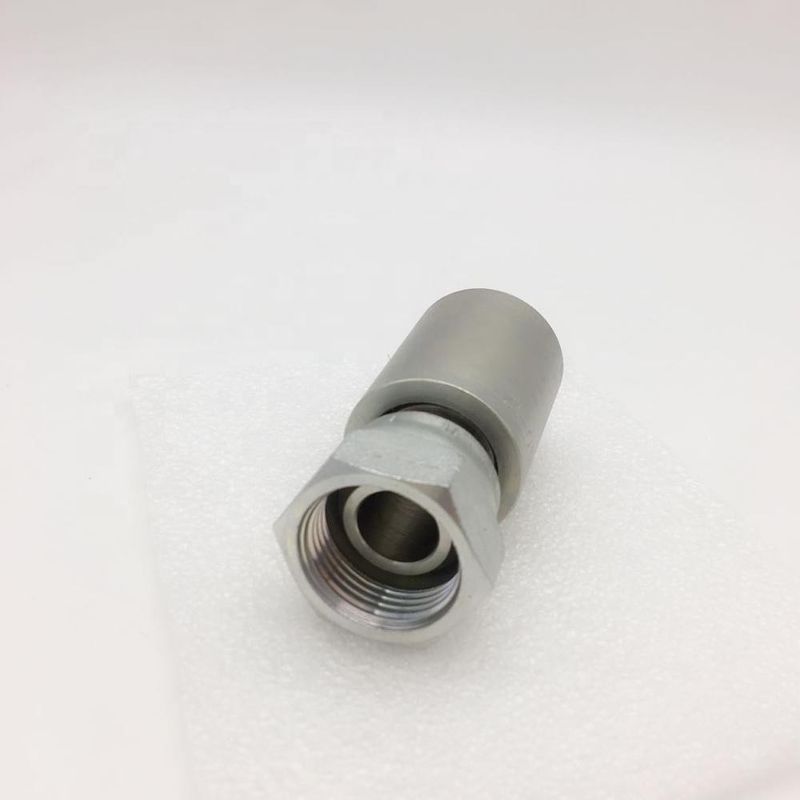

High Pressure Ferrule 22611-04-04 Hydraulic Pipe Fitting

Basic Information
Place of Origin: Zhejiang, China
Brand Name: none
Minimum Order Quantity: 1-49 Pieces
Price: be negotiation
Product Name: Hydraulic Hose Fittings Application: Hydraulic System In Construction Machinery
Material: Carbon Steel Stainless Steel Standard Or Nonstandard: EATON WINNER STANDARD
Model: 22611-04-04 Size: BSP 1/4"
Surface Treatment: Trivalent Zinc Plated MOQ: 100pcs
Package: Neutral Package HS Code: 73079900
Condition: New Warranty: 1.5 Years
After Warranty Service: Spare Parts Local Service Location: None
Showroom Location: None Type: Fittings
Weight: 0.055kgs Dimension(L*W*H): 8*9.5*7.5
Selling Units: Single Item Single Package Size : 8X9X7.5 Cm
Single Gross Weight: 0.055 Kg Package Type: Neutral Export Package
High Light:

22611 Hydraulic Pipe Fitting

,

1/4" hydraulic connector fittings

 22611-04-04 high pressure and best selling carbon hydraulic hose ferrule hydraulic pipe fitting product name fittings hy



  E HOSE BORE DIMENSIONS
PART NO. THREAD E DN DASH A C S2
22611-02-03 G1/8"*28 5 3 15 5.5 14
22611-02-04 G1/8"*28 6 4 15 5.5 14
22611-04-03 G1/4"*19 5 3 17 5.5 19
22611-04-04 G1/4"*19 6 4 18 5.5 19
22611-04-05 G1/4"*19 8 5 18 5.5 19
22611-04-06 G1/4"*19 10 6 18 5.5 19
22611-06-04 G3/8"*19 6 4 19 6.3 22
22611-06-05 G3/8"*19 8 5 19 6.3 22
22611-06-06 G3/8"*19 10 6 19.5 6.3 22
22611-06-08 G3/8"*19 12 8 19.5 6.3 22
22611-08-06T G1/2"*14 10 6 21 7.5 27
22611-08-08 G1/2"*14 12 8 21.5 7.5 27
22611-10-08 G5/8"*14 12 8 22 9.5 30
22611-10-10 G5/8"*14 16 10 23.5 9.5 30
22611-12-08T G3/4"*14 12 8 22 10.9 32
22611-12-10 G3/4"*14 16 10 24 10.9 32
22611-12-12 G3/4"*14 20 12 24 10.9 32
22611-16-12T G1"*11 20 12 24 11.7 41
22611-16-14 G1"*11 22 14 26 11.7 41
22611-16-16 G1"*11 25 16 27 11.7 41
22611-20-16T G1.1/4"*11 25 16 27.5 11 50
22611-20-20W G1.1/4"*11 32 20 30.5 11 50
22611-24-20T G1.1/2"*11 32 20 32 13 55
22611-24-24W G1.1/2"*11 40 24 32 13 55
22611-32-24T G2"*11 40 24 30 16 70
22611-32-32W G2"*11 50 32 31.9 16 70
Product Catalog
Ferrules
Metric thread hose fittings
British thread hose fittings
America thread hose fittings
Metric thread hose adapter
Brithsh thread hose adapter
America thread hose adapter
One piece hose fittings
Reusable hose fittings
WHY US
High Pressure Ferrule 22611-04-04  Hydraulic Pipe Fitting 0



Workshop

we’re a factory which manufacture hydraulic hose fitting ,adaptor for more than 10 years.

High Pressure Ferrule 22611-04-04  Hydraulic Pipe Fitting 1



Cutting machine

2.we have hundreds sets of machines,like full automatic CNC machine

High Pressure Ferrule 22611-04-04  Hydraulic Pipe Fitting 2



laser printer

forging machine,drilling machine,bending machine,etc.

High Pressure Ferrule 22611-04-04  Hydraulic Pipe Fitting 3

trivalent zinc plated that improved corrosion resistance,it has been tested at 120 hours white rust and 240 hours red rust.

High Pressure Ferrule 22611-04-04  Hydraulic Pipe Fitting 4

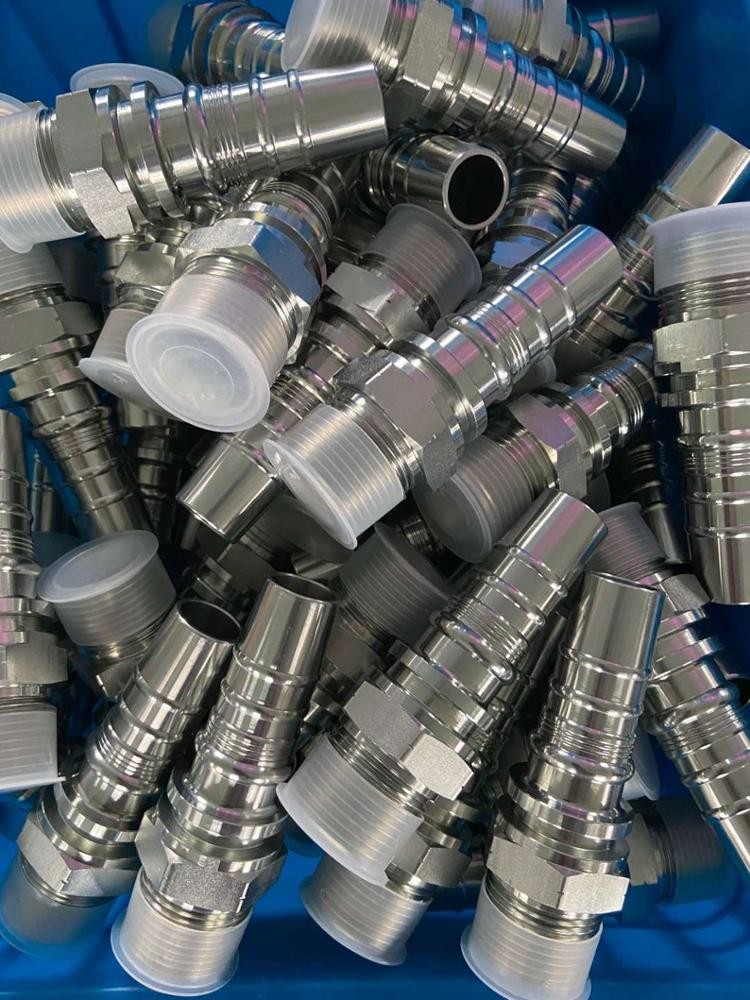

We have large stock of all kinds of hydraulic fittings ,more than 1000 different kinds of hydraulic fittings for selection
