| Place of Origin: | China |
|---|---|
| Brand Name: | NONE |

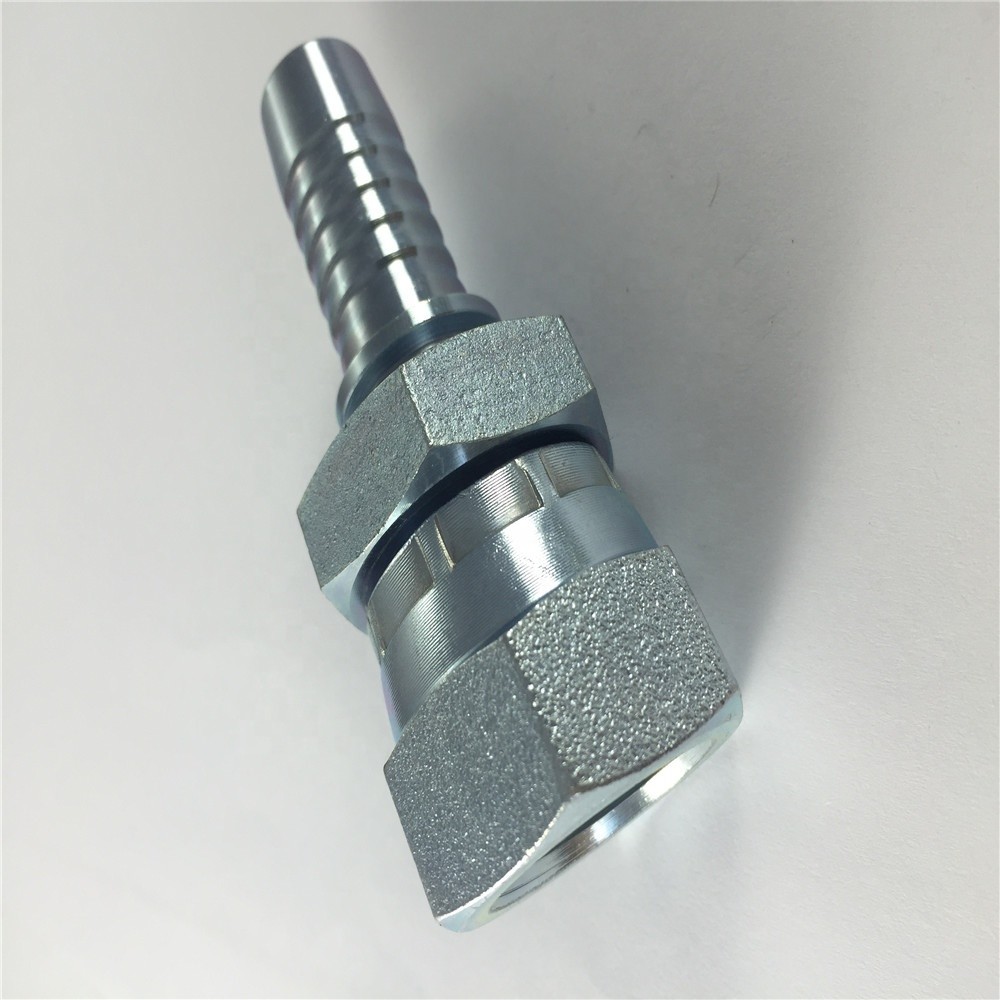

| Model Number: | 29611D-04-04 |
| Minimum Order Quantity: | 1-49 Pieces |
| Price: | be negotiation |
| Product Name: | Hydraulic Hose Fittings | Material: | Carbon Steel Stainless Steel |
|---|---|---|---|
| Application: | Connect To Hydraulic Hose | Thread: | JIS 60 Degree Cone |
| Surface Treatment: | Trivalent Zinc Plated | Standard Or Nonstandard: | Eaton Standard |
| Package: | Neutral Pacakge | Delivery Time: | 15 Days |
| H.S Code: | 73079900 | Condition: | New |
| Warranty: | 1.5 Years | After Warranty Service: | Spare Parts |
| Local Service Location: | None | Showroom Location: | None |
| Type: | Fittings | Pressure: | High Pressure |
| Weight: | 0.08 | Dimension(L*W*H): | 8*7.5*9 |
| Selling Units: | Single Item | Single Package Size : | 8X7.5X9 Cm |
| Single Gross Weight: | 0.080 Kg | Package Type: | Neutral Export Pacakge: Carton Box +plywood Case |
| High Light: | 29611D bsp hydraulic fittings,Swivel banjo bolt fitting |
||
| PART NO. | THREAD E | DN | DASH | A | C | S1 | S2 |
| 29611-02-03 | G1/8"*28 | 5 | 3 | 20 | 7 | 14 | 14 |
| 29611-04-04 | G1/4"*19 | 6 | 4 | 21 | 8 | 19 | 19 |
| 29611-04-05 | G1/4"*19 | 8 | 5 | 21 | 8 | 19 | 19 |
| 29611-06-04 | G3/8"*19 | 6 | 4 | 24 | 9 | 22 | 22 |
| 29611-06-06 | G3/8"*19 | 10 | 6 | 26 | 9 | 22 | 22 |
| 29611-08-06 | G1/2"*14 | 10 | 6 | 28 | 12 | 27 | 27 |
| 29611-08-08 | G1/2"*14 | 12 | 8 | 26.5 | 12 | 27 | 27 |
| 29611-10-10 | G5/8"*14 | 16 | 10 | 31 | 11.5 | 30 | 30 |
| 29611-12-10 | G3/4"*14 | 16 | 10 | 28.5 | 13.5 | 32 | 32 |
| 29611-12-12 | G3/4"*14 | 20 | 12 | 28.5 | 13.5 | 32 | 32 |
| 29611-16-16 | G1"*11 | 25 | 16 | 32 | 16 | 41 | 41 |
| 29611-20-20W | G1.1/4"*11 | 32 | 20 | 43 | 18.5 | 50 | 50 |
| 29611-24-24W | G1.1/2"*11 | 40 | 24 | 43.5 | 19 | 55 | 55 |
| 29611-32-32W | G2"*11 | 50 | 32 | 46.5 | 23 | 70 | 70 |
|

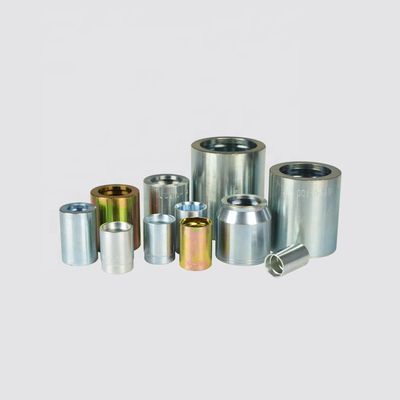

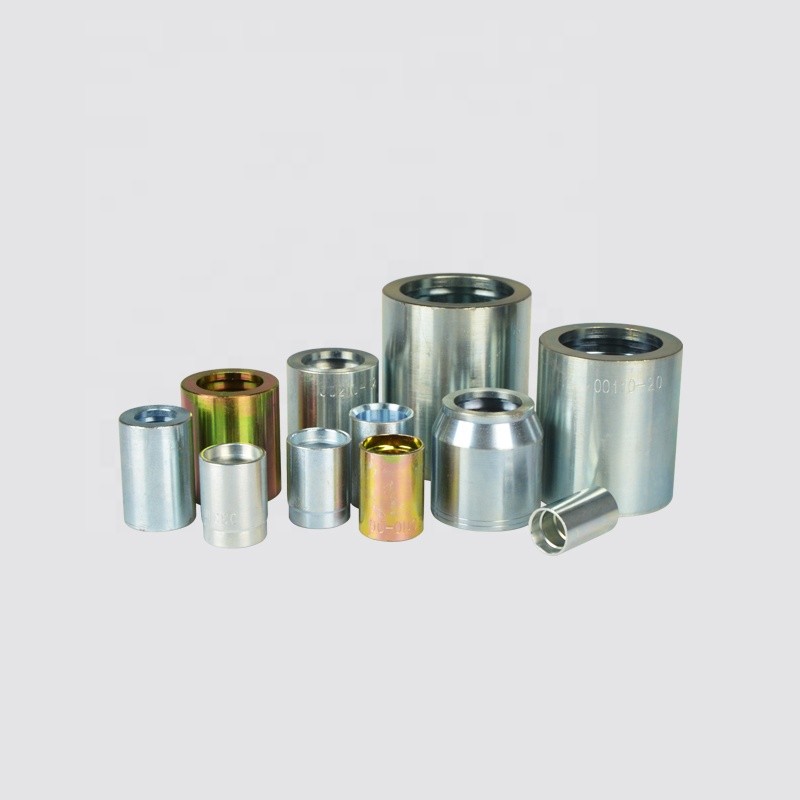

Ferrules
|
Metric thread hose fittings
|
British thread hose fittings
|
|
America thread hose fittings
|
Metric thread hose adapter
|
Brithsh thread hose adapter
|
|
America thread hose adapter
|
One piece hose fittings
|
Reusable hose fittings
|
|
|
Package Way
|
Delivery Time
|
Delivery Way
|
|
Small batch
|
Carton box with plastic bag then with strapping
|
7-10 days
|
by express that like as TNT,UPS,DHL etc.
|
|
Large quantity
|
carton box with plastic bag then into wooden pallet
|
within 30 days ,or according to our stock
|
by sea
|
we’re a factory which manufacture hydraulic hose fitting ,adaptor for more than 10 years.
2.we have hundreds sets of machines,like full automatic CNC machine
forging machine,drilling machine,bending machine,etc.
trivalent zinc plated that improved corrosion resistance,it has been tested at 120 hours white rust and 240 hours red rust.
We have large stock of all kinds of hydraulic fittings ,more than 1000 different kinds of hydraulic fittings for selection
we’re committed to meeting your deadlines and delivery requirements,our regular delivery time is 30 days
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
A: We are factory.
