| Place of Origin: | China |
|---|---|
| Brand Name: | yadefluid |
| Model Number: | 26711-06-06 |
| Minimum Order Quantity: | 100 pcs |
| Price: | be negotiation |
| Packaging Details: | carton box then into plywood case |
| Delivery Time: | 5-30days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/week |
| Product Name: | Hydraulic Hose Ferrule | Material: | Carbon Steel |
|---|---|---|---|
| Technics: | Hot Forged CNC Machine | Advantage: | Good Quality Without Burr,competitive Price |
| Stand: | JIC Thread Hose Fittings | Quality Control: | 100% Inspection |
| High Light: | 26711 jis hydraulic fittings,Female Swagelok Tube Fittings,26711 Swagelok Tube Fittings |
||

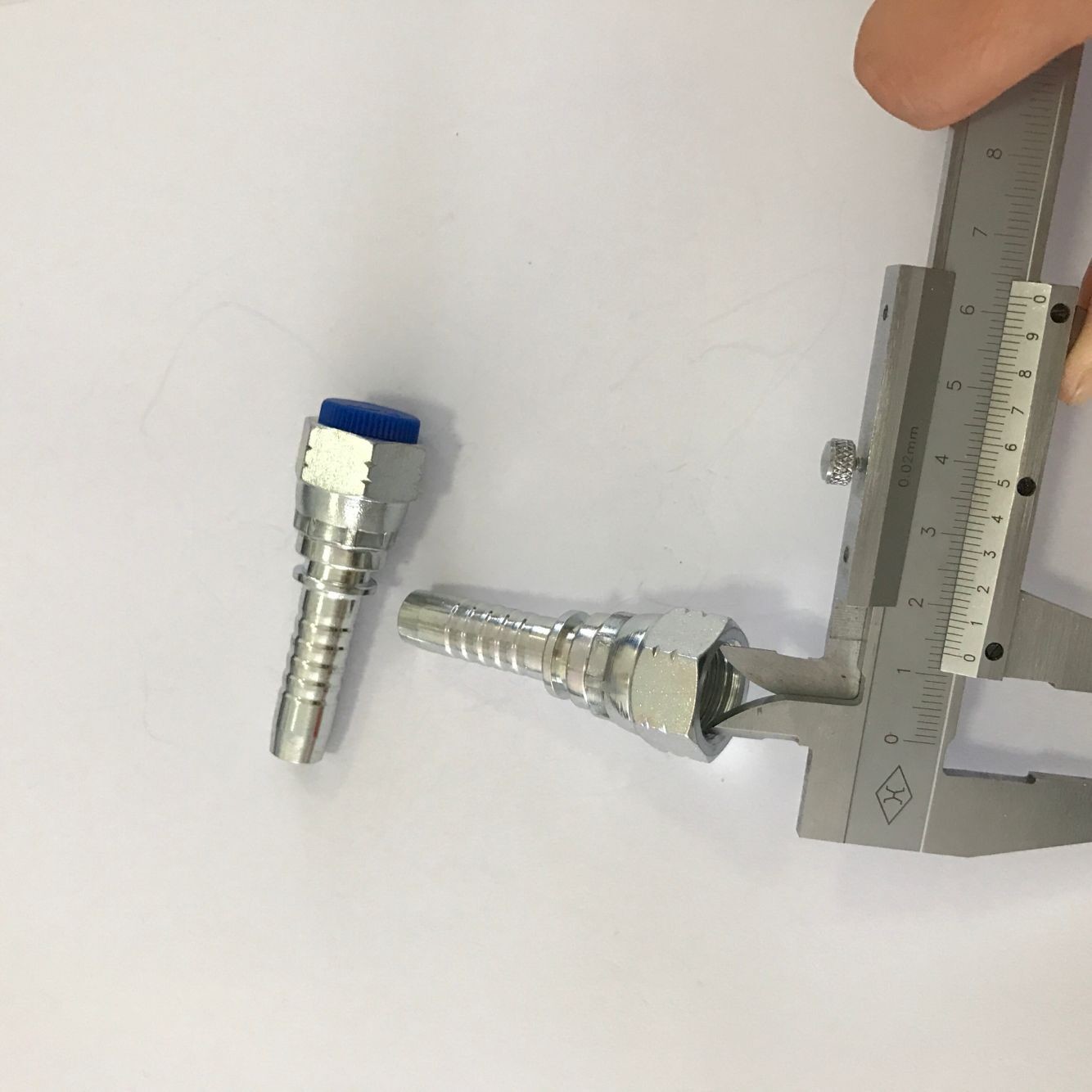

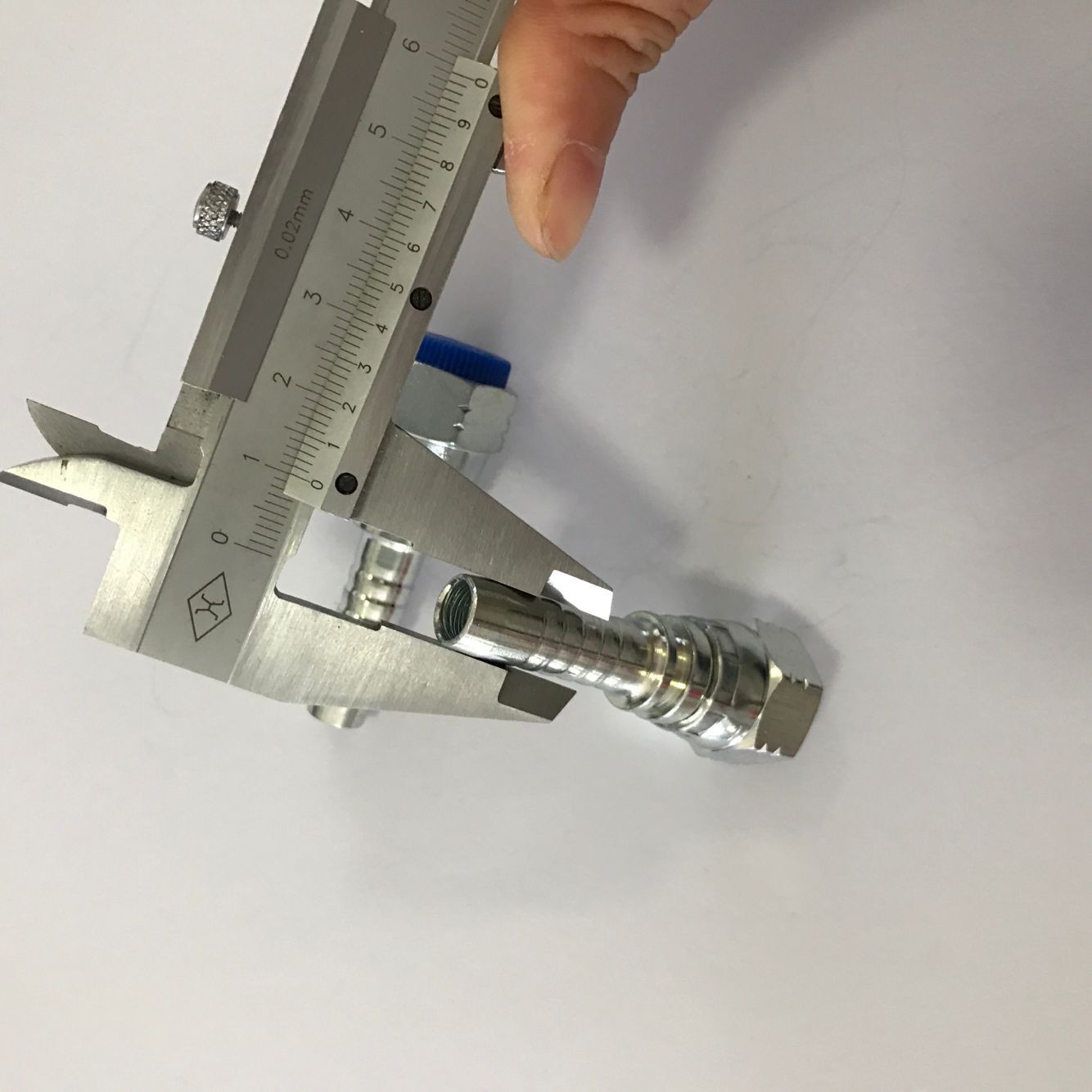

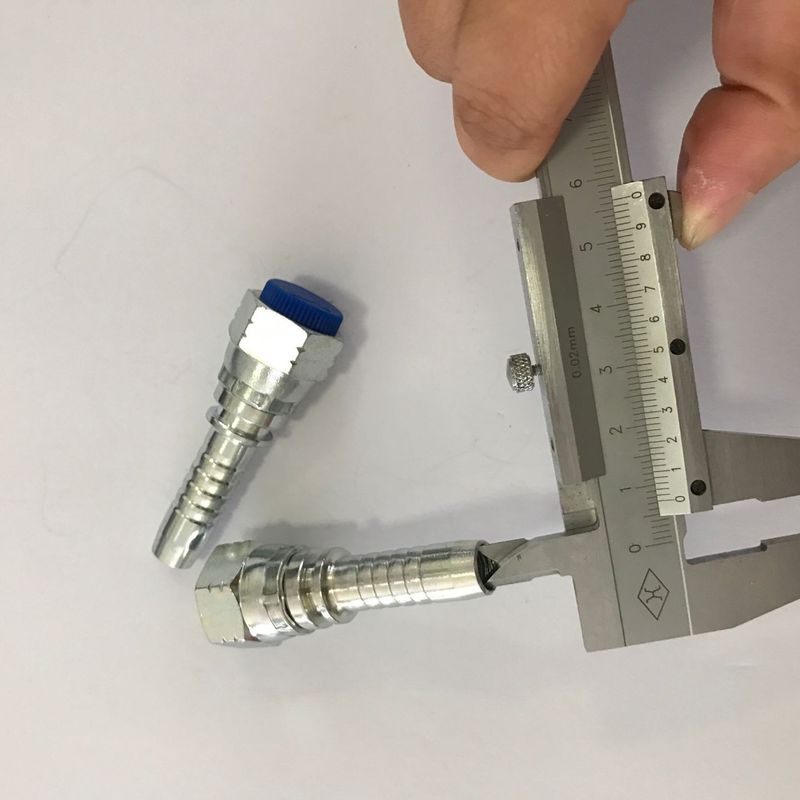

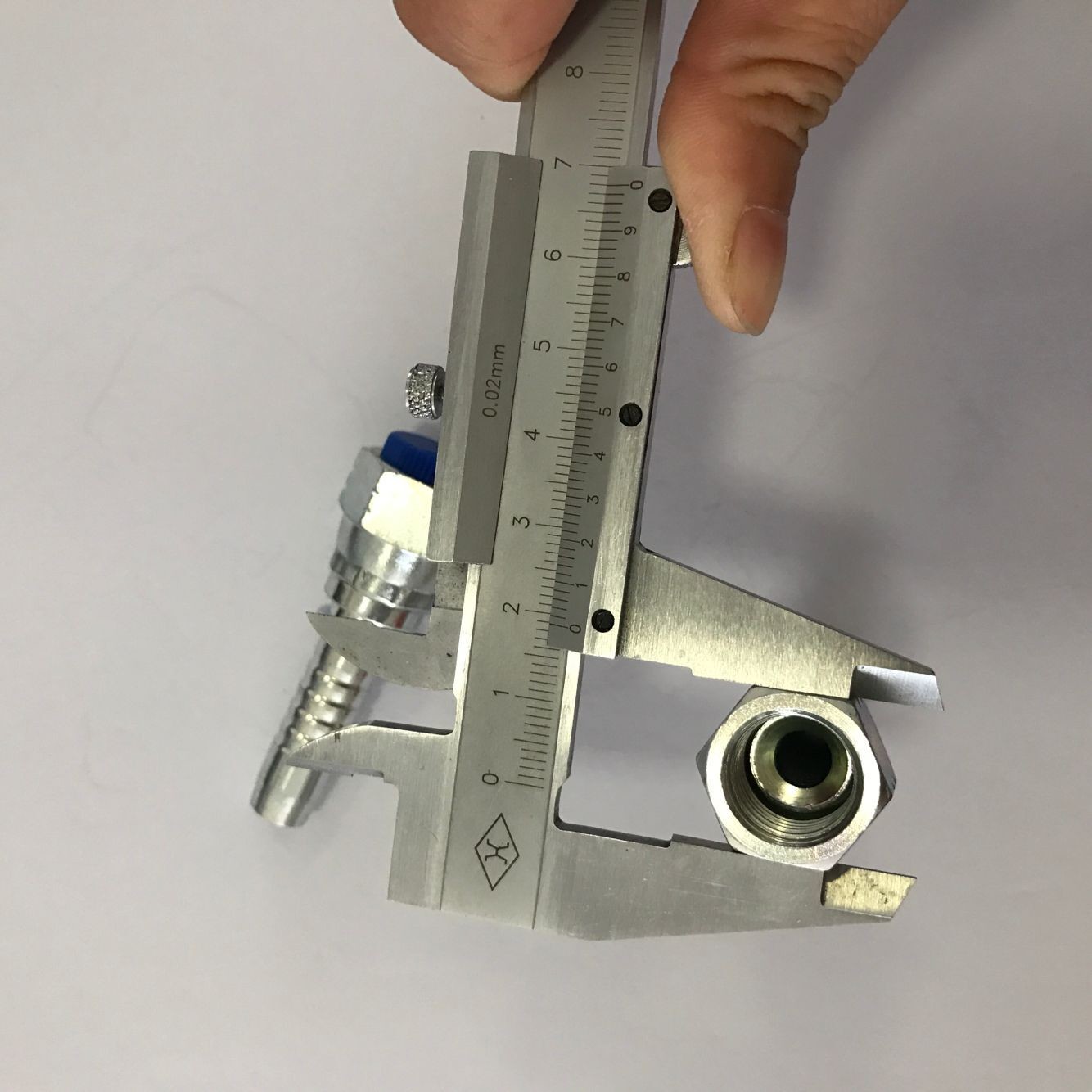

26711 - 06 - 06 Female Connection Shape Swagelok Tube Fittings
| PART NO. | THREAD E | DN | DASH | A | C | S1 |
| 26711-04-04 | 7/16"*20 | 6 | 4 | 15 | 9 | 15 |
| 26711-05-05 | 1/2"*20 | 8 | 5 | 15.5 | 9.5 | 17 |
| 26711-06-06 | 9/16"*18 | 10 | 6 | 15.5 | 10.5 | 19 |
| 26711-08-08 | 3/4"*16 | 12 | 8 | 18 | 11 | 24 |
| 26711-10-10 | 7/8"*14 | 16 | 10 | 20 | 13 | 27 |
| 26711-12-12 | 1.1/16"*12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-16-16 | 1.5/16"*12 | 25 | 16 | 23 | 16 | 41 |
| 26711-20-20 | 1.5/8"*12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-24 | 1.7/8"*12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-32 | 2.1/2"*12 | 50 | 32 | 27 | 23.5 | 75 |
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
A: We are factory.
