| Place of Origin: | China |
|---|---|
| Brand Name: | yadefluid |
| Model Number: | 22691-06-06 |
| Minimum Order Quantity: | 100 pcs |
| Price: | be negotiation |
| Packaging Details: | carton box then into plywood case |
| Delivery Time: | 5-30days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/week |
| Product Name: | Hydraulic Hose Ferrule | Material: | Carbon Steel |
|---|---|---|---|
| Technics: | Hot Forged CNC Machine | Advantage: | Good Quality Without Burr,competitive Price |
| Stand: | Metric Hose Fittings | Quality Control: | 100% Inspection |
| High Light: | 22691 jis hydraulic fittings,JIS braided hose fittings,22691 Hydraulic Pipe Ferrule Fittings |
||

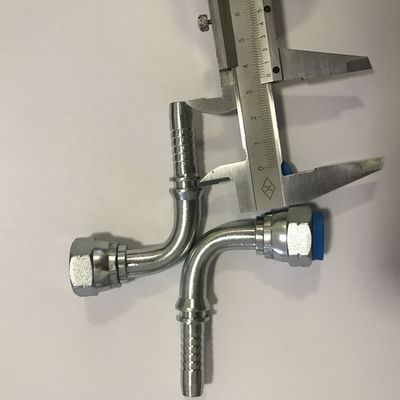

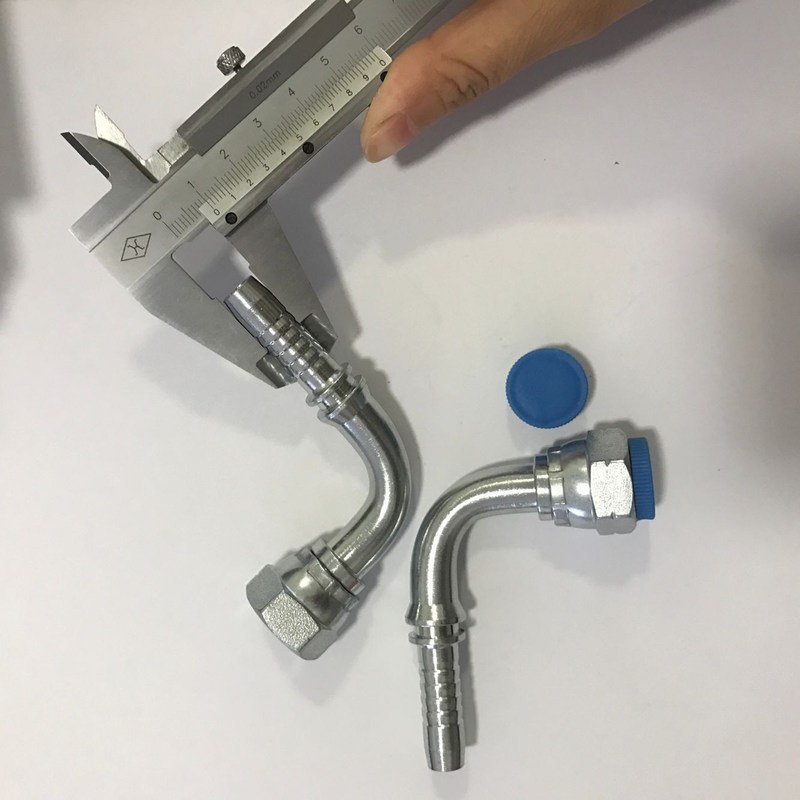

Bsp Female Thread Forged Hydraulic Hose Fitting
| HOSE BORE | DIMENSIONS | ||||||
| PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
| 22691-02-03 | G1/8"*28 | 5 | 3 | 26.5 | 5.5 | 31.5 | 14 |
| 22691-02-04 | G1/8"*28 | 6 | 4 | 30 | 5.5 | 34.5 | 14 |
| 22691-04-03 | G1/4"*19 | 5 | 3 | 26.5 | 5.5 | 33.5 | 19 |
| 22691-04-04 | G1/4"*19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 |
| 22691-04-05 | G1/4"*19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 |
| 22691-04-06 | G1/4"*19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-04 | G3/8"*19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 |
| 22691-06-05 | G3/8"*19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 |
| 22691-06-06 | G3/8"*19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 |
| 22691-08-06T | G1/2"*14 | 10 | 6 | 35.3 | 7 | 43.3 | 27 |
| 22691-08-08 | G1/2"*14 | 12 | 8 | 41 | 7.5 | 51 | 27 |
| 22691-08-10 | G1/2"*14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 |
| 22691-10-08 | G5/8"*14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 |
| 22691-10-10 | G5/8"*14 | 16 | 10 | 56.5 | 9.5 | 56 | 30 |
| 22691-12-08T | G3/4"*14 | 12 | 8 | 41 | 10.9 | 52.1 | 32 |
| 22691-12-10 | G3/4"*14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 |
| 22691-12-12 | G3/4"*14 | 20 | 12 | 65.5 | 10.9 | 66 | 32 |
| 22691-16-12T | G1"*11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 |
| 22691-16-14 | G1"*11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 |
| 22691-16-16 | G1"*11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 |
| 22691-20-16T | G1.1/4"*11 | 25 | 16 | 78 | 11 | 69.5 | 50 |
| 22691-20-20W | G1.1/4"*11 | 32 | 20 | 91.5 | 11 | 84.3 | 50 |
| 22691-24-24W | G1.1/2"*11 | 40 | 24 | 109.4 | 13 | 103 | 55 |
| 22691-32-32W | G2"*11 | 50 | 32 | 131.8 | 16 | 123.3 | 70 |
