High Pressure Ferrule 22611-12-10 JIS Hose Fittings

Basic Information
Place of Origin: China
Brand Name: yadefluid
Model Number: 22611-12-10
Minimum Order Quantity: 100 pcs
Price: be negotiation
Packaging Details: carton box then into plywood case
Delivery Time: 5-30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/week
Product Name: Hydraulic Hose Ferrule Material: Carbon Steel
Technics: Hot Forged CNC Machine Advantage: Good Quality Without Burr,competitive Price
Stand: Metric Hose Fittings Quality Control: 100% Inspection
High Light:

hot forged hydraulic hose accessories

,

22611 jis hydraulic fittings

,

22611 Hydraulic Hose Ferrule





High Pressure And Best Selling Carbon Hydraulic Hose Ferrule Hydraulic Pipe Fitting Product Name Fittings Hy



  E HOSE BORE DIMENSIONS
PART NO. THREAD E DN DASH A C S2
22611-02-03 G1/8"*28 5 3 15 5.5 14
22611-02-04 G1/8"*28 6 4 15 5.5 14
22611-04-03 G1/4"*19 5 3 17 5.5 19
22611-04-04 G1/4"*19 6 4 18 5.5 19
22611-04-05 G1/4"*19 8 5 18 5.5 19
22611-04-06 G1/4"*19 10 6 18 5.5 19
22611-06-04 G3/8"*19 6 4 19 6.3 22
22611-06-05 G3/8"*19 8 5 19 6.3 22
22611-06-06 G3/8"*19 10 6 19.5 6.3 22
22611-06-08 G3/8"*19 12 8 19.5 6.3 22
22611-08-06T G1/2"*14 10 6 21 7.5 27
22611-08-08 G1/2"*14 12 8 21.5 7.5 27
22611-10-08 G5/8"*14 12 8 22 9.5 30
22611-10-10 G5/8"*14 16 10 23.5 9.5 30
22611-12-08T G3/4"*14 12 8 22 10.9 32
22611-12-10 G3/4"*14 16 10 24 10.9 32
22611-12-12 G3/4"*14 20 12 24 10.9 32
22611-16-12T G1"*11 20 12 24 11.7 41
22611-16-14 G1"*11 22 14 26 11.7 41
22611-16-16 G1"*11 25 16 27 11.7 41
22611-20-16T G1.1/4"*11 25 16 27.5 11 50
22611-20-20W G1.1/4"*11 32 20 30.5 11 50
22611-24-20T G1.1/2"*11 32 20 32 13 55
22611-24-24W G1.1/2"*11 40 24 32 13 55
22611-32-24T G2"*11 40 24 30 16 70
22611-32-32W G2"*11 50 32 31.9 16 70

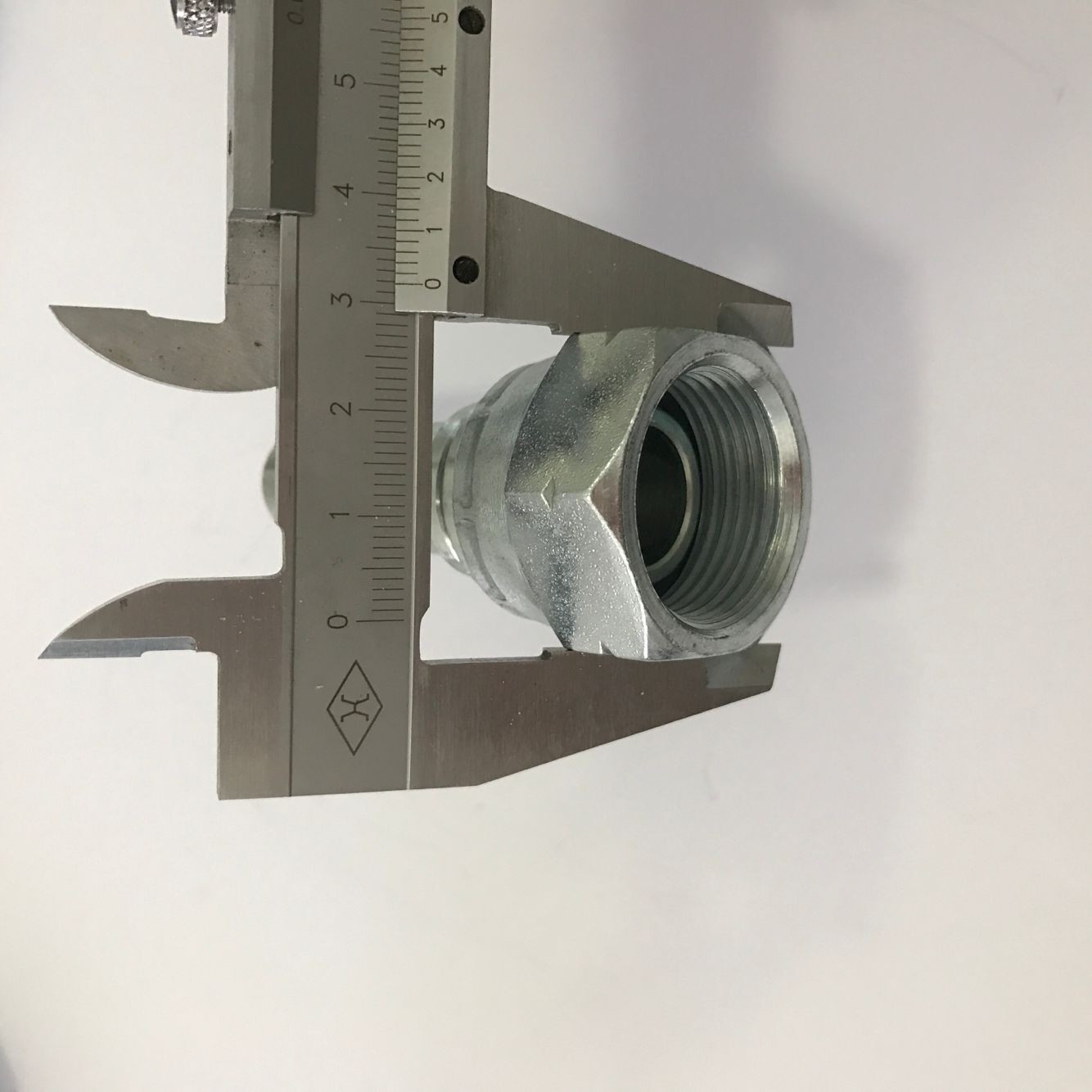

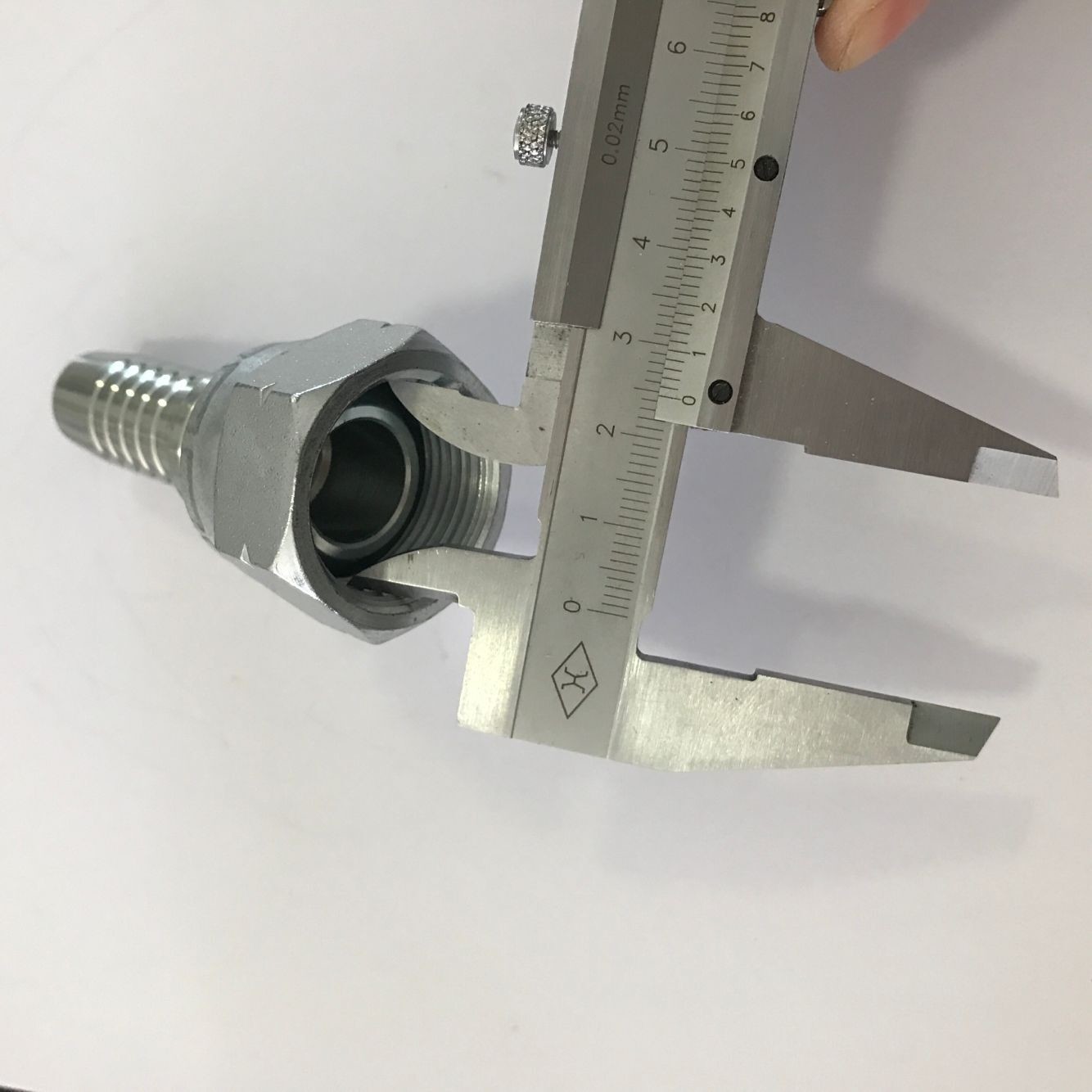

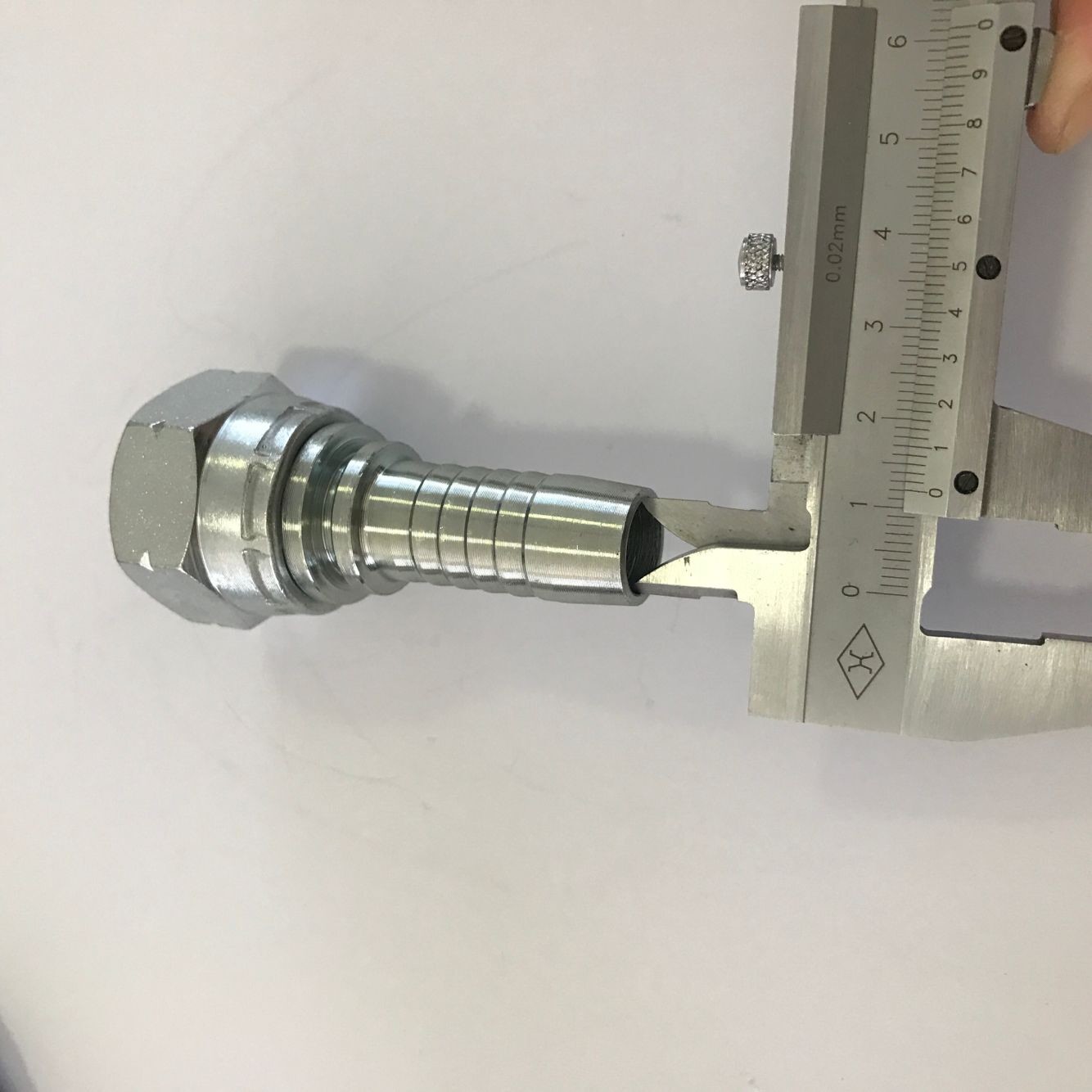

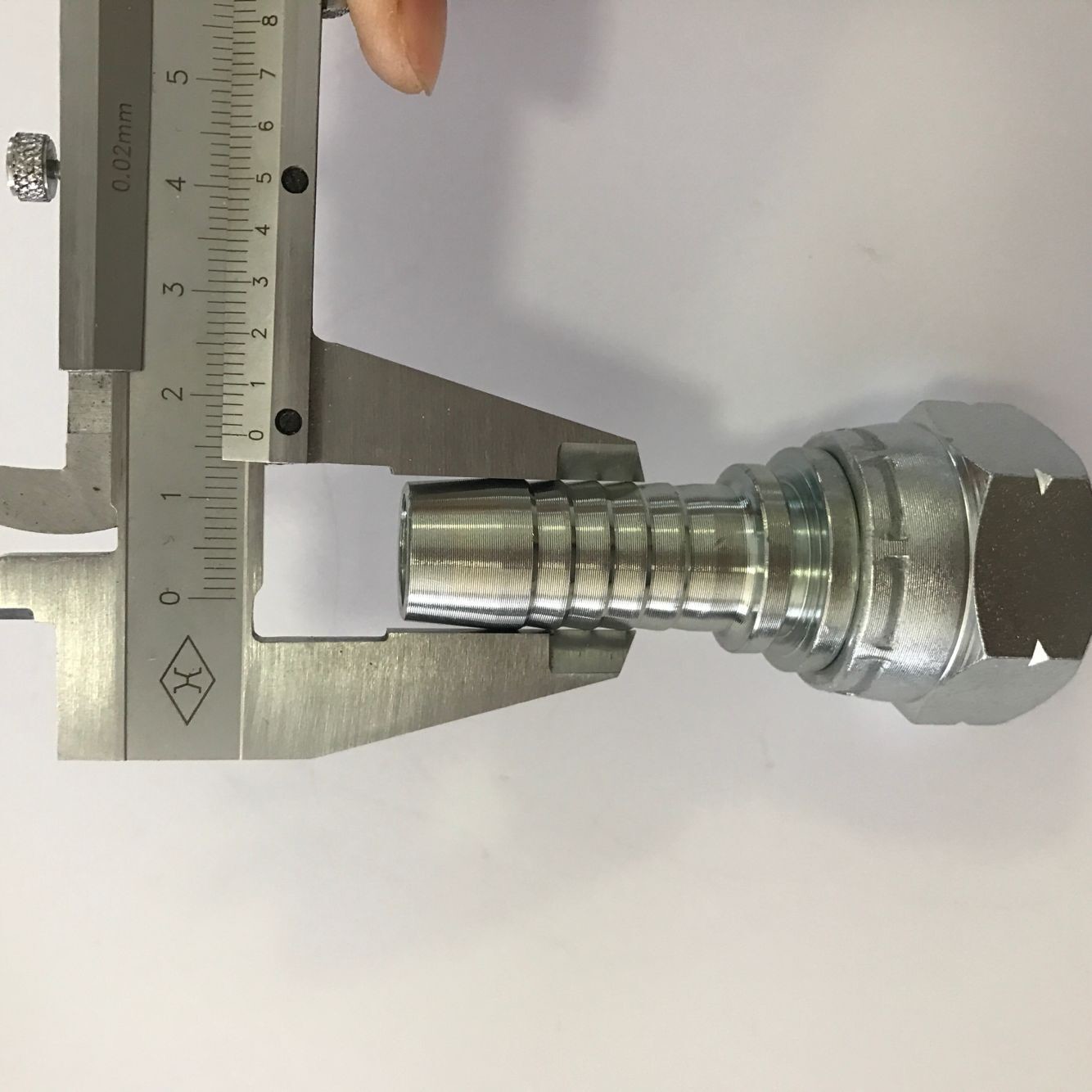

High Pressure Ferrule 22611-12-10 JIS Hose Fittings 0

High Pressure Ferrule 22611-12-10 JIS Hose Fittings 1
