Zinc Plating 20411 24 Cone Metric Din Fittings

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Yade
Minimum Order Quantity: 100 Pieces
Price: be negotiation
Product Name: 20411 24 Cone Metric Hydraulic Female Fittings Model: 20411-14-04T
Material: Carbon Steel,stainless Steel Standard: EATON,PARKER
Main Market: Russian , Braiz,etc Thread: Metric
Application: Clutch Jic Fitting Surface Treatment: Zinc Plating
Tolerance: 0.01mm-0.02mm Temperature: -40~+200
Type: Fittings Selling Units: Single Item
Single Package Size : 24X24X17 Cm Single Gross Weight: 0.150 Kg
Package Type: Neutral Export Package: Carton Box With Plastic Bag Then Into Wooden Pallet
High Light:

metric din fittings

,

metric elbow fittings

Product Description

20411 24 cone Metric hydraulic female fittings


  E  HOSE BORE
PART NO. THREAD E   DN  DASH TUBE O.D. O RING
20411-14-04T M14*1.5 6 4 6 O6.5*1.5
20411-16-04 M16*1.5 6 4 10 O8.0*1.5
20411-18-06 M18*1.5 10 6 12 O10.0*1.5
20411-26-10 M26*1.5 16 10 18 O15.0*2.0
20411-27-10T M27*1.5 16 10 18 O15.0*2.0
20411-27-12 M27*1.5 20 12 18 O15.0*2.0
20411-30-10T M30*2 16 10 22 O20.0*2.0
20411-30-12 M30*2 20 12 22 O20.0*2.0
20411-36-12T M36*2 20 12 28 O26.0*2.0
20411-36-14T M36*2 22 14 28 O26.0*2.0
20411-45-16T M45*2 25 16 35 O32.0*2.5
20411-45-20T M45*2 32 20 35 O32.0*2.5
20411-52-20T M52*2 32 20 42 O38.0*2.5
20411-52-24T M52*2 40 24 42 O38.0*2.5



Packaging & Shipping



  Package way Delivery time Delivery way
Small batch carton box with plastic bag then with strapping 7-10 days  by express or according to customer's comments
Large Quantity carton box with plastic bag then into wooden pallet within 30 days or according to our stock by sea or according to customer's comments

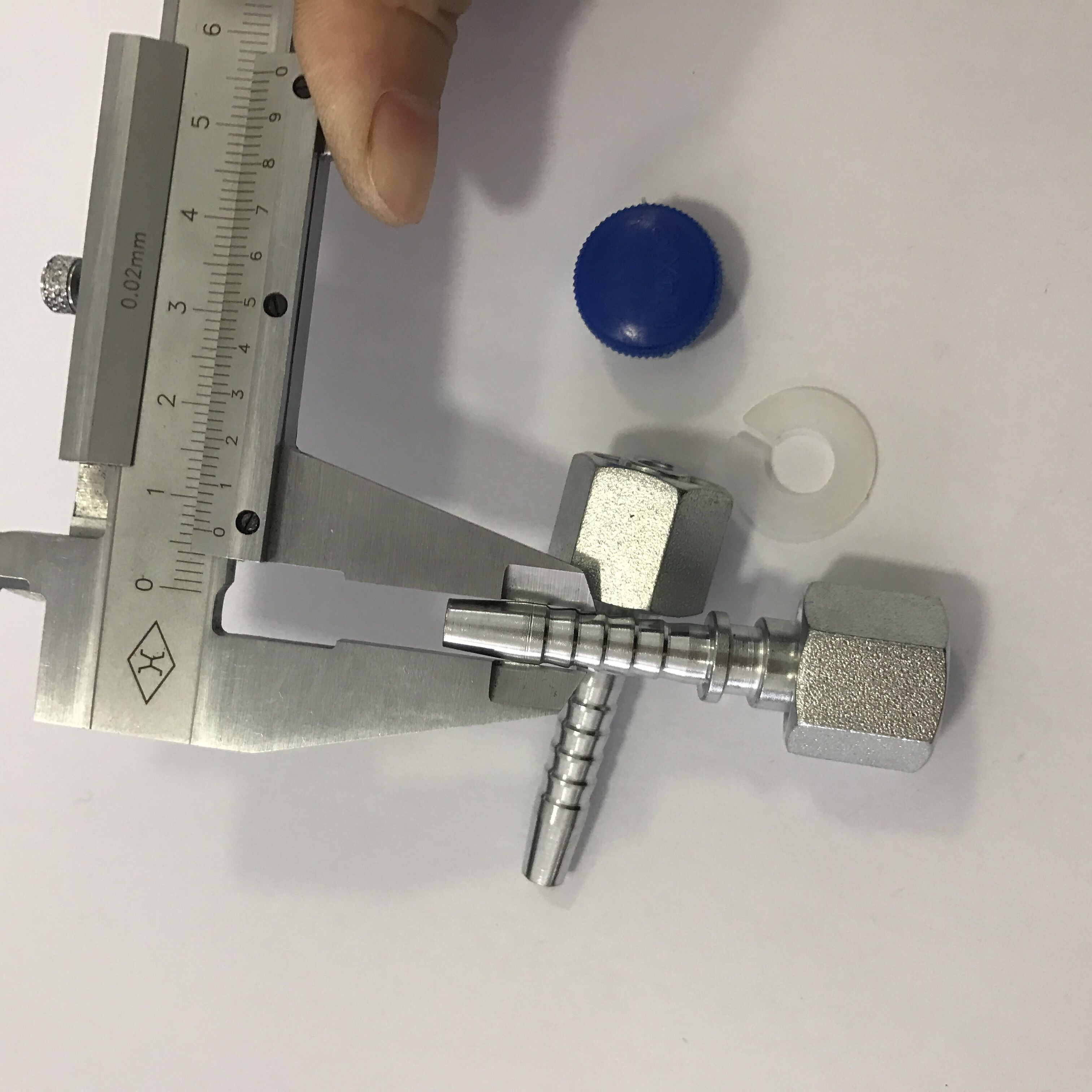

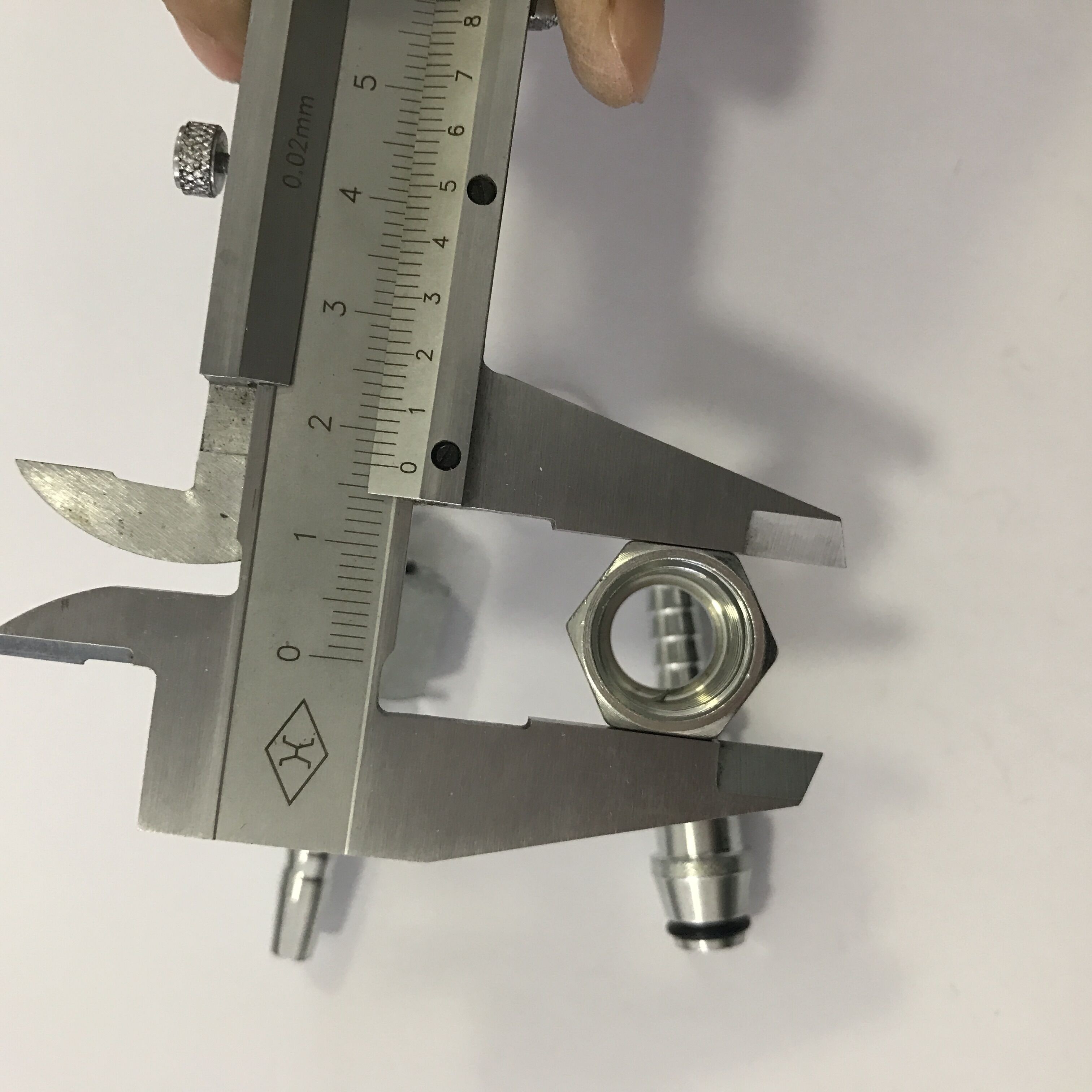

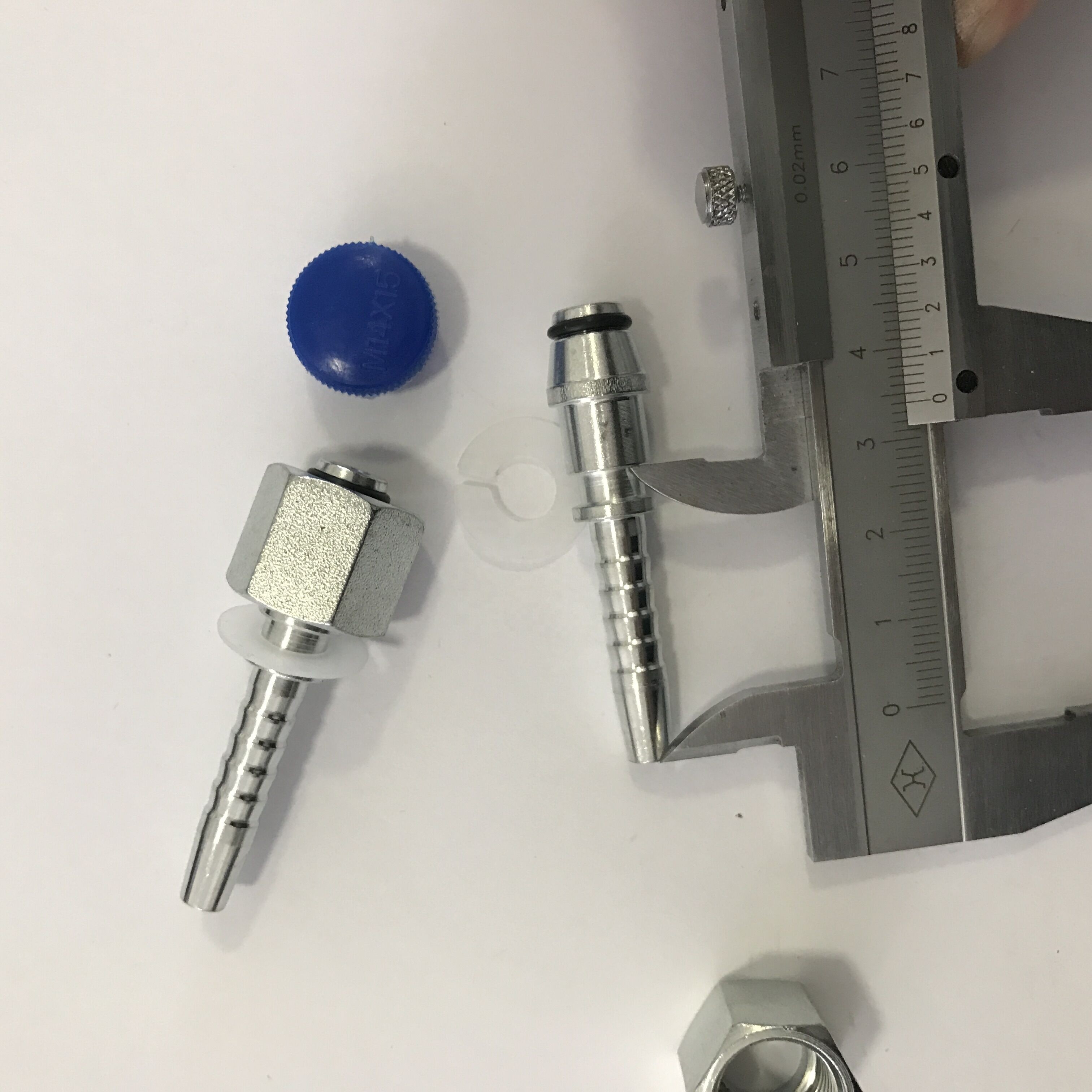

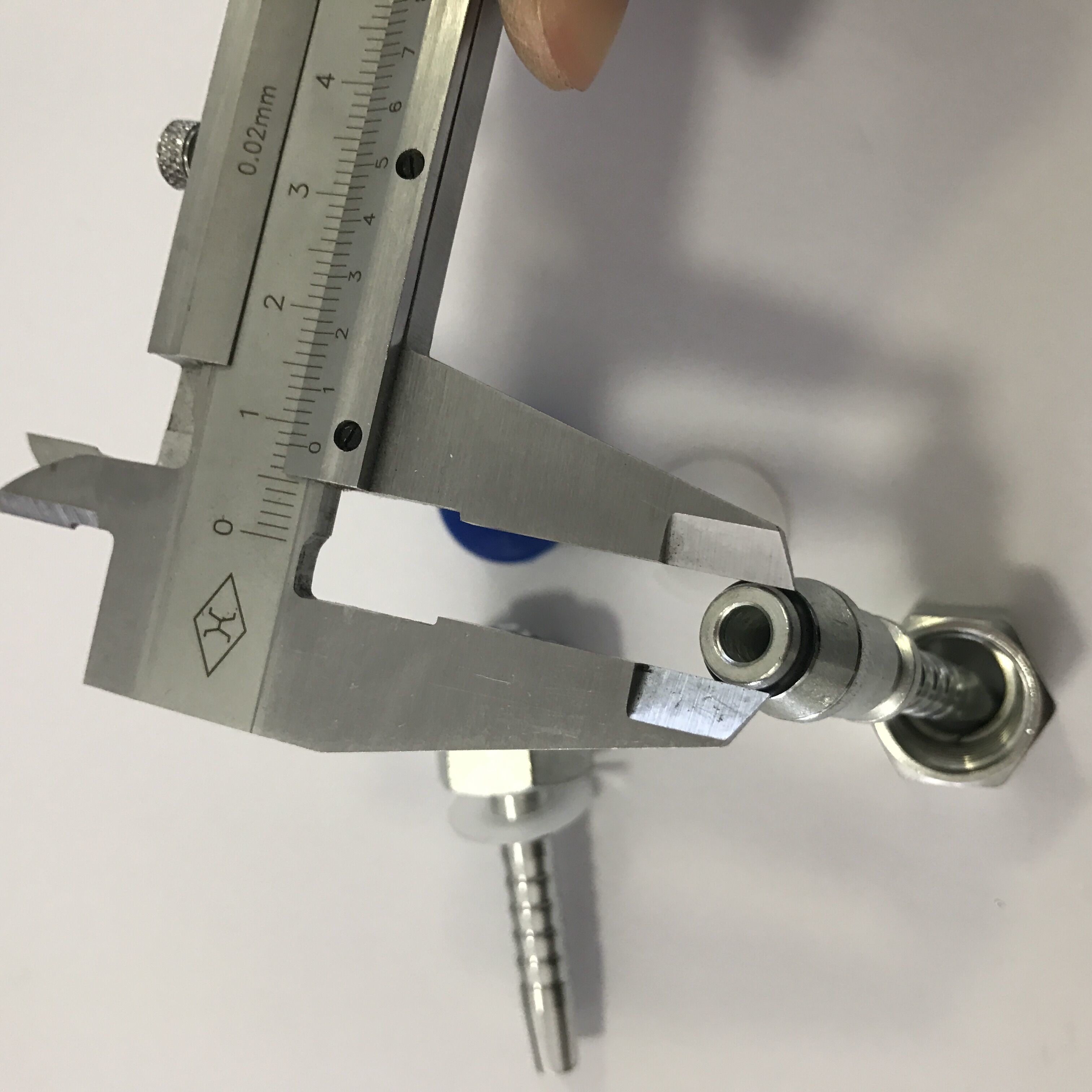

Zinc Plating 20411 24 Cone Metric Din Fittings 0

Company Information



were a factory which manufacture hydraulic hose fitting ,adaptor for more than 10 years ,we own our professional engineer department that can supply OEM products.

for long time,our company has always relied on the priciple of " following contract,enhancing reputation, in time delivery and reasonable price" and has won uniform favorable comments from mulitiple clients

Zinc Plating 20411 24 Cone Metric Din Fittings 1Zinc Plating 20411 24 Cone Metric Din Fittings 3Zinc Plating 20411 24 Cone Metric Din Fittings 5Zinc Plating 20411 24 Cone Metric Din Fittings 7Zinc Plating 20411 24 Cone Metric Din Fittings 9Zinc Plating 20411 24 Cone Metric Din Fittings 11
