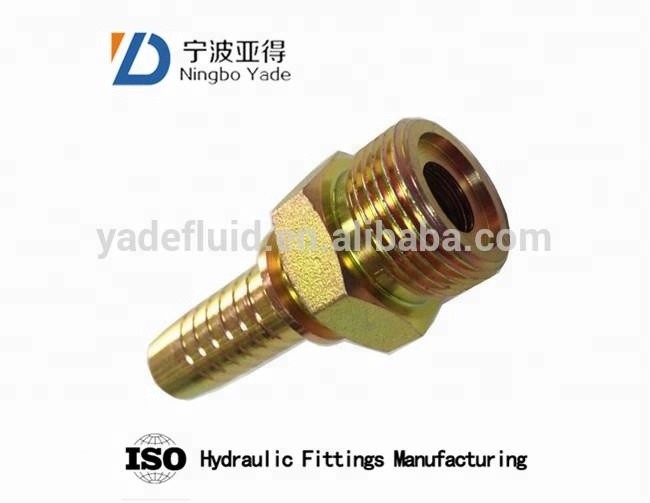

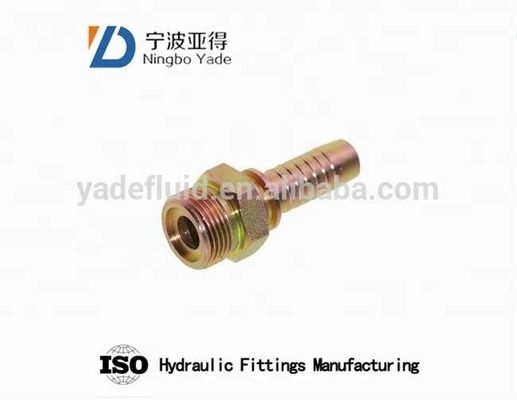

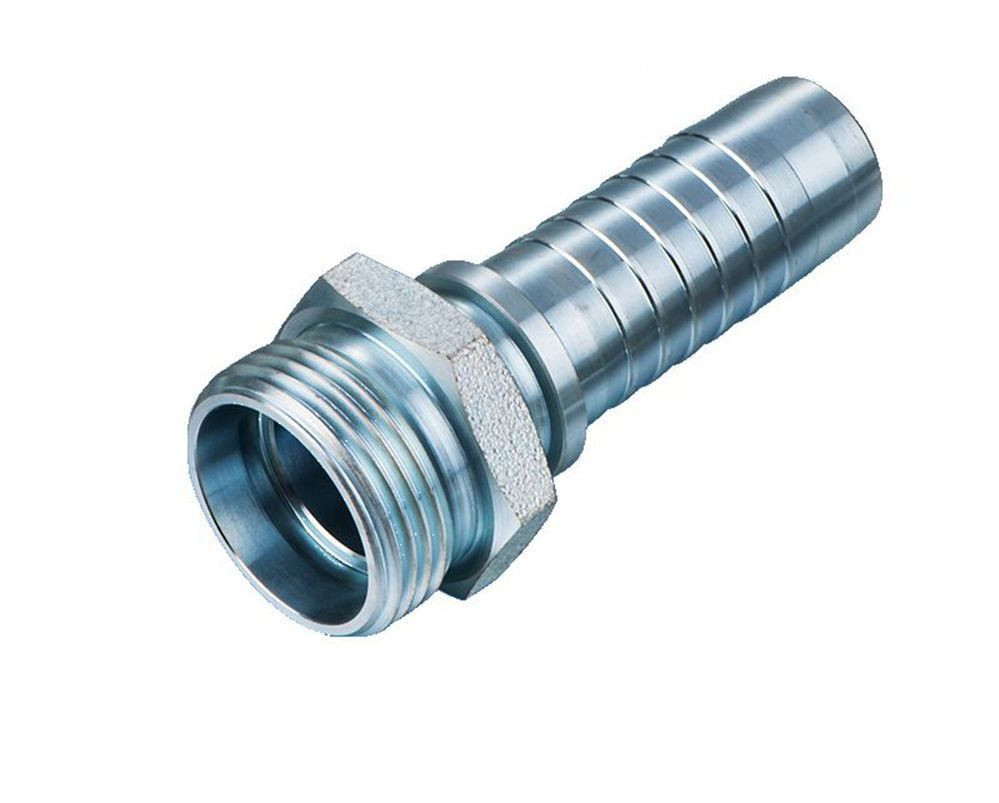

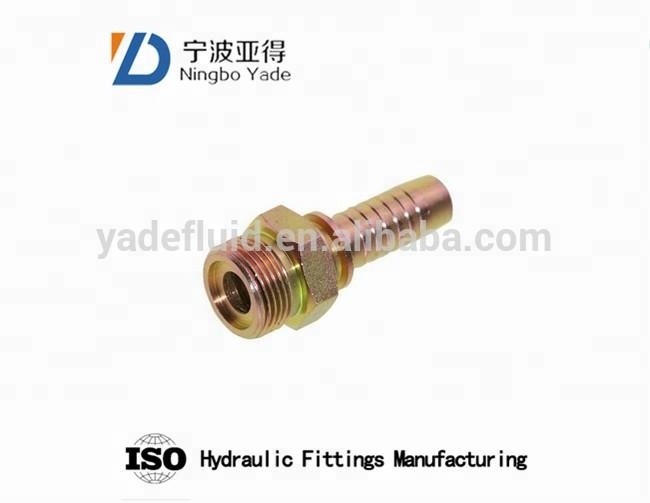

Water 1/4" 10311-27-10 Hydraulic Male Female Coupling

Basic Information
Place of Origin: China
Brand Name: Yade
Model Number: 10311-27-10
Minimum Order Quantity: 100 Pieces
Price: be negotiation
Type: Coupling Material: Carbon Steel, Carbon Steel ,stainless Steel
Technics: Forged Connection: Male
Shape: Equal Head Code: Hexagon
Color: Yellow Or White Zinc Plated Application: Water/oil/gas
Special Service: OEM As Your Drawing Or Samples Standard: Metric
Size: 1/4"-2" Selling Units: Single Item
Single Package Size : 25X22X12 Cm Single Gross Weight: 0.053 Kg
Package Type: Neutral Package: Carton Box+pallets+plywood Case
High Light:

metric hose fittings

,

metric elbow fittings

Product Description

<

PART NO. THREAD E DN DASH A C S1
10311-12-04 M12*1.5 6 4 22.5 10 14
10311-14-04 M14*1.5 6 4 23.5 11 17
10311-16-04 M16*1.5 6 4 23.5 11 17
10311-16-05 M16*1.5 8 4 23.5 11 17
10311-16-06 M16*1.5 10 6 23.5 11 17
10311-18-06 M18*1.5 10 6 23.5 11 19
10311-22-05 M22*1.5 8 5 27 12 22
10311-22-06 M22*1.5 10 6 26 12 22
10311-22-08 M22*1.5 12 8 26.5 12 22
10311-27-10 M27*1.5 16 10 31.5 13 27
10311-30-12 M30*1.5 20 12 33.5 14 32
10311-36-12 M36*2 20 12 35.5 16 38
10311-36-14 M36*2 22 14 35.5 16 38
10311-39-16 M39*2 25 16 39 16 41
10311-45-20 M45*2 32 20 44.5 20 46
10311-52-24 M52*2 40 24 47.5 22 55
10311-64-32 M64*2 50 32 52.5 27 65



 hydraulic components(10311)

Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 0



Our Services

 Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 1Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 2Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 3Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 4

Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.


1. Material checking: strictly control of material using, meet international requested standards;


2. semi-finished products inspection: product inspection before 100% finished ;


3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.


4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.


Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.


2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.


3. The tracking number will be provided to you once the consignment is shipped


4. Professional customer service to answer your questions or fix problems regarding your order.

Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 5

Packaging Details Package of HYDRAULIC HOSE FITTINGS:carton boxes and plywood case

Delivery Time We delivery HYDRAULIC HOSE FITTINGS within 10 days



FAQ



Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)

Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.

Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.

If you have any other questions,please do not hesitate to contact us!

Water 1/4" 10311-27-10 Hydraulic Male Female Coupling 6
