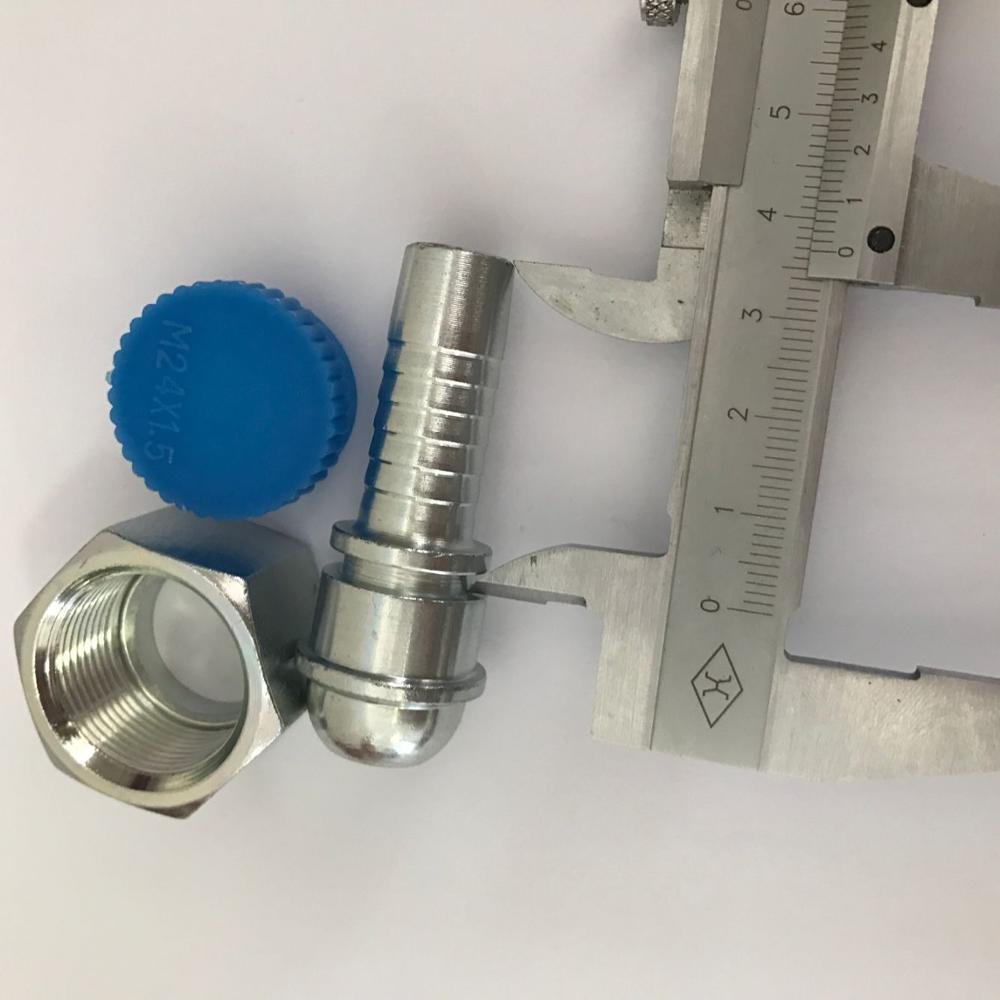

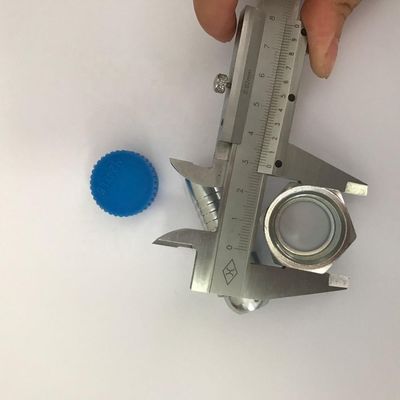

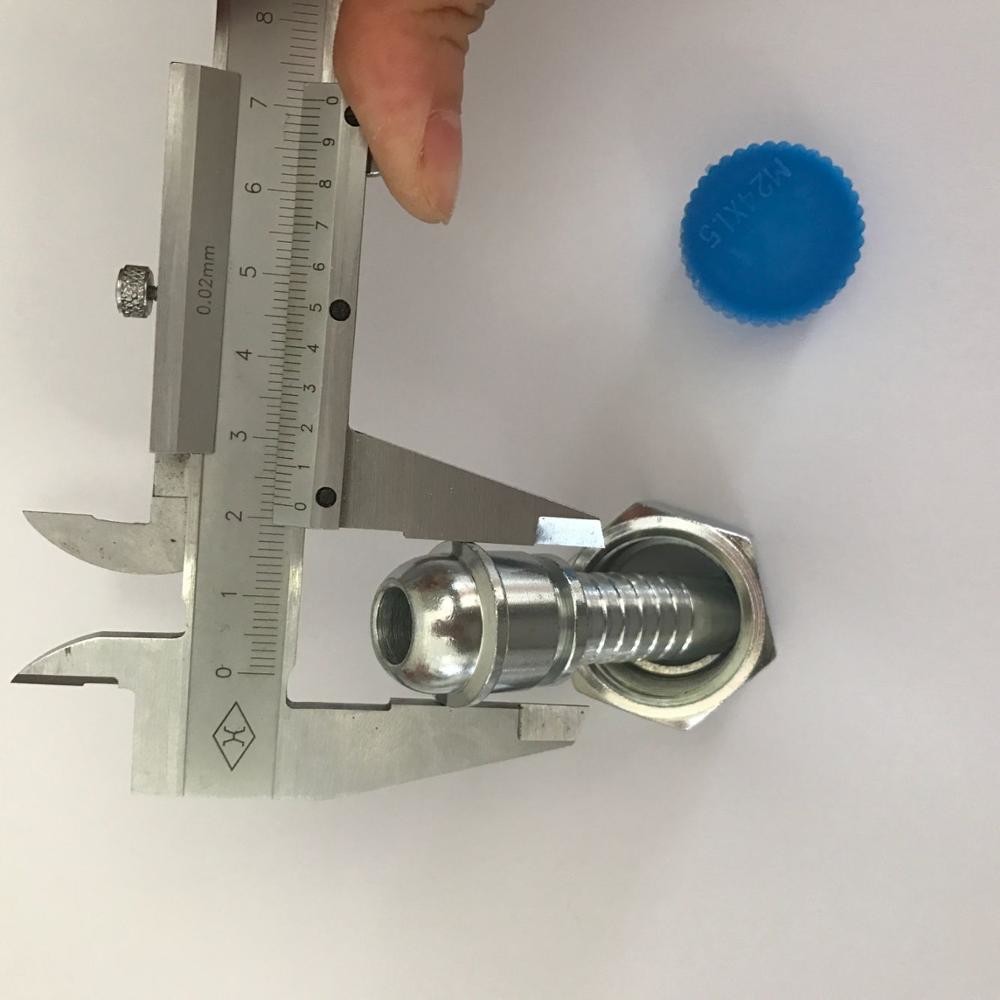

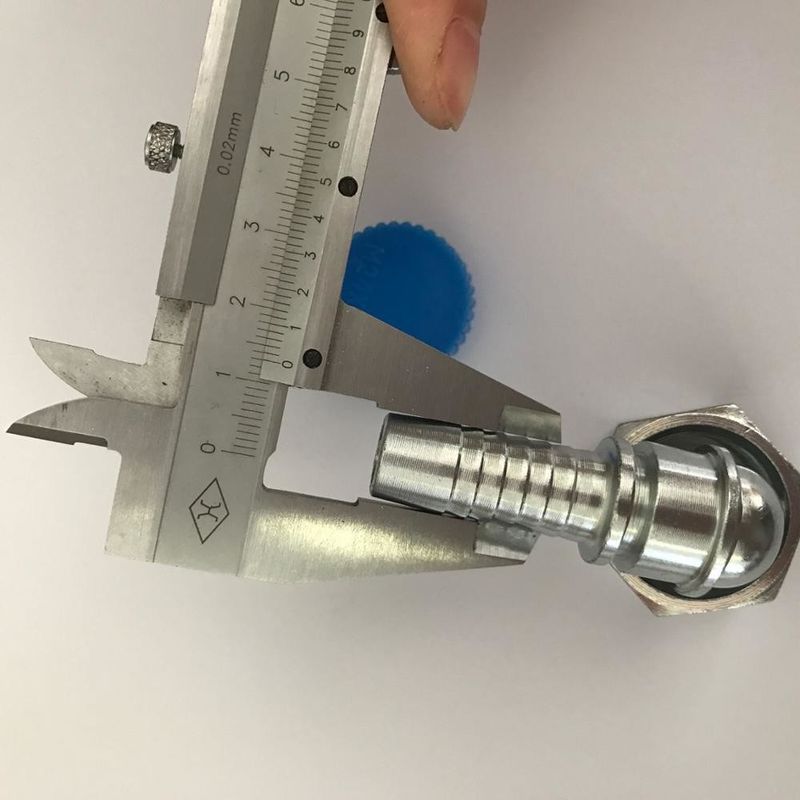

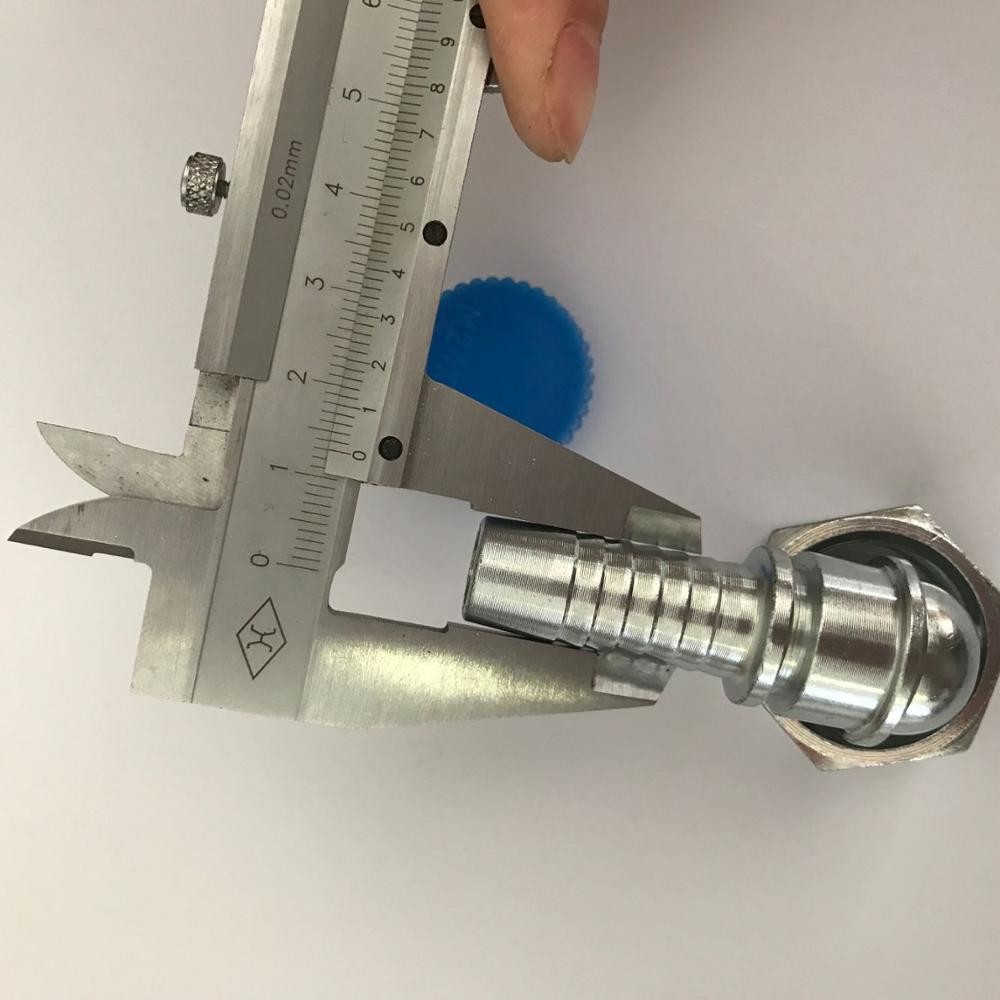

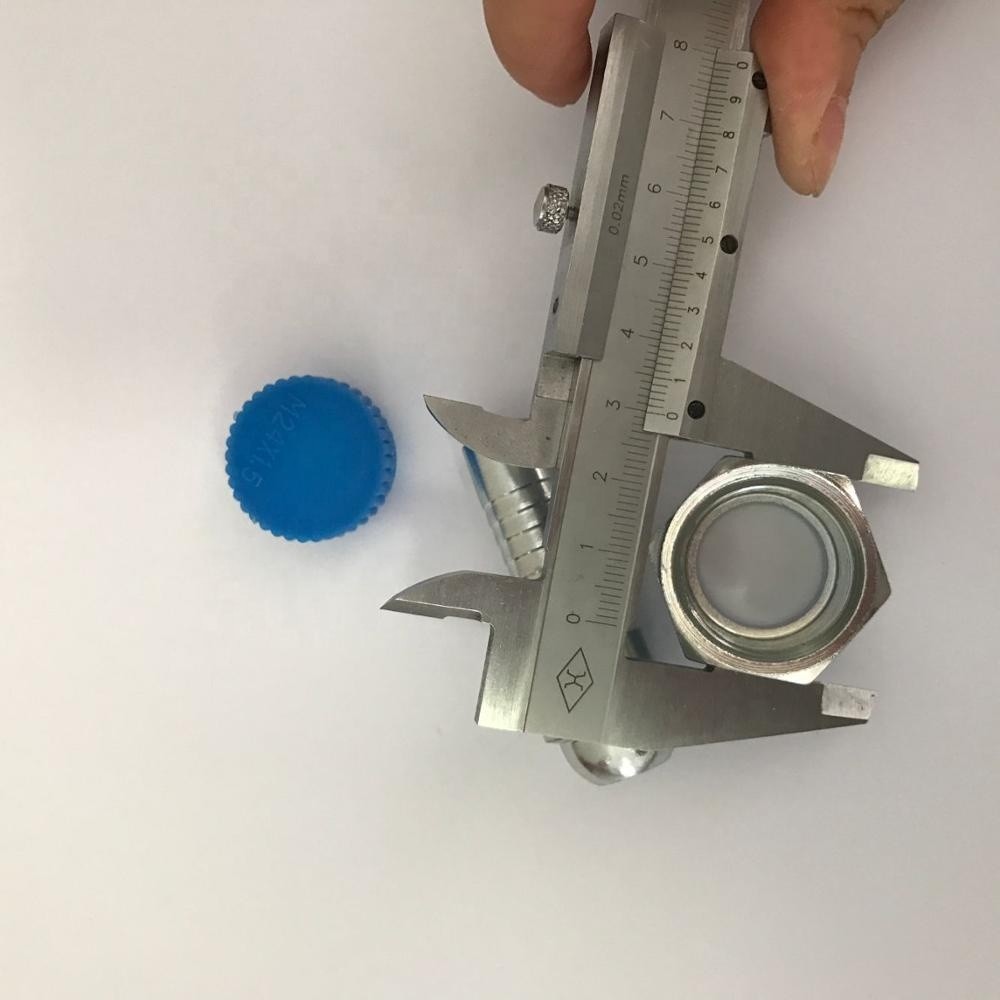

Reusable Ferrule 20111-24-08 Din Hose Fittings

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Yade
Model Number: 20111-24-08
Minimum Order Quantity: 100 Pieces
Price: be negotiation
Type: Coupling Material: Carbon Steel
Technics: Forged Connection: Female
Shape: Reducing Head Code: Square
Product Name: Metric Ferrule Fittings Reusable Hose Fitting 20111-24-08 The Color Of Zinc: Yellow Or White
The Charge Of Samples: Free Samples Can Be Supply To Customer Raw Material: 45# Or 20# Carbon Steel
Label On Carton: Item No.: QTY.Weight,CTNS DN: 6-50mm
Pressure: 30-50Mpa Selling Units: Single Item
Single Package Size : 25X22X12 Cm Single Gross Weight: 0.100 Kg
Package Type: Neutral Package: Carton Box +pallet +plywood Case
High Light:

20111 metric din fittings

,

Square Head metric ferrule fittings

Product Description

metric ferrule fittings reusable hose fitting 20111-24-08<

  E HOSE BORE   DIMENSIONS
PART NO. THREAD E DN DASH A C S2
20111-10-03 M10*1 5 3 18 2.5 14
20111-10-04 M10*1 6 4 18 2.5 14
20111-12-04 M12*1.5 6 4 18.5 4 17
20111-12-05 M12*1.5 8 5 18.5 4 17
20111-14-04 M14*1.5 6 4 19.5 4.5 19
20111-14-05 M14*1.5 8 5 19.5 4.5 19
20111-16-04 M16*1.5 6 4 19.5 4.5 22
20111-16-05 M16*1.5 8 5 20 4.5 22
20111-16-06 M16*1.5 10 6 20 4.5 22
20111-18-05T M18*1.5 8 5 21.5 4 24
20111-18-06 M18*1.5 10 6 21.5 4 24
20111-18-08 M18*1.5 12 8 22 4 24
20111-20-06T M20*1.5 10 6 20.5 5.5 24
20111-20-08 M20*1.5 12 8 23 5.5 27
20111-22-06T M22*1.5 10 6 23 5 27
20111-22-08 M22*1.5 12 8 23.5 5 27
20111-22-10 M22*1.5 16 10 24.5 5 27
20111-24-08T M24*1.5 12 8 22 5.5 30
20111-24-10 M24*1.5 16 10 26 5 30
20111-27-08DT M27*1.5 12 8 23 5.5 32
20111-27-10DT M27*1.5 16 10 23.5 5.5 32
20111-27-12D M27*1.5 20 12 26 5.5 32
20111-27-10T M27*2 16 10 23.5 7 32
20111-30-12D M30*1.5 20 12 26.5 6 36
20111-30-12 M30*2 20 12 26.5 7 36
20111-36-12T M36*2 20 12 26 7 41
20111-36-14T M36*2 22 14 26 7 41
20111-39-14T M39*2 22 14 28.5 7 46
20111-39-16T M39*2 25 16 29.5 7 46
20111-42-16T M42*2 25 16 30 8.5 50
20111-45-20T M45*2 32 20 31.5 8.5 55
20111-52-20T M52*2 32 20 33 9 60
20111-52-24T M52*2 40 24 33 9 60
20111-64-32T M64*2 50 32 35 14 75

Reusable Ferrule  20111-24-08 Din Hose Fittings 0

Type: Hydraulic Hose Fitting
Material: Carbon Steel ,Stainless Steel
Coating: Yellow or White Zinc Plated
Carton Size: 25*22*12
Pallet Size: 100Cm*100CM*80CM
Delivery Time: 30 Days after receipt of deposit Payment
Company Information



metric ferrule fittings reusable hose fitting 20111-24-08---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.





Reusable Ferrule  20111-24-08 Din Hose Fittings 1Reusable Ferrule  20111-24-08 Din Hose Fittings 3

 Reusable Ferrule  20111-24-08 Din Hose Fittings 5Reusable Ferrule  20111-24-08 Din Hose Fittings 6

Our Services





Reusable Ferrule  20111-24-08 Din Hose Fittings 7
FAQ



Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)

Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.

Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.

If you have any other questions,please do not hesitate to contact us!  Reusable Ferrule  20111-24-08 Din Hose Fittings 8
