Product Name: | Mechanical Seal | Model Number:: | GLF-22 |
---|---|---|---|
Pressure:: | Up To 25 Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
High Light: | Steel Water Pump Seal,Shaft Size 22 Mechanical Seals,Shaft Size 22 Water Pump Seal |

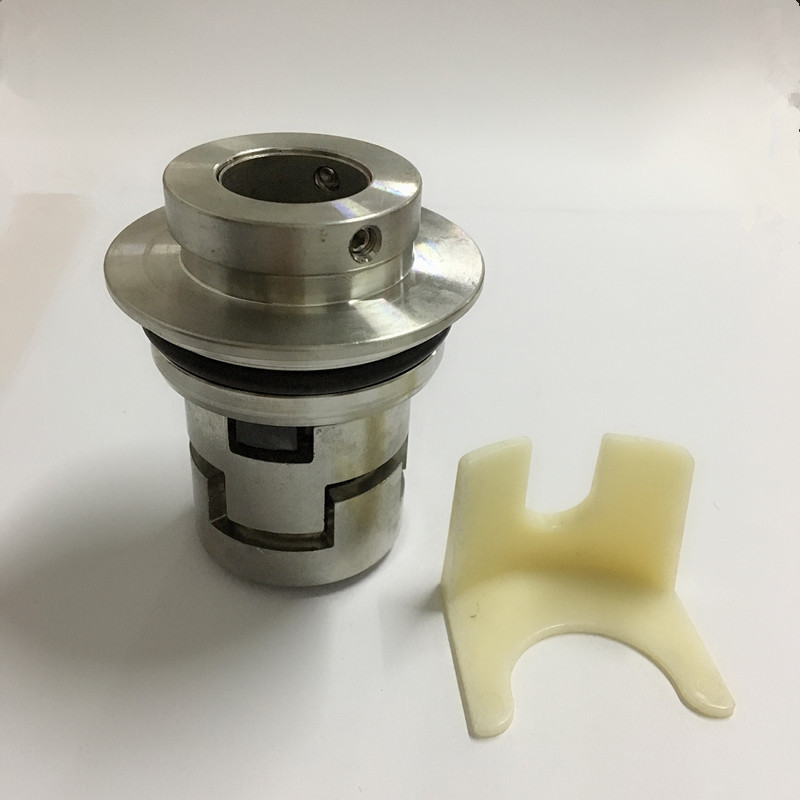

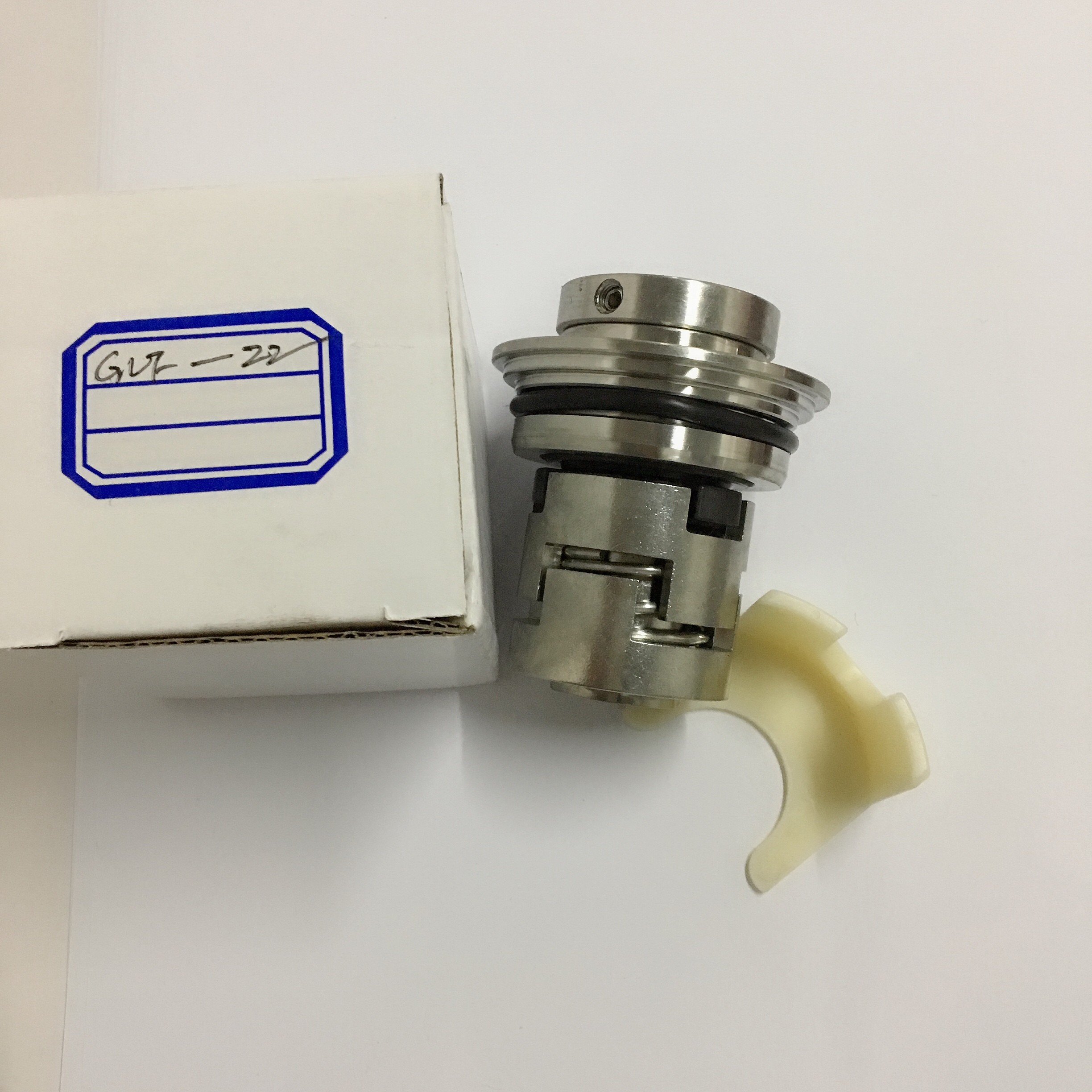

shaft size 22 steel seal water pump seal mechanical seals
Temperature
|
-30 to 200 degree ,depend to the elastomer
|
Pressure
|
up to 10 bar
|
Speed
|
up to 15 m/s
|
End play/axial float allowance
|
+/-0.1mm
|
Size
|
22mm |
Face
|
carbon, TC.SIC
|
Seat
|
Ceramic ,SIC,TC
|
Elastomer
|
VITON
|
Spring
|
SS304
|
Metal parts
|
SS304
|
