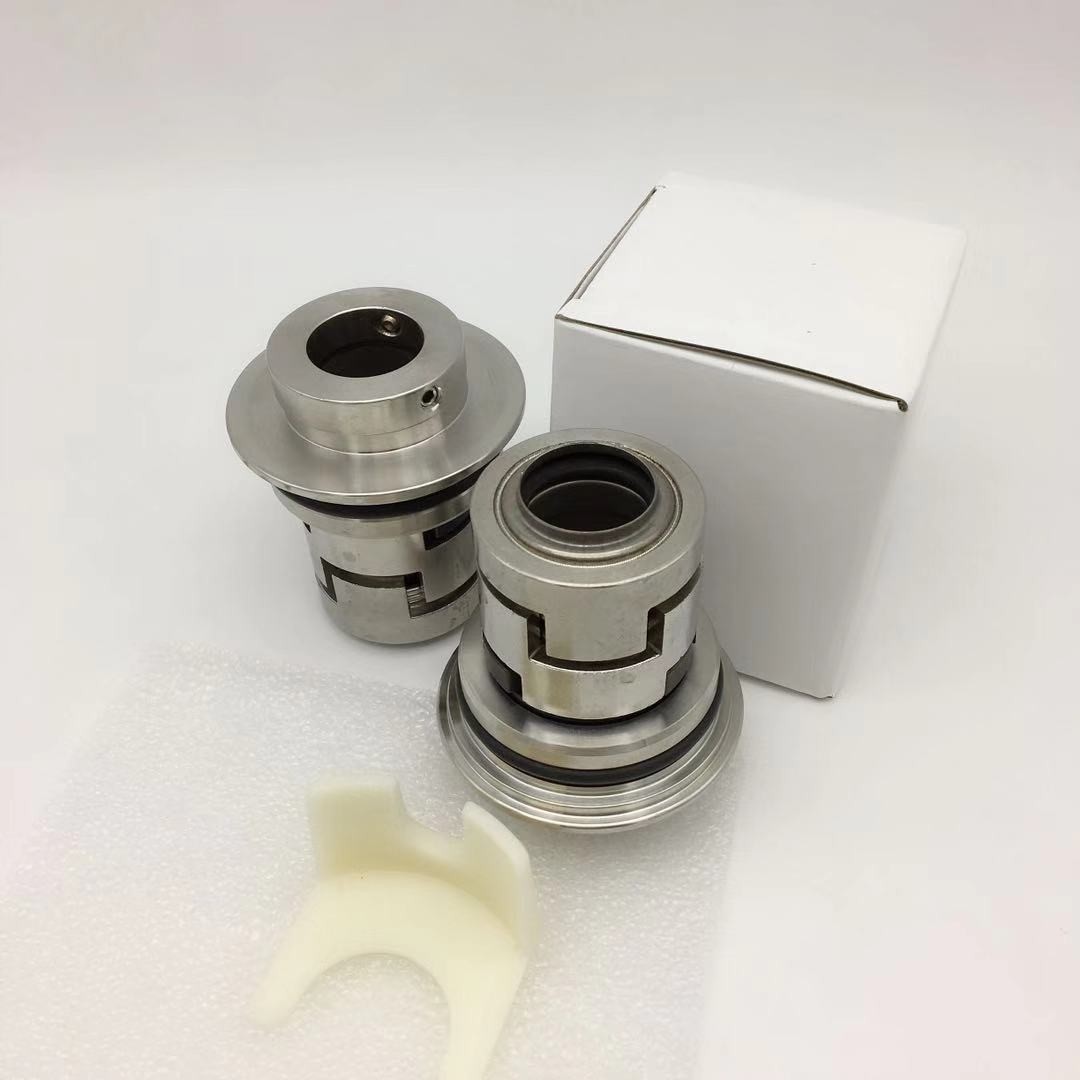

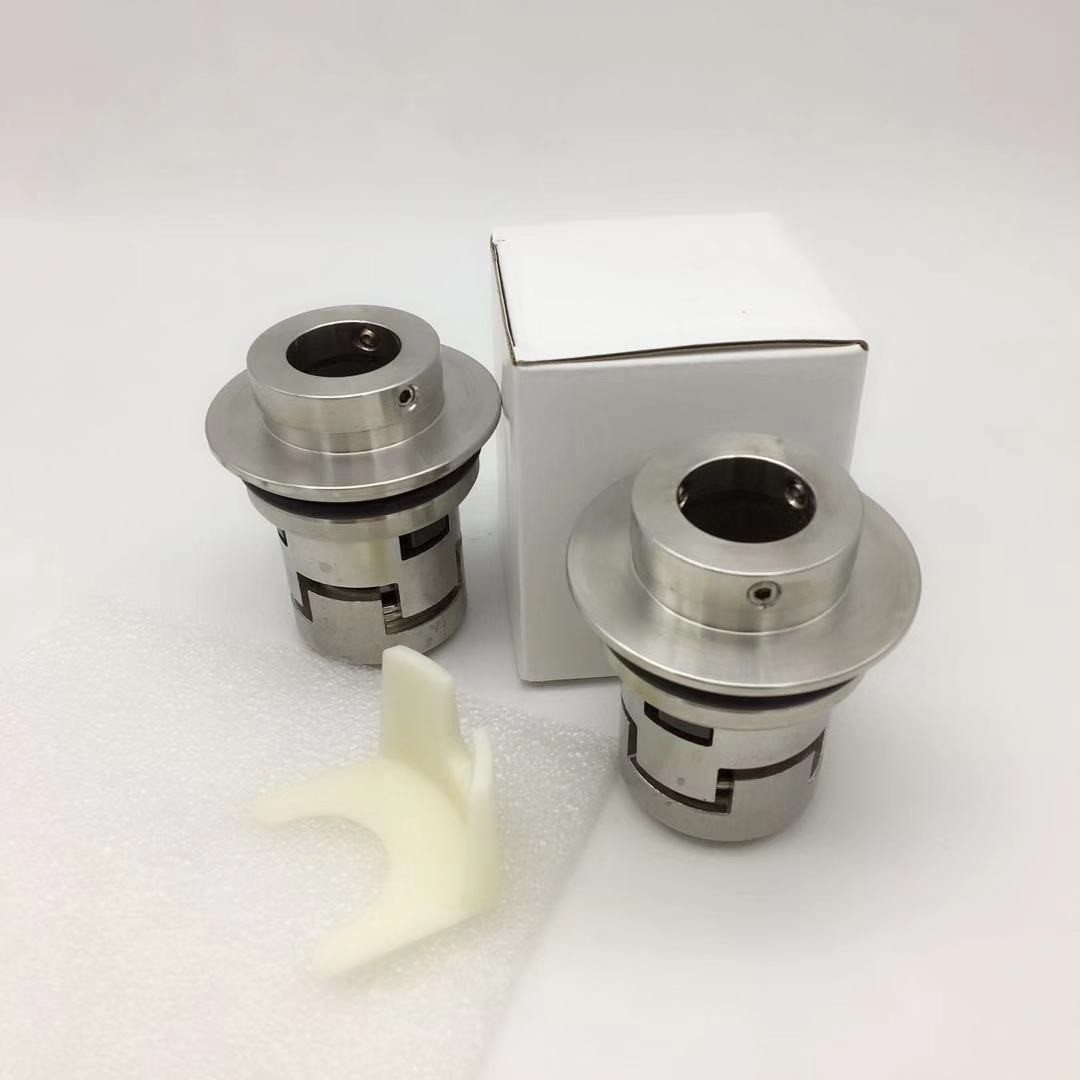

Product Name: | Mechanical Seal | Model Number:: | GLF Seals |
---|---|---|---|
Pressure:: | Up To 25Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
Application: | For Water And Heating Systerms | Medium: | Water,Oil And Other Low Corrosion Mediums |
High Light: | cr pump mechanical seals,22 mm mechanical seals,22 mm submersible pump seal |
Seal Type
|
GLF-22mm
|
Shaft size
|
16mm
|
Temperature
|
-30 degree to 200 degree,dependent on the elastomer
|
Pressure
|
Up to 10 bar
|
Speed
|
Up to 15 m/s
|
Face
|
SIC,TC
|
Seat
|
Carbon ,Sic,TC
|
Elastomer
|
NBR,EPDM,VITON,
|
Spring
|
SS304
|
Metal parts
|
SS304
|
d
|
Mx
|
d1
|
d2
|
d3
|
l
|
l1
|
l2
|
22
|
50*1.5
|
60.0
|
39.0
|
43.0
|
74
|
14.7
|
5
|
