| Place of Origin: | China |
|---|---|
| Brand Name: | None |
| Model Number: | M2N-12 |
| Minimum Order Quantity: | 1 pcs |
| Price: | be negotiation |
| Packaging Details: | 1 PCS PACKED INDIVIDUALLY IN 1 BOX |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |

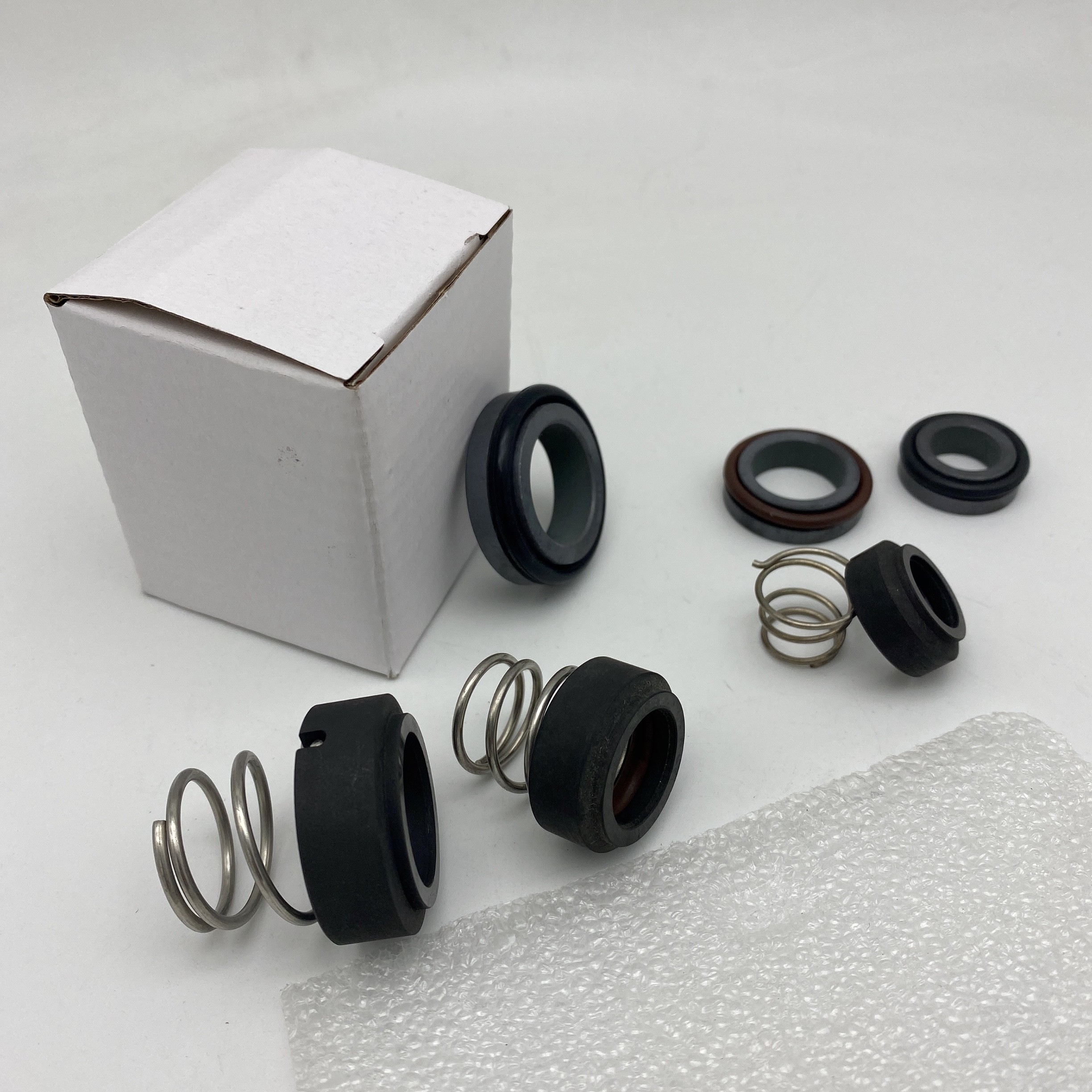

| Product Name: | Mechanical Seal | Model Number:: | M2N Seals |
|---|---|---|---|
| Pressure:: | Up To 25Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
| Application: | For Water And Heating Systerms | Medium: | Water,Oil And Other Low Corrosion Mediums |
| High Light: | m2n mechanical seal 24mm,water pump shaft mechanical seal 24mm,m2n mechanical seal 14mm |
||
|
Seal Type
|
M2N Series
|
|
Shaft size
|
kinds size for selection
|
|
Temperature
|
<2000C
|
|
Pressure
|
Up to 0.5Mpa
|
|
Speed
|
Up to 10 m/s
|
|
Sationary ring
|
Ceramic/Sic/TC
|
|
Rotary ring
|
Carbon/Sic/TC
|
|
Spring
|
SS304
|
|
Metal parts
|
SS304
|
HS Code: 8484200090
M2N mechanical seal series features a graphite seal face,it is mainly used in circulatin pumps for water and heating systems, The stationary ring can be selected among G4,G6,G9 and other types.
