| Place of Origin: | China |
|---|---|
| Brand Name: | None |
| Model Number: | Z1-28 |
| Minimum Order Quantity: | 1 pcs |
| Price: | be negotiation |
| Packaging Details: | 1 PCS PACKED INDIVIDUALLY IN 1 BOX |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Product Name: | Mechanical Seal | Model Number:: | Z1-28 |
|---|---|---|---|
| Pressure:: | Up To 25Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
| Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
| High Light: | Grundfo Pump Mechanical Shaft Seal,CR Pump Mechanical Shaft Seal,25Mpa Mechanical Pump Shaft Seal |
||

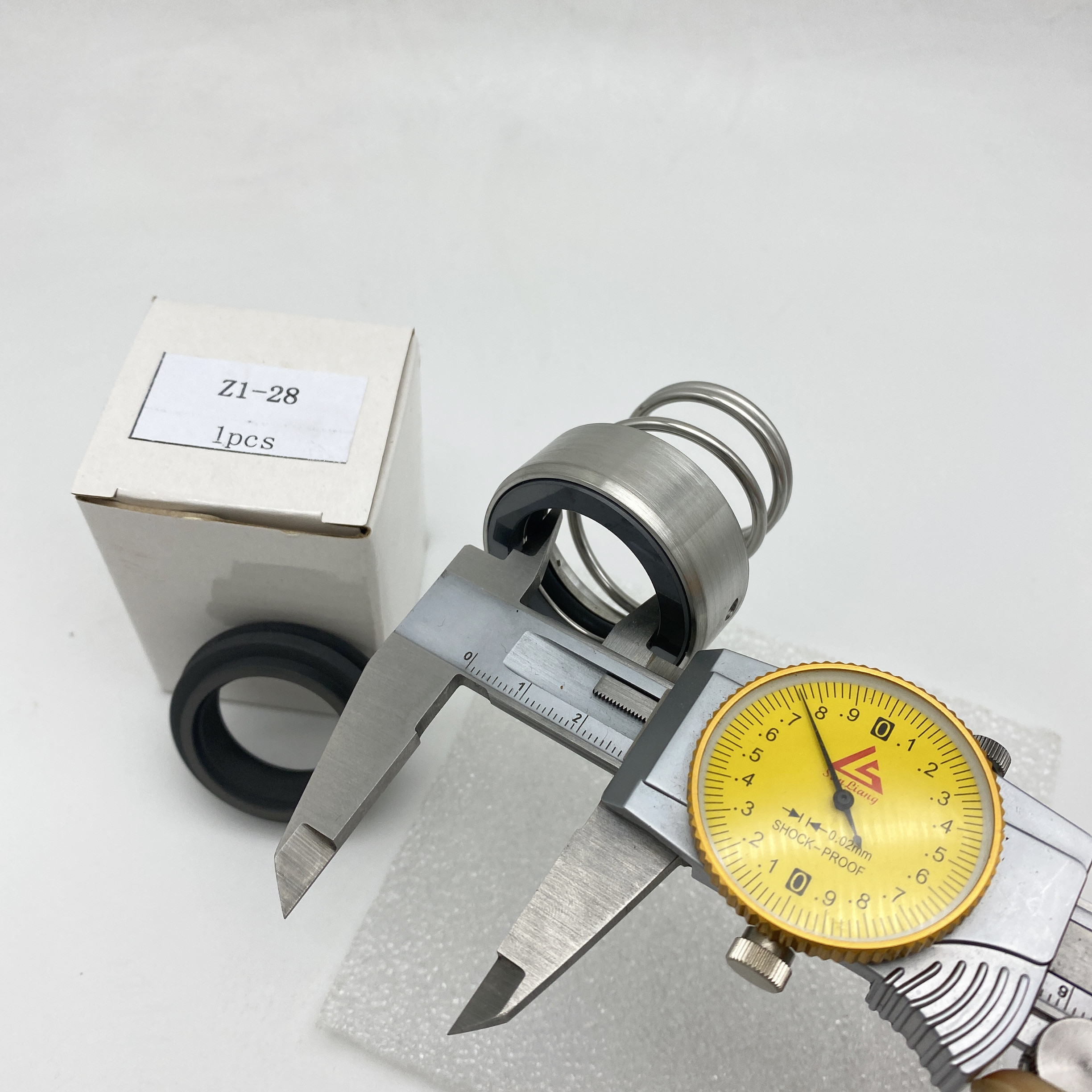

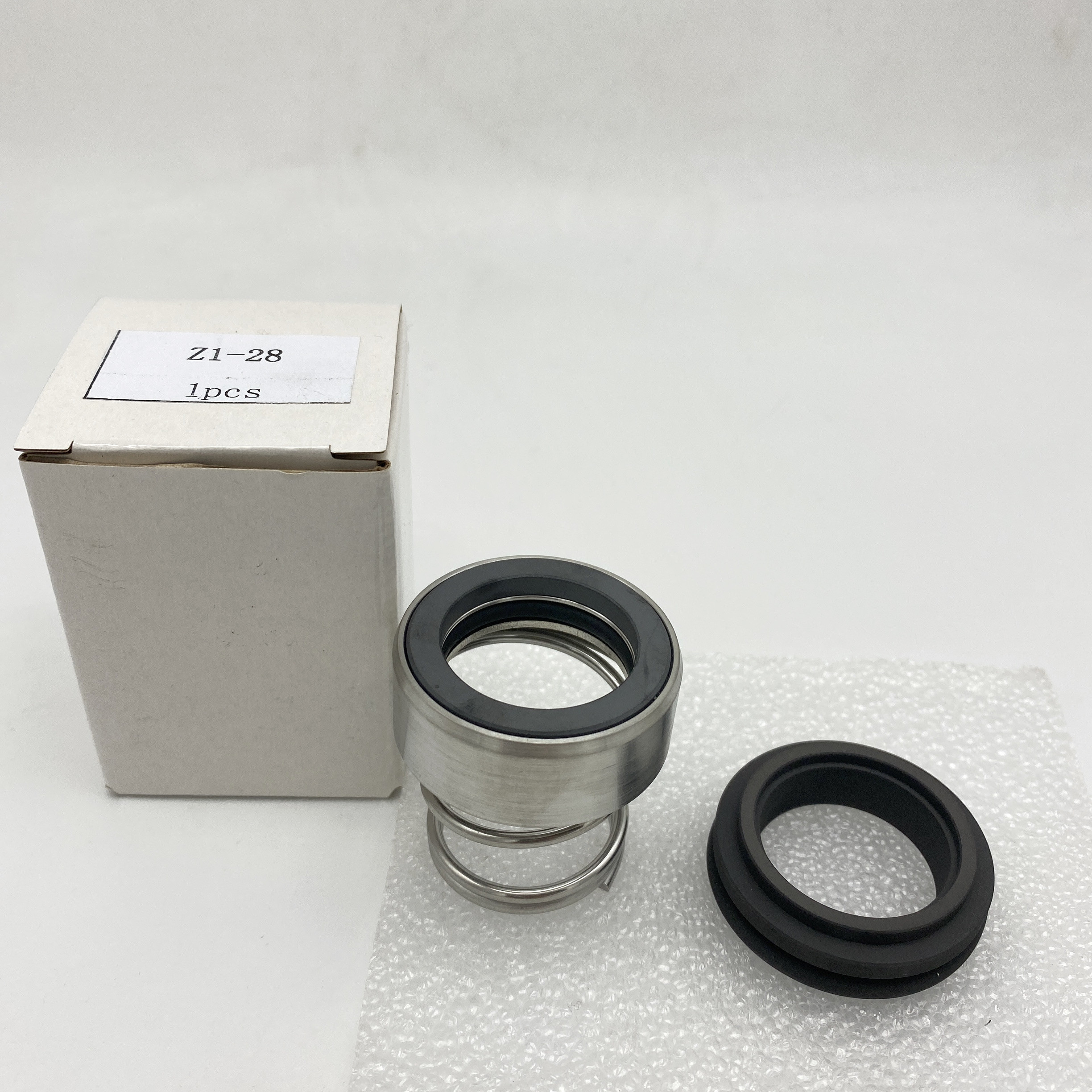

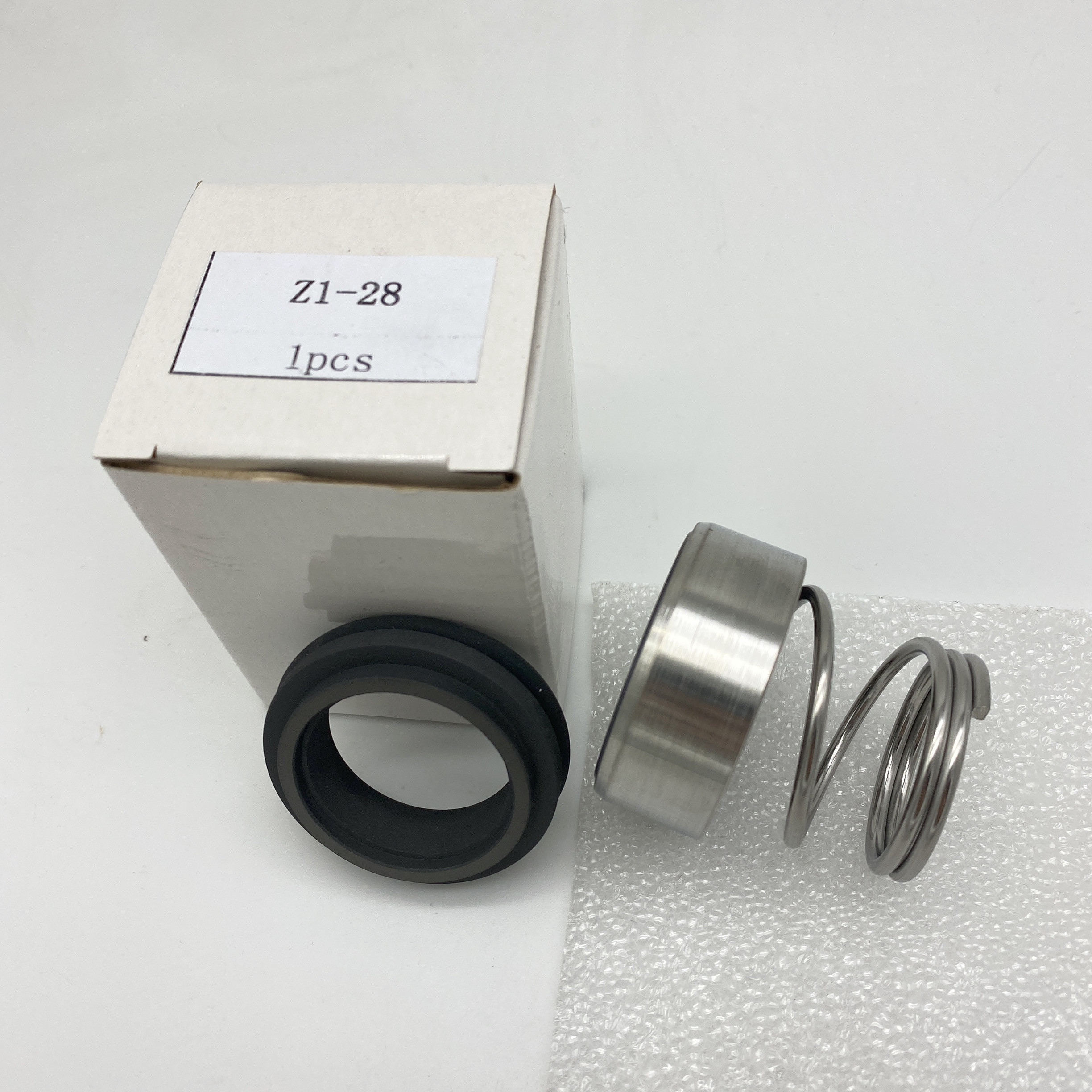

Ningbo factory Z1 mechanical shaft seals for pumps mechanical pump shaft seal
|
Temperature
|
-300C to 2000C dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
+/- 0.1mm
|
|
Size
|
16 mm to 100 mm
|
|
Brand
|
None
|
|
Face
|
Carbon ,Sic ,TC
|
|
Seat
|
Ceramic ,SIC,TC
|
|
Elastomer
|
NBR,EPDM,V,etc.
|
|
Spring
|
SS304, SS316
|
|
Metal Parts
|
SS304 ,SS316
|
|
Idividual packing
|
using foam and plastic paper wrapped,then put one piece of seal in one small carton box, finally put in standard export carton box.
|
