| Place of Origin: | China |
|---|---|
| Brand Name: | None |
| Model Number: | G05-12 |
| Minimum Order Quantity: | 1 pcs |
| Price: | be negotiation |
| Packaging Details: | 1 PCS PACKED INDIVIDUALLY IN 1 BOX |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Product Name: | Mechanical Seal | Model Number:: | G05-12 |
|---|---|---|---|
| Pressure:: | Up To 25Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
| Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
| High Light: | 25Mpa Grundfos Pump Seal,Grundfos Pump Seal 25Mpa,grundfos pump high pressure mechanical seal |
||

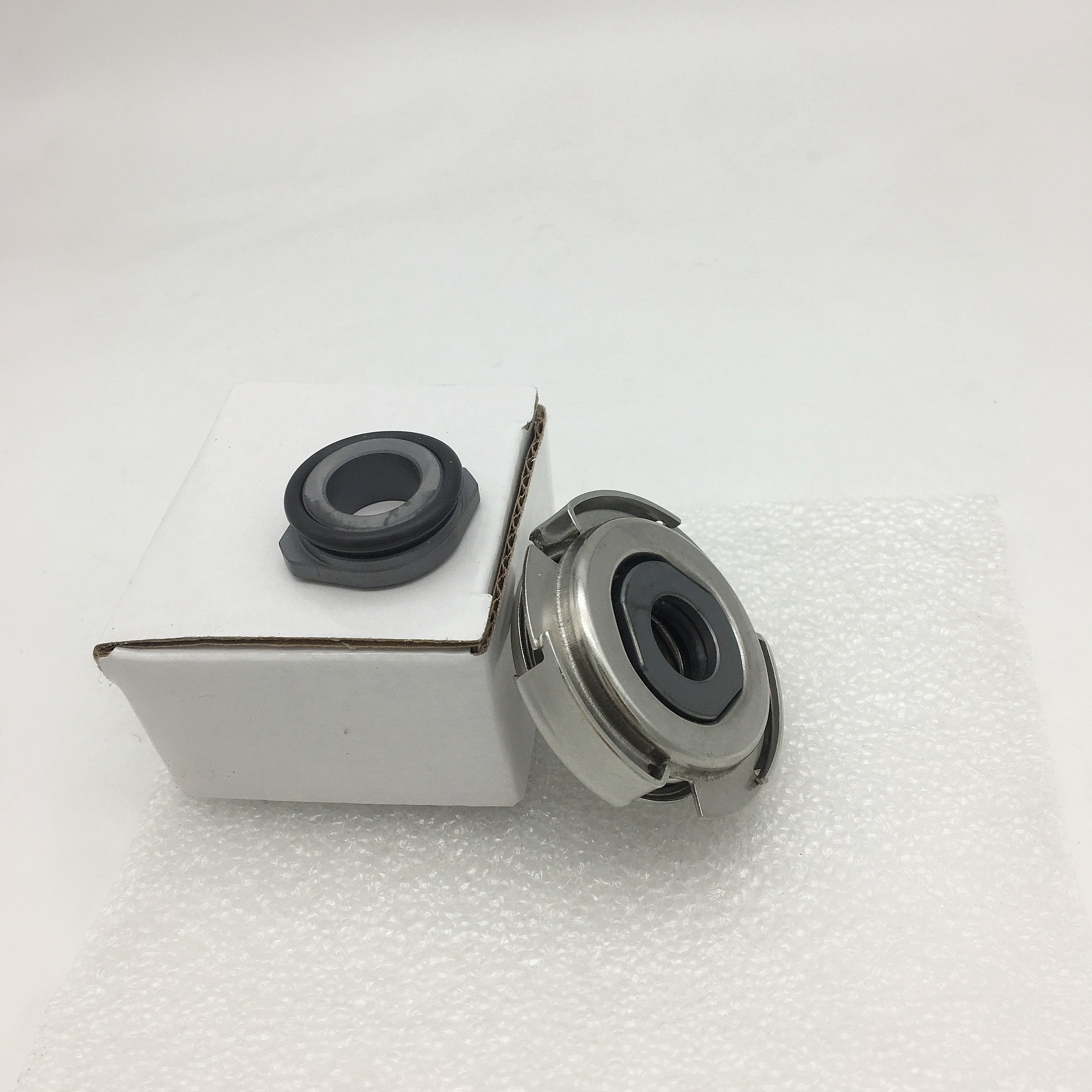

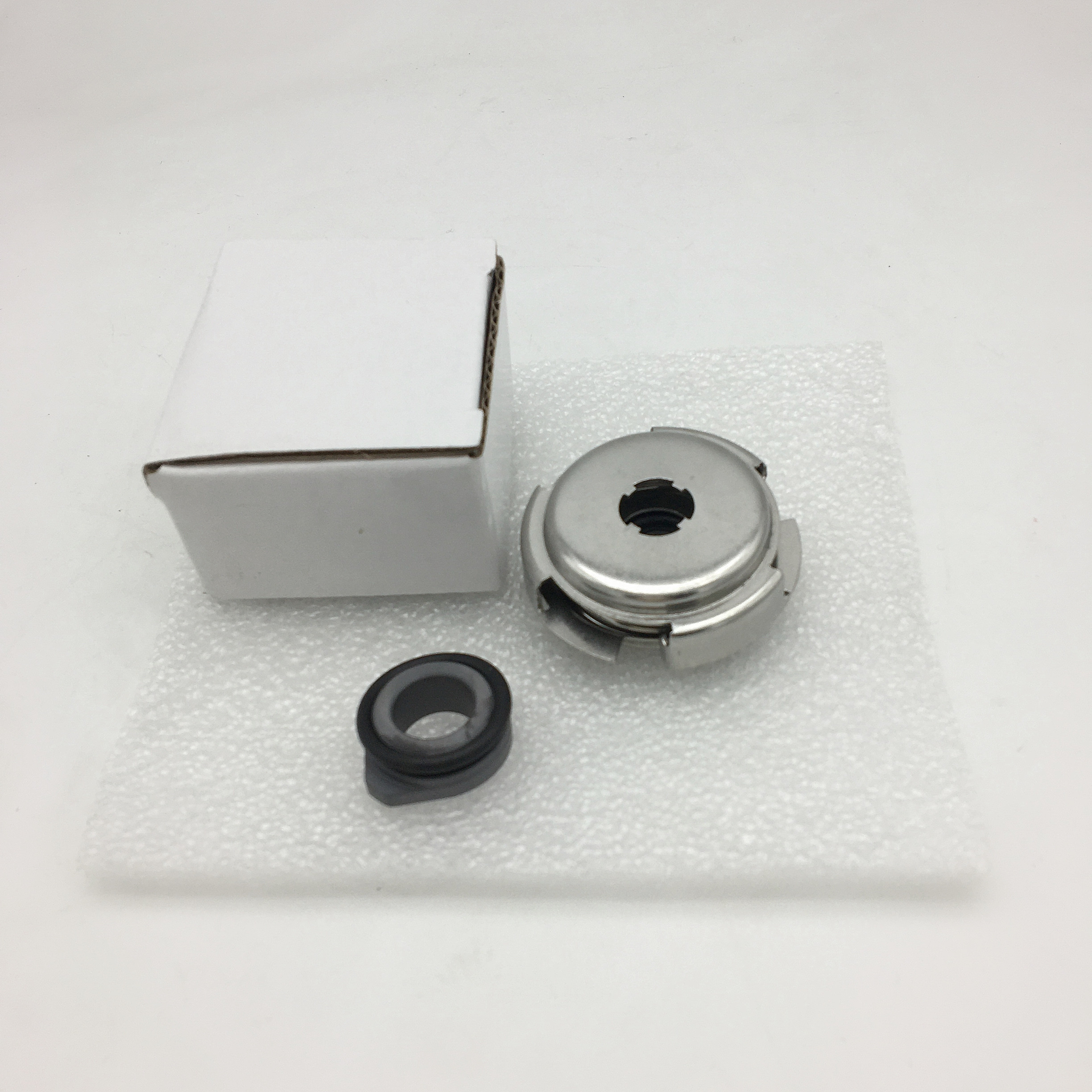

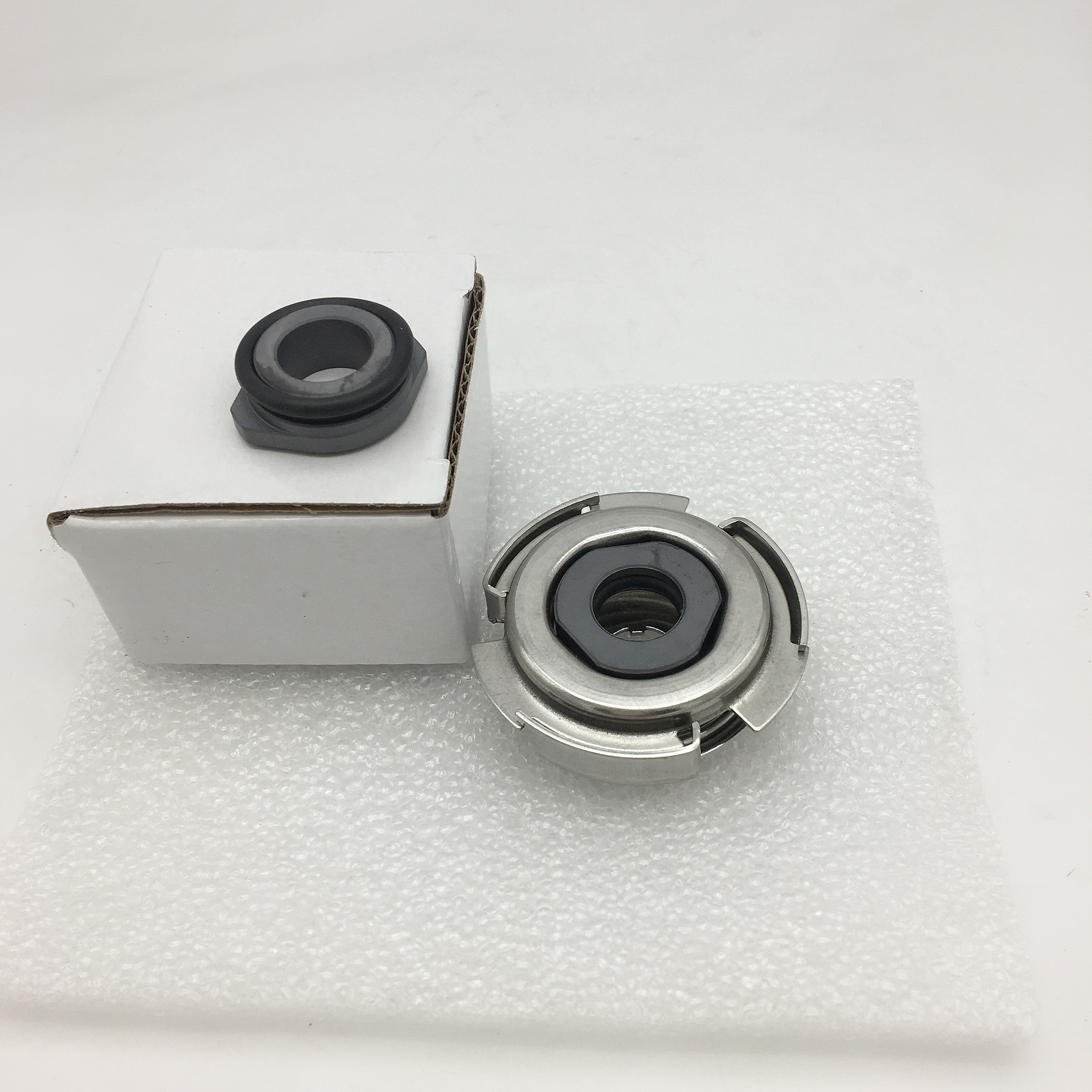

GLF-05-16 Mechanical Seal Kits For Pump CM1-3 A-R-I-E-AQQE
|
Seal Type
|
GLF05-16
|
|
Shaft size
|
16mm ,
|
|
Temperature
|
-30 degree to 200 degree,dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
Face
|
SIC,TC
|
|
Seat
|
Carbon ,Sic,TC
|
|
Elastomer
|
NBR,EPDM,VITON,
|
|
Spring
|
SS304
|
|
Metal parts
|
SS304
|
Medium : water oil and other weak corrosive liquids
