| Place of Origin: | China |
|---|---|
| Brand Name: | None |
| Model Number: | MG1-38 |
| Minimum Order Quantity: | 1 pcs |
| Price: | be negotiation |
| Packaging Details: | 1 PCS PACKED INDIVIDUALLY IN 1 BOX |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |

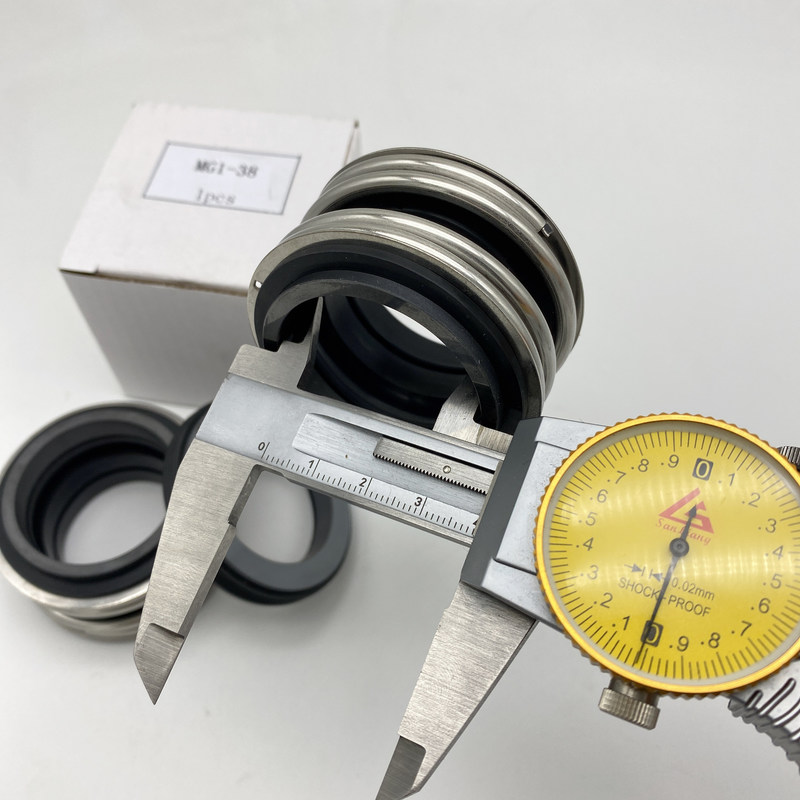

| Product Name: | Mechanical Seal | Model Number:: | MG1-38 |
|---|---|---|---|
| Pressure:: | Up To 25Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
| Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
| High Light: | cr pump mechanical seals,cr pump mechanical shaft seals,25Mpa Pressure Pump Mechanical Seals |
||
|
Operational Condtions:
|
|
|
Temperature
|
-20°C to+120°C
|
|
Pressure
|
≤1.2MPa
|
|
Speed
|
≤10m/s
|
|
Materials:
|
|
|
Stationary Ring
|
Ceramic(Alumna)
|
|
Silicon Carbide,Sintered Pressureless
|
|
|
Silicon Carbide ,Reaction bonded
|
|
|
Co-binder tungsten Carbide
|
|
|
Rotary Ring
|
Resin lmpregnate Carbon Graphite(Furan)
|
|
Antimony lmpreg Carbon Graphite
|
|
|
Silicon Carbide,Sintered Pressureless
|
|
|
Silicon Carbide ,Reaction bonded
|
|
|
Secondary Seal
|
NBR
|
|
EPDM
|
|
|
Vit
|
|
|
Spring and Metal Parts
|
Stainless steel 304
|
|
Stainless steel 3116
|
|
|
Seat Type:
|
|
|
Standard
|
G60
|
|
Alternative
|
G6,CT20,GEG9
|
|
Applications:
|
|
|
Clean water,sewage water,oil and other moderately corrosive fluids.
|
|
|
Descripthin
|
Material
|
Material Feature & Suitable Scope
|
|
Rotary / Stationary Face
|
Carbon
|
Resistant against:erosive heat
|
|
suitable for water and oil medium
|
||
|
Ceramic
|
Resistant against:shore hardness,abrasion
|
|
|
Suitable for dusted water and oil
|
||
|
Silicon Carbide
|
Resistant against: heat abrasion ,erosive
|
|
|
Suitable for industrial pumps,submersible
|
||
|
Pump sewage pump etc
|
||
|
Tungsten carbide
|
Resistant against: heat,abrasion ,erosive
|
|
|
Suitable for industrial pumps,submersible
|
||
|
Pump sewage pump ets
|
||
|
Bellow cup gasket Oring
|
NBR
|
Resistant against: pressure,abrasion high elasticity and mechanical strength
|
|
Suitable for Water and oil Under -20--120 degree
|
||
|
EPDM
|
Resistant against: heat freeze,chemical reagent depeding
|
|
|
Suitable for water and oil under-40--150 degree
|
||
|
MVQ
|
Resistant against: heat,oil reagent medicine
|
|
|
Acetone,suitable for high temperature
|
||
|
Hydraulic equipment and vacum equipment
|
||
|
Suitable for erosive medium under-20--180 degree
|
||
|
ECO
|
Resistant against:ozone aging merely ocetum,ammomia ethanol,suitable for medium-40--150degree
|
|
|
SUS 304
|
Resistant aginst: freon rock oil
|
|
|
SUS316
|
Suitable for medium-30 --130 degree
|
