| Place of Origin: | China |
|---|---|
| Brand Name: | None |
| Model Number: | 155-20 |
| Minimum Order Quantity: | 1 pcs |
| Price: | be negotiation |
| Packaging Details: | 1 PCS PACKED INDIVIDUALLY IN 1 BOX |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Product Name: | Mechanical Seal | Model Number:: | 155-20 |
|---|---|---|---|
| Pressure:: | Up To 25 Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
| Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
| High Light: | 155A Water Pump Mechanical Seal,155A mechanical shaft seal |
||

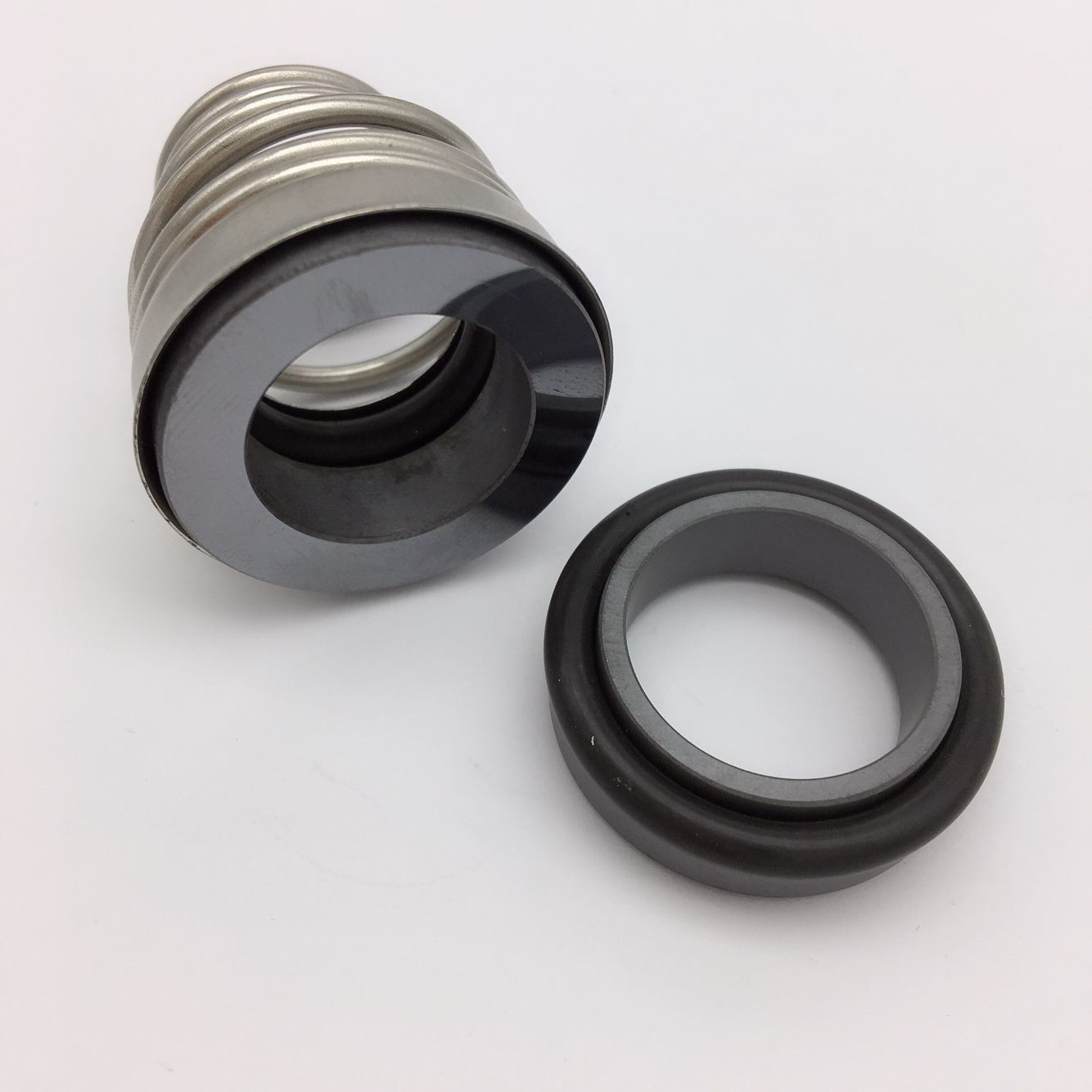

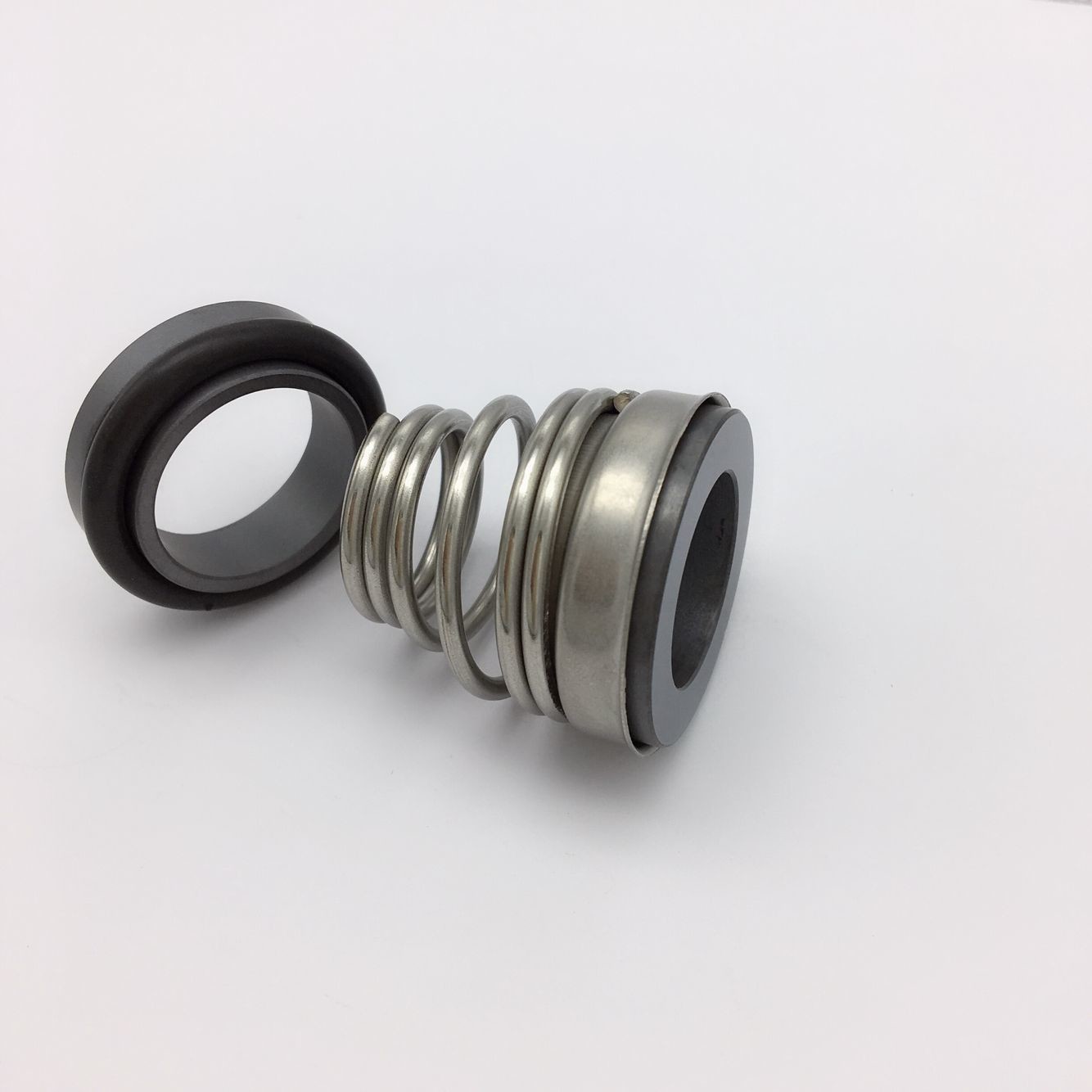

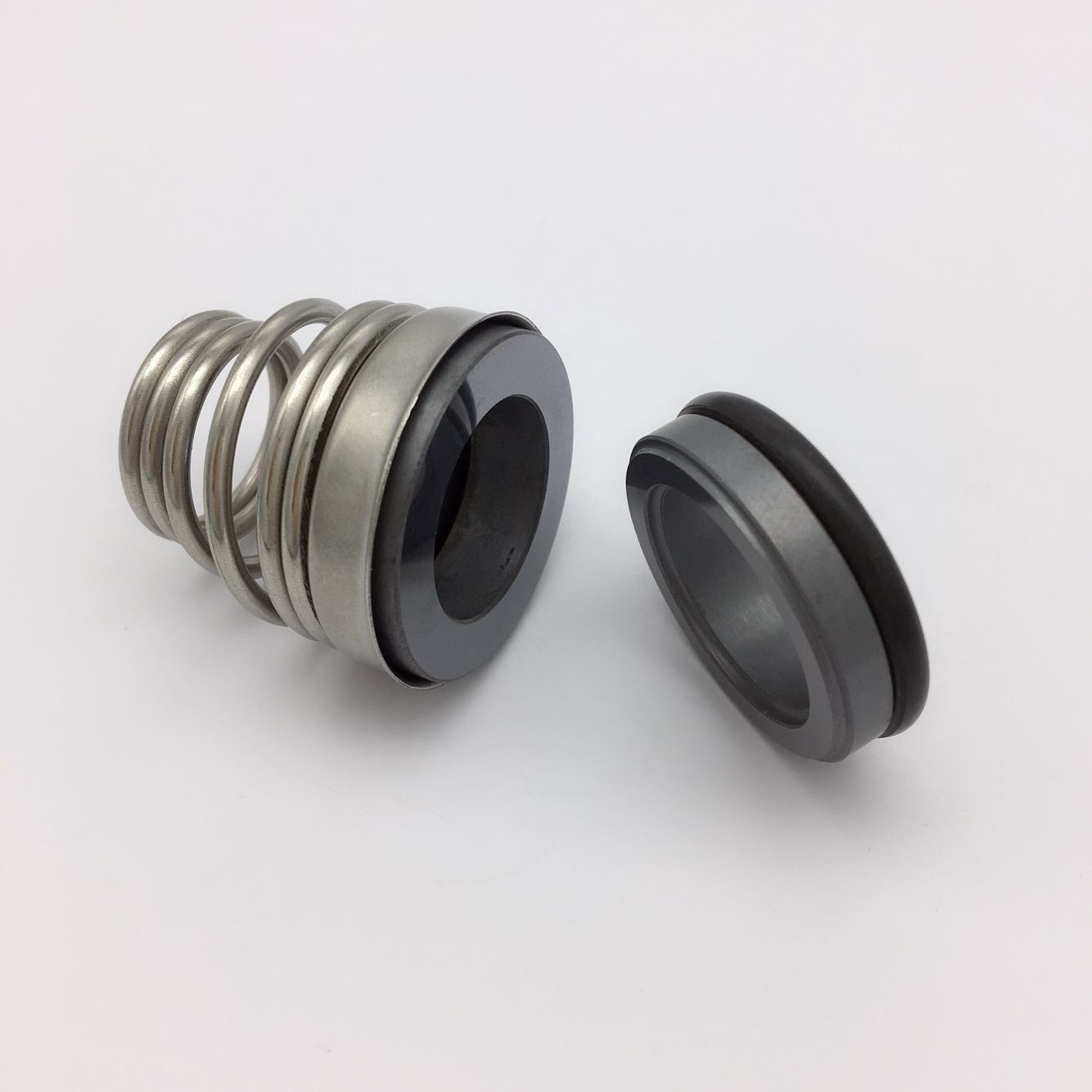

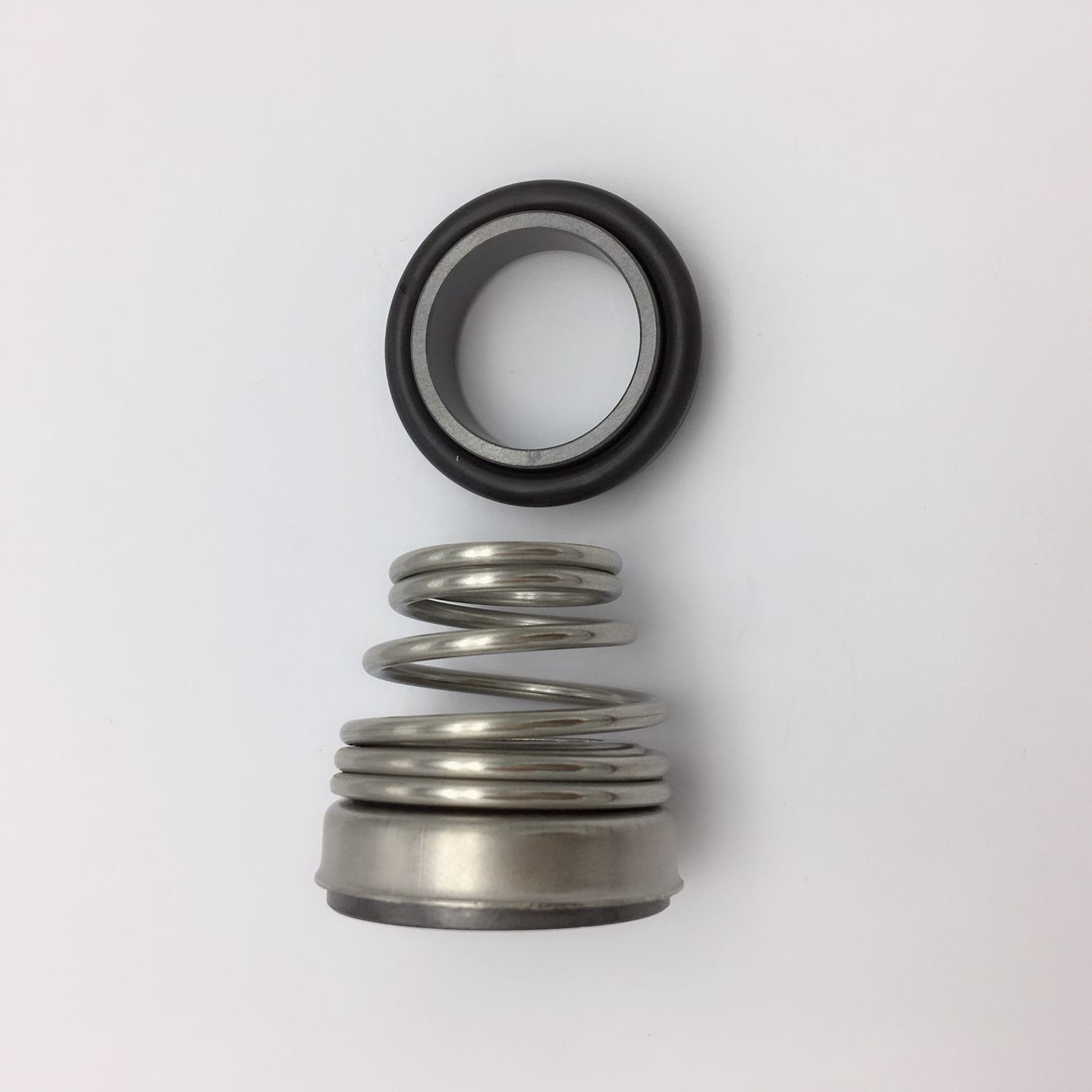

Circulation Pumps 155 Water Pump Mechanical Seal Shaft Seal Mechanical Seals
Popular water pump seal mechanical seal 155 for Circulation Pumps
1．There are 2 different seat, 155A is bigger & 155 is standard.
2．The color of ceramic could be yellow and white for clients choice.
3．The rotary face is with step assembling with o-rings, it is same as original design from Italy.
| Model | D1 | D3 | D6 | D7 | L | L3 | L4 |
| Yade155-10 | 10 | 20 | 14 | 18.1 | 20.5 | 15 | 5.5 |
| Yade155-11 | 11 | 22 | 16.5 | 20.6 | 23.5 | 18 | 5.5 |
| Yade155-12 | 12 | 22 | 16.5 | 20.6 | 23.5 | 18 | 5.5 |
| Yade155-13 | 13 | 25 | 19 | 23.1 | 28 | 22 | 6 |
| Yade155-14 | 14 | 25 | 19 | 23.1 | 28 | 22 | 6 |
| Yade155-15 | 15 | 29 | 21 | 26.9 | 29 | 22 | 7 |
| Yade155-16 | 16 | 29 | 21 | 26.9 | 30 | 23 | 7 |
| Yade155-17 | 17 | 29 | 21 | 26.9 | 30 | 23 | 7 |
| Yade155-18 | 18 | 33 | 25 | 30.9 | 32 | 24 | 8 |
| Yade155-19 | 19 | 33 | 25 | 30.9 | 33 | 25 | 8 |
| Yade155-20 | 20 | 33 | 25 | 30.9 | 33 | 25 | 8 |
| Yade155-21 | 21 | 38 | 30 | 35.4 | 33 | 25 | 8 |
| Model | D1 | D3 | D6 | D7 | L | L3 | L4 |
| Yade155-22 | 22 | 20 | 14 | 18.1 | 20.5 | 15 | 5.5 |
| Yade155-23 | 23 | 22 | 16.5 | 20.6 | 23.5 | 18 | 5.5 |
| Yade155-24 | 24 | 22 | 16.5 | 20.6 | 23.5 | 18 | 5.5 |
| Yade155-25 | 25 | 25 | 19 | 23.1 | 28 | 22 | 6 |
| Yade155-28 | 28 | 25 | 19 | 23.1 | 28 | 22 | 6 |
| Yade155-29 | 29 | 29 | 21 | 26.9 | 29 | 22 | 7 |
| Yade155-30 | 30 | 29 | 21 | 26.9 | 30 | 23 | 7 |
| Yade155-32 | 32 | 29 | 21 | 26.9 | 30 | 23 | 7 |
| Yade155-33 | 33 | 33 | 25 | 30.9 | 32 | 24 | 8 |
| Yade155-35 | 35 | 33 | 25 | 30.9 | 33 | 25 | 8 |
| Yade155-38 | 38 | 33 | 25 | 30.9 | 33 | 25 | 8 |
| Yade155-40 | 40 | 38 | 30 | 35.4 | 33 | 25 | 8 |
