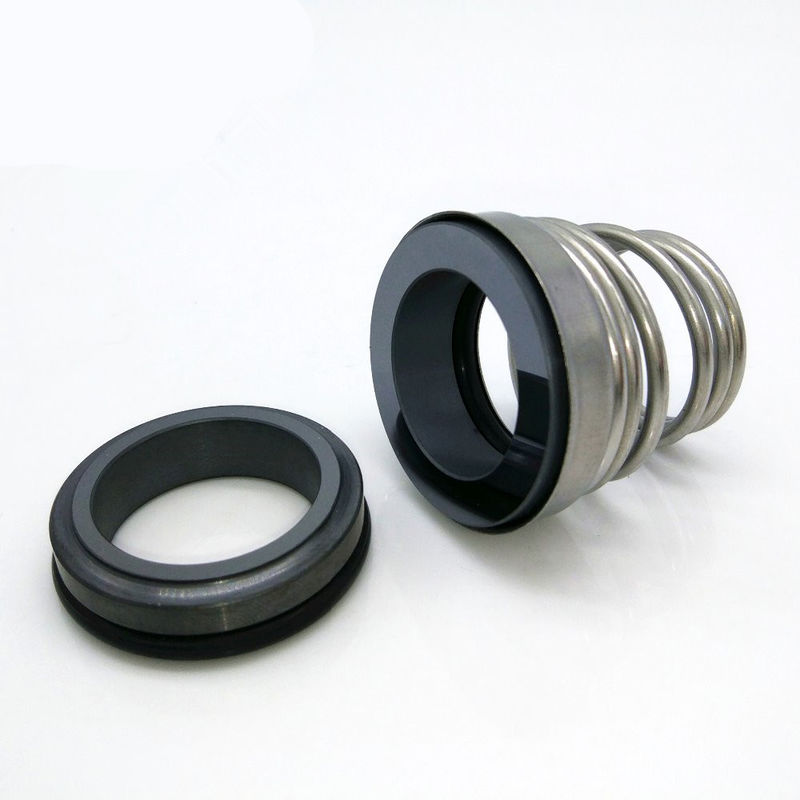

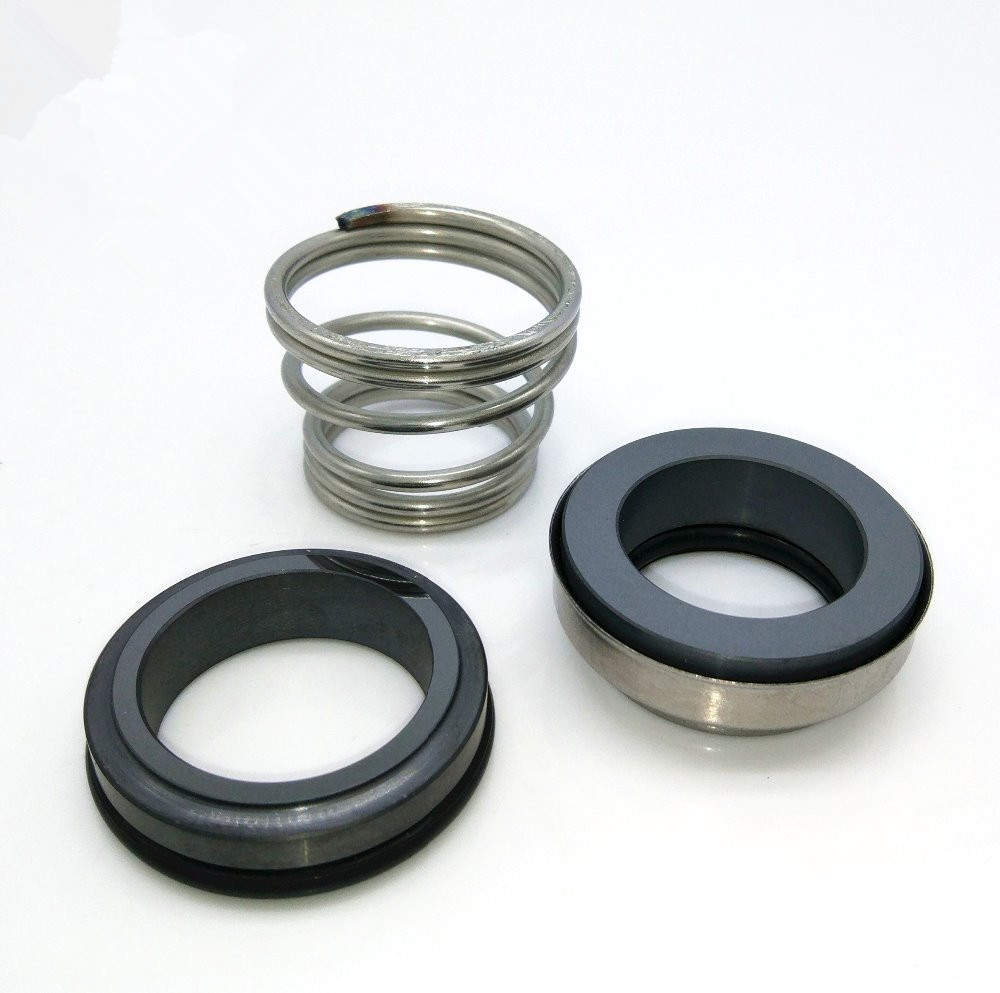

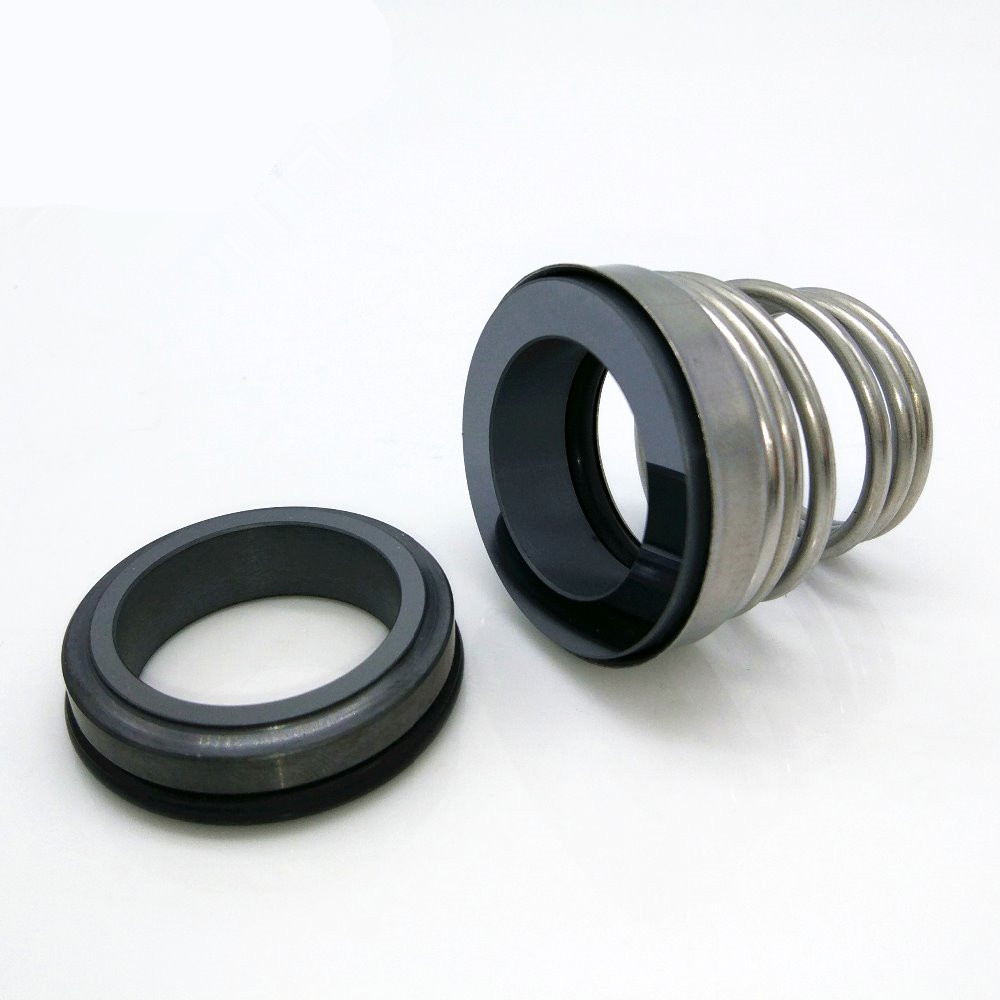

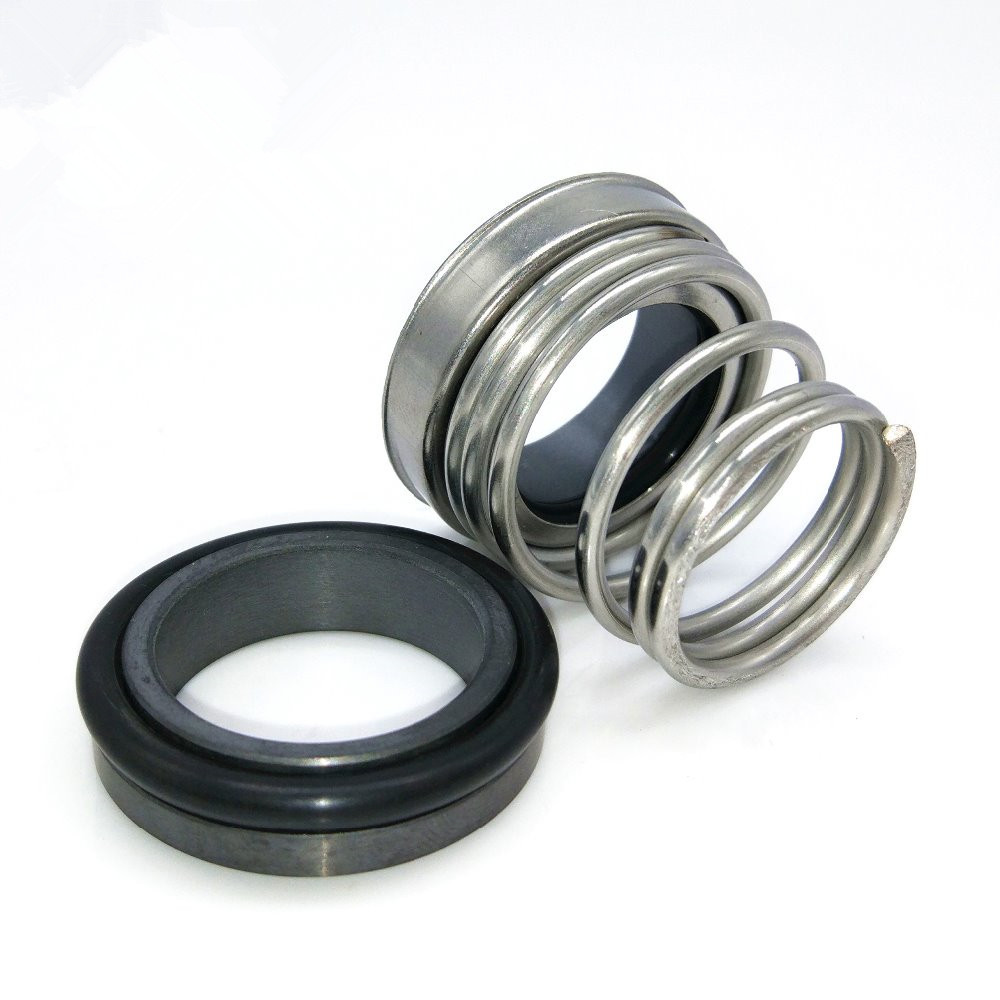

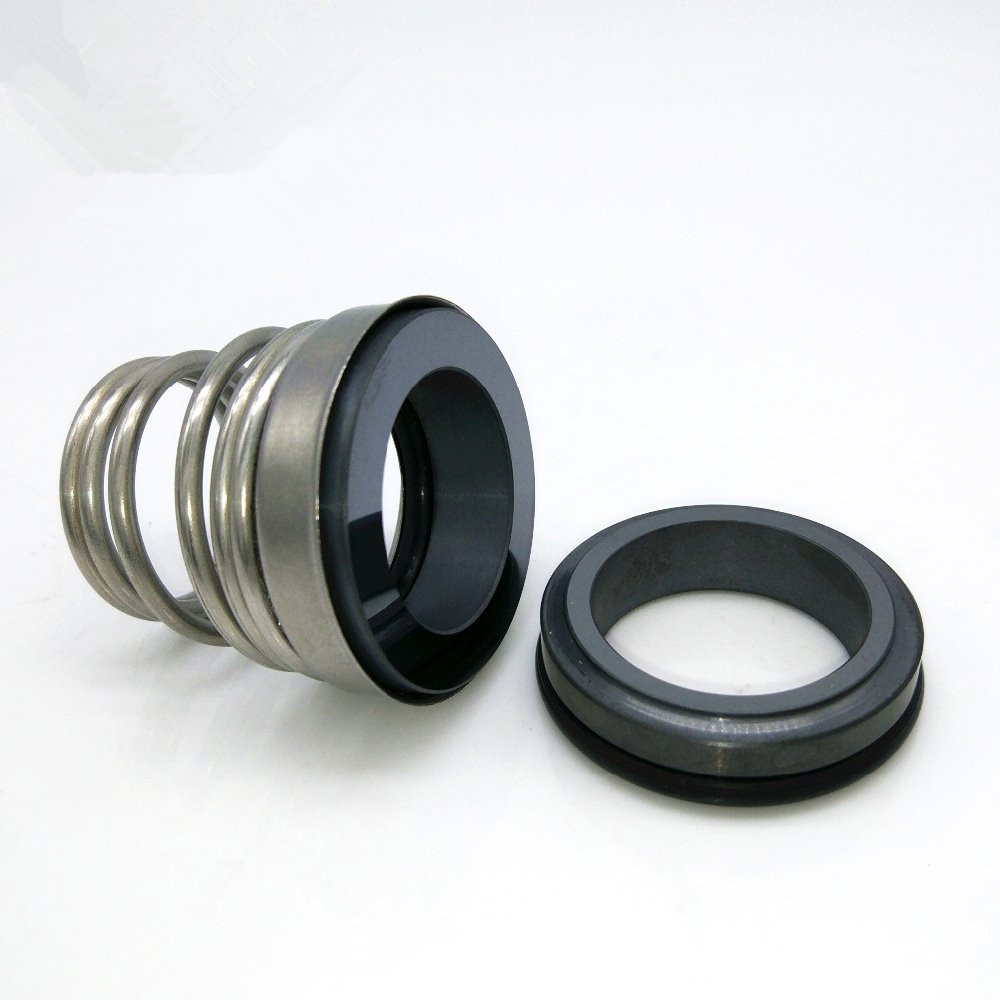

Product Name: | Mechanical Seal | Model Number:: | 155-22 |
---|---|---|---|
Pressure:: | Up To 25Mpa | Advantage: | Easy To Replace Without Dismantling The Pump Part |
Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
High Light: | 155-22 Mechanical Seals,25Mpa Mechanical Seals,155-22 water pump shaft seal |
Performance Capabilities
Temperature
|
-30℃ to 200℃, dependent on the elastomer
|
Pressure
|
Up to 10 bar
|
Speed
|
Up to 15 m/s
|
End play/axial float allowance
|
±0.1mm
|
Size
|
12mm to 75mm
|
Brand
|
LM
|
Face
|
Ceramic, SiC, TC
|
Seat
|
Carbon, SiC, TC
|
Elastomer
|
NBR, EPDM, etc.
|
Spring
|
SS304, SS316
|
Metal parts
|
SS304, SS316
|
Packing
|
1.From 10mm to 20mm is packed in plastic sheets grouply and M box.
2.From 21mm to 40mm is wrapped in plastic 3.paper individually then grouply in M box. 3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added. |
Quick Details
Size:12mm-75mm
Place of Origin:Zhejiang, China
Standard or Nonstandard:Standard
Face:Carbon, SiC, TC
Seat:Ceramic, SiC, TC
Elastomer:NBR, EPDM, etc
Metal Parts:SS304, SS316
HS code:8484200090
Application:water pump
Type:mechanical seal
Name:pump mechanical seal
Keyword:sello mecanicos
