Type: | Coupling | Material: | Stainless Steel,carbon Steel |
---|---|---|---|
Technics: | Forged | Product Name: | High Quality Hydraulic Male/female Hose Hydraulic Ferrule (00110) |
Stanadard: | EATON ,Winner | Surface Treatment: | Trivalent Silver And Yellow Zinc |
Target Market: | Mid-east,America,Northern Europe Etc. | Package Type: | Neutral Package: Carton + Pallets + Plywood Case |
High Light: | 22691 garden hose adapters,BSP garden hose adapters,BSP garden hose swivel |
Material | carbon steel , stainless steel |
Standard | Eaton ,interchange Parker standard |
Technology | Forged ,CNC processing |
Surface treatment | Cr3+ Cr6+Zinc plated |
Package details | carton box with plastic bag then into pallet wooden |
size of box | 24*24*16 |
size of pallet | 102*102*77 |
Delivery time | in general 30 days ,or depend on our warehouse stock |
PART NO. | THREAD E | DN | DASH | A | C | H | S2 |
22691-02-03 | G1/8"*28 | 5 | 3 | 26.5 | 5.5 | 31.5 | 14 |
22691-02-04 | G1/8"*28 | 6 | 4 | 30 | 5.5 | 34.5 | 14 |
22691-04-03 | G1/4"*19 | 5 | 3 | 26.5 | 5.5 | 33.5 | 19 |
22691-04-04 | G1/4"*19 | 6 | 4 | 30 | 5.5 | 36.5 | 19 |
22691-04-05 | G1/4"*19 | 8 | 5 | 33 | 5.5 | 39.5 | 19 |
22691-04-06 | G1/4"*19 | 10 | 6 | 30 | 5.5 | 36.5 | 19 |
22691-06-04 | G3/8"*19 | 6 | 4 | 30 | 6.3 | 37.7 | 22 |
22691-06-05 | G3/8"*19 | 8 | 5 | 33 | 6.3 | 40.7 | 22 |
22691-06-06 | G3/8"*19 | 10 | 6 | 35.3 | 6.3 | 43 | 22 |
22691-08-06T | G1/2"*14 | 10 | 6 | 35.3 | 7 | 43.3 | 27 |
22691-08-08 | G1/2"*14 | 12 | 8 | 41 | 7.5 | 51 | 27 |
22691-08-10 | G1/2"*14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 |
22691-10-08 | G5/8"*14 | 12 | 8 | 41 | 9.5 | 51.5 | 30 |
22691-10-10 | G5/8"*14 | 16 | 10 | 56.5 | 9.5 | 56 | 30 |
22691-12-08T | G3/4"*14 | 12 | 8 | 41 | 10.9 | 52.1 | 32 |
22691-12-10 | G3/4"*14 | 16 | 10 | 56.5 | 10.9 | 56.6 | 32 |
22691-12-12 | G3/4"*14 | 20 | 12 | 65.5 | 10.9 | 66 | 32 |
22691-16-12T | G1"*11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 |
22691-16-14 | G1"*11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 |
22691-16-16 | G1"*11 | 25 | 16 | 76.7 | 11.7 | 73.8 | 41 |
22691-20-16T | G1.1/4"*11 | 25 | 16 | 78 | 11 | 69.5 | 50 |
22691-20-20W | G1.1/4"*11 | 32 | 20 | 91.5 | 11 | 84.3 | 50 |
22691-24-24W | G1.1/2"*11 | 40 | 24 | 109.4 | 13 | 103 | 55 |
22691-32-32W | G2"*11 | 50 | 32 | 131.8 | 16 | 123.3 | 70 |

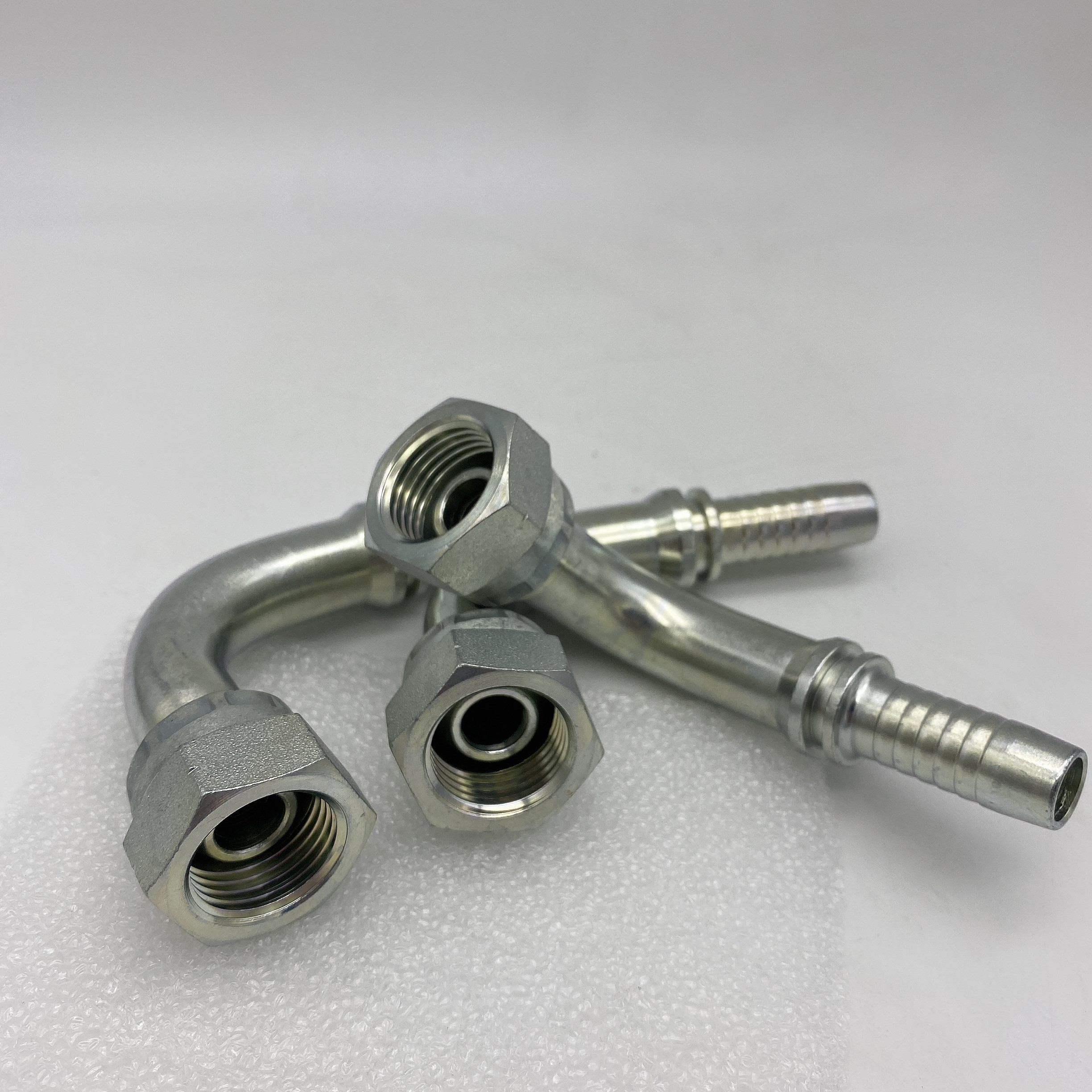

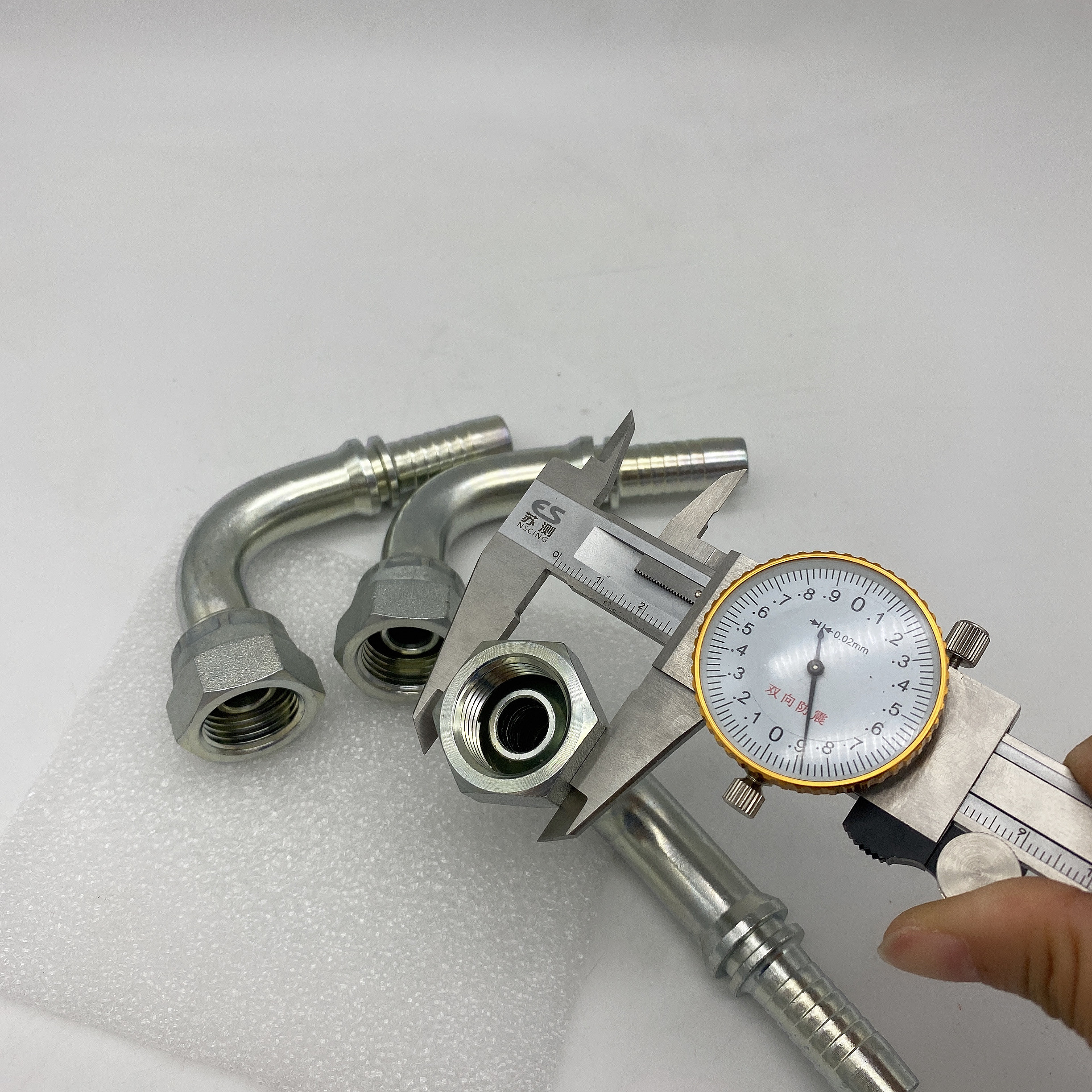

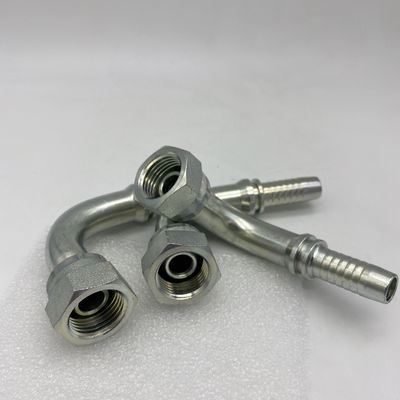

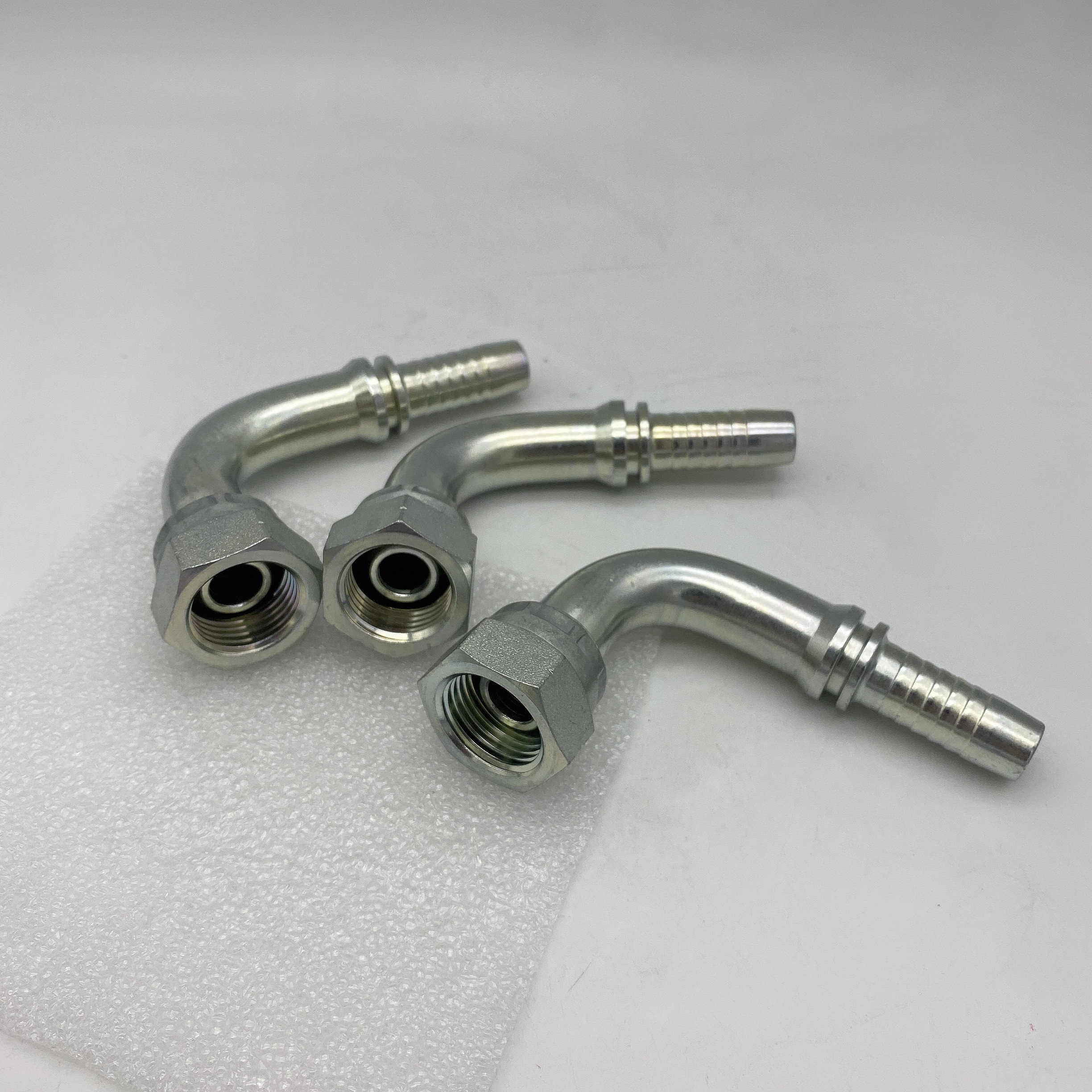

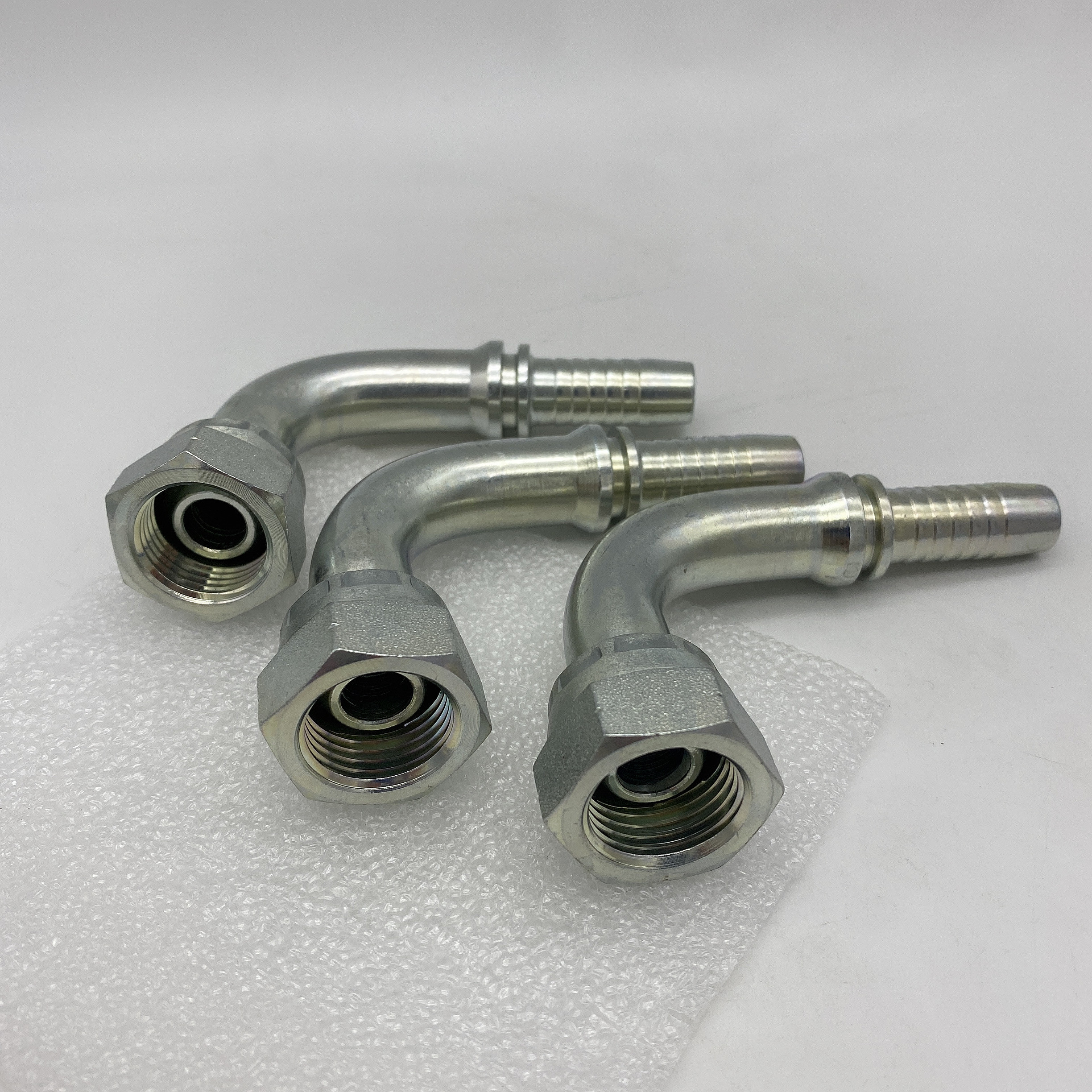

22691 BSP 90 degree elbow garden hose fittings quick connector air hose fitting types---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.
METRIC ADAPTERS
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
Metric Thread 74°Cone Flared Tube Adapters
JIS Metric Thread 60°Cone Adapters
BRITISH ADAPTERS
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
AMERICAN ADAPTERS
ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
9) OTHER ADAPTERS
Packaging Details Package of Hot sale 90 degree JIC male to NPT male flared hose fittings stub ends hydraulic adapter:carton boxes and plywood case
Delivery Time We delivery HYDRAULIC HOSE FITTINGS within 30 days
Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.
1. Material checking: strictly control of material using, meet international requested standards;
2. semi-finished products inspection: product inspection before 100% finished ;
3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.
4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.
Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be provided to you once the consignment is shipped
4. Professional customer service to answer your questions or fix problems regarding your order.
