Type: | Coupling | Technics: | Forged |
---|---|---|---|
Connection: | Female | Product Name: | Aeroquip Hose Fittings |
Standard: | EATON And Parker | The Material Of Oring: | 70 NBR OR 90 NBR |
High Light: | 26718 reusable hydraulic fittings,26718-04-04,26718 Reusable Hose Fittings |

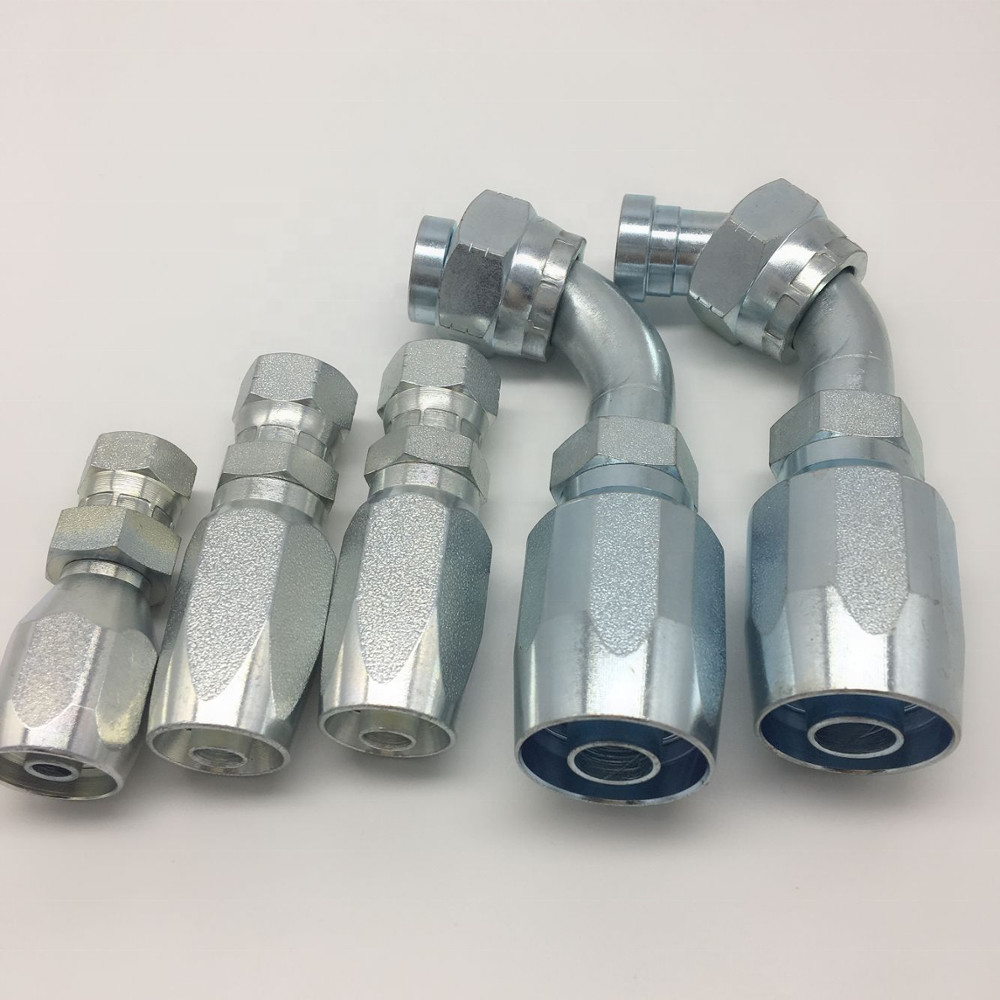

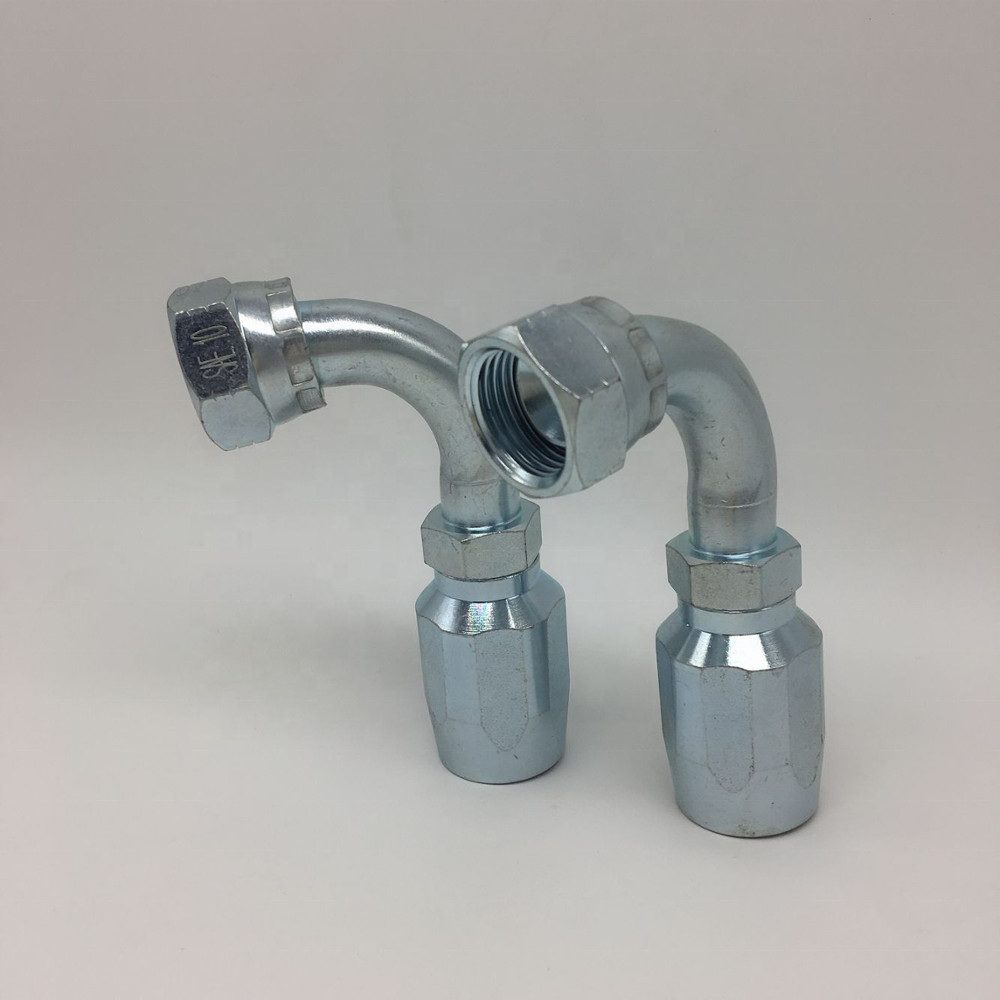

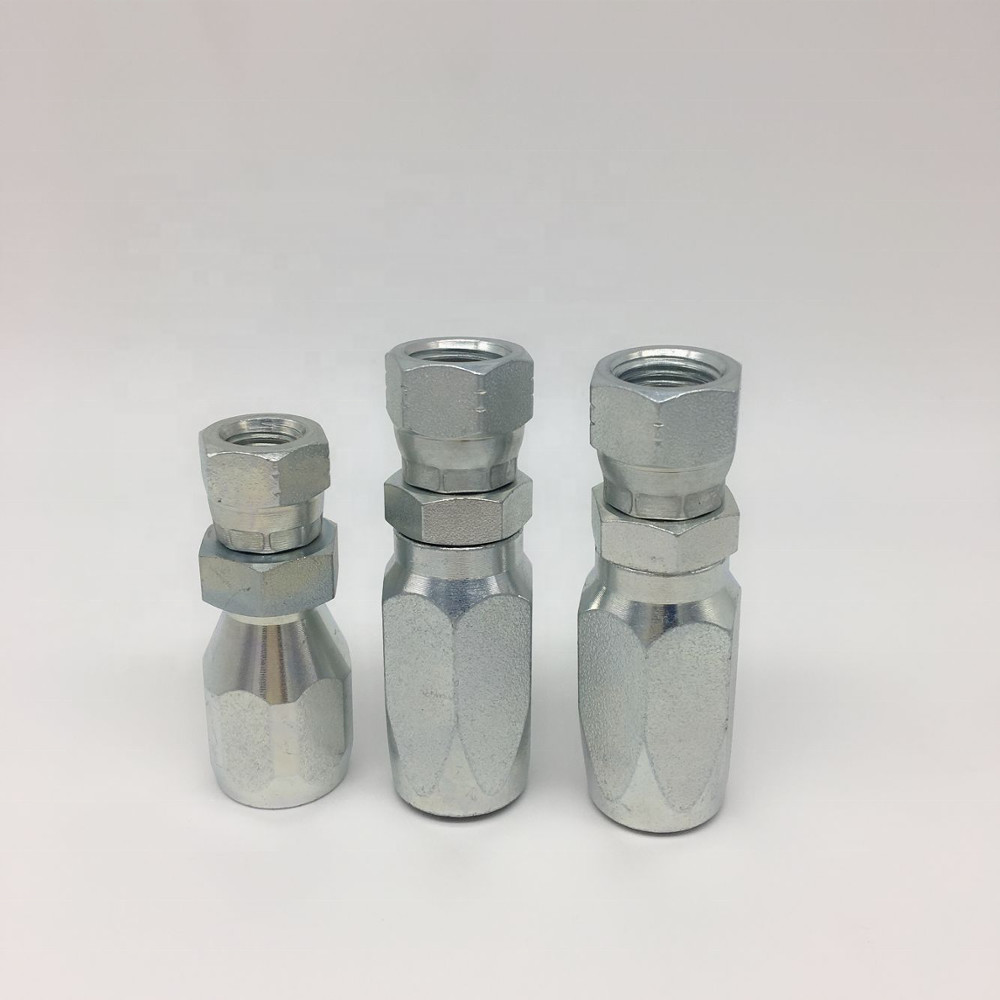

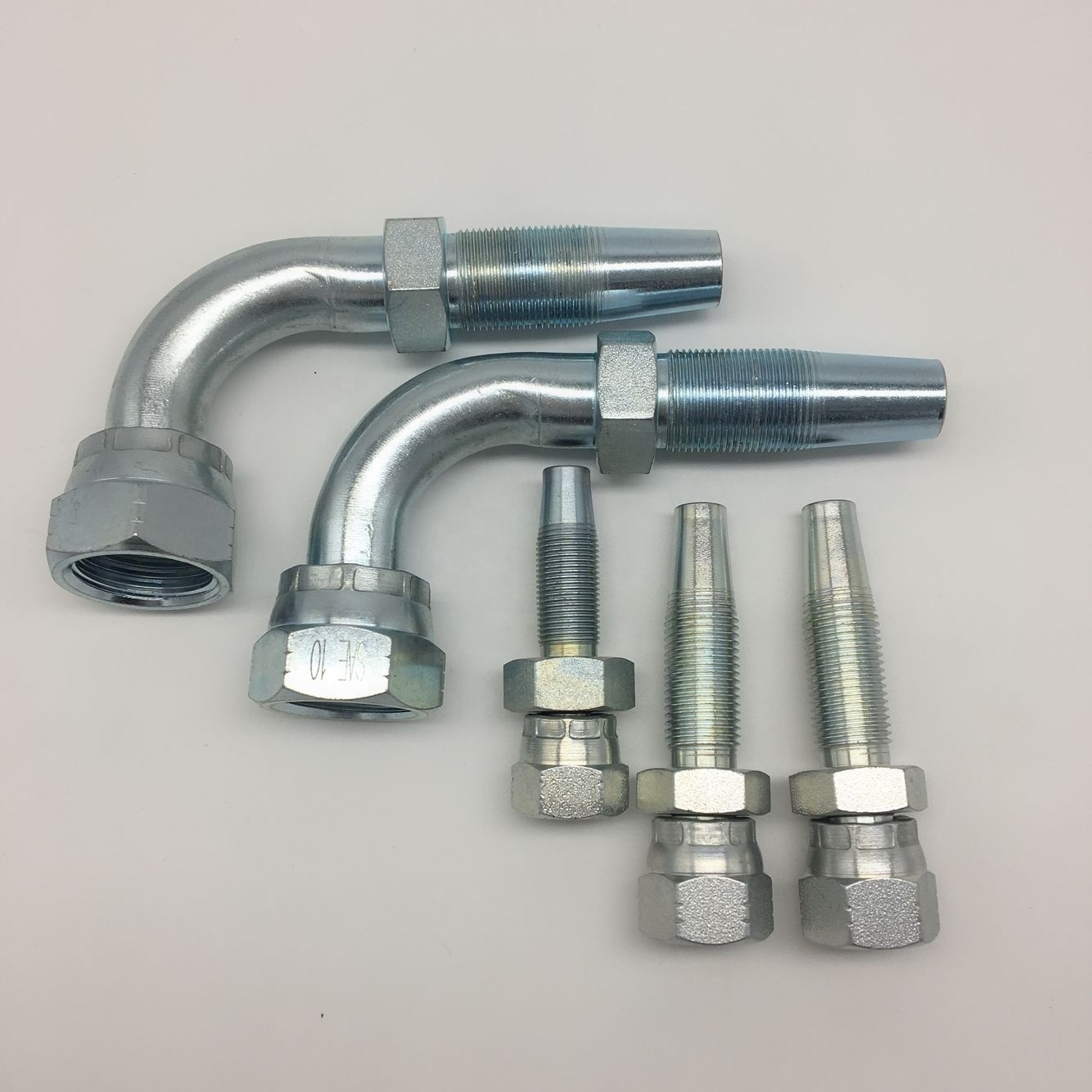

EATON Parker Standard Reusable Hose Fittings JIC Pipe Fittings Female Connection
Description of goods | Carbon Steel Material hydraulic reusable fitting hose ferrule fittings |
Material | carbon steel 45# |
Surface treatment | Cr6+zinc plated,Cr3+zinc plated or according to require |
Package method | Neutral export box with plastic bag into wooden pallet |
box size | 24*24*16 |
pallet size | 102*102*77 |
RART NO. | THREAD E | HOSE DASH | A | C | S1 | S2 |
26718-04-04(R5) | 7/16"*20 | 04 | 22 | 9 | 14 | 17 |
26718-05-05(R5) | 1/2"*20 | 05 | 25.4 | 9 | 24 | 17 |
26718-06-06(R5) | 5/8"*18 | 06 | 26 | 11.3 | 17 | 22 |
26718-08-08(R5) | 3/4"*16 | 08 | 31.5 | 10.5 | 22 | 24 |
26718-10-10(R5) | 7/8"*14 | 10 | 34 | 12 | 27 | 27 |
26718-12-12(R5) | 1.1/16"*12 | 12 | 37 | 14.3 | 32 | 32 |
Reusable JIC female thread one piece hose fitting 26718-R5---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.
1) FERRULE
FERRULE for SAE100R1AT/EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN853 2SN HOSE
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE for 4SH, R12/32 HOSE
2) SWAGED METRIC FITTINGS
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60°Cone Seal Fittings Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T. Fittings Metric 24°Cone O-RING Seal H.T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60°Cone Seal Fittings
3) SWAGED BRITISH FITTINGS
BSP O-RING Seal Fittings BSP Flat Seal Fittings
BSP Multiseal Fittings BSP 60°Cone Seal Fittings
BSPT Fittings JIS BSP 60°Cone Seal Fittings
4) SWAGED AMERICAN FITTINGS
SAE O-RING Seal Fittings ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittings SAE Flange H.T. Fittings
5) STAPLELOK FITTINGS
BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS
6) METRIC ADAPTERS
Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
Metric Thread 74°Cone Flared Tube Adapters
JIS Metric Thread 60°Cone Adapters
7) BRITISH ADAPTERS
BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8) AMERICAN ADAPTERS
ORFS ADAPTERS JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters
9) OTHER ADAPTERS
Packaging Details Package of HYDRAULIC HOSE FITTINGS:carton boxes and plywood case
Delivery Time We delivery HYDRAULIC HOSE FITTINGS within 10 days
Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.
1. Material checking: strictly control of material using, meet international requested standards;
2. semi-finished products inspection: product inspection before 100% finished ;
3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.
4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.
Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.
2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.
3. The tracking number will be provided to you once the consignment is shipped
4. Professional customer service to answer your questions or fix problems regarding your order.
Q: How about payment?
A: For large orders, T/T, L/C. For small orders, credit cards are accepted (SHOULD SPECIFY HERE WHICH CC PAYMENT SYSTEMS ARE ACCEPTABLE: MASTER CARD, VISA, AMERICAN EXPRESS, ETC.)
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q: Can you provide certificates?
A: Yes, certainly, we can supply ISO 9001 certificates.
If you have any other questions,please do not hesitate to contact us!
