Product Name: | Hydraulic Hose Adapter | Material: | Carbon Steel |
---|---|---|---|
Surface Treatment: | Trivalent Zinc Plated | Standard: | EATON |
Model: | BSP MALE /BSP MALE O-RING | Factory Code: | 1BG-06-04 |
Application: | Hydraulic System In Construction Machinery | Size: | 1/4"-3/8" |
Package: | Carton Box | Delivery Time: | 3-25 Days |
Type: | Fittings | Selling Units: | Single Item |
Single Package Size : | 0.1X0.1X0.08 Cm | Single Gross Weight: | 0.046 Kg |
Package Type: | Carton Box And Plywood Case | ||
High Light: | 1BG British Standard Pipe Fittings,1BG thread pipe fitting |

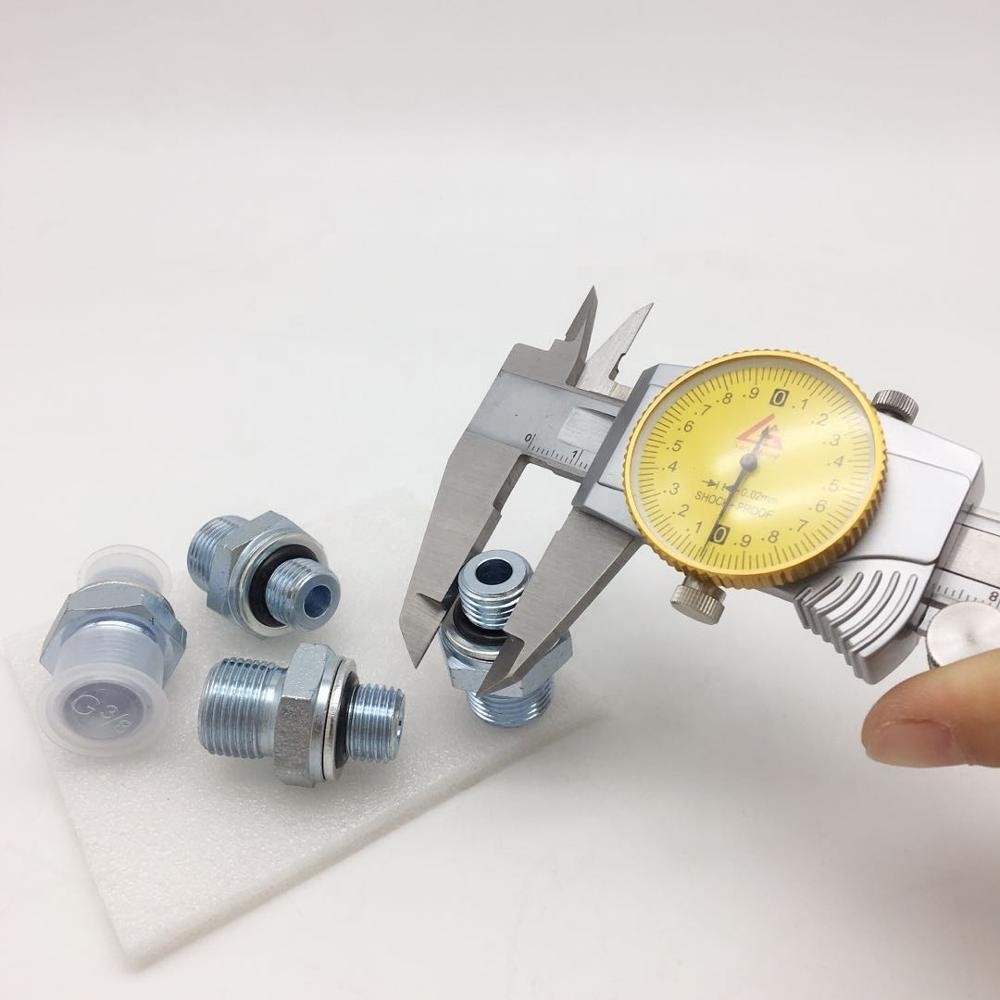

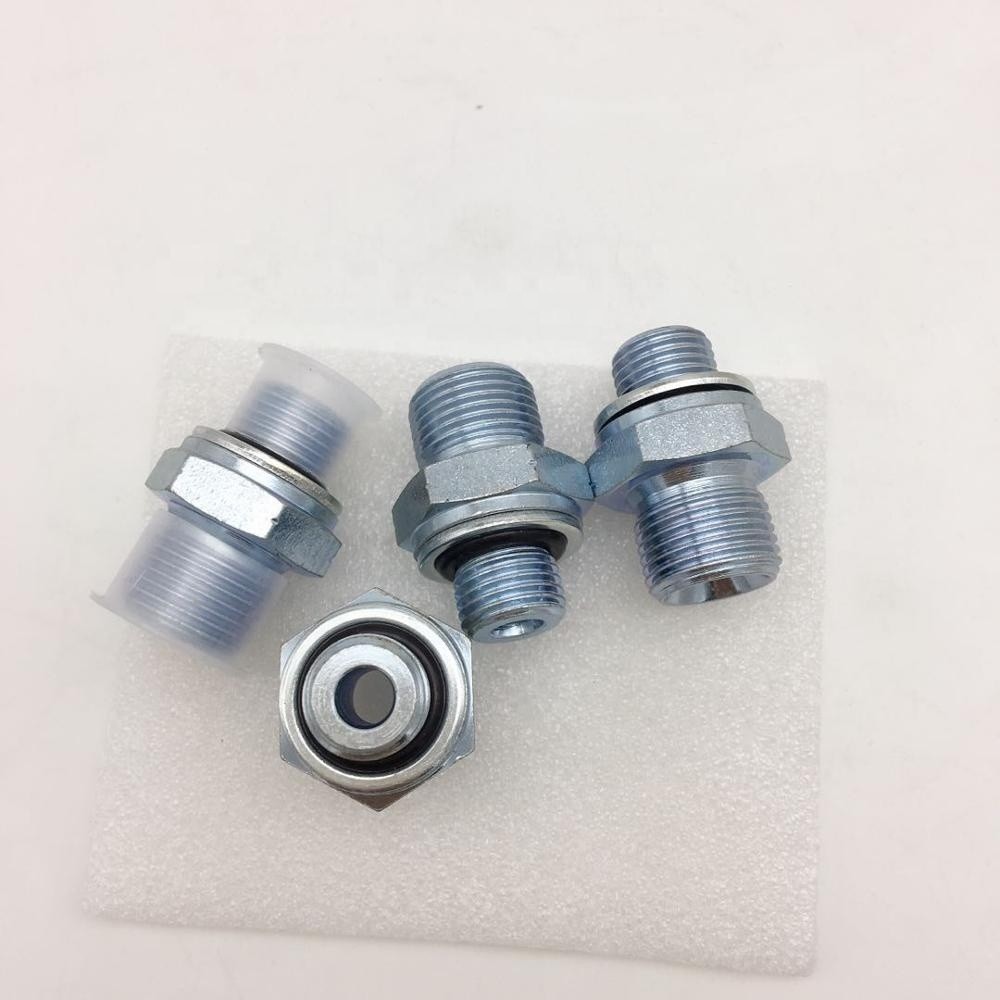

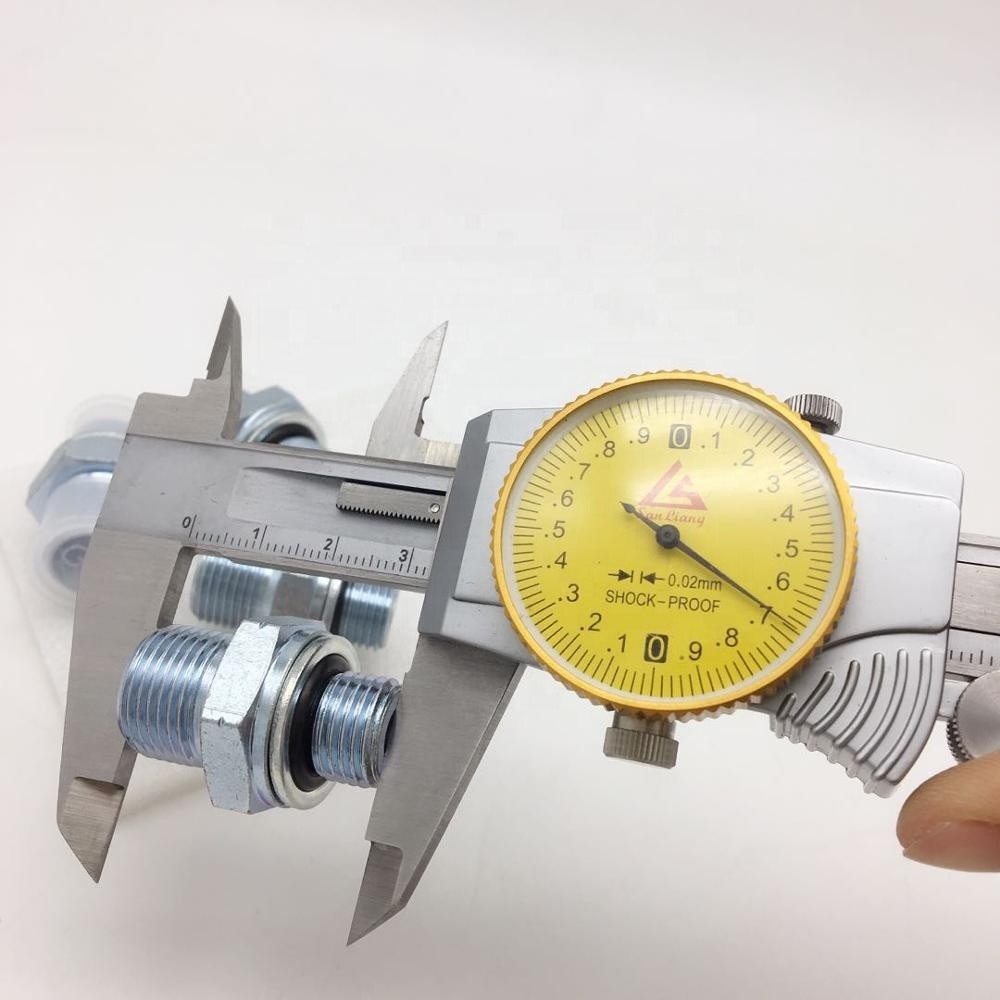

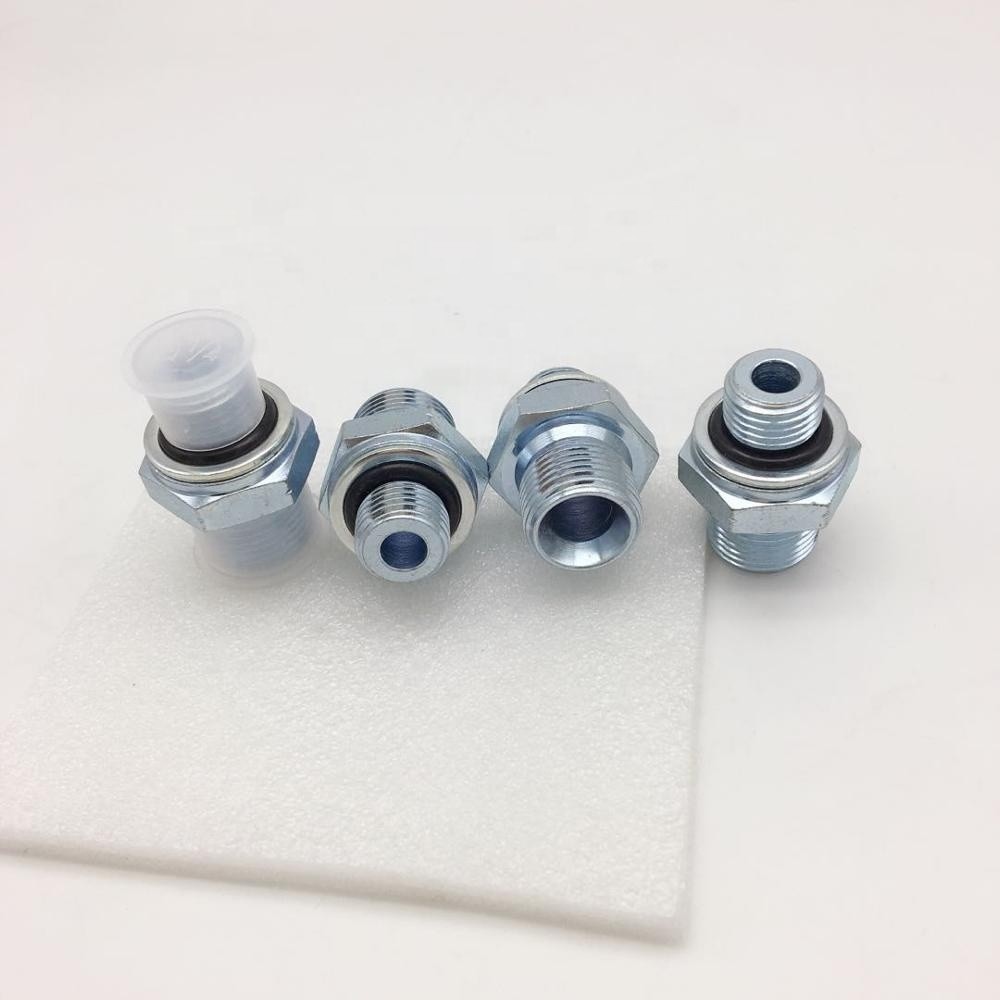

Straight BSP male hot forged hydraulic hose adapter 1BG
Part no. | E | F | CAPTIVE | A | B | L | S1 |
1BG-06-04 | G1/4"*19 | G1/4"*19 | 10.77*2.62 | 13.5 | 10 | 31.5 | 22 |
Package way | Delivery time | Delivery way | |
Small batch | carton box with plastic bag then with strapping | 7-10 day | by express that like as TNT,USP,DHL etc. |
Large quantity | carton box with platsic bag then into wooden pallet | within 30 days ,or according to our stock | by sea |
Our other products
JIC male 74 degree cone /JIC female 74 degree seat run tee adapter |
CJ-04 |
BSP male / BSP male captive seal |
1B-04-06WD |
JIC female 74 degree cone seat SAE J514 |
26711-04-04 |
26711-06-06 |
26711-08-08 |
Ferrule for SAE 100 R2AT /EN 853 2SN HOSE NO SKIVE |
03310-04 |
03310-06 |
