| Place of Origin: | China |
|---|---|
| Brand Name: | None |
| Model Number: | G05-12 |
| Minimum Order Quantity: | 1 pcs |
| Price: | be negotiation |
| Packaging Details: | 1 PCS PACKED INDIVIDUALLY IN 1 BOX |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Product Name: | Mechanical Seal | Model Number:: | G05-12 |
|---|---|---|---|
| Pressure:: | Up To 25 Mpa | Material: | S/S/V/SS304 |
| Application: | Grundfo Pump Or CR Pump | Medium: | Water,Oil And Other Low Corrosion Mediums |
| High Light: | 12mm Mechanical Seal For Water Pumps,G05-12 Mechanical Seals,SS304 Water Pump Seal 12mm |
||

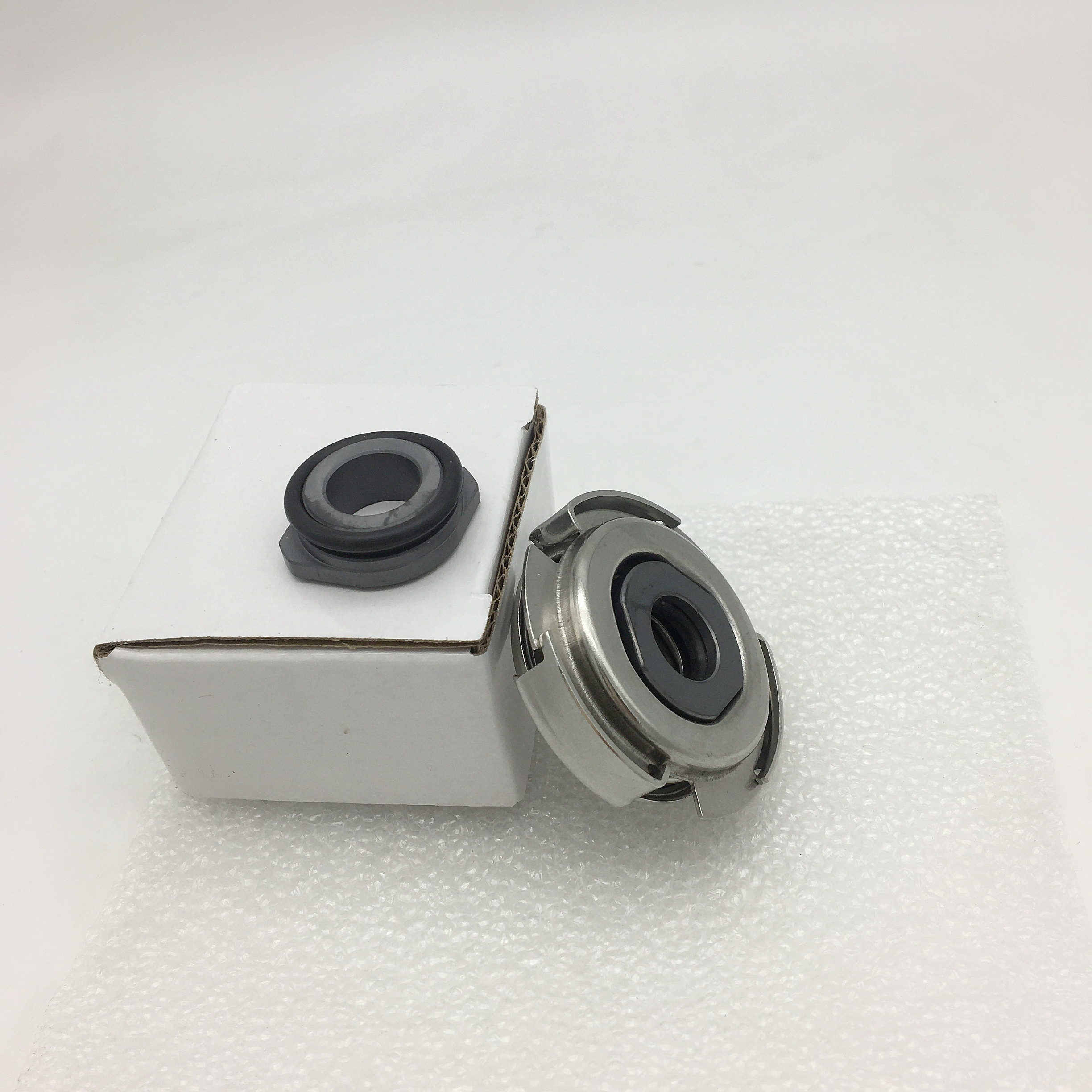

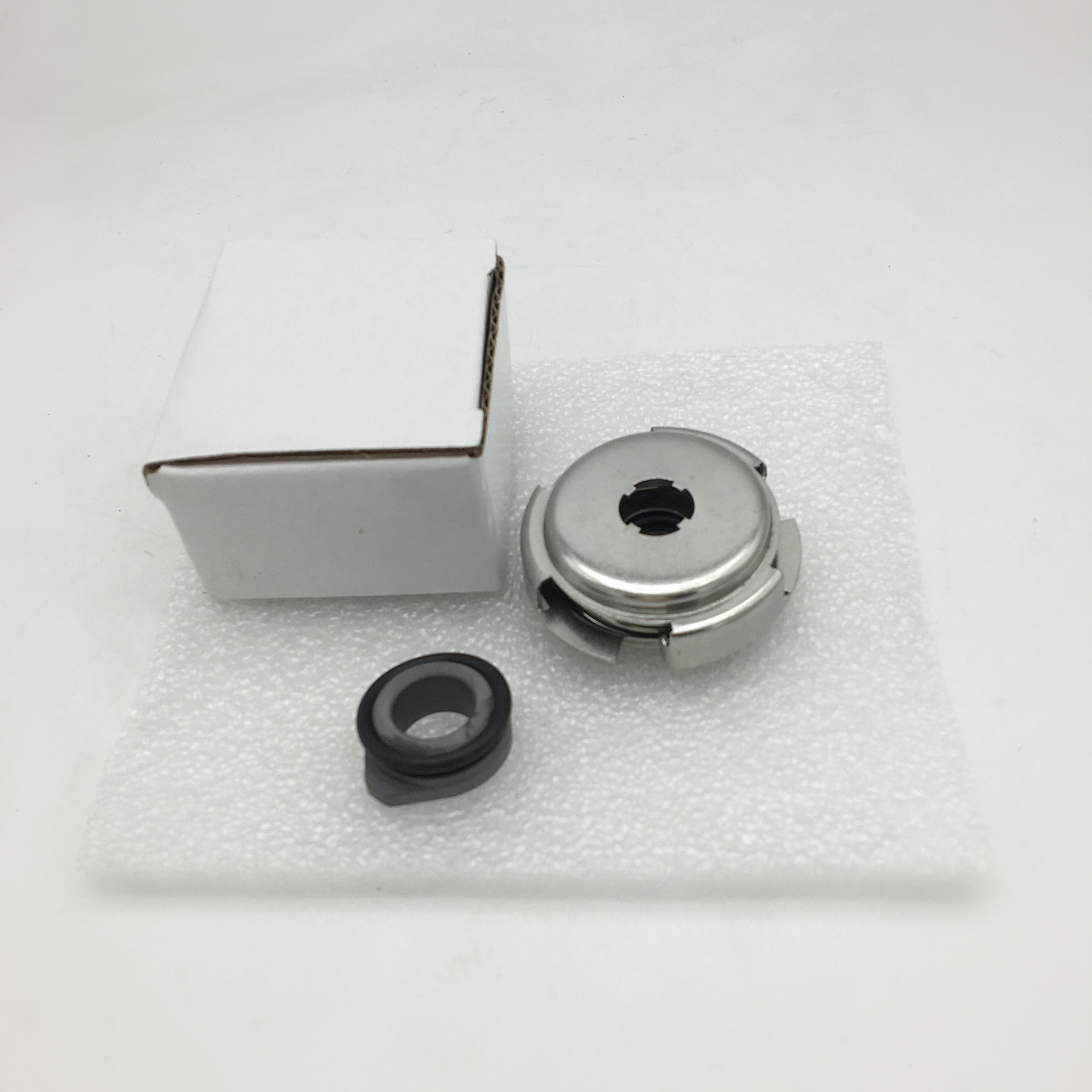

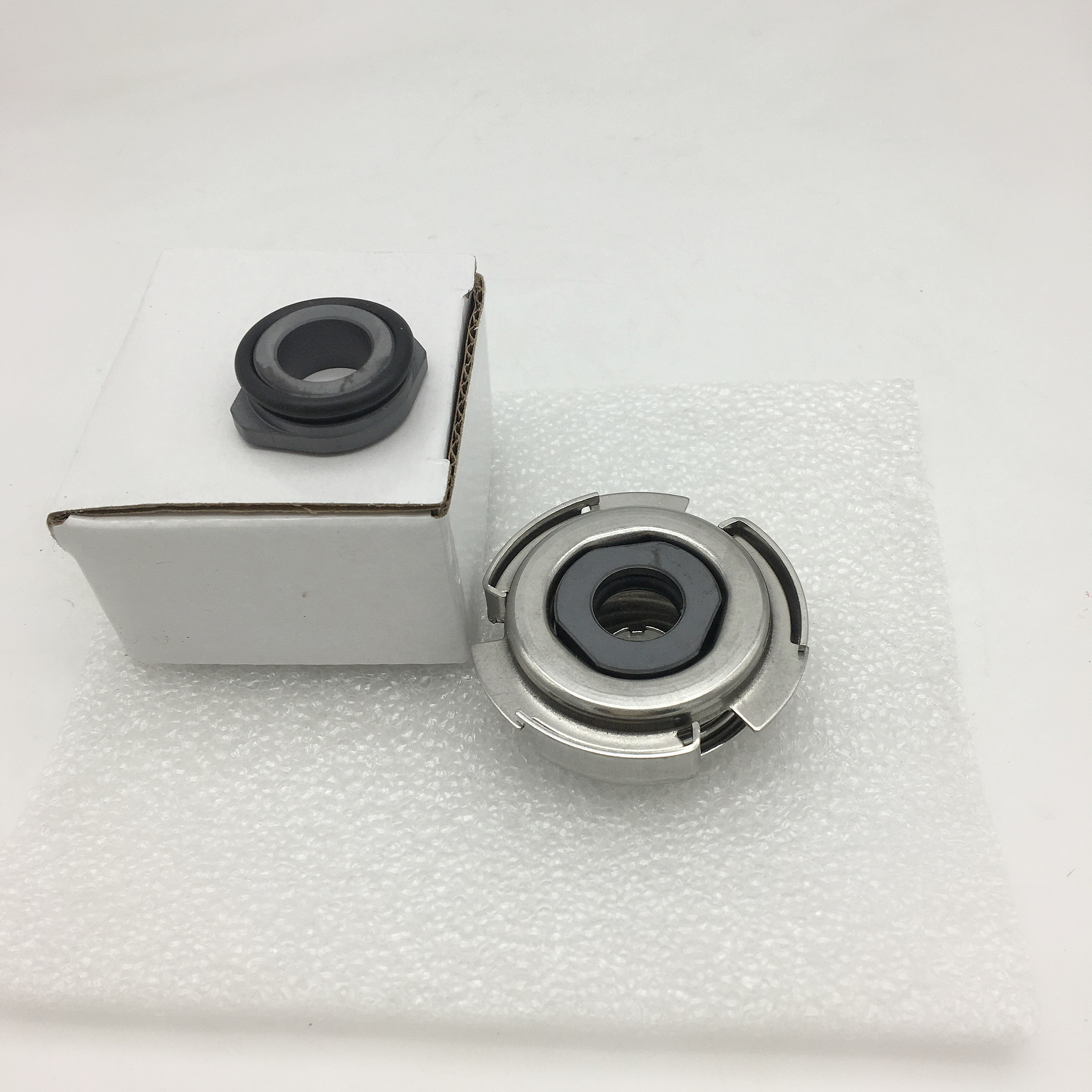

High quality mechanical seal for water pumps G05-12
mechanical seal grundfos
roten mechanical seal
|
Seal Type
|
GLF-05series
|
|
Shaft size
|
12mm , 16mm,
|
|
Temperature
|
-30 degree to 200 degree,dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
Face
|
SIC,TC
|
|
Seat
|
Carbon ,Sic,TC
|
|
Elastomer
|
NBR,EPDM,V
|
|
Spring
|
SS304
|
|
Metal parts
|
SS304
|
|
Type
|
Rotary Ring
|
Stationary Ring(Seat)
|
Elastomers (Rubber)
|
Remark
|
|
Carbon-Ceramic-NBR
(CA/CE/NBR)
|
Carbon
|
Ceramic
|
NBR
|
CE: Ceramic
CA: Carbon
Sic: Silicon carbide
TC: Tungsten carbide
NBR: Nitrile Butadiene
V:Viton
EP: EPDM
MVQ/VMQ: Silica gel
|
|
SIC/SIC/VITON
(S/S/V)
|
Silicon Carbide
|
Silicon Carbide
|
Viton
|
|
|
Carbon-Sic-Viton
(CA/S/V)
|
Carbon
|
Silicon Carbide
|
Viton
|
|
|
Sic-Sic-NBR
(S/S/NBR)
|
Silicon Carbide
|
Silicon Carbide
|
NBR
|
|
|
Sic-Sic-EPDM
(S/S/EP)
|
Silicon Carbide
|
Silicon Carbide
|
EPDM
|
|
|
Sic-Sic-MVQ
(S/S/MVQ)
|
Silicon Carbide
|
Silicon Carbide
|
Silica gel
|
|
|
TC-TC-Viton
(TC/TC/V)
|
Tungsten Carbide
|
Tungsten Carbide
|
Viton
|
