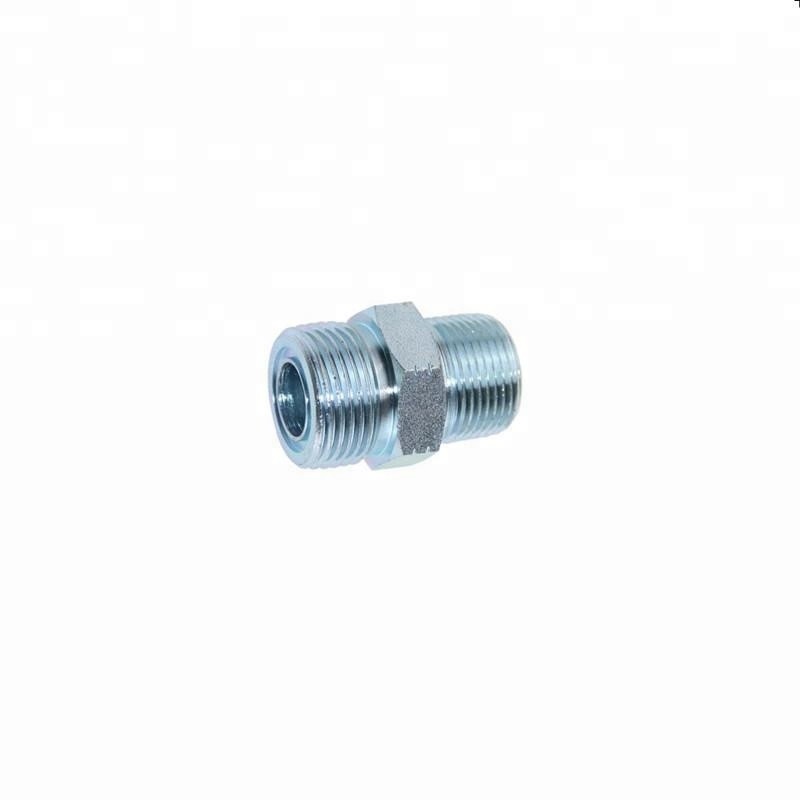

Hydraulic Orfs Nipple 1/4" O Ring Adapter

Basic Information
Place of Origin: China
Brand Name: Yade
Model Number: 1F-04
Minimum Order Quantity: 100 Pieces
Price: be negotiation
Type: Nipple Material: Carbon Steel
Technics: Forged Connection: Male
Shape: Equal Head Code: Hexagon
Product Name: Orfs Male O-Ring Adapter Hydraulic Nipple (1F) Keywords: Hydraulic Adapter(1F)
Thread: ORFS Thread Application: Water,Oil ,Gas
Size: 1/4"-2" Selling Units: Single Item
Single Package Size : 25X22X12 Cm Single Gross Weight: 0.030 Kg
Package Type: Neutral Package: Carton Box+pallet+plywood Case
High Light:

hydraulic adapter fittings

,

hydraulic fittings and adapters

Product Description

 Orfs Male O-Ring Adapter Hydraulic Nipple (1F) <

Item No.: Thread O-RING Dimension
E F E END F END A B L S1
1F-04 9/16"*18 9/16"*18 7.65*1.78 7.65*1.78 9.8 9.8 27.5 17
1F-04-06 9/16"*18 11/16"*16 7.65*1.78 9.25*1.78 9.8 11.2 29.7 19
1F-04-08 9/16"*18 13/16"*16 7.65*1.78 12.42*1.78 9.8 12.8 32.5 22
1F-04-10 9/16"*18 1"*14 7.65*1.78 15.6*1.78 9.8 15.5 37 27
1F-04-12 9/16"*18 1.3/16"*12 7.65*1.78 18.77*0.78 9.8 17 40 32
1F-06 11/16"*16 11/16"*16 9.25*1.78 9.25*1.78 11.2 11.2 31.1 19
1F-06-08 11/16"*16 13/16"*16 9.25*1.78 12.42*1.78 11.2 12.8 33.8 22
1F-06-10 11/16"*16 1"*14 9.25*1.78 18.77*0.78 11.2 15.5 38.5 27
1F-06-12 11/16"*16 1.3/16"*12 9.25*1.78 12.42*1.78 11.2 17 41.3 32
1F-08 13/16"*16 13/16"*16 12.42*1.78 15.6*1.78 12.8 12.8 35.4 22
1F-08-10 13/16"*16 1"*14 12.42*1.78 18.77*0.78 12.8 15.5 40 27
1F-08-12 13/16"*16 1.3/16"*12 12.42*1.78 23.52*1.78 12.8 17 43 32
1F-08-16 13/16"*16 1.7/16"*12 12.42*1.78 15.6*1.78 12.8 17.5 44.5 38
1F-10 1"*14 1"*14 15.6*1.78 18.77*0.78 15.5 15.5 42.5 27

Hydraulic Orfs Nipple 1/4" O Ring Adapter 0Hydraulic Orfs Nipple 1/4" O Ring Adapter 1Hydraulic Orfs Nipple 1/4" O Ring Adapter 2Hydraulic Orfs Nipple 1/4" O Ring Adapter 3

Company Information



Orfs Male O-Ring Adapter Hydraulic Nipple (1F)---Our Factory is specialized in makingHydraulic Fittings, Hydraulic Hose Fittings, Hose Fititngs, Hydraulic Adapters, Hydraulic Adaptors and so on.



1) FERRULE



  FERRULE  for SAE100R1AT/EN 853 1SN HOSE

  FERRULE  for SAE100R1A EN 853 1ST HOSE

  FERRULE  for SAE100R2AT/DIN20022 2SN HOSE

  FERRULE  for SAE100R2A/EN853 2SN  HOSE

  FERRULE  for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC

  FERRULE  for 4SP, 4SH/10-16, R12/06-16 HOSE

  FERRULE  for 4SH, R12/32 HOSE





2) SWAGED METRIC FITTINGS

  Metric Flat Seal Fittings       Metric Multiseal Fittings

  Metric  60°Cone Seal Fittings     Metric  74°Cone Seal Fittings

  Metric 24°Cone O-RING Seal L..T. Fittings    Metric 24°Cone O-RING Seal H.T. Fittings

  Metric Standpipe Straight Fittings   JIS Metric 60°Cone Seal Fittings





3) SWAGED BRITISH FITTINGS

  BSP O-RING Seal Fittings     BSP Flat Seal Fittings

  BSP Multiseal Fittings         BSP 60°Cone Seal Fittings

  BSPT Fittings           JIS BSP 60°Cone Seal Fittings





4) SWAGED AMERICAN FITTINGS

  SAE O-RING Seal Fittings     ORFS Flat Seal Fittings

  NPSM 60°Cone Seal Fittings   JIC 74°Cone Seal Fittings

  NPT Fittings     SAE Flange L.T. Fittings     SAE  Flange  H.T. Fittings





5) STAPLELOK FITTINGS

  BANJO   DOUBLE CONNECTION      INTERLOCK  HOSE FITTINGS





6) METRIC ADAPTERS

   Metric Thread O-RING Face Seal  Adapters

   Metric Thread Bite Type Tube Adapters

   Metric Thread  74°Cone Flared Tube Adapters

   JIS Metric Thread 60°Cone Adapters





7) BRITISH ADAPTERS



    BSP Thread 60°Cone Adapters

   JIS BSP Thread 60°Cone Adapters

   BSPT  Thread  Adapters





8) AMERICAN ADAPTERS



   ORFS ADAPTERS    JIC  74°Cone Flared Tube Adapters

   NPT  Thread Adapters





9) OTHER ADAPTERS

 Hydraulic Orfs Nipple 1/4" O Ring Adapter 4Hydraulic Orfs Nipple 1/4" O Ring Adapter 5Hydraulic Orfs Nipple 1/4" O Ring Adapter 6Hydraulic Orfs Nipple 1/4" O Ring Adapter 7

Packaging Details Package of HYDRAULIC HOSE FITTINGS:carton boxes and plywood case

Delivery Time We delivery HYDRAULIC HOSE FITTINGS within 10 days

Our Services



Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.


1. Material checking: strictly control of material using, meet international requested standards;


2. semi-finished products inspection: product inspection before 100% finished ;


3. production line test: with work team or data engineer who will inspect machines and lines at fixed period.


4. finished product inspection: quality and property test before products are plated zinc, packed and loaded.


Shipping & Service:
1. Orders will be dispatched around in 30 days after payment, depending on quantities.


2. We Always choose the most economical and reliable shipping company to make sure you receive the goods in time.


3. The tracking number will be provided to you once the consignment is shipped


4. Professional customer service to answer your questions or fix problems regarding your order.Hydraulic Orfs Nipple 1/4" O Ring Adapter 8Hydraulic Orfs Nipple 1/4" O Ring Adapter 9Hydraulic Orfs Nipple 1/4" O Ring Adapter 10Hydraulic Orfs Nipple 1/4" O Ring Adapter 11

FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
